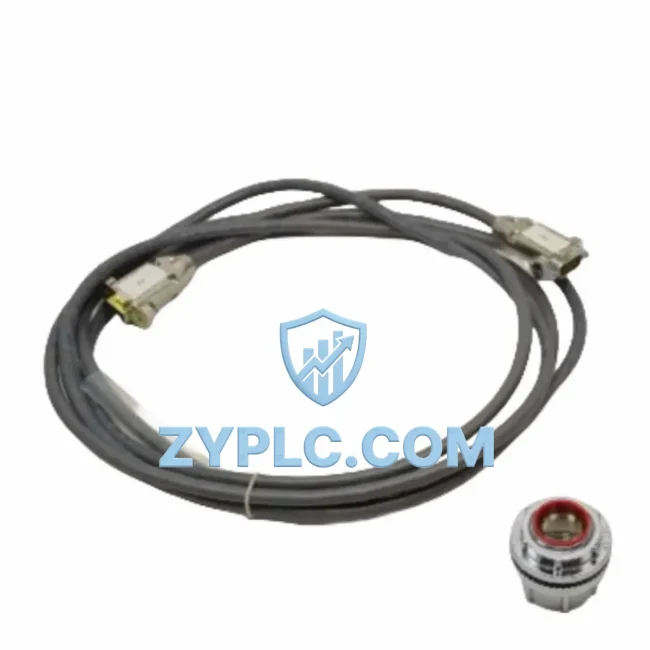

Bently Nevada 136634-0010-01 System-Ready Extension Cable for 3500 Series Architecture

Bently Nevada 136634-0010-01 System-Ready Extension Cable for 3500 Series Architecture

The Bently Nevada 136634-0010-01 is a precision-engineered extension cable designed to serve as a critical signal transmission component within the Bently Nevada 3500 Series machinery protection and condition monitoring architecture. In modern industrial automation environments — spanning power generation, petrochemical processing, oil and gas, and heavy manufacturing — the integrity of the signal path between a proximity probe and its monitoring module is not a peripheral concern; it is foundational to system reliability. This extension cable is engineered to maintain that integrity across the full signal chain, from the transducer at the machine casing to the 3500 rack-mounted monitor modules that process, evaluate, and alarm on vibration data in real time.

Within the layered architecture of a Bently Nevada 3500 system, the 136634-0010-01 occupies the transducer-to-monitor signal layer — the I/O layer that bridges field-mounted sensors with the rack-level processing infrastructure. The 3500 Series rack, typically housing modules such as the 3500/22M Transient Data Interface, the 3500/42M Proximitor/Seismic Monitor, and the 3500/92 Communication Gateway, depends on consistent, low-noise signal delivery from each connected proximity probe. The 136634-0010-01 extension cable ensures that the electrical characteristics of the probe signal — including the DC gap voltage, dynamic AC vibration signal, and overall system impedance — are preserved without degradation across the cable run length.

System architects specifying this cable must consider its role in the broader context of the 3500 rack’s redundancy and availability design. In dual-voting or 2-out-of-3 voting configurations, where multiple probes monitor the same measurement plane, each extension cable must perform identically to prevent false trips or missed alarms. The 136634-0010-01 is manufactured to Bently Nevada’s exacting tolerances, ensuring that it integrates without impedance mismatch into systems also utilizing the 3300 XL 8mm Proximity Transducer System, the 330130 Proximity Transducer, or the 330180 Proximity Transducer, all of which are commonly deployed alongside 3500 Series monitors in turbine, compressor, and pump protection applications.

Architecture Specification Table

Coordinated Control System Design

The 136634-0010-01 extension cable does not function in isolation — it is one element in a tightly coordinated signal chain that spans multiple system layers. At the field level, proximity probes such as the Bently Nevada 330130-080-00-00 or 330180-X1-000 are mounted radially and axially on rotating machinery shafts. These probes connect via the 136634-0010-01 extension cable to the proximitor driver, which conditions the raw eddy-current signal before it enters the 3500 rack.

Inside the 3500 rack, the conditioned signal is received by monitor modules such as the 3500/42M Proximitor/Seismic Monitor or the 3500/40M Proximitor/Seismic Monitor, which perform real-time vibration analysis, gap measurement, and alarm evaluation. The rack itself is powered by redundant power supply modules — typically the 3500/15 Power Supply — ensuring that no single power failure interrupts monitoring continuity. The 3500/20 Rack Interface Module manages communication between the rack and the plant DCS or SCADA system, often via the 3500/92 Communication Gateway, which supports Modbus, Ethernet, and other industrial protocols.

For plants operating with a System 1 condition monitoring platform, the data collected through this signal chain — originating at the probe tip and transmitted through the 136634-0010-01 — feeds into trend analysis, alarm management, and predictive maintenance workflows. In redundant architectures, a secondary 3500 rack may mirror the primary, with both racks receiving signals from the same probe set through matched extension cables, ensuring that a single cable fault does not compromise the protection system’s voting logic. The 3500/01 Rack and associated backplane modules provide the physical infrastructure for this redundant configuration.

Maintenance engineers replacing extension cables in an operating plant must ensure that the replacement cable — the 136634-0010-01 — matches the original cable’s length and electrical specification precisely. Substituting a cable of different impedance or length will shift the DC gap voltage reading at the monitor module, potentially triggering nuisance alarms or, worse, masking a genuine machinery fault. This is why specifying the exact Bently Nevada part number is essential for long-term system integrity and audit compliance.

Application in Layered Automation Systems

The 136634-0010-01 extension cable finds application across a wide range of heavy industrial sectors where rotating machinery protection is critical to operational continuity and personnel safety.

In power generation facilities — including gas turbine plants, steam turbine stations, and combined-cycle power plants — the 3500 Series system is the de facto standard for turbine shaft vibration monitoring. The extension cable connects shaft proximity probes to the 3500 rack, providing the continuous vibration data that operators rely on to detect rotor imbalance, bearing wear, and shaft misalignment before they escalate to catastrophic failure.

In petrochemical and oil and gas processing, centrifugal compressors and high-speed pumps are monitored using 3500 Series systems in API 670-compliant configurations. The 136634-0010-01 is specified in these installations to meet the cable routing and signal integrity requirements of API 670, which governs machinery protection systems for critical rotating equipment in the hydrocarbon processing industry.

In mining and metallurgy, large grinding mills, crushers, and conveyor drive systems increasingly incorporate condition monitoring infrastructure. The 3500 Series, with its modular rack design and robust signal chain — including extension cables like the 136634-0010-01 — provides the reliability required in these harsh, high-vibration environments.

In water and wastewater treatment plants, large pump stations and blower systems benefit from continuous vibration monitoring to reduce unplanned downtime. The 136634-0010-01 supports these applications by maintaining signal fidelity in installations where cable runs may pass through wet or chemically aggressive environments.

Across all these sectors, the common requirement is a cable that delivers consistent, repeatable signal performance over years of continuous operation — a requirement the 136634-0010-01 is designed to meet, backed by a 12-Month Warranty and full Contextual Integration support within the 3500 Series architecture.

Architecture Engineering FAQ

Q1: Is the 136634-0010-01 compatible with all 3500 Series monitor modules, and can it be used in redundant monitoring architectures?
A: The 136634-0010-01 is designed for use within the Bently Nevada 3500 Series Machinery Protection System and is compatible with monitor modules including the 3500/42M, 3500/40M, and 3500/22M, provided the overall transducer system — probe, extension cable, and proximitor — is matched to the correct driver and cable length specification. In redundant architectures, both primary and secondary signal paths should use identical extension cables to ensure matched impedance and consistent gap voltage readings across both monitoring channels. Mixing cable lengths or part numbers in a redundant pair can introduce measurement asymmetry that compromises the system’s voting logic.

Q2: What installation and commissioning checks are required when replacing the 136634-0010-01 in a live plant environment?
A: When replacing the extension cable in an operating plant, engineers should first verify that the replacement cable’s part number, length, and impedance specification match the original. After installation, the DC gap voltage at the monitor module should be measured and compared against the baseline value recorded during initial commissioning. Any deviation greater than the monitor’s alarm setpoint tolerance should be investigated before returning the channel to service. Cable connectors should be inspected for corrosion, mechanical damage, and proper seating, and all cable routing should be checked to ensure separation from high-voltage power cables that could induce electrical noise into the proximity signal.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term spare parts availability for the 136634-0010-01?
A: The 136634-0010-01 supplied by ZYPLC is covered by a 12-Month Warranty against manufacturing defects and functional failure under normal operating conditions. ZYPLC maintains stock of critical Bently Nevada 3500 Series components — including extension cables, proximity probes, monitor modules, and power supplies — to support both planned maintenance programs and emergency replacement requirements. For plants operating under long-term service agreements or API 670 compliance frameworks, ZYPLC can provide documentation support, traceability records, and expedited shipping to minimize machinery downtime. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 to confirm availability and lead times.
