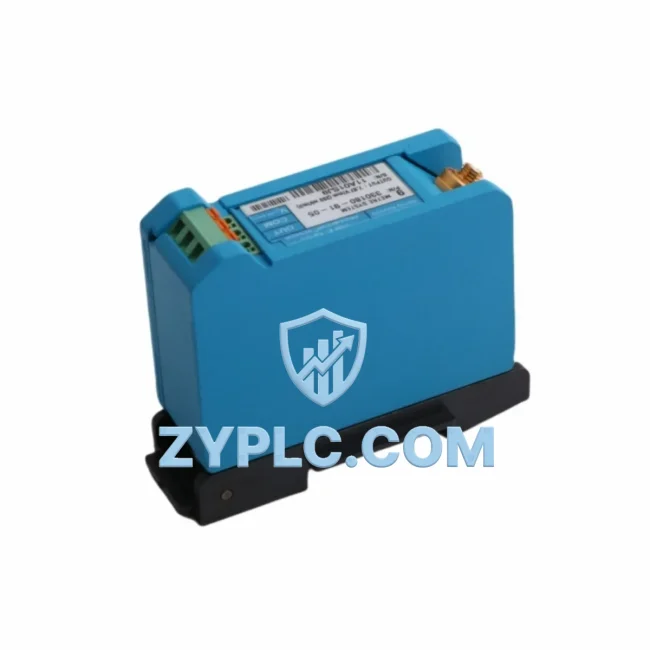

Bently Nevada 138493-01 Energy-Saving Proximity Transducer 3300 XL

Bently Nevada 138493-01 Energy-Saving Proximity Transducer for 3300 XL Automation

The Bently Nevada 138493-01 is a high-precision eddy-current proximity transducer engineered for the 3300 XL continuous monitoring system. In modern industrial facilities where energy efficiency and equipment uptime are directly tied to profitability, this transducer plays a critical role in reducing unnecessary energy consumption, preventing unplanned downtime, and enabling data-driven maintenance decisions. By delivering accurate, real-time shaft displacement and vibration data, the 138493-01 allows plant engineers to keep rotating machinery operating within optimal efficiency bands — eliminating the energy waste caused by mechanical imbalance, misalignment, and bearing degradation.

Unlike passive monitoring approaches, the 138493-01 integrates seamlessly into a closed-loop control architecture. When paired with the Bently Nevada 3300 XL 8-mm Extension Cable and a compatible 3300 XL Proximitor Sensor, the system continuously feeds shaft position data into the plant’s control layer. This data is consumed by the System 1 Condition Monitoring Software, which correlates vibration trends with process variables to identify efficiency losses before they escalate into failures. The result is a measurable reduction in reactive maintenance costs and a significant improvement in overall equipment effectiveness (OEE).

Efficiency Performance Table

Energy-Aware Automation Architecture

The 138493-01 is not a standalone component — it is the sensing foundation of an energy-aware rotating machinery protection architecture. In a typical high-efficiency plant configuration, the transducer probe is mounted radially against the shaft and connected via a matched Bently Nevada 3300 XL Armored Extension Cable to a 3300 XL Proximitor Sensor (such as the 330180-91-05), which conditions the raw eddy-current signal into a calibrated DC voltage proportional to gap distance.

This conditioned signal feeds into a Bently Nevada 3500/42M Proximitor/Seismic Monitor rack module, which performs real-time threshold comparison and triggers alarms or shutdowns when vibration or position exceeds safe limits. The 3500 rack communicates over Modbus TCP or FOUNDATION Fieldbus to the plant’s distributed control system (DCS) or SCADA layer, enabling the control system to modulate drive output accordingly. In variable-speed drive applications, this feedback loop allows the ABB ACS880 series VFD or a Siemens SINAMICS G120 frequency inverter to reduce motor speed during low-load periods — directly cutting energy consumption without sacrificing process stability.

For facilities running Allen-Bradley ControlLogix PLCs or Siemens S7-1500 controllers, the vibration data from the 138493-01 system can be integrated via EtherNet/IP or PROFINET into the main automation backbone. This allows the PLC to execute energy-optimized sequencing logic — for example, staggering motor startups to avoid peak demand charges, or automatically reducing conveyor speed during low-throughput windows. The Bently Nevada TDXnet Data Acquisition Module further extends this capability by enabling high-speed waveform capture for spectral analysis, giving maintenance teams the data they need to schedule interventions before efficiency losses compound.

On the power monitoring side, integrating the 138493-01 system with a Schneider Electric PowerLogic ION7650 power meter or a Siemens SENTRON PAC3200 energy meter creates a complete energy accountability loop: vibration anomalies detected by the transducer can be correlated with real-time power draw data, making it possible to quantify exactly how much energy a developing bearing fault or rotor imbalance is costing the facility per hour.

Power Optimization in Real Production Lines

In continuous process industries — petrochemical plants, power generation facilities, pulp and paper mills, and large-scale HVAC systems — rotating machinery accounts for 60–70% of total electrical energy consumption. A single misaligned pump shaft operating at 1% above its optimal vibration threshold can increase motor energy draw by 3–8%, depending on load profile and fluid viscosity. Multiplied across dozens of assets running 8,000 hours per year, this represents a substantial and largely invisible energy cost.

The Bently Nevada 138493-01 addresses this directly. By providing continuous, high-resolution shaft displacement data, it enables the plant’s condition monitoring system to detect the earliest signs of mechanical degradation — before vibration levels reach the point where energy waste becomes significant. Maintenance teams using System 1 Condition Monitoring Software can set efficiency-based alert thresholds, not just protection thresholds, triggering work orders when vibration trends indicate a 2–3% efficiency loss rather than waiting for a trip event.

In motor-driven compressor applications, this approach has demonstrated measurable results: facilities that implement continuous proximity monitoring with the 3300 XL system report reductions in unplanned downtime of 30–50%, with corresponding improvements in production line throughput and energy cost per unit of output. The 138493-01’s low-mass, non-contact measurement principle also means it introduces no mechanical load on the shaft — unlike contact-based measurement methods — preserving the mechanical efficiency of the monitored asset throughout its service life.

From a maintenance cost perspective, the 138493-01 supports a shift from time-based to condition-based maintenance scheduling. Rather than replacing bearings, seals, and couplings on fixed intervals — many of which are still serviceable — maintenance resources are directed only where the data indicates actual degradation. This reduces both direct maintenance expenditure and the secondary energy costs associated with post-maintenance run-in periods, where machinery typically operates at reduced efficiency until components seat properly.

Every unit supplied by ZYPLC is fully tested against Bently Nevada factory specifications prior to shipment, with a 12-month warranty covering defects in materials and workmanship. In-stock units ship within 1–3 business days, minimizing production disruption during emergency replacement scenarios.

Energy Optimization FAQ

Q1: How does the 138493-01 contribute to measurable energy savings on the production line?
The 138493-01 enables early detection of mechanical faults — imbalance, misalignment, bearing wear — that cause motors to draw excess current. By identifying these conditions before they worsen, plant operators can correct them during scheduled maintenance windows, keeping motors operating at their design efficiency point and avoiding the compounding energy penalty of degraded mechanical conditions.

Q2: Is the 138493-01 compatible with my existing 3300 XL monitoring system and third-party PLCs?
Yes. The 138493-01 is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor ecosystem and the 3500 series rack monitors. The analog output from the Proximitor integrates with any DCS, SCADA, or PLC platform that accepts a standard DC voltage input, including Allen-Bradley ControlLogix, Siemens S7-1500, and Honeywell Experion systems. Digital integration via Modbus TCP or FOUNDATION Fieldbus is supported through the 3500 rack communication modules.

Q3: What is the recommended replacement procedure, and how do I verify the new transducer is performing correctly?
Replacement involves removing the existing probe from its mounting bracket, installing the 138493-01 at the correct gap distance (typically 1.0 mm for 8-mm probes), and verifying the Proximitor output voltage falls within the linear range specified in the calibration sheet. ZYPLC provides a pre-shipment test report for each unit. After installation, a baseline vibration spectrum should be captured using System 1 or a portable data collector to confirm the new transducer is reading within expected parameters before returning the machine to service.

Q4: What does the 12-month warranty cover, and what is the process for warranty claims?
The 12-month warranty covers all defects in materials and workmanship under normal operating conditions. It does not cover damage resulting from improper installation, operation outside specified environmental limits, or physical damage in transit. To initiate a warranty claim, contact ZYPLC at plc.sales@zyplc.com or call +86 19859288691 with your order number and a description of the fault. Replacement units are dispatched from stock upon claim verification.
