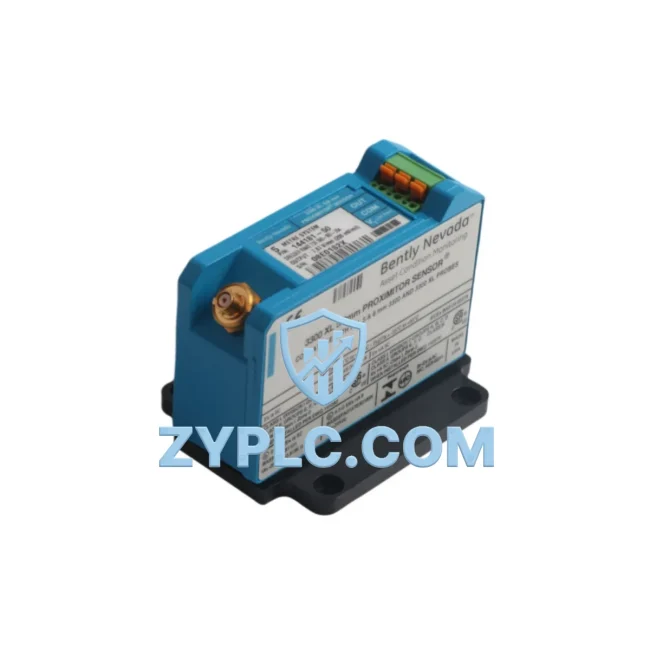

Bently Nevada 144181-50-05 System-Ready Proximity Transducer for 3500 Architecture

Bently Nevada 144181-50-05 System-Ready Proximity Transducer for 3500 Architecture: Control System Architecture and Upstream-Downstream Coordination

In modern industrial automation and machinery protection environments, the integrity of a vibration monitoring system depends not on any single component, but on the seamless coordination of every layer within the control architecture. The Bently Nevada 144181-50-05 proximity transducer is engineered as a system-ready sensing element designed to integrate directly into the Bently Nevada 3500 Series machinery protection platform, delivering continuous, high-fidelity shaft displacement and vibration data to the control and monitoring layers above it.

This transducer operates as the foundational sensing node in a layered automation hierarchy. Its eddy-current operating principle provides non-contact, wear-free measurement of radial shaft vibration, axial position, and differential expansion — critical parameters for rotating machinery such as steam turbines, gas compressors, centrifugal pumps, and large electric motors. When deployed within a 3500 rack system, the 144181-50-05 works in concert with the 3500/42M Proximitor I/O Module, which conditions the raw transducer signal into calibrated engineering units before passing data upstream to the 3500/22M Transient Data Interface or the 3500/92 Communication Gateway for integration with plant-level DCS and SCADA systems.

The transducer’s 5-meter armored cable and standard TNC connector ensure reliable signal transmission even in high-vibration, high-temperature industrial enclosures. Its -24 VDC bias voltage output is fully compatible with the Bently Nevada 3500 rack’s internal power distribution architecture, eliminating the need for external signal conditioning and reducing overall panel wiring complexity.

Architecture Specification Table

Coordinated Control System Design

The 144181-50-05 proximity transducer does not function in isolation — its value is realized only when it is properly embedded within a complete machinery protection and condition monitoring architecture. In a typical 3500 Series installation, the transducer is paired with the Bently Nevada 3300 XL 8mm Proximitor Sensor extension cable system, which routes the signal from the bearing housing to the I/O module mounted in the 3500 rack. The 3500/42M Proximitor I/O Module receives this signal, applies gap voltage verification, and outputs calibrated vibration and position data to the 3500/20 Rack Interface Module.

At the control layer, the 3500/92 Communication Gateway bridges the machinery protection system to plant-level networks using Modbus TCP or OPC-DA protocols, enabling the DCS — such as a Honeywell Experion PKS or Emerson DeltaV system — to receive real-time vibration alarms and trip signals. For facilities requiring redundant monitoring, dual 144181-50-05 transducers can be installed at 90° intervals on the same shaft journal, with each channel feeding an independent I/O slot in the 3500 rack to achieve full voting logic (2-out-of-2 or 2-out-of-3 configurations).

The 3500/05 Power Supply Module provides the regulated -24 VDC required by the transducer system, and its redundant power input design ensures that a single power feed failure does not interrupt vibration monitoring continuity. At the human-machine interface layer, the System 1 Evolution software platform aggregates transducer data from multiple 3500 racks across a facility, enabling trend analysis, alarm management, and predictive maintenance scheduling from a centralized engineering workstation.

For facilities integrating the 3500 system into a broader safety instrumented system (SIS), the 3500/33 16-Channel Relay Output Module provides hardwired trip outputs that can be wired directly to turbine trip solenoids or compressor anti-surge valve actuators, completing the signal chain from the 144181-50-05 sensing node through to the final control element.

Application in Layered Automation Systems

The Bently Nevada 144181-50-05 proximity transducer finds application across a wide range of process industries where rotating machinery reliability is critical to production continuity and personnel safety.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the transducer monitors shaft vibration on steam turbine-generator sets, providing early warning of rotor imbalance, bearing wear, and misalignment before these conditions escalate to forced outages. The transducer’s wide frequency response (DC to 10,000 Hz) captures both low-frequency subsynchronous instability and high-frequency blade-passing events within a single measurement channel.

In petrochemical and refinery environments, the 144181-50-05 is deployed on centrifugal compressors, reactor charge pumps, and crude oil transfer pumps operating in hazardous area classifications. Its robust armored cable construction and high-temperature probe tip rating make it suitable for installation in close proximity to hot process piping and high-pressure equipment.

In water and wastewater treatment plants, the transducer monitors large vertical turbine pumps and blower units, where bearing failure can result in extended service interruptions. The non-contact measurement principle eliminates the mechanical wear associated with contact-type vibration sensors, reducing maintenance intervention frequency and extending sensor service life.

In mining and mineral processing operations, the transducer is applied to SAG mill pinion bearings, slurry pump drive trains, and conveyor drive gearboxes, where continuous vibration monitoring enables condition-based maintenance scheduling and reduces unplanned downtime in remote or difficult-to-access installations.

In metallurgical and steel mill applications, the 144181-50-05 monitors rolling mill drive motors, continuous caster pinch rolls, and blast furnace blower trains, providing the real-time shaft position data required to maintain product dimensional tolerances and prevent catastrophic bearing failures in high-load, high-cycle machinery.

Architecture Engineering FAQ

Q1: Is the Bently Nevada 144181-50-05 directly compatible with existing 3500 Series racks without additional interface modules?
The 144181-50-05 proximity transducer requires a compatible Proximitor I/O module — specifically the 3500/42M or equivalent — to condition its analog output signal for use within the 3500 rack architecture. The transducer itself connects to the Proximitor via its TNC-terminated cable, and the Proximitor module handles gap voltage supply, signal conditioning, and alarm setpoint processing. No additional external signal conditioners are required when the correct I/O module is installed in the rack.

Q2: Can the 144181-50-05 be used in a redundant monitoring architecture, and what configuration is recommended for critical machinery?
Yes. For critical rotating machinery such as main steam turbines or high-pressure compressors, dual-transducer redundant configurations are standard practice. Two 144181-50-05 units are installed at 90° apart on the same shaft journal, each connected to an independent I/O channel in the 3500 rack. This arrangement supports 2-out-of-2 voting logic for trip decisions, eliminating single-point failures in the vibration monitoring chain. The 3500 rack’s modular architecture accommodates this configuration without requiring additional hardware beyond the standard I/O modules.

Q3: What does the 12-Month Warranty cover, and what support is available for system integration and commissioning?
The 12-Month Warranty covers the 144181-50-05 proximity transducer against defects in materials and workmanship under normal operating conditions. Each unit is tested and verified prior to shipment to confirm sensitivity, bias voltage output, and cable integrity. For system integration support — including gap setting procedures, sensitivity verification against the 3500/42M Proximitor, and alarm setpoint configuration — technical assistance is available through our engineering team. Contextual Integration guidance ensures the transducer is correctly commissioned within your specific 3500 rack configuration and machinery protection architecture.
