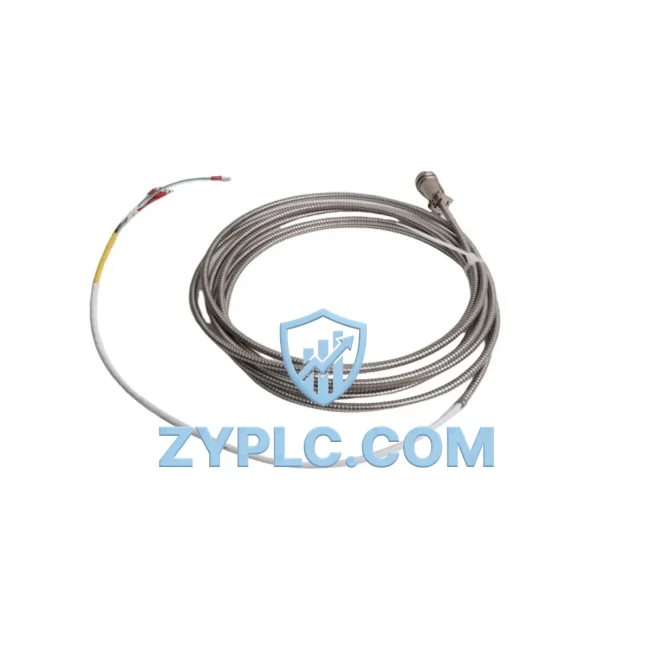

Bently Nevada 16710-16 System-Ready Vibration Connection Cable for 3500 Architecture

Bently Nevada 16710-16 System-Ready Vibration Connection Cable for 3500 Architecture

The Bently Nevada 16710-16 Vibration Connection Cable is a precision-engineered signal transmission component designed to operate as an integral element within the Bently Nevada 3500 Series machinery protection system architecture. Rather than functioning as a standalone accessory, the 16710-16 serves as the critical electrical bridge between field-mounted proximity probes and the 3500 rack-based monitoring modules, ensuring that raw vibration signals are delivered with full fidelity to the processing layer of the control system. In any layered automation environment — whether applied to rotating machinery in power generation, petrochemical processing, or heavy industrial manufacturing — the integrity of the signal path from sensor to monitor is non-negotiable. The 16710-16 is engineered to meet that requirement with consistent, repeatable performance across demanding installation environments.

Within the 3500 Series system hierarchy, the 16710-16 occupies the sensor-to-monitor interface layer, connecting eddy-current proximity probes to the 3500/40M, 3500/42M, or 3500/45 monitor modules housed within the 3500 rack. This cable is specifically designed to maintain the electrical characteristics required by Bently Nevada’s signal conditioning circuitry, preserving the -24 VDC bias voltage and the AC vibration signal superimposed upon it. Any degradation in cable shielding, impedance matching, or connector integrity at this layer directly compromises the accuracy of the vibration measurement chain — making the selection of a system-validated cable like the 16710-16 a critical engineering decision rather than a commodity procurement choice.

The 3500 Series rack architecture is built around modular redundancy and scalability. A typical installation includes the 3500/01 Rack Interface Module (RIM), the 3500/15 Power Supply Module (with optional redundant 3500/15-05-00-00 configuration), and a combination of monitor modules such as the 3500/40M Proximitor/Seismic Monitor, 3500/42M Proximitor/Seismic Monitor, 3500/45 Position Monitor, and 3500/50M Tachometer Module. The 16710-16 cable is the field-side interconnect that feeds these monitors with the raw proximity probe signals. When the system also incorporates the 3500/22M Transient Data Interface or the 3500/92 Communication Gateway Module for integration with plant DCS or SCADA platforms via Modbus or Ethernet, the accuracy of the data flowing through those communication layers is entirely dependent on the quality of the signal captured at the cable level. A compromised 16710-16 cable introduces noise, signal attenuation, or ground loops that propagate errors through every upstream layer of the architecture.

From a system architecture perspective, the 16710-16 supports the I/O layer of the Bently Nevada 3500 platform. The control layer — typically a DCS such as an Emerson DeltaV, Honeywell Experion, or ABB 800xA — receives processed vibration data from the 3500 rack via the 3500/92 gateway or hardwired relay outputs from individual monitor modules. The HMI layer, whether a dedicated Bently Nevada System 1 condition monitoring workstation or a plant-wide SCADA display, visualizes the vibration trends, alarm states, and historical data that originate from the probe-cable-monitor chain. The execution layer — the turbine, compressor, pump, or motor being monitored — generates the physical vibration that the entire system exists to measure. The 16710-16 is the first active link in that measurement chain, and its reliability directly determines the reliability of every downstream decision made by operators, engineers, and automated protection logic.

For installations requiring cable extensions or field junction configurations, the 16710-16 is compatible with Bently Nevada standard armored extension cable assemblies and field junction boxes, maintaining the shielding continuity and impedance characteristics required by the 3500 monitor modules. In high-vibration or high-temperature environments — such as gas turbine enclosures, steam turbine pedestals, or compressor trains in offshore platforms — the mechanical and thermal ratings of the cable must be verified against site conditions. The 16710-16 is designed to meet the environmental requirements typical of these applications, supporting long-term installation without signal degradation.

Inventory availability of the 16710-16 is maintained to support both new system commissioning and emergency replacement scenarios. In critical rotating machinery protection applications, cable failure is a maintenance event that cannot wait for extended lead times. ZYPLC maintains stock of the 16710-16 to support rapid dispatch for global customers, with all units covered by a 12-Month Warranty from the date of shipment. This warranty covers manufacturing defects in materials and workmanship, providing engineering teams and procurement managers with the assurance needed for both planned maintenance schedules and unplanned replacement events.

Architecture Specification Table

Coordinated Control System Design

The 16710-16 cable operates within a coordinated system that typically includes the following components working in concert: the 3500/01 Rack Interface Module provides the system backbone and communication arbitration; the 3500/15 Power Supply Module (with optional redundant pair) delivers the regulated -24 VDC required by the proximity probe circuit through the cable; the 3500/40M Proximitor/Seismic Monitor and 3500/42M Proximitor/Seismic Monitor receive the conditioned vibration signal from the 16710-16 and apply alarm and danger setpoint logic; the 3500/45 Position Monitor handles axial position signals from thrust probes using the same cable family; the 3500/50M Tachometer Module processes speed signals from keyphasor probes, also routed through compatible Bently Nevada cable assemblies; the 3500/22M Transient Data Interface captures high-resolution waveform data for machinery diagnostics; and the 3500/92 Communication Gateway Module transmits processed data to plant DCS and SCADA systems. At the field level, Bently Nevada 3300 XL 8mm Proximity Transducer Systems — comprising probe, extension cable, and Proximitor sensor — connect to the 16710-16 to complete the measurement chain. The entire architecture depends on the signal integrity maintained by the 16710-16 at the I/O layer boundary.

Application in Layered Automation Systems

The Bently Nevada 16710-16 finds application across a wide range of process industries where rotating machinery protection is critical to operational continuity and safety. In power generation — including gas turbines, steam turbines, and hydro generators — the 3500 Series system with 16710-16 cables provides the continuous vibration monitoring required by API 670 and plant safety instrumented systems. In petrochemical and refinery environments, the cable supports monitoring of centrifugal compressors, pumps, and expanders in hazardous area installations, where signal integrity and cable shielding are essential for accurate machinery health assessment. In LNG and offshore platforms, the 16710-16 is deployed in compact machinery protection panels where space constraints and vibration exposure demand a reliable, compact cable solution. In mining and minerals processing, large grinding mills, crushers, and conveyor drive systems benefit from the 3500 architecture’s ability to detect early-stage bearing and shaft vibration anomalies, with the 16710-16 providing the field-side signal path. In water and wastewater treatment, pump and blower monitoring systems use the 3500 platform to prevent unplanned outages in critical infrastructure. Across all these applications, the 16710-16 cable is the consistent, system-validated interconnect that ensures the measurement chain performs to specification from commissioning through the full operational lifecycle of the machinery.

Architecture Engineering FAQ

Q1: Is the Bently Nevada 16710-16 compatible with all 3500 Series monitor modules?
The 16710-16 is designed for use with Bently Nevada 3500 Series proximity monitor modules, including the 3500/40M, 3500/42M, and 3500/45. Compatibility depends on the probe system being used — the cable must match the Proximitor sensor output characteristics (typically -24 VDC bias, BNC or equivalent connector). Always verify the complete probe-cable-Proximitor-monitor chain against the Bently Nevada system documentation for your specific application before installation.

Q2: Can the 16710-16 be used in hazardous area (Ex) installations?
The suitability of the 16710-16 for hazardous area installations depends on the area classification and the intrinsic safety or explosion-proof design of the associated Proximitor sensor and monitor module. Bently Nevada 3500 Series systems can be configured for hazardous area compliance using appropriate Proximitor sensors and barriers. Consult the Bently Nevada system documentation and your site area classification drawings to confirm the complete installation is compliant before deploying the 16710-16 in classified locations.

Q3: What does the 12-Month Warranty cover for the 16710-16, and how does ZYPLC support long-term maintenance?
The 12-Month Warranty covers manufacturing defects in materials and workmanship from the date of shipment. ZYPLC maintains inventory of the 16710-16 and related 3500 Series components to support both planned maintenance intervals and emergency replacement scenarios. For long-term maintenance programs, ZYPLC can assist with identifying compatible spare parts across the 3500 architecture — including monitor modules, power supplies, and rack components — to support a comprehensive spares strategy. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 for application-specific support.
