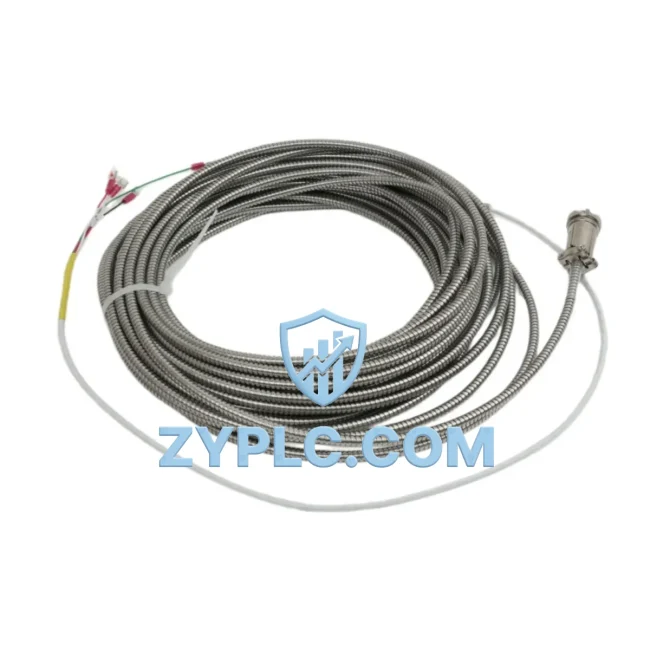

Bently Nevada 16710-82 System-Ready Interconnect Cable for 3500 Architecture

Bently Nevada 16710-82 System-Ready Interconnect Cable for 3500 Architecture

The Bently Nevada 16710-82 Interconnect Cable is a precision-engineered signal transmission component purpose-built for the Bently Nevada 3500 Series Machinery Protection System. Within a layered industrial automation architecture, this cable occupies a critical position at the signal acquisition layer — bridging field-mounted transducers and the 3500 rack-based monitoring modules that form the backbone of rotating machinery protection in power generation, petrochemical, oil and gas, and heavy manufacturing environments.

Unlike generic cabling solutions, the 16710-82 is designed to maintain signal integrity across the full dynamic range of the 3500 system’s measurement chain. It ensures that vibration, position, and speed signals originating from proximity probes, accelerometers, and velocity transducers are delivered to the 3500/22M Transient Data Interface or the 3500/42M Proximitor Seismic Monitor without attenuation, noise injection, or impedance mismatch — all of which can compromise alarm thresholds and trip setpoints in safety-critical applications.

In a complete Bently Nevada 3500 rack architecture, the 16710-82 operates in close coordination with the 3500/01 Rack Interface Module, the 3500/05 System Power Supply, and the 3500/15 I/O Module. The cable’s shielded construction and specified connector geometry are matched to the 3500 system’s input impedance requirements, ensuring that the monitoring rack receives clean, conditioned signals suitable for both continuous online monitoring and transient event capture. This level of signal fidelity is essential when the 3500/20 Rack Configuration Module is used to define alarm logic and relay output behavior for connected machinery trains.

From a system architecture perspective, the 16710-82 supports the contextual integration of field instrumentation into the broader plant control hierarchy. When the 3500 rack is networked via the 3500/92 Communication Gateway Module to a DCS or SCADA platform — such as a Honeywell Experion PKS, Emerson DeltaV, or Yokogawa CENTUM VP — the quality of the upstream signal path directly affects the reliability of process variables presented at the operator workstation. A compromised interconnect cable introduces measurement uncertainty that propagates through every layer of the control architecture, from the field device to the historian and alarm management system.

The 16710-82 is also relevant in redundant monitoring configurations. In applications where dual-voting or 2oo3 (two-out-of-three) trip logic is implemented using multiple 3500/40M Proximitor Monitor modules, consistent cable performance across all measurement channels is mandatory. Any variation in cable characteristics between redundant channels can introduce asymmetric signal delays or amplitude differences that degrade the integrity of the voting logic. The 16710-82’s controlled electrical specifications eliminate this risk, supporting the deterministic behavior required by functional safety standards such as IEC 61511 and API 670.

For maintenance engineers managing large rotating machinery fleets — including gas turbines, steam turbines, compressors, pumps, and fans — the 16710-82 represents a stocked spare component that directly supports mean-time-to-repair (MTTR) objectives. Having verified, system-compatible interconnect cables available in the maintenance inventory prevents extended outages caused by signal path failures that are often misdiagnosed as transducer or monitor faults. The cable’s compatibility with the 3500 system’s existing wiring infrastructure means replacement can be completed without reconfiguration of the 3500/01 Rack Interface Module or modification of the system’s Keyphasor wiring topology.

In process industries where continuous operation is a commercial and safety imperative, the 16710-82 contributes to overall system availability by eliminating a common point of failure in the measurement chain. Its use alongside the 3500/50M Tachometer Module, the 3500/60 Temperature Monitor, and the 3500/70M Recip Application Monitor ensures that all monitoring channels within a mixed-function 3500 rack maintain equivalent signal quality, simplifying system commissioning and periodic calibration verification.

Architecture Specification Table

Coordinated Control System Design

The 16710-82 Interconnect Cable achieves its full value when evaluated within the complete Bently Nevada 3500 system architecture rather than as a standalone component. At the rack level, the cable connects field transducers to monitor modules such as the 3500/42M Proximitor Seismic Monitor and the 3500/22M Transient Data Interface, which process raw vibration and position signals into engineering units for alarm evaluation. The 3500/01 Rack Interface Module governs overall rack communication and configuration, while the 3500/05 System Power Supply provides the regulated DC power required for both the rack electronics and the connected proximity probe drivers.

At the I/O layer, the 3500/15 I/O Module manages relay output routing for trip and alert signals, translating the monitor module’s alarm decisions into hardwired outputs to the machine’s emergency shutdown system. The 3500/20 Rack Configuration Module stores the system configuration — including channel assignments, alarm setpoints, and relay logic — ensuring that the signal delivered via the 16710-82 is processed against the correct engineering parameters.

For tachometer and speed measurement applications, the 3500/50M Tachometer Module relies on a clean Keyphasor signal delivered through a dedicated interconnect path, where cable quality is equally critical. In mixed-function racks that also include the 3500/60 Temperature Monitor or the 3500/70M Recip Application Monitor, the 16710-82 supports a consistent wiring standard across all measurement channels, simplifying rack documentation and periodic inspection routines.

At the network layer, the 3500/92 Communication Gateway Module aggregates processed measurement data from all monitor modules and transmits it to the plant DCS or SCADA system via Modbus TCP, OPC DA, or proprietary Bently Nevada protocols. The integrity of this data stream is directly dependent on the quality of the analog signal path established by the 16710-82 at the field interface layer.

Application in Layered Automation Systems

The Bently Nevada 16710-82 Interconnect Cable is deployed across a wide range of process industries where rotating machinery protection is a regulatory and operational requirement. In power generation facilities — including gas turbine, steam turbine, and combined-cycle plants — the 3500 system monitors shaft vibration, axial position, and differential expansion on critical rotating equipment. The 16710-82 ensures that proximity probe signals from turbine bearing housings are transmitted to the 3500 rack without degradation, supporting continuous online monitoring and automated trip functions.

In petrochemical and refining applications, the cable supports monitoring of centrifugal compressors, pumps, and agitators in hazardous area installations. Its shielded construction provides immunity to the high levels of electromagnetic interference present in motor control centers and variable frequency drive environments, maintaining signal quality in electrically noisy plant areas.

In water and wastewater treatment plants, the 16710-82 supports monitoring of large vertical pumps and blowers where bearing condition monitoring is used to extend maintenance intervals and prevent unplanned outages. In mining and minerals processing, the cable is used in SAG mill and ball mill monitoring systems where high vibration levels and harsh environmental conditions demand robust, verified interconnect components.

For packaging and discrete manufacturing lines where high-speed rotating equipment is integrated into automated production systems, the 16710-82 supports the integration of the 3500 monitoring system into the plant’s broader automation architecture, enabling condition monitoring data to be surfaced at the SCADA or MES level for predictive maintenance decision support.

Architecture Engineering FAQ

Q1: Is the Bently Nevada 16710-82 compatible with all modules in the 3500 Series rack?
The 16710-82 is designed for use within the Bently Nevada 3500 Machinery Protection System architecture and is compatible with the standard transducer input modules in the 3500 rack, including the 3500/42M Proximitor Seismic Monitor and the 3500/22M Transient Data Interface. Compatibility with specific monitor modules should be verified against the 3500 system wiring documentation and the module’s input connector specification. All units supplied by ZYPLC are tested for electrical continuity and connector integrity prior to dispatch.

Q2: Can the 16710-82 be used in redundant monitoring architectures without affecting voting logic integrity?
Yes. The 16710-82’s controlled electrical characteristics — including shielding, impedance, and connector geometry — are consistent across units, making it suitable for use in redundant channel configurations where signal symmetry between measurement paths is required for correct 2oo3 or dual-voting trip logic operation. For safety-instrumented system applications governed by IEC 61511 or API 670, the cable’s consistent performance supports the deterministic signal behavior required for SIL-rated protection functions.

Q3: What warranty and support terms apply to the 16710-82 supplied by ZYPLC, and how is long-term availability managed?
All Bently Nevada 16710-82 Interconnect Cables supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and electrical performance failures. ZYPLC maintains stocked inventory of 3500 Series components to support both planned maintenance programs and emergency replacement requirements, minimizing lead times for critical spare parts. For long-term supply agreements, volume procurement, or technical support on system architecture integration, contact ZYPLC directly at +86 19859288691 or plc.sales@zyplc.com.
