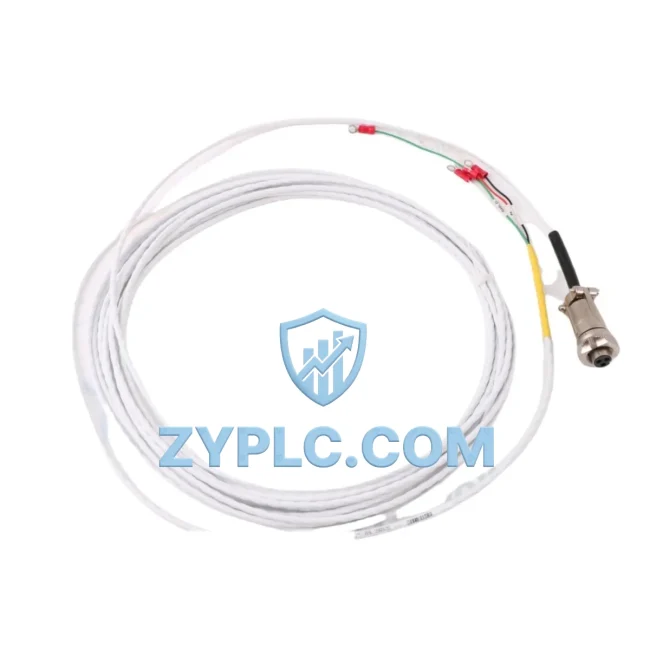

Bently Nevada 16925-26 System-Ready Extension Cable for 3500 Architecture

Bently Nevada 16925-26 System-Ready Extension Cable for 3500 Architecture

In a fully integrated machinery protection and condition monitoring system, every component in the signal chain must deliver consistent, interference-free performance. The Bently Nevada 16925-26 Extension Cable is engineered specifically for deployment within the Bently Nevada 3500 Series monitoring architecture, serving as the critical interconnect between proximity probes and the signal conditioning modules housed in the 3500 rack. Its role is not merely passive — it is a precision-matched transmission element that preserves signal integrity from the measurement point to the processing layer, ensuring that vibration, position, and dynamic data arrive at the 3500/42M Proximitor I/O Module or 3500/40M Proximitor I/O Module without attenuation, phase distortion, or electromagnetic contamination.

Within a layered automation architecture, the 16925-26 occupies the field instrumentation layer, bridging the physical measurement environment and the control layer. It is designed to work in concert with Bently Nevada 3300 XL 8mm Proximity Transducer Systems and 3300 XL 11mm Proximity Transducer Systems, maintaining the cable-probe-driver impedance triangle that is fundamental to accurate eddy-current measurement. When paired with the 3500/15 Power Supply Module and the 3500/20 Rack Interface Module, the entire signal chain from rotating shaft to the DCS or safety system operates as a unified, validated architecture — not a collection of independent components.

System engineers deploying the 16925-26 in turbine protection, compressor monitoring, or pump condition assessment applications benefit from its standardized connector interface, which eliminates field-termination variability and reduces commissioning time. The cable integrates directly into 3500 rack configurations that may include the 3500/22M Transient Data Interface, the 3500/32 4-Channel Relay Module, and the 3500/50 Tachometer Module, supporting complete shaft dynamics measurement across all monitored machine trains. This Contextual Integration capability means the 16925-26 does not require custom adaptation — it slots into the existing 3500 architecture and immediately contributes to system-level measurement confidence.

For facilities operating under IEC 61511 functional safety requirements or API 670 machinery protection standards, the 16925-26 supports the documentation and traceability demands of safety-instrumented systems. Its use within a validated 3500 architecture simplifies the proof-test cycle and supports the long-term maintenance records required for SIL-rated protection loops. Redundant monitoring configurations, where dual-probe arrangements feed independent 3500 channels, rely on matched extension cables to ensure that both measurement paths exhibit identical transfer characteristics — a requirement the 16925-26 fulfills by design.

In power generation facilities, the 16925-26 is routinely deployed on steam turbine shaft monitoring systems where the distance between the bearing housing and the nearest 3500 rack requires a precisely specified cable run. In petrochemical and refinery applications, it supports continuous monitoring of centrifugal compressors and expanders where unplanned downtime carries significant process and safety consequences. Water treatment and mining operations deploying large rotating equipment also benefit from the cable’s robust construction, which is rated for the temperature ranges, chemical exposure, and mechanical stress typical of these environments.

From a maintenance and lifecycle perspective, the 16925-26 is a stocked, catalog-standard component within the Bently Nevada 3500 ecosystem. This means replacement during scheduled outages or corrective maintenance events does not require custom fabrication or extended lead times. Facilities maintaining a spare parts inventory aligned with their 3500 rack population can hold 16925-26 cables as a standard line item, reducing mean time to repair and supporting the continuous availability targets demanded by critical rotating equipment programs. All units supplied by ZYPLC are covered by a 12-Month Warranty, providing procurement confidence for both capital projects and maintenance replenishment orders.

Architecture Specification Table

Coordinated Control System Design

The 16925-26 achieves its full value when understood as one element within a coordinated 3500 system architecture. A typical turbine protection rack will combine the 3500/15 Power Supply Module to deliver regulated power to all rack-resident cards, the 3500/20 Rack Interface Module for system communication and configuration, and multiple 3500/42M Proximitor I/O Modules receiving signals from proximity probes via 16925-26 extension cables. The 3500/32 4-Channel Relay Module processes the conditioned vibration data and drives trip or alarm relay outputs to the machine control system or emergency shutdown system. Tachometer signals from keyphasor probes, also routed through matched extension cables, feed the 3500/50 Tachometer Module, enabling phase-referenced vibration analysis and balancing diagnostics.

For facilities requiring transient data capture during startup and shutdown, the 3500/22M Transient Data Interface records high-resolution waveform data from the same probe channels served by 16925-26 cables, enabling post-event analysis without additional field instrumentation. Where operator visibility is required at the local panel, a Bently Nevada 3500/93 Display Interface Module or an external HMI connected via Modbus or Ethernet/IP provides real-time vibration trend displays. The entire architecture — from the 16925-26 cable at the bearing housing to the DCS historian — forms a continuous, validated signal chain that supports both protection and condition monitoring objectives simultaneously.

Application in Layered Automation Systems

In power generation, the 16925-26 is deployed on steam and gas turbine units where shaft radial vibration, axial position, and differential expansion are monitored continuously. The cable’s impedance matching ensures that the 3500 rack receives clean signals even across long cable runs from bearing pedestals to remote rack rooms. In petrochemical and refinery environments, centrifugal compressors and expanders operating in hazardous-area classifications rely on the 16925-26 to maintain signal integrity in the presence of strong electromagnetic interference from variable-frequency drives and high-voltage switchgear. Water treatment facilities monitoring large vertical turbine pumps and blower trains use the cable in outdoor conduit installations where temperature cycling and moisture ingress are primary concerns. In mining and minerals processing, the 16925-26 supports monitoring of SAG mills, ball mills, and large fan drives where bearing condition directly affects production continuity. Metallurgical and steel plant applications deploy the cable on rolling mill drive trains and continuous caster equipment, where vibration monitoring provides early warning of roll bearing degradation. Across all these sectors, the 16925-26 enables the 3500 system to deliver the measurement accuracy and system uptime that modern asset management programs demand.

Architecture Engineering FAQ

Q1: Is the 16925-26 compatible with all 3500 Series I/O modules, and can it be used in a redundant monitoring configuration?
The 16925-26 is designed for use with Bently Nevada 3500 Series Proximitor I/O modules, including the 3500/40M and 3500/42M. In redundant monitoring architectures where dual probes are installed at a single measurement plane, two 16925-26 cables of matched length should be used to ensure identical transfer characteristics across both measurement channels. This preserves the integrity of the redundancy comparison logic within the 3500 rack and prevents false differential alarms caused by cable-induced signal asymmetry.

Q2: What installation and commissioning considerations apply when integrating the 16925-26 into an existing 3500 rack system?
The 16925-26 should be routed in dedicated instrumentation conduit, segregated from power cables and variable-frequency drive output conductors to minimize electromagnetic interference. Connector terminations should be inspected for proper seating and locking before system energization. During commissioning, the static voltage output of the probe-cable-driver system should be verified against the Bently Nevada gap voltage specification for the installed probe type. Any deviation from the expected gap voltage range indicates a cable, connector, or probe fault that must be resolved before the protection system is placed in service.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term spare parts availability for the 16925-26?
All 16925-26 units supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failure under normal operating conditions. ZYPLC maintains stock of 16925-26 cables as a standard catalog item, supporting both planned maintenance replenishment and emergency replacement requirements. For facilities managing a critical spare parts program aligned with their 3500 rack population, ZYPLC can provide quantity commitments and lead-time guarantees to support outage planning and inventory optimization. Contact our technical sales team to discuss your specific architecture requirements and spare parts strategy.
