Bently Nevada 18745-03 Proximitor Sensor | 3300 Series

Bently Nevada 18745-03 Proximitor Sensor: Industrial Data Link for 3300 Series Vibration Monitoring Networks

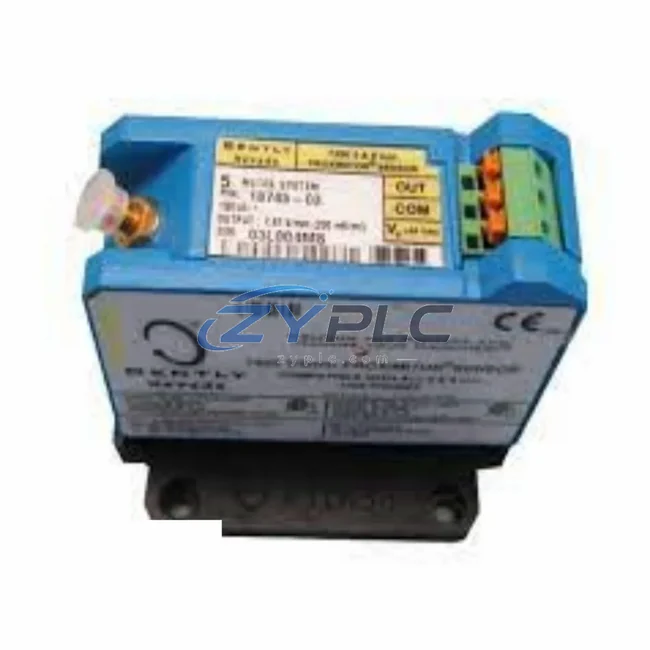

The Bently Nevada 18745-03 is a high-precision eddy-current Proximitor Sensor engineered for the Bently Nevada 3300 Series vibration monitoring platform. Designed to deliver continuous, real-time shaft displacement and vibration data across rotating machinery, this sensor forms the critical signal acquisition node in a plant-wide condition monitoring network. Whether integrated into a turbine protection system, compressor train, or pump monitoring loop, the 18745-03 ensures that raw mechanical signals are accurately converted and transmitted to upstream monitoring and control systems without data loss or latency.

In modern smart factory environments, the integrity of the data chain — from field sensor to SCADA dashboard — determines the reliability of every maintenance decision. The Bently Nevada 18745-03 anchors this chain at the field level, providing a stable 4–20mA analog output that interfaces seamlessly with the Bently Nevada 3300/16 Monitor and 3300/20 Monitor rack-mounted modules. These monitors digitize and process the proximity signal before forwarding structured data via Modbus RTU or 4–20mA loops to plant DCS platforms such as Emerson DeltaV or Honeywell Experion, enabling operators to visualize shaft orbit, gap voltage, and vibration amplitude in real time on HMI screens and SCADA workstations.

The sensor operates on the proven eddy-current principle, generating a high-frequency electromagnetic field through its probe tip. As the conductive target (shaft) moves relative to the probe, the field perturbation is detected and converted by the Bently Nevada 3300 XL 8mm Proximitor signal conditioning module into a calibrated DC voltage proportional to gap distance. This analog signal is then routed through shielded extension cables — typically the Bently Nevada 330130 Extension Cable — to the monitor rack, maintaining signal fidelity over distances up to 9 meters without amplification.

Compatibility & Integration Notes

Connected Automation Data Flow

The 18745-03 Proximitor Sensor does not operate in isolation — it is the upstream origin of a structured industrial data flow that spans multiple layers of the automation hierarchy. At the field level, the sensor probe is mounted adjacent to the rotating shaft, with gap voltage continuously monitored by the Bently Nevada 3300 XL Proximitor signal conditioner housed in the monitor rack. The conditioned analog signal is then fed into the Bently Nevada 3300/16 Monitor, which performs real-time amplitude analysis, applies alert and danger setpoints, and generates relay outputs for machine trip logic integrated with the plant’s safety instrumented system (SIS).

From the monitor rack, digitized vibration data is transmitted via the Bently Nevada TDXnet Data Acquisition Module or a dedicated Modbus TCP/IP gateway to the plant’s DCS or SCADA layer. Operators monitoring the Emerson Ovation DCS or a Wonderware InTouch HMI workstation receive live shaft orbit plots, vibration trend data, and alarm status without manual intervention. The Bently Nevada System 1 Condition Monitoring Software aggregates data from multiple 3300 Series monitor racks across the plant, enabling fleet-wide machinery health dashboards and predictive maintenance scheduling.

For facilities integrating the 18745-03 into a broader IIoT architecture, edge gateways such as the Moxa MGate MB3180 Modbus Gateway can bridge the analog monitor output to Ethernet-based SCADA networks, allowing data to flow into cloud-based analytics platforms or MES systems. Remote I/O modules — for example, the Phoenix Contact Axioline F Remote I/O — can aggregate multiple analog sensor channels and forward structured data packets upstream, reducing wiring complexity in large rotating machinery installations. Variable frequency drives (VFDs) monitoring motor load in the same machinery train can also feed speed reference signals back to the Bently Nevada monitor, enabling order-tracking analysis that correlates vibration frequency with shaft RPM for precise fault identification.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in rotating machinery monitoring is the fragmentation of condition data across incompatible systems. Legacy vibration monitors may output only relay contact signals, providing no analog or digital data to the plant SCADA. The Bently Nevada 18745-03, when paired with the 3300 Series monitor rack and a Modbus-capable communication module, eliminates this data isolation by converting mechanical proximity measurements into structured, network-transmissible signals that any modern DCS or SCADA platform can ingest.

Plants operating mixed fleets — with some machines on older Bently Nevada 7200 Series monitors and others on the 3300 Series — often struggle with unified monitoring dashboards. The 18745-03’s compatibility with Bently Nevada System 1 software provides a single-pane-of-glass view across all monitor generations, normalizing data formats and enabling consistent alarm management policies. This is particularly valuable in petrochemical, power generation, and LNG facilities where dozens of critical rotating machines must be monitored simultaneously.

Remote diagnostics capability is another key advantage. Because the 18745-03 feeds data into a networked monitor rack, maintenance engineers can access gap voltage trends, vibration spectra, and alarm histories remotely via the plant intranet or secure VPN connection — without requiring physical access to the machine train. This reduces mean time to diagnose (MTTD) and supports condition-based maintenance strategies that minimize unplanned downtime. For production lines where transparency and traceability are regulatory requirements, the continuous data stream from the 18745-03 provides an auditable record of machinery health over time, supporting both internal quality management and third-party inspection processes.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 18745-03 support for SCADA integration?
The 18745-03 outputs a standard 4–20mA analog signal and DC voltage proportional to shaft gap. When connected to a 3300 Series monitor rack equipped with a communication module, the processed data can be transmitted via Modbus RTU or Modbus TCP/IP to SCADA, DCS, or PLC analog input systems. Direct digital protocol output (e.g., PROFIBUS, EtherNet/IP) requires an appropriate gateway module at the monitor rack level.

Q2: Is the 18745-03 compatible with existing 3300 Series monitor racks and extension cables?
Yes. The 18745-03 is fully compatible with the Bently Nevada 3300 Series monitor rack ecosystem, including the 3300/16 and 3300/20 monitors, the 3300 XL Proximitor signal conditioner, and standard 330130 Series extension cables. No additional signal conditioning hardware is required for standard installations within the specified cable length range.

Q3: How does network latency affect vibration alarm response when using the 18745-03 in a SCADA-connected system?
The 18745-03 and its associated 3300 Series monitor perform all alarm and trip logic locally at the rack level, independent of network communication. Machine trip relays activate within milliseconds of a danger setpoint breach, ensuring machinery protection is never dependent on SCADA network availability or latency. SCADA integration is used for trending, reporting, and operator awareness — not for primary protection logic.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the Bently Nevada 18745-03?
Every Bently Nevada 18745-03 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation and undergoes functional testing prior to shipment to verify output signal integrity, connector condition, and calibration compliance. Units are shipped with appropriate protective packaging to prevent transit damage. For volume orders or urgent requirements, please contact our team directly for lead time confirmation and stock availability.
