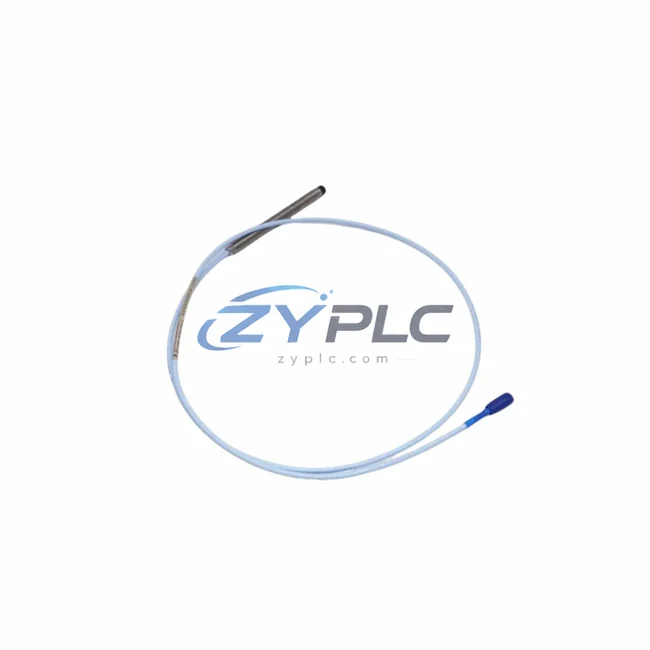

Bently Nevada 330104-12-20-10-02-00 Proximity Transducer for 3300 Series

Bently Nevada 330104-12-20-10-02-00 Proximity Transducer for 3300 Series

The Bently Nevada 330104-12-20-10-02-00 is a precision 8 mm eddy-current proximity transducer engineered as a core sensing node within the Bently Nevada 3300 Series continuous machinery monitoring architecture. Unlike standalone vibration sensors, this transducer is designed from the ground up to operate as an integrated element within a layered industrial automation system — delivering real-time shaft displacement data to upstream monitoring modules, safety logic controllers, and plant-level DCS platforms. Its role in the control hierarchy spans from the field sensing layer through to the data acquisition and alarm management layers, making it indispensable in any rotating machinery protection strategy built around system integration principles.

In modern industrial facilities — including power generation, petrochemical refining, offshore platforms, water treatment, and heavy metallurgical processing — the integrity of rotating equipment such as turbines, compressors, pumps, and gearboxes is monitored continuously through non-contact eddy-current proximity measurement. The 330104-12-20-10-02-00 transducer, when paired with its companion extension cable and proximitor/driver module, forms a complete measurement chain that feeds conditioned analog signals into the 3300 Series monitor rack. This rack-based architecture allows engineers to configure multi-channel vibration, axial position, and speed monitoring across a single backplane, reducing wiring complexity and improving signal integrity across the entire system.

System architects integrating this transducer into a Bently Nevada 3300 Series installation will typically deploy it alongside the 330130 extension cable assembly, the 3300 XL 8mm proximitor/driver (such as the 330180 series), and the 3300/16 or 3300/20 monitor modules housed within a standard 19-inch rack enclosure. The monitor outputs — both analog 4–20 mA and relay contact signals — interface directly with plant DCS systems, safety instrumented systems (SIS), and SCADA platforms, enabling system integration of vibration data into broader process control and emergency shutdown logic. This ensures that machinery health data actively participates in plant-wide decision-making rather than remaining siloed at the field layer.

From a redundancy design perspective, the 330104-12-20-10-02-00 supports dual-probe configurations on critical machines, where two transducers are mounted 90 degrees apart on the same shaft journal. This orthogonal arrangement, combined with the 3300 Series monitor’s orbit plot capability, provides a complete picture of shaft dynamic behavior. In high-availability installations, redundant monitor modules and power supply modules — such as the 3300/05 power supply — ensure that no single point of failure can interrupt machinery protection coverage. This architecture is particularly critical in applications governed by API 670 machinery protection standards, where continuous monitoring uptime is a compliance requirement.

Product Specification Table

System Compatibility Notes

The 330104-12-20-10-02-00 transducer achieves its full diagnostic value only when properly integrated into a coordinated control system architecture. At the field sensing layer, the probe is installed in a machined proximity probe holder, positioned at the correct gap distance — typically 1.0–1.5 mm — from the shaft surface. The coaxial cable connects to a 330130 series extension cable, which routes the signal to the proximitor/driver module. The 330180 or 330185 8 mm proximitor/driver conditions the raw eddy-current signal into a calibrated voltage output, which is then transmitted to the monitor rack over a shielded coaxial run.

Within the 3300 Series monitor rack, the conditioned signal enters a dedicated input channel on a 3300/16 or 3300/20 vibration monitor module. These modules process the displacement signal, apply configurable alert and danger setpoints, and output both analog retransmission signals and relay contacts for hardwired trip logic. The rack backplane accommodates 3300/05 power supply modules, which provide regulated DC power to all installed monitor cards, and 3300/55 communication gateway modules, which aggregate channel data and transmit it via Modbus RTU or OPC-UA to the plant DCS historian or SCADA platform.

At the human-machine interface layer, operators interact with machinery health data through Bently Nevada System 1 software or third-party SCADA platforms, where vibration trends, orbit plots, and alarm histories are visualized in real time. The 3300/55 gateway module enables seamless system integration between the machinery monitoring layer and the process control layer, ensuring that vibration exceedances can trigger automated process responses — such as load reduction or emergency shutdown — without operator intervention. This closed-loop architecture between the sensing layer, the monitor rack, and the DCS is the defining characteristic of a fully compliant API 670 installation.

For installations requiring speed measurement in addition to radial vibration, the 330104-12-20-10-02-00 can be deployed alongside a dedicated 330980 series Keyphasor transducer, which provides once-per-revolution reference pulses to the 3300/25 Keyphasor module. This enables phase-referenced vibration analysis, balancing calculations, and synchronous averaging — capabilities essential for turbomachinery diagnostics and predictive maintenance programs. The combination of radial probes, Keyphasor probes, and axial position probes using the same 330104 series in thrust measurement configurations provides a complete picture of rotor dynamic behavior across all six degrees of freedom.

Industrial Application Notes

In power generation facilities — including gas turbines, steam turbines, and hydro generators — the 330104-12-20-10-02-00 is deployed in groups of four to eight probes per machine, covering both drive-end and non-drive-end journal bearings. The monitor rack is typically located in a dedicated machinery protection panel within the turbine control room, with hardwired relay outputs connected to the turbine emergency trip system (ETS). This architecture ensures that a vibration exceedance at any monitored bearing results in an immediate, hardware-enforced machine trip — independent of DCS availability or network latency — satisfying the most stringent power plant reliability requirements.

In petrochemical and refinery applications, the transducer is commonly installed on centrifugal compressors, reciprocating compressors, and large process pumps. API 670 mandates continuous monitoring of radial vibration, axial position, and speed for these machines, and the 3300 Series architecture — anchored by the 330104-12-20-10-02-00 probe — provides a fully compliant solution. The system’s ability to interface with plant safety instrumented systems (SIS) via hardwired relay contacts ensures that machinery protection logic remains active even during DCS maintenance windows, providing an independent protection layer that cannot be bypassed by software faults.

Water treatment and municipal utility facilities benefit from the transducer’s robust construction and wide operating temperature range, enabling reliable operation in outdoor pump stations and underground wet wells. Mining and metallurgical applications — including ball mills, SAG mills, and large conveyor drive systems — leverage the eddy-current measurement principle’s immunity to dust, moisture, and non-conductive contamination, ensuring consistent signal quality in harsh environments. Packaging and food processing lines use the 3300 Series architecture to monitor high-speed rotary equipment, where early detection of bearing wear or rotor imbalance prevents costly unplanned downtime and product quality incidents. Across all these sectors, the 330104-12-20-10-02-00 serves as the foundational sensing element that makes long-term maintenance efficiency and inventory supply planning possible.

Product Compatibility FAQ

Q1: Is the 330104-12-20-10-02-00 compatible with existing 3300 Series monitor racks, and can it be retrofitted into an older installation?
Yes. The 330104-12-20-10-02-00 is fully compatible with all generations of the Bently Nevada 3300 Series monitor rack, including legacy 3300/16 and 3300/20 monitor modules. The probe uses the standard coaxial connector interface and operates within the same signal conditioning range as all 3300 Series 8 mm proximity transducers. Retrofitting requires only verification of the existing extension cable length and proximitor/driver module compatibility — no rack modifications or firmware updates are required. Our technical team can assist with gap verification and system commissioning documentation to ensure a seamless integration.

Q2: How does the warranty terms confirmed during quotation apply, and what does it cover for system-critical installations?
All 330104-12-20-10-02-00 units supplied by ZYPLC carry a warranty terms confirmed during quotation covering manufacturing defects, signal output accuracy, and connector integrity. Each unit undergoes functional testing prior to shipment, including gap sensitivity verification and coaxial cable continuity checks. For system-critical installations where downtime cost is high, we recommend maintaining a spare probe RFQ Available — our inventory supply program ensures rapid replenishment with lead times typically under 5 business days. Warranty claims are processed directly through our technical support team at plc.sales@zyplc.com.

Q3: What commissioning steps are required when integrating this transducer into a new or expanded 3300 Series architecture?
Commissioning the 330104-12-20-10-02-00 in a 3300 Series architecture involves four key steps: (1) Mechanical installation — mount the probe in the proximity probe holder and set the initial gap to the manufacturer-specified value using a gap voltage measurement at the proximitor output; (2) Cable routing — connect the integral cable to the 330130 extension cable, ensuring all coaxial connections are clean, tight, and protected from mechanical stress; (3) Monitor configuration — set the channel scale factor, alert setpoints, and danger setpoints in the 3300 Series monitor module according to the machine’s vibration acceptance criteria; (4) System integration verification — confirm that analog retransmission outputs are correctly received by the DCS historian and that relay contacts are properly wired to the ETS or SIS logic solver. ZYPLC provides commissioning support documentation and can coordinate with site engineers for remote technical assistance.
