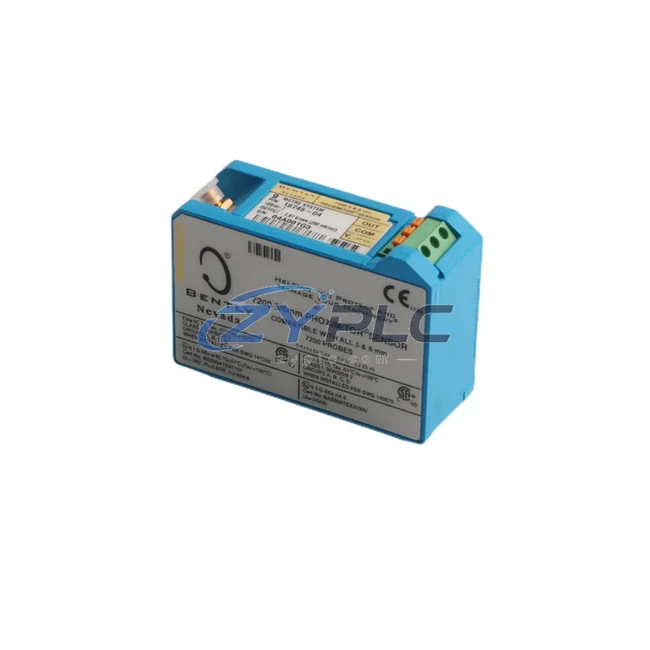

Bently Nevada 18745-04 Proximitor Sensor 3300

Bently Nevada 18745-04 Proximitor Sensor 3300: Precision Vibration Control for Production Line Efficiency

The Bently Nevada 18745-04 is a high-performance Proximitor Sensor from the renowned 3300 Series, engineered to deliver continuous, non-contact vibration and position monitoring for rotating machinery in demanding industrial environments. By providing real-time shaft displacement data with exceptional signal fidelity, the 18745-04 enables plant engineers to detect mechanical anomalies before they escalate into unplanned downtime — directly reducing unplanned downtime caused by imbalanced, misaligned, or degraded rotating equipment.

In modern industrial facilities where energy efficiency is a core KPI, the 18745-04 serves as a critical front-end sensing node in the industrial automation system. Its eddy-current sensing principle consumes minimal power while delivering high-resolution output signals compatible with Bently Nevada’s 3300 XL 8mm Proximity Transducer System and the broader System 1 condition monitoring platform. This makes it an ideal component for facilities targeting ISO 50001 maintenance planning compliance or pursuing predictive maintenance strategies to optimize equipment utilization rates.

Every unit is shipped after rigorous factory testing, backed by a warranty terms confirmed during quotation, and sourced from verified supply channels to ensure authenticity and operational reliability from day one.

Product Specification Table

System Compatibility and Application

The 18745-04 Proximitor Sensor does not operate in isolation — it is the sensing foundation of a layered maintenance-focused automation system. In a typical high-efficiency plant configuration, the sensor feeds shaft gap and vibration data into a Bently Nevada 3300/16-02-01-00-00-00-00 16-channel monitor rack, which aggregates signals from multiple measurement points across a rotating machine train. This rack communicates via Modbus TCP or OPC-UA to a plant-level DCS (Distributed Control System) or SCADA platform, enabling centralized energy and condition monitoring.

On the drive side, variable-speed rotating equipment monitored by the 18745-04 is typically controlled by a Rockwell Automation PowerFlex 755 AC Drive or equivalent variable frequency drive (VFD). When the Proximitor detects elevated vibration amplitudes indicating mechanical stress or imbalance, the control system can automatically reduce motor speed via the VFD — cutting operating load proportionally to the cube of speed reduction, a significant efficiency gain in pump and fan applications.

For I/O integration, the sensor signal is often routed through a Bently Nevada TDI (Transient Data Interface) module or a 3500/22M Transient Data Interface card, which digitizes and timestamps vibration events for trend analysis. Paired with a Siemens S7-1500 PLC handling process sequencing, the system creates a closed-loop feedback architecture where operating load is continuously correlated with mechanical health indicators.

Power quality at the sensor supply rail is maintained by a Phoenix Contact QUINT 24VDC Power Supply, ensuring stable excitation voltage that directly affects measurement accuracy. On the HMI layer, operators interact with real-time vibration trends and energy dashboards through a Bently Nevada System 1 Software workstation, where alarm thresholds are configured to trigger operational-efficiency responses before mechanical faults develop into costly failures.

For facilities with multiple machine trains, the 18745-04 is commonly deployed alongside Bently Nevada 330180-91-05 Proximity Probes and 330130-080-00-00 Extension Cables, forming a complete transducer chain that maintains signal integrity over long cable runs in electrically noisy industrial environments.

Maintenance and Replacement Notes

In petrochemical plants, the 18745-04 is mounted on centrifugal compressor bearing housings to monitor shaft orbit and axial position. When the sensor detects a developing rub condition — where the rotor contacts stationary components — the System 1 platform triggers an alert that allows operators to reduce load on the compressor before a catastrophic failure occurs. This single intervention can prevent energy-intensive emergency shutdowns that consume 3–5× normal power during restart sequences and require days of lost production.

In power generation facilities, the 18745-04 monitors steam turbine shaft displacement to ensure rotor-to-casing clearances remain within design tolerances. Excessive clearance caused by bearing wear leads to steam bypass losses — wasted thermal energy that directly increases fuel consumption per MWh generated. By catching bearing degradation early, the sensor enables scheduled maintenance during planned outages rather than forced shutdowns, maintaining optimal turbine efficiency and minimizing unplanned downtime.

In automotive manufacturing, the sensor is applied to monitor spindle vibration on CNC machining centers. Elevated vibration from worn spindle bearings increases cutting forces, raises motor current draw, and degrades part quality — all of which increase operating load per part produced. The 18745-04’s continuous monitoring capability allows maintenance teams to replace bearings at the optimal point in their wear curve, maximizing bearing life while keeping spindle energy efficiency at peak levels.

Across all applications, the 18745-04 contributes to a measurable reduction in the Overall Equipment Effectiveness (OEE) gap — the difference between theoretical maximum production capacity and actual output. By reducing unplanned downtime, improving equipment availability, and enabling energy-optimized operating setpoints, the sensor delivers a quantifiable return on investment that extends well beyond its acquisition cost.

All units available from ZYPLC are tested prior to shipment, supplied with documentation, and covered by a warranty terms confirmed during quotation against manufacturing defects. Inventory is maintained RFQ Available for rapid dispatch to minimize production line disruption.

Product Sourcing FAQ

Q1: How does the Bently Nevada 18745-04 contribute to operational stability in rotating machinery applications?
The 18745-04 provides continuous shaft displacement monitoring that enables predictive maintenance strategies. By identifying mechanical degradation — such as bearing wear, rotor imbalance, or misalignment — before it causes efficiency losses, the sensor allows operators to maintain rotating equipment at its optimal energy-efficiency operating point. Degraded bearings increase friction losses and motor current draw; catching them early prevents these hidden energy costs from accumulating.

Q2: Is the 18745-04 compatible with existing Bently Nevada 3300 Series monitoring systems?
Yes. The 18745-04 is fully compatible with the Bently Nevada 3300 XL Proximity Transducer System, including standard 3300 monitor racks, TDI modules, and System 1 software. It uses the standard -24 VDC excitation and produces the industry-standard output voltage range, making it a direct replacement for worn or failed sensors in existing installations without requiring system reconfiguration.

Q3: What is the recommended replacement and testing procedure for the 18745-04?
Replacement should be performed during a planned maintenance window. After installation, the sensor gap voltage should be verified using a calibrated voltmeter to confirm the probe is positioned within the linear measurement range (typically -10 to -18 VDC for a 3300 XL system). ZYPLC performs outgoing functional tests on all units prior to shipment, and each sensor is supplied with test documentation. The warranty terms confirmed during quotation covers any defects identified during commissioning or normal operation.

Q4: What warranty coverage is provided, and what does it include?
Every Bently Nevada 18745-04 supplied by ZYPLC is covered by a warranty terms confirmed during quotation from the date of shipment. The warranty covers manufacturing defects, premature failure under normal operating conditions, and calibration deviations outside published specifications. Warranty claims are processed promptly with replacement units dispatched from stock to minimize your production line downtime. Contact our technical team at plc.sales@zyplc.com for warranty support.
