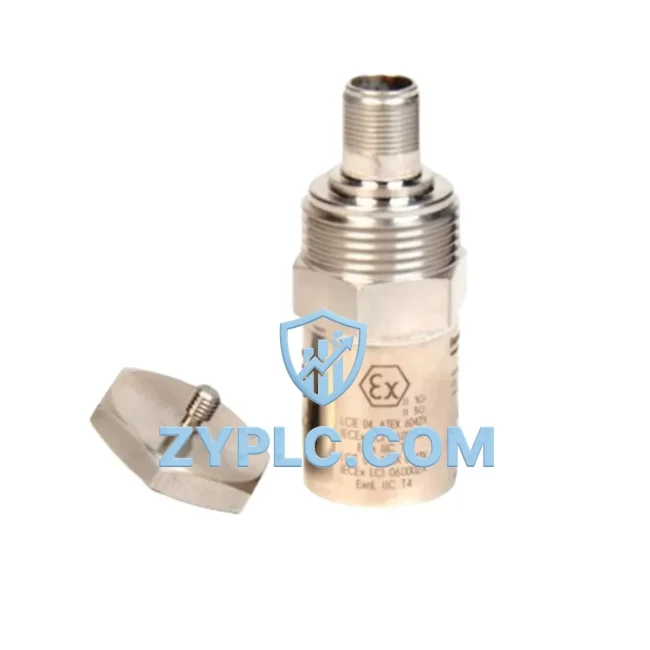

Bently Nevada 190501-02-00-CN System-Ready Velocity Transducer for 3500 Architecture

Bently Nevada 190501-02-00-CN System-Ready Velocity Transducer for 3500 Series Control Architecture

The Bently Nevada 190501-02-00-CN is a Velomitor CT piezoelectric velocity transducer engineered for seamless integration into the Bently Nevada 3500 Series machinery protection and condition monitoring architecture. Unlike conventional vibration sensors deployed in isolation, the 190501-02-00-CN is designed from the ground up to function as a coordinated node within a layered industrial control system — contributing to signal fidelity, system redundancy, and long-term diagnostic reliability across the full automation stack.

In modern rotating machinery protection environments, the velocity transducer occupies a critical position between the mechanical execution layer and the signal conditioning layer. The 190501-02-00-CN interfaces directly with the 3500/42M Proximitor/Seismic Monitor module, delivering broadband velocity signals that are processed, alarmed, and transmitted upstream to the control and historian layers. Its low-impedance output and wide frequency response (from 2 Hz to 2,500 Hz) ensure that both low-speed machinery and high-frequency mechanical events are captured with equal precision — a requirement that generic sensors frequently fail to meet in demanding process environments.

System architects specifying the 190501-02-00-CN benefit from its direct compatibility with the Bently Nevada 3500 rack infrastructure, including the 3500/01 Rack Interface Module and the 3500/05 Power Supply Module. The transducer’s signal chain integrates without additional signal conditioning hardware, reducing panel footprint and eliminating potential noise injection points that arise from third-party interface converters. This native compatibility is particularly valuable in applications where the 3500/20 Keyphasor Module is used to correlate vibration phase data with shaft rotational position — a configuration common in turbine, compressor, and pump protection systems.

Architecture Specification Table

Coordinated Control System Design

The 190501-02-00-CN achieves its full diagnostic value when deployed as part of a coordinated Bently Nevada 3500 Series rack system. A typical machinery protection architecture built around this transducer includes the following coordinated components:

At the power layer, the Bently Nevada 3500/05 Power Supply Module provides regulated, isolated DC power to all monitor modules within the rack, ensuring that transducer signal integrity is not compromised by power rail fluctuations. Redundant power supply configurations — using dual 3500/05 modules — are standard practice in critical rotating machinery applications such as gas turbines and centrifugal compressors.

At the signal conditioning and monitoring layer, the Bently Nevada 3500/42M Proximitor/Seismic Monitor receives the velocity signal from the 190501-02-00-CN and applies configurable alarm setpoints, OK relay logic, and buffered output signals for DCS integration. Adjacent to it, the Bently Nevada 3500/40M Proximitor Monitor handles proximity probe inputs — typically eddy-current probes such as the Bently Nevada 3300 XL 8mm Proximity Transducer System — providing complementary shaft relative vibration data that, when combined with casing velocity measurements from the 190501-02-00-CN, gives engineers a complete picture of rotor and bearing dynamics.

The Bently Nevada 3500/20 Keyphasor Module provides the phase reference signal essential for vector-based vibration analysis. When the 190501-02-00-CN’s velocity data is correlated with Keyphasor phase information, maintenance engineers can perform 1X and 2X amplitude trending — a technique critical for early detection of imbalance, misalignment, and looseness in rotating machinery.

At the network and communication layer, the Bently Nevada 3500/92 Communication Gateway Module bridges the 3500 rack to plant-level DCS and historian systems via Modbus TCP, OPC-DA, or proprietary System 1 protocols. This ensures that velocity data captured by the 190501-02-00-CN is available in real time to SCADA operators and condition monitoring platforms without requiring manual data extraction.

At the rack infrastructure layer, the Bently Nevada 3500/01 Rack Interface Module manages inter-module communication, system OK status, and relay output coordination. The 3500 19-inch rack backplane provides the physical and electrical backbone that allows all modules — monitors, power supplies, communication gateways, and the Keyphasor — to operate as a unified protection system rather than a collection of independent instruments.

For installations requiring HMI and operator interface, the 3500 system integrates with Bently Nevada System 1 software, providing trend displays, alarm management, and machinery diagnostic tools that leverage the continuous velocity data stream from the 190501-02-00-CN. In larger plant architectures, this data feeds into DCS historian platforms such as OSIsoft PI, enabling long-term machinery health trending and predictive maintenance scheduling.

Application in Layered Automation Systems

Power Generation (Gas Turbines & Steam Turbines): In gas turbine protection systems, the 190501-02-00-CN is mounted on turbine bearing housings to monitor casing vibration. Its wide frequency response captures both low-frequency rotor dynamics and high-frequency blade-pass events. Combined with proximity probes on the shaft and a Keyphasor reference, the 3500 system provides API 670-compliant machinery protection — a mandatory requirement for most power generation facilities worldwide.

Petrochemical & Refinery Applications: Centrifugal compressors and pumps in refinery service operate continuously under demanding process conditions. The hermetically sealed stainless steel housing of the 190501-02-00-CN provides reliable performance in environments with hydrocarbon vapors, high humidity, and wide temperature cycling. Its integration into the 3500 rack allows operators to monitor multiple machines from a single centralized protection system, reducing the number of independent monitoring instruments and simplifying maintenance workflows.

Water Treatment & Utilities: Large pump stations and blower systems in water treatment facilities benefit from continuous vibration monitoring to prevent unexpected failures that could disrupt water supply. The 190501-02-00-CN’s low-maintenance design and 12-Month Warranty support long-term deployment in unmanned or remotely monitored pump stations, where maintenance access is infrequent and reliability is paramount.

Mining & Minerals Processing: Ball mills, SAG mills, and large conveyor drive systems in mining operations generate complex vibration signatures that require broadband velocity measurement. The 190501-02-00-CN’s robust mechanical construction and wide operating temperature range make it suitable for the harsh environmental conditions typical of mineral processing plants, including high dust levels, mechanical shock, and extreme ambient temperatures.

Packaging & Manufacturing Lines: High-speed rotating equipment in packaging and manufacturing — including centrifuges, fans, and gearboxes — benefits from continuous velocity monitoring to detect early-stage bearing degradation and imbalance. Integration of the 190501-02-00-CN into a 3500 Series rack allows condition monitoring data to be incorporated into plant MES and ERP systems, supporting predictive maintenance scheduling and minimizing unplanned downtime.

Architecture Engineering FAQ

Q1: Is the 190501-02-00-CN directly compatible with the Bently Nevada 3500/42M monitor without additional signal conditioning?
Yes. The 190501-02-00-CN is a Velomitor CT series transducer specifically designed for direct connection to the Bently Nevada 3500/42M Proximitor/Seismic Monitor. Its low-impedance output and sensitivity specification (100 mV/in/s) are matched to the 3500/42M input requirements, eliminating the need for external signal conditioners or impedance matching networks. Standard Bently Nevada interconnect cabling (such as the 330130 series armored cable) is recommended for installations in electrically noisy environments.

Q2: Can the 190501-02-00-CN be used in a redundant machinery protection architecture, and how does it integrate with the 3500 rack’s relay output system?
The 190501-02-00-CN supports redundant transducer configurations when paired with the 3500/42M monitor’s dual-channel input capability. In a redundant architecture, two 190501-02-00-CN transducers are mounted at the same bearing location (or adjacent locations) and wired to separate monitor channels. The 3500/42M’s voting logic can be configured to alarm or trip only when both channels exceed setpoints — reducing nuisance trips while maintaining protection integrity. Relay outputs from the 3500/42M are coordinated through the 3500/01 Rack Interface Module, which manages system-level OK and danger relay states across the entire rack.

Q3: What does the 12-Month Warranty cover, and what support is available for installation and commissioning of the 190501-02-00-CN in a new 3500 system?
ZYPLC’s 12-Month Warranty covers the 190501-02-00-CN against manufacturing defects and functional failures under normal operating conditions from the date of shipment. All units are tested prior to dispatch to verify sensitivity, frequency response, and electrical integrity. For installation and commissioning support, ZYPLC’s technical team is available to assist with transducer mounting specifications, cable routing recommendations, 3500/42M configuration parameters, and alarm setpoint guidance. Contact our engineering support team at plc.sales@zyplc.com or +86 19859288691 for pre-sales technical consultation and post-installation support.
