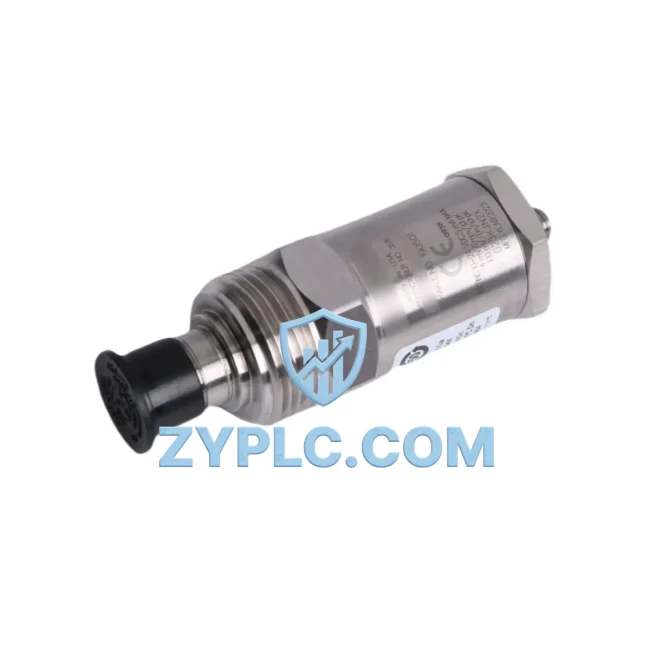

Bently Nevada 190501-03-00-04 System-Ready Velocity Transducer for Velomitor CT

Bently Nevada 190501-03-00-04: System-Ready Velocity Transducer for Velomitor CT Control Architecture

The Bently Nevada 190501-03-00-04 is a precision velocity transducer engineered for seamless integration within the Velomitor CT sensor platform, a cornerstone of Bently Nevada’s machinery protection and condition monitoring architecture. In modern industrial automation environments — spanning power generation, petrochemical processing, mining, and heavy manufacturing — vibration measurement is not an isolated function. It is a critical node in a layered control system where signal integrity, architectural consistency, and long-term reliability determine plant uptime and safety compliance. The 190501-03-00-04 is designed with exactly this systems-level perspective in mind.

Unlike conventional velocity sensors deployed as standalone instruments, the 190501-03-00-04 operates as a contextually integrated component within a broader machinery health monitoring framework. Its output signal feeds directly into Bently Nevada 3500 Series monitoring rack modules — including the 3500/42M Proximitor/Seismic Monitor and the 3500/45 Position Monitor — where velocity data is processed, alarmed, and transmitted upstream to the plant DCS or SCADA layer. This signal chain, from transducer to monitor to control room, defines the architectural value of the 190501-03-00-04: it is not merely a sensor, but a precision input device for a complete rotating machinery protection system.

Within the control hierarchy, the 190501-03-00-04 occupies the field instrumentation layer, interfacing with the I/O acquisition layer of the 3500 rack. The rack itself communicates via Modbus TCP, OPC-DA, or 4–20 mA analog outputs to the plant’s distributed control system — whether a Honeywell Experion, Emerson DeltaV, Siemens PCS 7, or ABB 800xA platform. This cross-platform compatibility ensures that velocity data captured by the 190501-03-00-04 can be consumed by any modern process control architecture without signal conditioning gaps or protocol translation overhead.

From a system design standpoint, the 190501-03-00-04 is typically deployed alongside complementary Bently Nevada components to form a complete vibration monitoring node. The Velomitor CT sensor family is often paired with the 3500/20 Rack Interface Module for system power and communication management, the 3500/15 Power Supply Module for regulated DC distribution within the rack, and the 3500/22M Transient Data Interface for high-resolution waveform capture during startup and shutdown transients. Together, these modules form a tightly integrated monitoring cell that supports both steady-state protection and dynamic diagnostic analysis.

In redundant architecture designs — common in critical rotating equipment such as steam turbines, gas compressors, and boiler feed pumps — the 190501-03-00-04 is deployed in dual-sensor configurations. Each transducer feeds an independent monitor channel within the 3500 rack, enabling 1oo2 or 2oo2 voting logic for trip decisions. This redundancy eliminates single-point failures at the sensor layer and ensures that machinery protection remains active even during sensor maintenance or calibration cycles. The architectural discipline required for such deployments is fully supported by the 190501-03-00-04’s consistent output characteristics and low signal drift over extended service intervals.

Installation and commissioning of the 190501-03-00-04 follow Bently Nevada’s standard field wiring practices, with the transducer connecting to the 3500 monitor via shielded twisted-pair cable routed through the control cabinet’s cable management system. Proper grounding at a single point — typically at the monitor rack chassis — is essential to prevent ground loop interference that can corrupt velocity readings. During commissioning, engineers use the System 1 Evolution software platform to verify signal levels, configure alarm setpoints, and validate the transducer’s frequency response against the machine’s expected vibration spectrum.

For long-term maintenance planning, the 190501-03-00-04 offers a significant advantage: its compatibility with the broader Bently Nevada ecosystem means that spare parts, calibration references, and replacement units are readily available through established industrial supply channels. Maintaining a buffer stock of velocity transducers — particularly for critical machinery with long lead times on OEM replacements — is a standard practice in reliability-centered maintenance programs. ZYPLC maintains verified inventory of the 190501-03-00-04 with a 12-Month Warranty on every unit shipped, supporting both emergency replacement and planned maintenance schedules.

The 190501-03-00-04 also plays a role in the human-machine interface layer of the control architecture. Velocity trend data captured by this transducer is visualized on operator workstations through the System 1 platform or integrated into the plant DCS historian, enabling operations teams to monitor bearing health, detect imbalance conditions, and schedule predictive maintenance interventions before machinery damage occurs. This closed-loop feedback — from field sensor through monitoring rack to operator display — is the operational definition of Contextual Integration in a modern machinery protection system.

Architecture Specification Table

Coordinated Control System Design

The 190501-03-00-04 achieves its full architectural value when deployed as part of a coordinated Bently Nevada 3500 Series monitoring system. A complete machinery protection node for a critical rotating machine typically includes the following coordinated components:

The 3500/20 Rack Interface Module serves as the communication backbone of the 3500 rack, managing Modbus TCP and OPC connectivity to the plant DCS. The 3500/15 Power Supply Module provides regulated 24 VDC power distribution to all monitor cards within the rack, ensuring stable operating conditions for the 190501-03-00-04’s signal conditioning circuitry. The 3500/42M Proximitor/Seismic Monitor is the primary receiving module for velocity transducer signals, processing the 190501-03-00-04’s output and applying configurable alarm and danger setpoints.

For transient analysis during machine startup and coast-down, the 3500/22M Transient Data Interface captures high-resolution waveform data from the velocity channel, enabling engineers to analyze critical speed crossings and resonance behavior. The 3500/32 4-Channel Relay Module translates monitor alarm states into hardwired relay outputs for integration with the machine’s emergency shutdown system (ESD) or safety instrumented system (SIS).

At the field level, the 190501-03-00-04 is often deployed alongside Bently Nevada 3300 XL 8mm Proximity Probes for complementary radial vibration measurement, providing both velocity (seismic) and displacement (eddy current) data streams to the monitoring rack. The Bently Nevada 330180 Series Extension Cables and 330130 Series Proximitor Sensors complete the field wiring assembly for proximity probe channels on the same machine.

At the human-machine interface layer, the System 1 Evolution software platform aggregates data from all 3500 rack channels — including the 190501-03-00-04 velocity channel — into a unified machinery health dashboard. This coordinated architecture, from field transducer through monitor rack to operator workstation, represents the complete Contextual Integration model that maximizes the diagnostic value of every sensor in the system.

Application in Layered Automation Systems

The 190501-03-00-04 is deployed across a wide range of heavy industrial applications where rotating machinery protection is a regulatory and operational requirement.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the 190501-03-00-04 monitors steam turbine bearing housings, providing velocity data that feeds into the plant’s turbine supervisory instrumentation (TSI) system. Alarm and trip setpoints are configured in accordance with ISO 10816 vibration severity standards, with the 3500 rack providing the hardwired trip output to the turbine’s emergency stop valve actuator.

In petrochemical and refinery environments, the 190501-03-00-04 is installed on centrifugal compressors, boiler feed pumps, and cooling water pumps. These applications demand continuous online monitoring with redundant sensor configurations to meet API 670 machinery protection standards. The transducer’s compatibility with the 3500/42M monitor enables dual-channel velocity monitoring with independent alarm and danger thresholds for each bearing location.

In mining and mineral processing operations, the 190501-03-00-04 monitors large grinding mills, conveyor drive motors, and crusher bearings. The harsh environmental conditions — high dust, vibration, and temperature — require robust field installation practices, including armored cable routing and weatherproof junction boxes, all of which are compatible with the 190501-03-00-04’s standard field wiring interface.

In water and wastewater treatment plants, the transducer is deployed on large centrifugal pumps and blower units, where early detection of bearing wear or imbalance conditions prevents unplanned outages that would disrupt treatment capacity. The 3500 rack’s Modbus TCP interface allows pump vibration data to be integrated directly into the plant’s SCADA system for centralized monitoring by operations staff.

Architecture Engineering FAQ

Q1: Is the 190501-03-00-04 directly compatible with the Bently Nevada 3500/42M Proximitor/Seismic Monitor without additional signal conditioning?
Yes. The 190501-03-00-04 Velomitor CT velocity transducer is designed for direct connection to the 3500/42M monitor’s seismic input channel. No external signal conditioner is required. The monitor’s internal circuitry provides the necessary ICP power supply and signal conditioning for the transducer’s velocity output. Verify the monitor’s channel configuration in the Rack Configuration Software (RCS) to ensure the input type is set to seismic/velocity before commissioning.

Q2: Can the 190501-03-00-04 be used in a redundant dual-sensor configuration for API 670-compliant machinery protection?
Yes. The 190501-03-00-04 supports redundant deployment by connecting two transducers to independent monitor channels within the 3500 rack. Each channel operates independently, and the 3500/32 Relay Module can be configured for 1oo2 or 2oo2 voting logic to determine trip decisions. This configuration meets the redundancy requirements of API 670 for critical rotating machinery protection systems. Ensure that both transducers are mounted at the same bearing location but on orthogonal axes if radial vibration coverage is required.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term spare parts availability for the 190501-03-00-04?
The 12-Month Warranty provided by ZYPLC covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Units that fail within the warranty period are replaced or repaired at no additional cost. For long-term spare parts planning, ZYPLC maintains verified inventory of the 190501-03-00-04 and related Bently Nevada 3500 Series components, supporting both emergency replacement orders and scheduled maintenance procurement programs. Contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 for availability and lead time confirmation.
