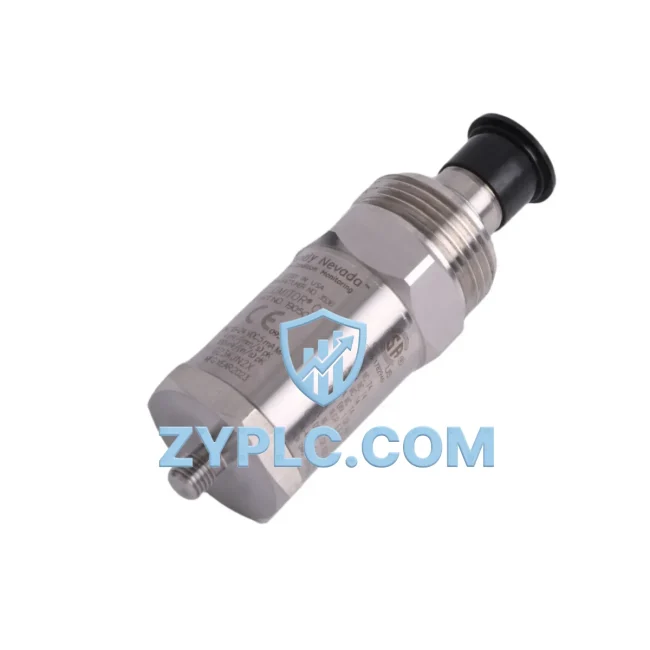

Bently Nevada 190501-04-99-01 System-Ready Velocity Transducer for 3500 Architecture
Bently Nevada 190501-04-99-01 Velomitor CT velocity transducer for 3500 architecture. 12-Month Warranty. Contextual Integration. In stock.
Bently Nevada
Bently Nevada 190501-04-99-01 Velomitor CT velocity transducer for 3500 architecture. 12-Month Warranty. Contextual Integration. In stock.
The Bently Nevada 190501-04-99-01 is a Velomitor CT piezoelectric velocity transducer engineered for seamless integration within the Bently Nevada 3500 Series machinery protection and monitoring architecture. In modern industrial automation environments — spanning power generation, petrochemical processing, water treatment, mining, metallurgy, and continuous manufacturing — machinery health monitoring is not a standalone function but a deeply embedded layer within the broader control system hierarchy. This transducer is designed precisely for that role: to deliver high-fidelity vibration velocity signals that feed directly into the 3500 rack-based monitoring system, enabling real-time condition assessment, predictive maintenance decisions, and system-wide operational continuity.
Understanding the 190501-04-99-01 requires viewing it not as an isolated sensor, but as a critical node within a layered automation architecture. From the field instrumentation layer through the signal conditioning layer, the monitoring and protection layer, the supervisory control layer, and ultimately to the enterprise data layer, this transducer anchors the vibration measurement chain that informs every upstream decision. Its integration with the 3500 system ensures that velocity data is accurately conditioned, time-stamped, and made available to both local protection logic and remote SCADA or DCS platforms.
| Parameter | Specification |
|---|---|
| System Role | Field-Level Velocity Measurement Node — 3500 Monitoring Architecture |
| SKU / Part Number | 190501-04-99-01 |
| Brand | Bently Nevada |
| Series | 3500 Machinery Protection System |
| Transducer Type | Velomitor CT Piezoelectric Velocity Transducer |
| Measurement Parameter | Casing Vibration Velocity |
| Sensitivity | 100 mV/in/s (4 mV/mm/s) |
| Frequency Range | 2 Hz – 1,000 Hz (±3 dB) |
| Operating Temperature | -55°C to +121°C |
| Electrical Output | Low-impedance voltage output, 4-wire connection |
| Power Supply | 18–30 VDC (supplied via 3500 I/O module) |
| Communication / Integration | Hardwired analog signal to 3500 Series I/O modules; compatible with 3500/42M, 3500/44M, 3500/45 monitor cards |
| Mounting | Stud-mount or adhesive, per ISO 10816 installation guidelines |
| Housing / Protection | Stainless steel, IP67-rated |
| Connector | 2-pin MIL-C-5015 style |
| Warranty | 12-Month Warranty — covers manufacturing defects and signal integrity under normal operating conditions |
| Contextual Integration | Full Contextual Integration with 3500 rack, Keyphasor modules, and System 1 software |
The 190501-04-99-01 velocity transducer achieves its full value when deployed as part of a coordinated Bently Nevada 3500 system architecture. In a typical turbomachinery or rotating equipment protection installation, this transducer operates in conjunction with a range of complementary components that together form a complete machinery health monitoring solution.
At the rack level, the 3500/01 Rack Interface Module serves as the communication backbone, managing data flow between individual monitor cards and the plant DCS or SCADA system via Modbus TCP or OPC-DA/UA protocols. The 3500/15 Power Supply Module provides stable, conditioned DC power to all rack-mounted cards and connected field devices, including the 190501-04-99-01, ensuring that power fluctuations at the plant level do not introduce noise into the vibration measurement chain.
Signal conditioning and protection logic are handled by dedicated monitor cards such as the 3500/42M Four-Channel Velocity/Acceleration Monitor, which directly accepts the analog output of the 190501-04-99-01 and applies configurable alert and danger setpoints. For installations requiring simultaneous proximity probe and velocity measurements on the same shaft, the 3500/44M Aeroderivative Turbine Monitor provides multi-parameter capability within a single card slot, reducing rack space requirements and simplifying wiring.
Phase reference and speed measurement are provided by the 3500/25 Keyphasor Module, which synchronizes vibration data from the 190501-04-99-01 with shaft rotational position — a critical requirement for vector-based vibration analysis, balancing diagnostics, and order-tracking in variable-speed applications. This synchronization is essential when the monitoring system is integrated with System 1 Condition Monitoring Software, Bently Nevada’s enterprise-level platform for trend analysis, alarm management, and predictive maintenance workflow automation.
For installations in hazardous areas or where intrinsic safety barriers are required, the 3500/20 Intrinsic Safety Barrier Module can be inserted between the field transducer and the monitor card, maintaining ATEX or IECEx compliance without compromising signal fidelity. In redundant protection architectures — common in critical turbine or compressor applications — dual 190501-04-99-01 transducers may be deployed on the same measurement point, with outputs routed to separate monitor cards to eliminate single-point failure risk.
At the human-machine interface layer, operator visualization is typically provided through Bently Nevada System 1 workstations or third-party HMI platforms receiving real-time data via the 3500 rack’s communication gateway. In DCS-integrated environments, the velocity data from the 190501-04-99-01 is mapped as an analog input tag within platforms such as Emerson DeltaV, Honeywell Experion, or ABB 800xA, enabling unified alarm management and historian integration across the entire process control system.
The 190501-04-99-01 is deployed across a wide range of heavy industrial sectors where rotating machinery reliability is directly linked to production continuity and safety compliance.
In power generation facilities — including gas turbines, steam turbines, and hydro generators — this transducer monitors casing vibration on bearing housings, providing early warning of imbalance, misalignment, or bearing degradation before these conditions escalate to forced outages. The 3500 system’s fast-response protection logic, fed by the 190501-04-99-01, can initiate controlled shutdowns within milliseconds of a danger-level event, protecting capital equipment valued in the tens of millions.
In petrochemical and refinery applications, the transducer is installed on centrifugal compressors, pumps, and fans operating in continuous-duty service. Its stainless steel housing and IP67 rating ensure reliable operation in environments with hydrocarbon vapors, high humidity, and wide temperature cycling. Integration with the plant’s safety instrumented system (SIS) via the 3500 rack’s relay output modules enables automatic process isolation upon vibration exceedance.
In water and wastewater treatment plants, the 190501-04-99-01 monitors large vertical turbine pumps and blower units, where vibration trending over months or years provides the data foundation for condition-based maintenance programs that reduce unplanned downtime and extend equipment service life.
In mining and mineral processing operations, the transducer is applied to crushers, mills, conveyors, and slurry pumps — equipment subject to high shock loads and abrasive environments. The robust construction of the 190501-04-99-01 and its compatibility with the 3500 system’s configurable filtering and alarm logic make it well-suited to these demanding conditions.
Q1: Is the 190501-04-99-01 directly compatible with all 3500 Series monitor cards, and does it require any signal conditioning adapters?
The 190501-04-99-01 Velomitor CT transducer is designed for direct hardwired connection to 3500 Series velocity-capable monitor cards, including the 3500/42M and 3500/44M. No external signal conditioning adapter is required under standard installation conditions. The transducer’s low-impedance output is fully compatible with the input specifications of these cards. For installations in classified hazardous areas, a 3500/20 Intrinsic Safety Barrier Module should be inserted in the signal path to maintain regulatory compliance. Always verify the specific monitor card’s input channel configuration in the 3500 System Configuration Software before commissioning.
Q2: How does the 190501-04-99-01 support redundant protection architectures, and what are the recommended installation practices for critical machinery?
For critical rotating equipment where continuous protection is mandatory, dual-transducer redundancy is the recommended architecture. Two 190501-04-99-01 units are mounted at the same bearing housing measurement point (typically at 90° separation for radial measurements, or at the same axial plane for thrust applications), with each transducer wired to an independent monitor card in the 3500 rack. This configuration eliminates single-point failure risk at the field sensor level and allows one transducer to be inspected or replaced during operation without interrupting protection coverage. The 3500 system’s voting logic can be configured to maintain protection continuity based on the remaining active channel during maintenance windows.
Q3: What does the 12-Month Warranty cover, and what support is available for long-term maintenance and spare parts supply?
The 12-Month Warranty covers manufacturing defects, signal output accuracy, and connector integrity under normal operating conditions as defined in the product specification. It does not cover damage resulting from improper installation, mechanical impact, chemical exposure beyond rated limits, or operation outside the specified temperature and voltage ranges. For long-term maintenance planning, ZYPLC maintains stock of the 190501-04-99-01 and related 3500 Series components to support rapid replacement requirements. Our technical team provides pre-sales architecture consultation, installation guidance, and post-sales support to ensure that your monitoring system maintains full operational integrity throughout its service life.
