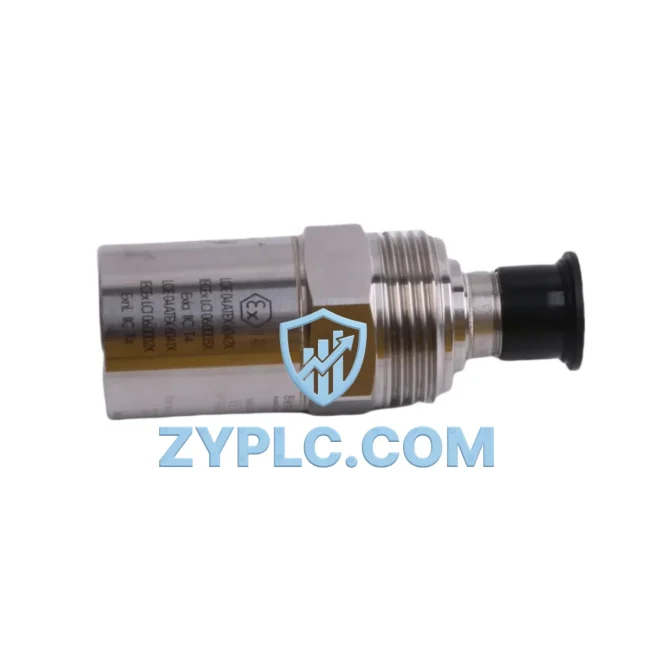

Bently Nevada 190501-08-99-04 System-Ready Velocity Transducer for 3500 Series Architecture

Bently Nevada 190501-08-99-04 System-Ready Velocity Transducer for 3500 Series Control Architecture

The Bently Nevada 190501-08-99-04 is a precision velocity transducer engineered for seamless integration within the Bently Nevada 3500 Series machinery protection and condition monitoring architecture. In modern industrial automation environments — spanning power generation, petrochemical processing, water treatment, and heavy manufacturing — machinery protection is not a standalone function. It is a coordinated layer within a broader control hierarchy that connects field-level sensing, signal conditioning, rack-based monitoring, communication gateways, and supervisory control systems. The 190501-08-99-04 occupies a critical position in this hierarchy: it converts mechanical vibration velocity into a reliable electrical signal that feeds directly into the 3500 Series monitoring rack, enabling real-time machinery health assessment across the entire plant control architecture.

Understanding the role of this transducer requires viewing it not in isolation, but as a functional node within a layered automation system. From the field instrumentation layer through to the DCS or SCADA supervisory layer, every component must operate with consistent signal integrity, compatible electrical parameters, and coordinated communication protocols. The 190501-08-99-04 is designed to meet these demands, providing stable velocity measurement output that integrates without signal conditioning gaps into the 3500 rack infrastructure.

Architecture Specification Table

Coordinated Control System Design

The 190501-08-99-04 velocity transducer achieves its full value when deployed as part of a coordinated Bently Nevada 3500 Series system architecture. At the rack level, the 3500/01 Rack Interface Module provides the system backbone, managing power distribution and communication between all installed monitor cards. The 3500/42M Velocity/Acceleration Monitor serves as the direct signal receiver for the 190501-08-99-04, processing the analog velocity signal and applying configurable alarm setpoints for alert and danger thresholds.

Power integrity across the rack is maintained by the 3500/15 Power Supply Module, which provides regulated DC power to all installed cards and ensures that transducer excitation remains stable even under fluctuating plant power conditions. For facilities requiring redundant protection, a secondary 3500/15 Power Supply can be installed in the same rack, providing automatic failover without signal interruption — a critical requirement in continuous-process industries such as petrochemical refining and power generation.

At the communication layer, the 3500/92 Communication Gateway Module bridges the 3500 rack to plant-level networks, enabling Modbus TCP or OPC-DA data transfer to the site DCS or SCADA platform. This allows the velocity data captured by the 190501-08-99-04 to be integrated into broader process control loops, historian databases, and predictive maintenance platforms without requiring additional signal conversion hardware.

For multi-machine monitoring installations, the 190501-08-99-04 is commonly deployed alongside Bently Nevada 3300 XL 8mm Proximity Probes and 3300 XL Extension Cables, which handle shaft relative vibration measurement on the same machine train. This combination — absolute casing velocity from the 190501-08-99-04 and relative shaft displacement from the proximity probe system — provides a complete vibration signature for rotating machinery, satisfying API 670 machinery protection requirements for critical equipment.

At the human-machine interface layer, operator visibility is provided through System 1 Evolution software, Bently Nevada’s condition monitoring and diagnostics platform, which aggregates data from all 3500 rack monitors and presents trend analysis, alarm management, and machinery health dashboards. The velocity data from the 190501-08-99-04 feeds directly into System 1’s machinery health models, enabling early fault detection for conditions such as unbalance, misalignment, looseness, and bearing defects.

Terminal block assemblies and 3500 Series I/O Termination Modules complete the field wiring interface, providing organized, labeled connection points that simplify installation, commissioning, and future maintenance activities. Proper termination module selection ensures that the 190501-08-99-04’s signal cable is routed and shielded correctly, minimizing electromagnetic interference in electrically noisy industrial environments.

Application in Layered Automation Systems

In power generation facilities — including gas turbines, steam turbines, and hydro generators — the 190501-08-99-04 is mounted on bearing housings and machine casings to monitor casing vibration velocity in real time. Turbine protection systems require continuous, high-reliability vibration monitoring, and the 3500 Series architecture with the 190501-08-99-04 provides the signal fidelity and alarm response speed required to protect multi-million-dollar rotating assets.

In petrochemical and refining plants, the transducer is deployed on centrifugal compressors, process pumps, and blowers within hazardous area installations. Its robust construction and compatibility with the 3500 rack’s intrinsic safety and explosion-proof installation options make it suitable for Zone 1 and Zone 2 classified areas, where machinery protection cannot be compromised by environmental conditions.

In water and wastewater treatment facilities, the 190501-08-99-04 supports condition monitoring programs on large vertical turbine pumps and horizontal centrifugal pumps, where early detection of bearing wear and mechanical looseness reduces unplanned downtime and extends equipment service life. Integration with the plant SCADA system via the 3500/92 gateway allows maintenance teams to monitor machinery health remotely, reducing the need for manual rounds in remote pump stations.

In mining and mineral processing operations, the transducer is applied to crushers, conveyors, mills, and fans — equipment that operates under high mechanical stress and variable load conditions. The 3500 Series architecture’s ability to handle multiple transducer inputs per rack, combined with the 190501-08-99-04’s reliable velocity output, supports comprehensive machine train monitoring across large, distributed processing facilities.

In packaging and discrete manufacturing lines, the transducer contributes to predictive maintenance programs that minimize production interruptions. By integrating machinery health data into the plant MES or ERP system through the 3500 communication gateway, maintenance planners can schedule interventions during planned downtime windows rather than responding reactively to unexpected failures.

Architecture Engineering FAQ

Q1: Is the 190501-08-99-04 directly compatible with the 3500/42M Velocity/Acceleration Monitor without additional signal conditioning?
Yes. The 190501-08-99-04 is designed for direct hardwired connection to the 3500/42M monitor card within the 3500 Series rack. No intermediate signal conditioner or transmitter is required. The monitor card accepts the analog velocity signal directly and applies the configured alarm setpoints, providing immediate protection response. Ensure that the termination module and cable shielding are installed per Bently Nevada wiring guidelines to maintain signal integrity.

Q2: Can this transducer be used in a redundant 3500 Series architecture, and how does it support long-term system maintainability?
The 190501-08-99-04 supports redundant monitoring architectures when paired with dual-channel 3500 monitor cards or when installed as part of a voted protection system. For long-term maintainability, the transducer’s standardized mechanical mounting and electrical interface allow field replacement without rack reconfiguration. Our 12-Month Warranty covers the transducer against manufacturing defects, and our inventory supply program ensures replacement units are available to minimize machinery downtime during scheduled maintenance outages.

Q3: What commissioning steps are required when integrating the 190501-08-99-04 into an existing 3500 Series system?
Commissioning involves verifying the transducer’s sensitivity and frequency response against the 3500/42M monitor card’s input configuration, confirming cable continuity and shield grounding, and performing a functional test by applying a known vibration reference to validate alarm setpoint response. The 3500 rack’s built-in self-test and OK relay functions provide continuous health monitoring of the transducer circuit during normal operation. For systems integrated with System 1 Evolution software, the transducer channel should be configured in the software’s point database to enable trend logging and alarm management from the first day of operation.
