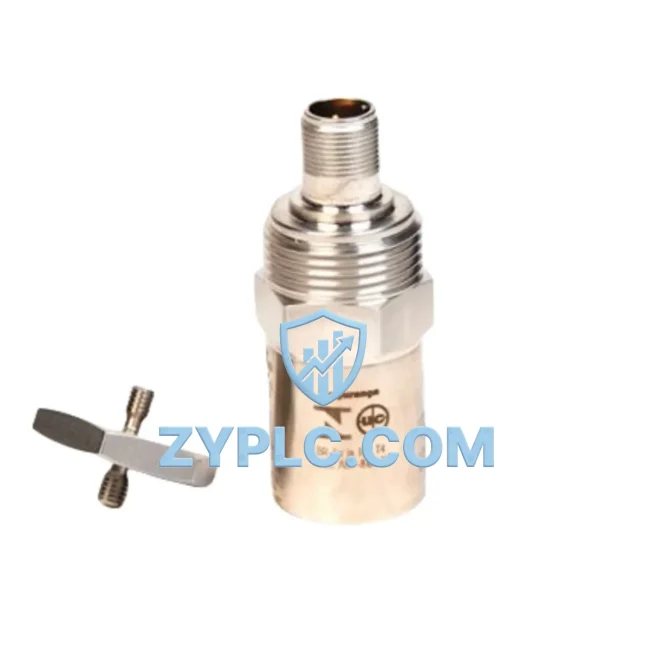

Bently Nevada 190501-19-00-00 System-Ready Velocity Transducer for 3500 Architecture

Bently Nevada 190501-19-00-00 System-Ready Velocity Transducer for 3500 Architecture

The Bently Nevada 190501-19-00-00 Velomitor CT Velocity Transducer is a precision seismic velocity sensor engineered for seamless integration within the Bently Nevada 3500 Series Machinery Protection System. In modern industrial automation and rotating machinery protection architectures, a velocity transducer is not simply a standalone sensing device — it is a critical node within a layered, multi-channel monitoring framework that spans the control layer, I/O acquisition layer, signal conditioning layer, communication network, and operator interface. The 190501-19-00-00 is designed to fulfill this role with exceptional signal fidelity, mechanical robustness, and long-term reliability across demanding industrial environments.

Within the 3500 platform architecture, this transducer connects directly to the 3500/42M Proximitor/Seismic Monitor Module, which provides the signal conditioning, alarm setpoint management, and channel-level diagnostics required for continuous machinery health surveillance. The monitor module resides within the 3500/05 Rack Interface Module chassis — a standardized 19-inch rack backplane that supports up to 16 monitor modules in a single frame, enabling high-density I/O integration without compromising signal integrity or channel isolation. This architecture ensures that the 190501-19-00-00 contributes to a coherent, scalable monitoring topology rather than operating as an isolated measurement point.

At the control layer, the 3500 system communicates with distributed control systems (DCS) and safety instrumented systems (SIS) via the 3500/92 Communication Gateway Module, which supports Modbus TCP, OPC DA, and Ethernet/IP protocols. This gateway bridges the machinery protection layer with the plant-wide SCADA or DCS environment — such as a Honeywell Experion PKS or Emerson DeltaV platform — ensuring that velocity data captured by the 190501-19-00-00 is available in real time at the operator workstation and historian. The result is a fully integrated signal flow from the transducer tip to the control room display, with no data gaps or protocol conversion losses.

For redundancy-critical applications in power generation, petrochemical processing, or offshore platforms, the 3500 architecture supports dual-redundant rack configurations. A secondary 3500/05 Rack Interface Module can be deployed in hot-standby mode, with the 3500/15 Power Supply Module providing redundant 24 VDC or 120/240 VAC input options to eliminate single points of failure at the power layer. The 190501-19-00-00, mounted on the machinery casing or bearing housing, feeds its velocity signal into both primary and redundant monitor channels simultaneously, ensuring uninterrupted protection even during module replacement or firmware updates.

From an I/O and signal layer perspective, the 190501-19-00-00 outputs a velocity signal in the range of 25 mV/mm/s (or 100 mV/in/s in imperial configurations), compatible with the input specifications of the 3500/42M monitor. The transducer’s internal ISOTRON® piezoelectric sensing element delivers a low-impedance, noise-immune signal suitable for cable runs exceeding 300 meters in electrically noisy industrial environments — a critical advantage in steel mills, mining operations, and large-scale compressor trains where EMI interference is a persistent challenge. The 3500/20 Rack Configuration Module stores all channel configuration parameters, alarm setpoints, and transducer calibration data, enabling rapid module swap-out without reconfiguration downtime.

At the human-machine interface layer, velocity trend data from the 190501-19-00-00 is visualized through System 1 Evolution condition monitoring software, Bently Nevada’s enterprise-level asset performance management platform. System 1 aggregates waveform data, overall vibration levels, and alarm histories across all connected transducers and monitor modules, enabling maintenance engineers to perform spectral analysis, trend forecasting, and root cause diagnostics from a centralized interface. This integration transforms raw velocity measurements into actionable maintenance intelligence, directly supporting predictive maintenance programs and reducing unplanned downtime.

In layered automation systems for rotating equipment — including steam turbines, gas compressors, centrifugal pumps, and large electric motors — the 190501-19-00-00 is typically deployed alongside complementary sensors such as the Bently Nevada 330180-91-00 Proximity Transducer for radial shaft displacement measurement and the 330130-080-01-00 Extension Cable for flexible installation routing. Together, these components form a complete vibration monitoring suite that covers both relative shaft motion and absolute casing velocity — the two fundamental parameters required for API 670-compliant machinery protection.

For applications in water treatment facilities, mining conveyors, or packaging production lines where environmental exposure is a concern, the 190501-19-00-00’s stainless steel housing and IP67-rated connector provide reliable protection against moisture ingress, dust accumulation, and chemical splash. The transducer’s operating temperature range of -40°C to +121°C ensures stable performance across both arctic outdoor installations and high-temperature process environments near furnaces or steam headers.

All units supplied by ZYPLC are covered by a 12-Month Warranty and undergo pre-shipment functional verification to confirm output sensitivity, frequency response linearity, and connector integrity. Our inventory management system maintains buffer stock of the 190501-19-00-00 to support urgent replacement requirements, minimizing the risk of extended machinery downtime due to transducer failure. With Contextual Integration support, our technical team can assist with system architecture review, channel assignment planning, and compatibility verification with existing 3500 rack configurations before shipment.

Architecture Specification Table

Coordinated Control System Design

The 190501-19-00-00 achieves its full protective value only when deployed within a properly coordinated 3500 system architecture. At the rack level, the 3500/05 Rack Interface Module serves as the central backplane, hosting the 3500/15 Power Supply Module for redundant power distribution and the 3500/20 Rack Configuration Module for centralized parameter storage. The 3500/42M Proximitor/Seismic Monitor Module receives the velocity signal from the 190501-19-00-00 and performs real-time alarm comparison against user-defined Alert and Danger setpoints, triggering relay outputs through the 3500/32 Relay Module to initiate controlled machinery shutdown sequences when vibration thresholds are exceeded.

For shaft displacement monitoring on the same machine train, the Bently Nevada 330180-91-00 Proximity Transducer paired with a 3300 XL 8mm Proximitor Sensor provides complementary radial position data, feeding into adjacent channels of the same 3500/42M module. This co-location of velocity and proximity data within a single monitor module enables the system to distinguish between casing resonance events and shaft orbit anomalies — a critical diagnostic capability for turbomachinery protection. The 3500/92 Communication Gateway Module then aggregates all channel data and transmits it upstream to the plant DCS via Ethernet, ensuring that both velocity and displacement trends are available at the operator console without requiring separate communication infrastructure.

In applications requiring tachometer-referenced analysis, a Bently Nevada 330104-00-06-10-02-00 Proximity Transducer configured as a Keyphasor® reference sensor provides once-per-revolution phase reference signals to the 3500 system, enabling synchronous vibration analysis and balancing diagnostics. This multi-transducer architecture — combining the 190501-19-00-00 velocity sensor, proximity transducers, and Keyphasor reference — forms the complete sensor suite recommended by API 670 for critical rotating machinery protection in refinery, power generation, and LNG compression applications.

Application in Layered Automation Systems

In power generation facilities, the 190501-19-00-00 is deployed on steam turbine casings, generator bearing housings, and boiler feed pump frames to detect sub-synchronous vibration, bearing defect frequencies, and structural resonance conditions that precede catastrophic failure. The transducer’s wide frequency response and high-temperature rating make it suitable for installation in close proximity to steam admission valves and exhaust casings where ambient temperatures routinely exceed 80°C.

In petrochemical and refinery environments, the 190501-19-00-00 monitors centrifugal compressor casings, reactor agitator drives, and cooling tower fan gearboxes within hazardous area classifications. Its stainless steel construction and IP67 connector resist hydrocarbon condensate, H₂S exposure, and high-pressure wash-down cycles common in process plant maintenance routines. Integration with the 3500/92 gateway enables alarm data to flow directly into the plant safety instrumented system (SIS) for automatic process isolation on high-vibration events.

In mining and mineral processing operations, the transducer is applied to SAG mill drive motors, conveyor head pulley bearings, and crusher main shaft assemblies. The harsh dust and moisture environment of underground and open-cut mining demands the IP67 protection and robust stainless steel housing that the 190501-19-00-00 provides. Remote monitoring via the 3500/92 Modbus TCP interface allows surface control rooms to receive real-time vibration data from underground equipment without requiring personnel entry into restricted zones.

In water and wastewater treatment plants, the 190501-19-00-00 monitors large vertical turbine pumps, blower units, and centrifuge drives that operate continuously with minimal maintenance access. Early detection of bearing wear and impeller imbalance through velocity trend analysis enables maintenance teams to schedule interventions during planned outage windows rather than responding to emergency failures, directly reducing lifecycle maintenance costs and improving plant availability.

Architecture Engineering FAQ

Q1: Is the 190501-19-00-00 directly compatible with the 3500/42M Proximitor/Seismic Monitor Module without additional signal conditioning?
Yes. The 190501-19-00-00 Velomitor CT is designed as a direct-connect sensor for the 3500/42M monitor module. It operates on the 18–30 VDC supply provided by the monitor’s transducer power circuit and delivers a low-impedance voltage output that the 3500/42M processes natively without external signal conditioning amplifiers or impedance matching networks. Channel configuration, including sensitivity scaling and alarm setpoints, is performed through the 3500/20 Rack Configuration Module using Bently Nevada’s System 1 or Rack Configuration Software.

Q2: Can the 190501-19-00-00 be used in a redundant 3500 rack architecture, and how does failover affect signal continuity?
Yes. In a dual-redundant 3500 rack configuration, the transducer signal is split at the terminal block level and fed simultaneously to the primary and standby 3500/42M monitor channels. The 3500/05 Rack Interface Module manages the active/standby switchover logic, ensuring that alarm monitoring and relay output functions transfer to the standby channel within milliseconds of a primary module fault. The 190501-19-00-00 itself has no active electronics that require redundancy — its passive ISOTRON® output is inherently available to both channels simultaneously, making it fully compatible with hot-standby redundancy architectures without any additional hardware.

Q3: What does the 12-Month Warranty cover, and what Contextual Integration support is available from ZYPLC?
The 12-Month Warranty covers manufacturing defects, output sensitivity deviation beyond ±10% of the rated specification, connector failure, and housing integrity issues under normal operating conditions. ZYPLC’s Contextual Integration support includes pre-shipment compatibility verification against your existing 3500 rack configuration, channel assignment planning assistance, and technical documentation review to confirm that the 190501-19-00-00 meets your application’s frequency range, sensitivity, and environmental requirements before installation. For urgent replacement scenarios, ZYPLC maintains buffer stock and can provide same-day dispatch with full traceability documentation to support your maintenance records and regulatory compliance requirements.
