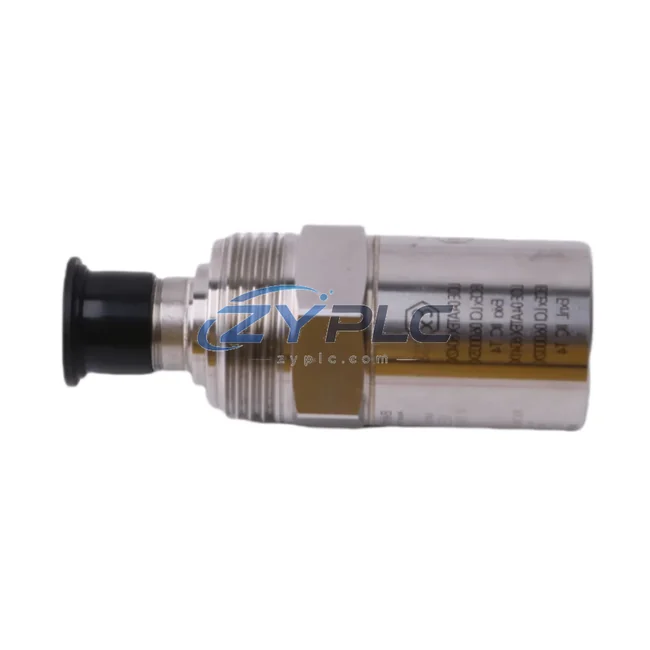

Bently Nevada 190501-19-99-04 Velocity Transducer for 1900/65A

Bently Nevada 190501-19-99-04 Velocity Transducer for 1900/65A

The Bently Nevada 190501-19-99-04 is a precision velocity transducer engineered to operate as a fully integrated sensing element within the Bently Nevada 1900/65A vibration monitoring platform. Rather than functioning as a standalone measurement device, this transducer is designed from the ground up to participate in a layered industrial control architecture — contributing real-time velocity signal data to the monitoring, protection, and condition assessment layers of rotating machinery systems. In process-critical environments such as power generation, petrochemical refining, water treatment, and heavy manufacturing, the reliability of the entire control chain depends on the signal integrity delivered by components like the 190501-19-99-04 at the field sensing layer.

Within a complete system architecture, the 190501-19-99-04 occupies the physical sensing layer, converting mechanical vibration velocity into an analog electrical signal that feeds directly into the 1900/65A monitor module. This monitor module, in turn, interfaces with the plant DCS or safety instrumented system (SIS) via standard 4–20 mA or relay output channels, enabling the control layer to make real-time decisions on machine protection, alarm annunciation, and shutdown sequencing. The transducer’s role is therefore not peripheral — it is the origin point of the entire vibration data stream that drives downstream logic in the control system.

System architects integrating the 190501-19-99-04 into a Bently Nevada 1900-series platform benefit from the transducer’s compatibility with the broader 1900/65A module ecosystem. The 1900/65A two-channel general-purpose monitor accepts velocity inputs from this transducer type and processes them against configurable alert and danger setpoints. When paired with the 1900/65A rack-mounted monitor, the transducer signal passes through the module’s internal signal conditioning circuitry before being transmitted to the plant historian, SCADA system, or PLC-based control layer. This seamless signal chain — from mechanical motion to digital control decision — is what defines a well-engineered machine protection architecture.

From a system integration perspective, the 190501-19-99-04 is typically deployed alongside complementary Bently Nevada components including the 3300 XL proximity probe system for radial shaft displacement measurement, the 330180 proximitor sensor for eddy-current signal conditioning, the 3500/42M proximitor I/O module for rack-based signal management, and the 3500/22M transient data interface for high-resolution waveform capture. In applications requiring redundant monitoring, dual-channel configurations using two 190501-series transducers on a single bearing housing provide the measurement redundancy necessary for SIL-rated protection loops. The 1900/65A monitor’s built-in relay outputs can then be wired to the plant’s emergency shutdown (ESD) system or to a Triconex or Yokogawa safety controller for final element actuation.

At the network and communication layer, the 1900/65A monitor connected to the 190501-19-99-04 can be integrated into Modbus RTU or Modbus TCP/IP networks, allowing the vibration data to be polled by a Rockwell Automation ControlLogix PLC, a Siemens S7-400 controller, or an ABB System 800xA distributed control system. This cross-platform compatibility ensures that the Bently Nevada sensing layer can coexist within multi-vendor control architectures without requiring proprietary gateways or protocol converters. For facilities running OSIsoft PI or similar plant information management systems, the 1900/65A’s analog outputs provide a direct path for continuous vibration trending and predictive maintenance analytics.

Installation and commissioning of the 190501-19-99-04 follows Bently Nevada’s standard field wiring practices, with the transducer mounted directly to the machine casing using a threaded stud or magnetic base adapter. Cable routing to the 1900/65A monitor should observe shielded cable requirements to minimize electromagnetic interference in high-noise industrial environments such as motor control centers (MCCs) or variable frequency drive (VFD) enclosures. During system commissioning, engineers verify the transducer’s sensitivity (typically expressed in mV/mm/s or mV/in/s) against the monitor’s input configuration to ensure accurate engineering unit scaling across the full measurement range. Proper grounding of the cable shield at a single point — typically at the monitor end — is essential for signal integrity in long cable runs exceeding 30 meters.

Long-term maintenance planning for systems incorporating the 190501-19-99-04 benefits from Bently Nevada’s established spare parts ecosystem. Maintaining a stocked inventory of replacement transducers reduces unplanned downtime risk during scheduled turnarounds or emergency maintenance events. The 190501-19-99-04 is available from ZYPLC with a warranty terms confirmed during quotation, covering manufacturing defects and ensuring that replacement units meet the original factory specification for sensitivity, frequency response, and environmental sealing. This warranty coverage supports maintenance managers in justifying spare parts inventory to plant reliability teams, as the cost of a warranted replacement transducer is substantially lower than the cost of an unplanned machine trip caused by a failed sensing element.

In layered automation systems, the 190501-19-99-04 contributes to overall system availability by providing continuous, uninterrupted velocity measurement without requiring periodic recalibration under normal operating conditions. Unlike proximity probes that require precise gap setting during installation, velocity transducers of this type are self-generating devices that do not require external power supplies for signal generation, simplifying the power distribution architecture of the monitoring panel. This characteristic makes the 190501-19-99-04 particularly well-suited for retrofit applications where existing panel space and power capacity are constrained.

Product Specification Table

System Compatibility Notes

A complete machine protection system built around the 190501-19-99-04 velocity transducer integrates multiple Bently Nevada and complementary components across all system layers. At the sensing layer, the 190501-19-99-04 works in coordination with the Bently Nevada 330180 proximitor sensor and 3300 XL 8mm proximity probe to provide both casing velocity and shaft displacement measurements simultaneously — giving the protection system a complete picture of rotor and casing dynamics. The Bently Nevada 3500/42M proximitor I/O module handles the rack-based signal conditioning for proximity inputs, while the 1900/65A monitor processes the velocity transducer signal in parallel.

At the I/O and rack layer, the Bently Nevada 3500/20 rack interface module provides the backplane communication infrastructure that links individual monitor modules to the plant network. The 3500/22M transient data interface module captures high-resolution waveform data during machine startup and shutdown events, complementing the steady-state velocity monitoring provided by the 190501-19-99-04. For power distribution within the monitoring panel, the Bently Nevada 3500/15 power supply module provides regulated DC power to all rack-mounted modules, ensuring stable operation of the entire monitoring system even during plant power fluctuations.

At the control and network layer, the velocity data from the 190501-19-99-04 — processed through the 1900/65A monitor — is transmitted via Modbus to the plant PLC or DCS. In Rockwell Automation environments, a ControlLogix 1756-L73 controller typically serves as the primary logic processor, receiving vibration alarm states and integrating them into the machine control sequence. In Siemens environments, the S7-400 CPU 414-3 PN/DP performs the equivalent function via PROFIBUS DP or PROFINET. At the human-machine interface layer, vibration trends from the 190501-19-99-04 are displayed on Wonderware InTouch or Ignition SCADA screens, providing operators with real-time and historical vibration data for informed decision-making.

Industrial Application Notes

Power Generation: In gas turbine and steam turbine applications, the 190501-19-99-04 is mounted on bearing housings to monitor casing vibration continuously. The 1900/65A monitor’s relay outputs are wired to the turbine control system’s emergency trip circuit, enabling automatic machine shutdown if vibration exceeds the danger setpoint. This configuration is standard in combined-cycle power plants where turbine availability directly impacts grid stability.

Petrochemical and Refining: Centrifugal compressors and process pumps in refinery service require continuous vibration monitoring to comply with API 670 machinery protection standards. The 190501-19-99-04, as part of a 1900/65A-based monitoring system, provides the velocity measurement channel required by API 670 for casing vibration monitoring on non-API 670 critical machines, supplementing proximity probe-based shaft vibration monitoring on API 670-classified equipment.

Water and Wastewater Treatment: Large centrifugal pumps and blowers in water treatment facilities benefit from continuous vibration monitoring to detect bearing deterioration before catastrophic failure. The 190501-19-99-04’s robust construction and wide operating temperature range make it suitable for outdoor pump station installations where environmental conditions vary significantly across seasons.

Mining and Minerals Processing: Ball mills, SAG mills, and conveyor drive motors in mining operations generate high levels of structural vibration that can mask developing mechanical faults. The 190501-19-99-04’s velocity measurement capability, combined with the 1900/65A monitor’s configurable alert and danger setpoints, allows maintenance teams to establish machine-specific vibration baselines and detect deviations that indicate developing faults before they result in unplanned downtime.

Packaging and Discrete Manufacturing: High-speed rotating equipment in packaging lines — including centrifugal fans, gearboxes, and motor-pump sets — can be monitored using the 190501-19-99-04 as part of a cost-effective condition monitoring system. Integration with the plant PLC via the 1900/65A monitor’s Modbus interface allows vibration alarm states to be incorporated into the machine’s safety PLC logic without requiring a dedicated condition monitoring network.

Product Compatibility FAQ

Q1: Is the 190501-19-99-04 compatible with the Bently Nevada 3500 series rack system, or is it exclusively for the 1900/65A platform?
The 190501-19-99-04 is a passive velocity transducer that generates an analog voltage signal proportional to vibration velocity. While it is optimized for use with the 1900/65A general-purpose monitor, its analog output is compatible with any monitor or I/O module that accepts a velocity transducer input within the appropriate sensitivity and impedance range. Engineers integrating this transducer into a 3500-series rack should verify input module compatibility — specifically the 3500/42M or 3500/46M module specifications — before finalizing the system design. ZYPLC’s technical team can assist with compatibility verification prior to purchase.

Q2: What cable length limitations apply when running the 190501-19-99-04 signal cable to a remote 1900/65A monitor, and how does cable length affect signal integrity?
Velocity transducer signal cables can typically be run up to 300 meters using shielded, twisted-pair instrumentation cable without significant signal degradation, provided the cable shield is grounded at a single point (monitor end) and the cable is routed away from high-voltage power cables and VFD output conductors. For cable runs exceeding 100 meters in high-EMI environments, the use of individually shielded, overall-shielded (IS/OS) cable construction is recommended. The 1900/65A monitor’s input impedance is sufficiently high that cable capacitance effects on signal amplitude are negligible within these distance limits.

Q3: What does the warranty terms confirmed during quotation from ZYPLC cover for the 190501-19-99-04, and what is the process for warranty claims?
The warranty terms confirmed during quotation provided by ZYPLC covers manufacturing defects and verifiable deviations from the published Bently Nevada 190501 series specification, including sensitivity tolerance, frequency response, and environmental sealing integrity. The warranty period begins from the date of shipment. To initiate a warranty claim, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with the order reference number and a description of the observed fault. ZYPLC will arrange for inspection and, where the fault is confirmed as a manufacturing defect, will provide a replacement unit at no additional cost. Physical damage resulting from improper installation, overvoltage, or mechanical impact is excluded from warranty coverage.
