Bently Nevada 190501-22-00-01: System-Ready Velocity Transducer for Velomitor CT Control Architecture

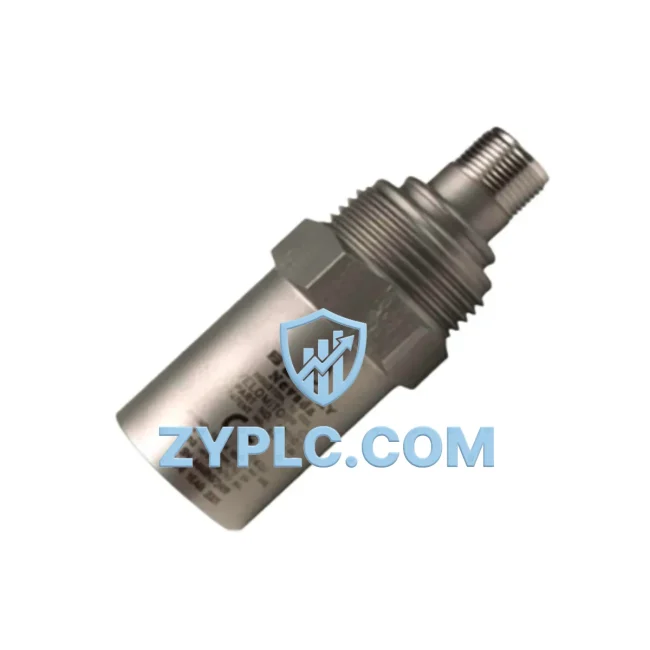

The Bently Nevada 190501-22-00-01 is a high-performance Velomitor CT velocity transducer engineered for seamless integration within layered industrial control system architectures. Unlike conventional vibration sensors deployed in isolation, this transducer is designed to function as a precision signal-source node within a coordinated machinery protection and condition monitoring framework. Its role spans the sensing layer through to the control and decision layer, enabling real-time velocity signal acquisition that feeds directly into the Bently Nevada 3500 Series machinery protection system — one of the most widely deployed vibration monitoring platforms in rotating equipment applications worldwide.

In modern industrial automation environments — whether in power generation, petrochemical processing, water treatment, or heavy manufacturing — the integrity of the control architecture depends on the consistency and reliability of every component in the signal chain. The 190501-22-00-01 addresses this requirement by delivering a broadband velocity output that is fully compatible with the 3500 Series rack infrastructure, ensuring that signal conditioning, alarm threshold management, and trip logic remain coherent across the entire protection system. This contextual integration capability is what distinguishes the Velomitor CT platform from legacy velocity transducer designs.

Architecture Specification Table

Coordinated Control System Design

The 190501-22-00-01 Velomitor CT transducer achieves its full value when deployed within a coordinated Bently Nevada 3500 Series rack system. At the rack level, the 3500/01 Rack Interface Module provides the system backbone, managing communication between individual monitor modules and the host DCS or SCADA platform. The velocity signal from the 190501-22-00-01 is routed to a 3500/42M Proximitor/Seismic Monitor or 3500/40M Proximitor Monitor, where it undergoes signal conditioning, RMS calculation, and comparison against pre-configured alarm and danger thresholds.

Power integrity for the transducer and the monitoring rack is maintained through the 3500/15 Power Supply Module, which supports redundant power input configurations — a critical requirement in continuous-process industries where unplanned shutdowns carry significant operational and safety consequences. For facilities requiring full redundancy at the monitoring level, the 3500/20 Rack Configuration Module enables dual-rack architectures where the secondary rack mirrors the primary in real time, ensuring no single point of failure exists in the protection chain.

At the network and communication layer, the 3500/92 Communication Gateway Module translates the rack’s internal data into Modbus TCP, Profibus DP, or OPC-DA formats, enabling seamless data exchange with plant-level historians, DCS controllers such as the Emerson DeltaV or Honeywell Experion PKS, and condition monitoring software platforms. This ensures that velocity data captured by the 190501-22-00-01 is not siloed within the protection system but is available across the full automation hierarchy for trending, predictive maintenance analysis, and regulatory reporting.

At the field wiring and termination layer, 3500 Series I/O Terminal Blocks and Bently Nevada Interconnect Cables provide the physical interface between the transducer cable and the monitor module inputs, maintaining signal integrity across long cable runs in electrically noisy industrial environments. For installations requiring intrinsic safety or hazardous area compliance, the system can be extended with appropriate Zener Barrier or Galvanic Isolator modules positioned between the transducer and the monitor input.

The human-machine interface layer is typically served by an Operator Display Station running Bently Nevada’s System 1 software, which aggregates velocity, displacement, and temperature data from across the machinery train into a unified dashboard. This contextual integration of the 190501-22-00-01 within the broader System 1 environment enables maintenance engineers to correlate velocity trends with process variables, identify developing faults at an early stage, and schedule corrective maintenance during planned outages rather than responding to unplanned trips.

Application in Layered Automation Systems

Power Generation: In gas turbine and steam turbine protection systems, the 190501-22-00-01 is mounted on bearing housings to monitor casing vibration velocity. The transducer’s broadband frequency response captures both low-frequency unbalance signatures and higher-frequency structural resonance events, providing the 3500 Series monitor with the data needed to distinguish between normal operational vibration and developing mechanical faults. In combined-cycle power plants, multiple Velomitor CT transducers are deployed across the turbine train — HP turbine, LP turbine, and generator — with all signals consolidated in a single 3500 Series rack for unified protection logic.

Petrochemical and Refining: Compressor trains in ethylene plants, LNG facilities, and crude oil refineries operate continuously under high mechanical stress. The 190501-22-00-01 provides the velocity monitoring capability required by API 670 machinery protection standards, complementing proximity probe-based displacement monitoring on the same shaft. The combination of velocity and displacement data within the 3500 Series rack enables a complete picture of rotor and casing dynamics, supporting both trip protection and condition-based maintenance programs.

Water and Wastewater Treatment: Large centrifugal pumps and blowers in municipal water treatment facilities benefit from continuous velocity monitoring to detect impeller imbalance, cavitation, and bearing wear before they progress to failure. The IP67-rated housing of the 190501-22-00-01 makes it suitable for the wet, chemically aggressive environments typical of water treatment installations, while its compatibility with the 3500 Series architecture allows integration with plant SCADA systems for remote monitoring and alarm management.

Mining and Mineral Processing: Ball mills, SAG mills, and conveyor drive systems in mining operations are subject to high vibration levels and harsh environmental conditions. The robust stainless steel construction of the 190501-22-00-01 and its wide operating temperature range make it well-suited for these demanding applications. Integration with the 3500 Series protection system enables automated shutdown of critical drives when vibration velocity exceeds safe operating limits, preventing catastrophic mechanical failures that would result in extended production downtime.

Architecture Engineering FAQ

Q1: Is the 190501-22-00-01 directly compatible with the Bently Nevada 3500/42M and 3500/40M monitor modules without additional signal conditioning?
Yes. The 190501-22-00-01 Velomitor CT transducer produces a standard velocity output signal (100 mV/in/s) that is directly compatible with the seismic input channels of the 3500/42M Proximitor/Seismic Monitor and the 3500/40M Proximitor Monitor. No external signal conditioning or impedance matching is required. The transducer is loop-powered from the monitor module’s internal power supply, simplifying field wiring and reducing the number of components in the signal path. Configuration of alarm thresholds, full-scale ranges, and trip logic is performed within the 3500 Series rack using Bently Nevada’s Rack Configuration Software.

Q2: Can this transducer be used in a redundant monitoring architecture, and how does it integrate with dual-rack 3500 Series configurations?
The 190501-22-00-01 supports redundant monitoring architectures through the use of dual-transducer mounting arrangements, where two Velomitor CT units are installed at the same measurement point and connected to independent monitor modules in separate 3500 Series racks. The 3500/20 Rack Configuration Module manages the synchronization between primary and secondary racks, ensuring that both racks maintain identical configuration and that the secondary rack can assume protection responsibility instantaneously in the event of a primary rack fault. This architecture meets the redundancy requirements of SIL 2 and SIL 3 safety instrumented systems in critical process applications.

Q3: What does the 12-Month Warranty cover, and what support is available for long-term maintenance and spare parts supply?
All 190501-22-00-01 units supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. The warranty covers the complete transducer assembly including the sensing element, integrated electronics, housing, and connector. In the event of a warranty claim, ZYPLC provides direct technical support and replacement unit dispatch to minimize system downtime. Beyond the warranty period, ZYPLC maintains ongoing inventory of Bently Nevada Velomitor CT series transducers and 3500 Series compatible components to support long-term spare parts programs, planned maintenance shutdowns, and emergency replacement requirements. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 for availability and lead time confirmation.
