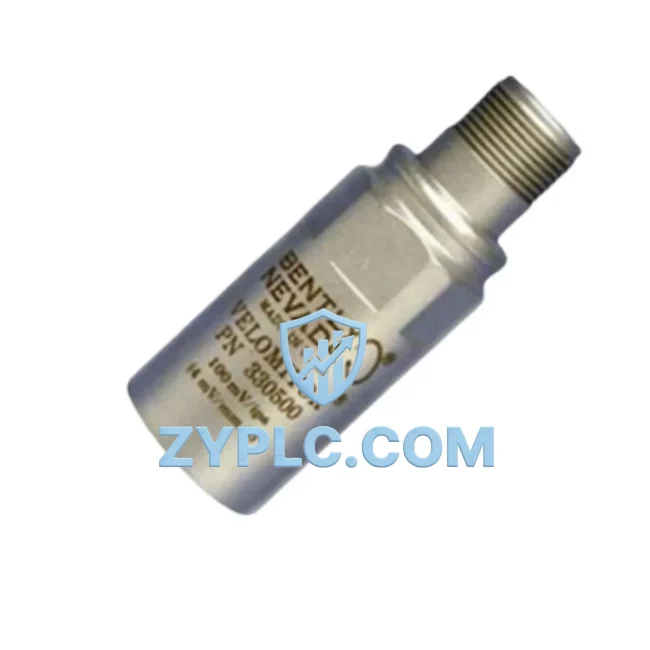

Bently Nevada 190501-23-99-00 System-Ready Velocity Transducer for 3500 Architecture

Bently Nevada 190501-23-99-00 System-Ready Velocity Transducer for 3500 Series Control Architecture

The Bently Nevada 190501-23-99-00 Velomitor CT Velocity Transducer is a precision seismic velocity sensor engineered for seamless integration within the Bently Nevada 3500 Series machinery protection and condition monitoring architecture. Unlike standalone vibration sensors, this transducer is designed to function as a critical node within a layered automation system — delivering real-time velocity signal data to the control layer, enabling predictive maintenance decisions, and supporting continuous process availability across rotating machinery applications in power generation, petrochemical, mining, metallurgy, and heavy manufacturing environments.

In a complete machinery protection architecture, the 190501-23-99-00 occupies the field sensing layer, converting mechanical vibration into a 4–20 mA or voltage output signal that feeds directly into the Bently Nevada 3500/42M Velocity Monitor module. This monitor, housed within the 3500 Series rack, processes the transducer signal alongside inputs from proximity probes such as the 3300 XL 8mm Proximity Transducer System and accelerometers from the Velomitor XA family, creating a unified vibration monitoring picture across all measurement axes. The rack-based architecture ensures that signal conditioning, alert/danger threshold logic, and relay output for machine trip are all handled within a single, certified system framework — reducing integration complexity and improving diagnostic consistency.

At the control layer, the 3500 Series rack communicates with the plant DCS or safety instrumented system via Modbus TCP, Profibus DP, or the Bently Nevada System 1 software platform, enabling contextual integration of vibration data with process variables such as speed, load, temperature, and flow. This contextual integration is what distinguishes a true machinery protection system from a collection of isolated sensors: the 190501-23-99-00 does not simply report velocity — it contributes to a system-level health index that drives automated shutdown logic, maintenance scheduling, and long-term asset performance analysis.

From a power layer perspective, the 190501-23-99-00 is loop-powered and compatible with the 3500 Series rack’s internal power supply modules, including the 3500/15 Power Supply, which provides redundant 24 VDC distribution to all I/O modules and field devices. Redundant power supply configurations ensure that a single power failure does not interrupt vibration monitoring continuity — a critical requirement in unattended compressor stations, offshore platforms, and nuclear auxiliary systems.

The transducer’s rugged stainless steel housing and hermetically sealed design make it suitable for installation in harsh environments where temperature extremes, moisture ingress, and chemical exposure are routine. Its integral cable and connector system is compatible with standard Bently Nevada field wiring practices, simplifying installation alongside other field devices such as the 3300 XL Proximity Transducer, the 330180 Velomitor Piezo-Velocity Sensor, and the 3500/40M Proximitor I/O Module. This compatibility across the Bently Nevada transducer ecosystem reduces the need for custom signal conditioning and ensures that all field devices share a common calibration and maintenance protocol.

For engineering teams responsible for system commissioning and long-term maintenance, the 190501-23-99-00 offers significant advantages in terms of diagnostic traceability. Because the transducer outputs a standardized signal compatible with the 3500 Series monitor’s built-in self-test and calibration routines, field technicians can verify sensor health without removing the transducer from service. This capability, combined with the System 1 software’s trend analysis and alarm management tools, supports a condition-based maintenance strategy that extends equipment life and reduces unplanned downtime.

ZYPLC maintains verified stock of the Bently Nevada 190501-23-99-00 with a 12-Month Warranty covering manufacturing defects and functional performance. All units are tested prior to shipment and supplied with full documentation. Global logistics support ensures rapid delivery to project sites in Asia, the Middle East, Europe, and the Americas, with export compliance documentation available upon request.

Architecture Specification Table

Coordinated Control System Design

The 190501-23-99-00 Velomitor CT achieves its full value when deployed as part of a coordinated Bently Nevada machinery protection system. In a typical turbomachinery protection rack, the transducer connects to the Bently Nevada 3500/42M Velocity Monitor, which processes the velocity signal and compares it against configurable alert and danger setpoints. Adjacent slots in the same 3500 Series rack may house the 3500/40M Proximitor I/O Module for shaft displacement measurement using 3300 XL 8mm Proximity Transducers, and the 3500/50M Tachometer Module for speed and phase reference signals derived from a 330180 Velomitor Piezo-Velocity Sensor or a keyphasor probe.

Power distribution within the rack is managed by the 3500/15 Redundant Power Supply, which ensures uninterrupted 24 VDC supply to all monitor modules and field transducers including the 190501-23-99-00. System-level communication is handled by the 3500/22M Transient Data Interface or the 3500/92 Communication Gateway, which bridges the rack to the plant DCS via Modbus or Profibus, enabling the Bently Nevada System 1 Evolution software to aggregate vibration, position, and speed data into a unified asset health dashboard. At the human-machine interface layer, operators interact with alarm states and trend data through System 1 or through DCS operator stations, completing the loop from field sensing to control room decision-making.

Application in Layered Automation Systems

In power generation applications, the 190501-23-99-00 is typically installed on steam turbine bearing housings, where casing vibration velocity is a primary indicator of rotor imbalance, misalignment, and bearing degradation. The transducer’s output feeds the 3500/42M monitor, which triggers automatic turbine trip if velocity exceeds the danger setpoint — protecting multi-million dollar assets from catastrophic failure.

In petrochemical and refinery environments, the Velomitor CT is deployed on centrifugal compressors, pumps, and fans within hazardous classified areas. Its hermetically sealed housing and wide temperature range make it suitable for outdoor installations in tropical and arctic climates alike. The contextual integration of velocity data with process pressure and flow variables — enabled by the 3500 rack’s DCS gateway — allows operations teams to correlate mechanical condition with process upsets in real time.

In mining and metallurgy, the transducer monitors vibration on ball mills, crushers, and conveyor drive systems, where high dust concentrations and mechanical shock loads are routine. The 3500 Series rack’s relay output modules can be configured to initiate controlled shutdowns or maintenance alerts based on velocity trend data from the 190501-23-99-00, reducing unplanned downtime and extending equipment service intervals.

In water treatment and municipal infrastructure, the transducer supports condition monitoring on large pump stations and blower systems, where continuous operation is essential and maintenance windows are limited. The 12-Month Warranty and ZYPLC’s global stock availability ensure that replacement units can be sourced rapidly, minimizing system downtime during scheduled maintenance cycles.

Architecture Engineering FAQ

Q1: Is the 190501-23-99-00 directly compatible with the Bently Nevada 3500 Series rack without additional signal conditioning?
Yes. The 190501-23-99-00 Velomitor CT is designed for direct connection to the Bently Nevada 3500/42M Velocity Monitor module. No external signal conditioning is required. The monitor provides the necessary bias voltage and signal processing internally, and the transducer’s output impedance and sensitivity are matched to the 3500 Series input specifications. Verify the specific monitor channel configuration (velocity input type) in the 3500/42M datasheet before installation.

Q2: Can the 190501-23-99-00 be used in a redundant monitoring architecture, and how does this affect system wiring?
Yes. In redundant monitoring configurations, two 190501-23-99-00 transducers can be installed at the same measurement point (or adjacent points on the same bearing housing) and connected to separate 3500/42M monitor channels in a redundant rack pair. The 3500 Series supports rack-level redundancy through the 3500/20 Rack Interface Module, which manages automatic failover between primary and redundant racks. Wiring should follow Bently Nevada’s field wiring guidelines to ensure signal integrity and shield grounding compliance. The 12-Month Warranty covers both units independently.

Q3: What is the recommended maintenance interval for the 190501-23-99-00, and how does ZYPLC’s 12-Month Warranty support long-term system reliability?
Bently Nevada recommends periodic functional verification of velocity transducers as part of the overall machinery protection system proof-test schedule, typically aligned with plant turnaround intervals (12–48 months depending on SIL requirements). The 190501-23-99-00’s hermetically sealed design minimizes in-service degradation, but calibration verification against a known reference is recommended at each turnaround. ZYPLC’s 12-Month Warranty covers manufacturing defects and functional performance from the date of shipment, providing assurance that replacement units supplied for turnaround stock meet original factory specifications. ZYPLC maintains ongoing inventory to support rapid replenishment for both planned and emergency maintenance requirements.

—
