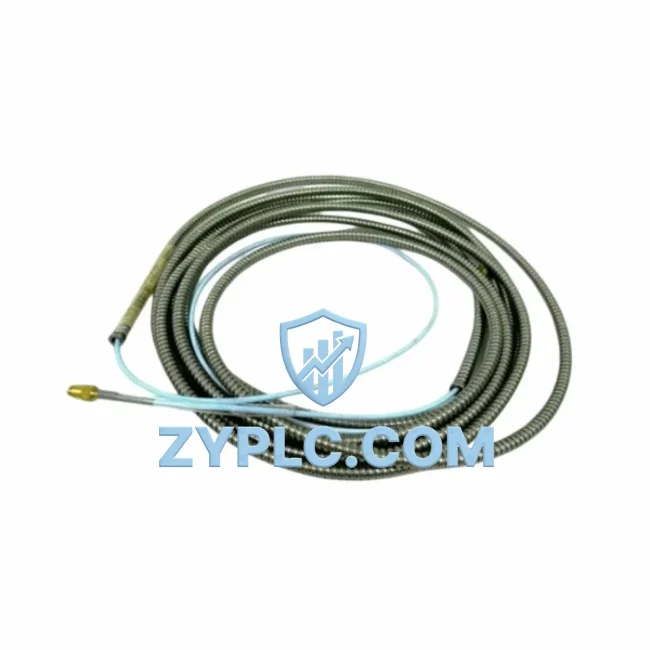

Bently Nevada 1X35668 System-Ready Proximity Transducer for 3500 Architecture

Bently Nevada 1X35668 System-Ready Proximity Transducer for 3500 Architecture: Control System Architecture and Upstream-Downstream Coordination

The Bently Nevada 1X35668 is a high-precision eddy-current proximity transducer engineered for seamless integration within the Bently Nevada 3500 Series machinery protection and condition monitoring architecture. Rather than functioning as a standalone sensing element, the 1X35668 occupies a critical position in the signal acquisition layer of a multi-tier industrial control system — converting mechanical shaft displacement into calibrated voltage signals that feed directly into the 3500 rack-based monitoring platform. Understanding this product requires understanding the full control hierarchy in which it operates: from the rotating machinery at the field level, through the transducer and signal conditioning layer, up through the 3500 rack modules, and ultimately to the plant-wide DCS or SCADA supervisory layer.

In a typical turbomachinery protection system, the 1X35668 proximity transducer works in concert with a matched Bently Nevada 3300 XL 8mm extension cable and a 3300 XL proximitor sensor (driver), forming a complete eddy-current measurement chain. The proximitor converts the raw impedance change detected by the transducer tip into a DC voltage output — typically in the –24 VDC range — which is then routed to a 3500/40M proximitor I/O module or a 3500/42M four-channel dynamic pressure monitor housed within the 3500 rack. This rack-level signal processing ensures that shaft radial vibration, axial position, and differential expansion data are continuously evaluated against user-defined alert and danger setpoints, enabling real-time machinery protection with sub-millisecond response times.

The 3500 rack itself is powered by a 3500/15 power supply module, which provides regulated, redundant DC power to all I/O and communication modules within the chassis. For critical applications — such as steam turbines, gas compressors, or large centrifugal pumps — a dual 3500/15 redundant power supply configuration is strongly recommended to eliminate single-point power failure risk. The 1X35668 transducer, as the first element in this measurement chain, must therefore be selected and installed with the same rigor applied to the rack-level hardware: cable routing, probe gap setting, and target material compatibility all directly affect the accuracy and reliability of the entire protection system.

At the communication and integration layer, the 3500 rack interfaces with plant control systems via the 3500/22M transient data interface module or the 3500/92 communication gateway, supporting Modbus RTU, Modbus TCP/IP, and OPC DA/UA protocols. This Contextual Integration capability allows vibration and position data captured by the 1X35668 to be transmitted in real time to a Honeywell DeltaV DCS, an ABB System 800xA, or a Siemens SIMATIC PCS 7 platform — enabling coordinated shutdown logic, predictive maintenance scheduling, and historian archiving without manual data extraction. The seamless data flow from transducer to enterprise asset management system is what defines modern condition-based maintenance architecture.

For human-machine interface visibility, the 3500 system integrates with Bently Nevada System 1 software, providing waveform analysis, trend visualization, and alarm management at the operator workstation level. Maintenance engineers can review orbit plots, Bode plots, and cascade diagrams derived directly from the signals captured by the 1X35668 and its companion proximitor, enabling precise diagnosis of rotor instability, bearing wear, misalignment, and rub conditions before they escalate to unplanned shutdowns. This diagnostic depth is only achievable when the transducer, cabling, proximitor, I/O module, and software platform are all correctly matched and commissioned as an integrated system.

From an installation and commissioning perspective, the 1X35668 is designed for direct mounting into a standard proximity probe holder, with a recommended probe gap of 1.0 mm (40 mils) for optimal linear range on steel targets. The transducer tip diameter and thread specification must be verified against the machine’s probe port dimensions prior to installation. Extension cable length — typically 5 m or 9 m — must be selected to match the proximitor’s calibrated range, as mismatched cable lengths will introduce measurement error that cannot be corrected through software calibration alone. All connections should be shielded and grounded at a single point to prevent ground loop interference, which is a common source of noise in high-sensitivity vibration measurement systems.

Long-term maintenance efficiency is significantly enhanced when the 1X35668 is sourced as part of a standardized spare parts strategy. Maintaining a matched set of transducer, extension cable, and proximitor as a single spare kit — rather than individual components — reduces mean time to repair (MTTR) during unplanned outages. ZYPLC supplies the 1X35668 with a 12-Month Warranty, providing assurance of electrical performance and mechanical integrity for the full warranty period. All units are tested prior to shipment and accompanied by documentation supporting traceability requirements in regulated industries such as power generation, petrochemical processing, and offshore oil and gas.

Architecture Specification Table

Coordinated Control System Design

The 1X35668 proximity transducer achieves its full protective value only when integrated within a correctly configured Bently Nevada 3500 rack system. A complete measurement chain begins with the 1X35668 probe, connected via a Bently Nevada 3300 XL 5 m or 9 m extension cable to a 3300 XL proximitor sensor mounted in a junction box near the machine. The proximitor output feeds into a 3500/40M proximitor monitor I/O module, which processes the signal and compares it against programmed alert and danger setpoints stored in the 3500/20 rack interface module.

For machines requiring both radial vibration and axial position monitoring — such as single-shaft gas turbines or multistage centrifugal compressors — multiple 1X35668 transducers are deployed simultaneously, with each channel occupying a dedicated slot in the 3500/40M or 3500/42M module. The 3500 rack’s 3500/15 power supply module provides the regulated –24 VDC supply required by all proximitor sensors in the rack, and a redundant second 3500/15 unit is typically installed in critical service applications to maintain continuous monitoring during power supply maintenance or failure events.

At the network integration layer, the 3500/92 communication gateway module bridges the rack’s internal Bently Nevada protocol to plant-standard Modbus TCP/IP or OPC UA, enabling the vibration data captured by the 1X35668 to be consumed by a Siemens SIMATIC S7-400 safety PLC for integrated shutdown logic, or by a plant historian such as OSIsoft PI for long-term trend analysis. The 3500/22M transient data interface module complements this by capturing high-resolution waveform data during transient events — startups, shutdowns, and load changes — which are then analyzed in Bently Nevada System 1 software at the HMI layer. Terminal blocks and marshalling panels using Phoenix Contact or Weidmüller DIN-rail terminal modules are typically used to organize field wiring between the proximity probes and the 3500 rack, ensuring clean, labeled, and maintainable wiring infrastructure throughout the control cabinet.

Application in Layered Automation Systems

The Bently Nevada 1X35668 is deployed across a wide range of heavy industrial sectors where rotating machinery protection is critical to process continuity and personnel safety.

In power generation — including coal-fired, gas turbine, and combined-cycle plants — the 1X35668 monitors steam turbine shaft vibration and axial thrust position, providing the early warning data that allows operators to reduce load or initiate controlled shutdowns before bearing damage occurs. In petrochemical and refinery applications, the transducer is installed on centrifugal compressors and reactor agitators, where continuous vibration monitoring is mandated by API 670 machinery protection standards. The 3500 system’s compliance with API 670 makes the 1X35668 a natural fit for these regulated environments.

In water and wastewater treatment facilities, large vertical turbine pumps and blower trains are monitored using the 1X35668 in conjunction with the 3500 rack to detect impeller imbalance and bearing degradation before pump failure disrupts treatment capacity. In mining and mineral processing, the transducer is applied to SAG mill pinion bearings and large slurry pump drives, where the harsh environment demands the robust construction and wide temperature tolerance of the 3300 XL series. In pulp and paper and packaging line applications, the 1X35668 supports predictive maintenance programs on high-speed roll drives and extruder gearboxes, reducing unplanned downtime on continuous production lines where stoppages carry significant financial penalties.

Architecture Engineering FAQ

Q1: Is the Bently Nevada 1X35668 directly compatible with the 3500/40M proximitor monitor module, and what extension cable length should be used?
A: Yes, the 1X35668 is designed for use within the Bently Nevada 3300 XL measurement system, which is fully compatible with the 3500/40M and 3500/42M I/O modules. The extension cable length — either 5 m or 9 m — must match the calibration of the paired 3300 XL proximitor sensor. Mixing cable lengths between a transducer and a proximitor calibrated for a different length will introduce a scale factor error in the output voltage, resulting in inaccurate vibration readings. Always verify the proximitor’s calibration documentation before selecting the extension cable.

Q2: Can the 1X35668 be used in a redundant monitoring architecture, and how does the 3500 rack support redundancy?
A: The 1X35668 can be deployed in a redundant transducer configuration by installing two probes at the same measurement plane (typically 90° apart for XY radial vibration) and routing each to a separate channel on the 3500/40M module. The 3500 rack further supports system-level redundancy through dual 3500/15 power supply modules and, in some configurations, redundant rack communication via the 3500/92 gateway. This architecture ensures that a single component failure — whether at the transducer, cable, or rack power level — does not result in a loss of machinery protection, which is essential for API 670-compliant installations in critical service.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term spare parts availability for the 1X35668?
A: The 12-Month Warranty provided by ZYPLC covers electrical performance and mechanical integrity of the 1X35668 proximity transducer from the date of shipment. All units are electrically tested and inspected prior to dispatch. For long-term maintenance planning, ZYPLC maintains stock of the 1X35668 alongside compatible 3300 XL extension cables, proximitor sensors, and 3500 series I/O modules, enabling customers to source complete matched spare kits rather than individual components. This reduces procurement lead time and ensures that replacement parts are pre-verified for compatibility, minimizing MTTR during unplanned outages. Contact our technical team at [email protected] or +86 19859288691 for availability and volume pricing.
