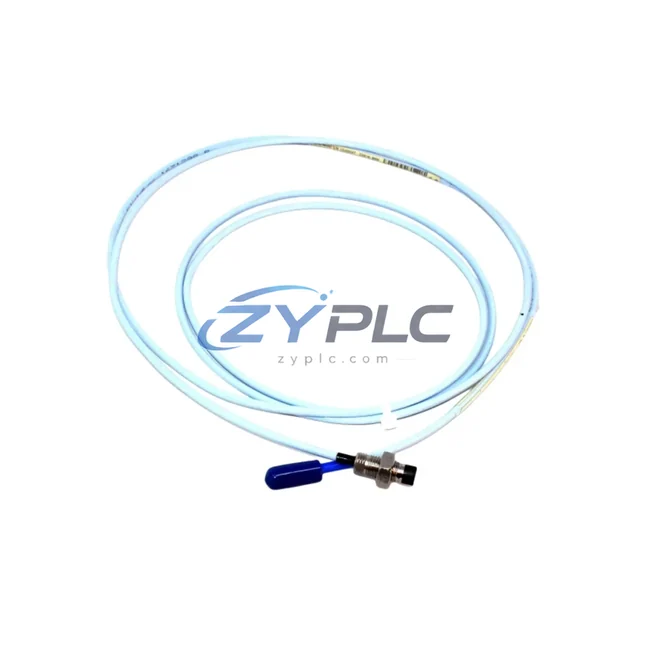

Bently Nevada 330101-00-14-10-02-05 Proximity Probe for 3300

Bently Nevada 330101-00-14-10-02-05 Proximity Probe for 3300 Series

The Bently Nevada 330101-00-14-10-02-05 is a precision eddy-current proximity probe engineered as a core sensing element within the Bently Nevada 3300 Series vibration monitoring architecture. Rather than functioning as a standalone transducer, this probe is designed to operate as an integrated node within a layered industrial control system, delivering continuous, high-resolution shaft displacement and vibration data to upstream monitoring and protection modules. Its role spans the field sensing layer through to the control and protection layer, making it a foundational component in any rotating machinery protection strategy across power generation, petrochemical, mining, metallurgy, and heavy process industries.

In a complete 3300 Series system architecture, the 330101-00-14-10-02-05 probe works in direct coordination with the Bently Nevada 3300 XL 8mm Extension Cable, the 330130 Proximitor Sensor, and the 3500/42M Proximitor/Seismic Monitor module. The probe converts mechanical shaft movement into a proportional voltage signal via the eddy-current principle, which is then conditioned by the Proximitor and transmitted to the 3500 rack-based monitoring system for real-time analysis, alarm triggering, and machine trip logic. This signal chain ensures that the control layer receives clean, calibrated data without latency or signal degradation, which is critical for turbine, compressor, pump, and motor protection applications.

From a system architecture perspective, the 330101-00-14-10-02-05 integrates seamlessly into both simplex and redundant monitoring configurations. In redundant architectures, dual-probe installations paired with the 3500/20 Power Supply module and 3500/15 I/O Module ensure that a single sensor failure does not interrupt machine protection coverage. The probe’s 14mm armored cable length and standardized TNC connector interface allow direct compatibility with existing 3300 Series field wiring infrastructure, reducing installation complexity and commissioning time during both greenfield deployments and brownfield retrofits.

At the network and communication layer, the digitized vibration data processed by the 3500 rack is made available to DCS platforms, SCADA systems, and historian servers via the 3500/92 Communication Gateway Module, supporting Modbus TCP, OPC-DA, and OPC-UA protocols. This enables system integration of machine health data into plant-wide control strategies, allowing operators to correlate vibration trends with process variables such as flow, pressure, and temperature in real time. The result is a unified operational picture that supports predictive maintenance decisions and reduces unplanned downtime.

The probe’s mechanical design — featuring a stainless steel housing, oil-resistant cable jacket, and a calibrated sensing tip optimized for AISI 4140 steel targets — ensures long-term signal stability in harsh environments including high-temperature bearing housings, oil-mist atmospheres, and high-vibration machine casings. Its linear measurement range and sensitivity specifications are factory-calibrated to match the 330130 Proximitor, ensuring that the complete probe-cable-Proximitor system meets Bently Nevada’s published accuracy standards without field recalibration.

For engineering teams managing large rotating machinery fleets, the 330101-00-14-10-02-05 offers a significant advantage in spare parts standardization. A single probe model covers radial vibration, axial position, and differential expansion measurement points across multiple machine trains when paired with the appropriate Proximitor and monitor modules. This reduces the spare parts inventory burden and simplifies maintenance planning, particularly in facilities operating multiple 3500 Series racks across different machine trains.

All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation and are sourced from verified supply channels to ensure authenticity and traceability. Each probe is inspected prior to dispatch to confirm connector integrity, cable continuity, and housing condition.

Product Specification Table

System Compatibility Notes

The 330101-00-14-10-02-05 proximity probe does not operate in isolation — its value is realized only within a fully coordinated control system architecture. In a typical 3500 Series rack installation, the probe is paired with the Bently Nevada 330130 Proximitor Sensor mounted in the field junction box, which provides the 24 VDC excitation and signal conditioning required to convert the probe’s raw eddy-current output into a calibrated -24 VDC proportional signal. This signal is then routed to the 3500/42M Proximitor/Seismic Monitor module installed in the 3500 rack, where it is processed against user-configured alarm and trip setpoints.

The 3500 rack itself is powered by the 3500/20 Power Supply Module, which supports both single and redundant power configurations. In critical machine protection applications — such as gas turbines, steam turbines, and large centrifugal compressors — a redundant power supply arrangement ensures that a power module failure does not compromise the monitoring system’s availability. The 3500/15 I/O Module manages the relay output logic, providing hardwired trip signals to the machine’s safety instrumented system or emergency shutdown system.

For facilities integrating machine health data into a plant DCS or SCADA platform, the 3500/92 Communication Gateway Module provides the network bridge, supporting Modbus TCP and OPC protocols. This enables the 330101-00-14-10-02-05 probe’s vibration data to be contextualized alongside process variables managed by controllers such as the Emerson DeltaV MD Plus Controller or Honeywell C300 Controller, creating a unified operational dataset for advanced analytics and predictive maintenance platforms.

At the human-machine interface layer, operators interact with the machine health data through the Bently Nevada System 1 Software, which provides trend visualization, alarm management, and diagnostic reporting. For facilities requiring local HMI access at the machine skid, panel-mounted displays connected via Modbus or Ethernet provide real-time vibration readings without requiring access to the central control room.

The complete system architecture — probe, Proximitor, monitor rack, power supply, I/O module, communication gateway, and HMI — represents a fully integrated machine protection solution in which the 330101-00-14-10-02-05 serves as the primary data acquisition point for rotating machinery health monitoring.

Industrial Application Notes

The 330101-00-14-10-02-05 proximity probe finds application across a broad range of industries where rotating machinery protection is critical to operational continuity and safety compliance.

In power generation facilities — including gas turbine power plants, steam turbine generators, and combined-cycle plants — the probe monitors shaft radial vibration and axial position on turbine rotors, providing the early warning data required to prevent catastrophic bearing failures and rotor rubs. The probe’s compatibility with the 3500 Series protection system makes it a standard component in turbine protection panels worldwide.

In petrochemical and refinery applications, the probe is installed on centrifugal compressors, pumps, and agitators operating in hazardous area classifications. Its non-contact measurement principle eliminates the wear associated with contact-type sensors, ensuring long-term measurement reliability in continuous process environments where machine downtime carries significant production and safety consequences.

In mining and metallurgy operations, the probe monitors large grinding mills, crushers, and conveyor drive systems, where high vibration levels and dusty environments demand robust sensor construction and reliable signal transmission. The probe’s armored cable and sealed housing provide the mechanical protection required in these demanding installations.

In water and wastewater treatment plants, the probe is used on large pump stations and blower systems, where continuous operation is required to meet regulatory discharge standards. Integration with SCADA systems via the 3500/92 gateway allows remote monitoring of machine health without requiring on-site personnel.

In packaging and process manufacturing lines, the probe supports condition monitoring programs on high-speed rotating equipment, enabling maintenance teams to schedule interventions based on actual machine condition rather than fixed time intervals, reducing both maintenance costs and unplanned production stoppages.

Product Compatibility FAQ

Q1: Is the 330101-00-14-10-02-05 compatible with both the 3300 Series and 3500 Series monitoring systems?
Yes. The 330101-00-14-10-02-05 is designed for use within the Bently Nevada 3300 Series probe system, which is the standard field sensing component for the 3500 Series rack-based monitoring platform. The probe, when paired with the 330130 Proximitor Sensor, provides a calibrated output signal fully compatible with the 3500/42M Proximitor/Seismic Monitor module. This makes it suitable for both legacy 3300 Series installations and current 3500 Series deployments without requiring signal conditioning adapters or recalibration.

Q2: Can this probe be used in a redundant monitoring architecture, and what additional components are required?
Yes. Redundant monitoring configurations are supported by installing dual probes at each measurement point — typically at 90° orientation for radial vibration — connected to separate Proximitor Sensors and routed to independent monitor channels within the 3500 rack. The 3500/20 Power Supply Module supports redundant power input, and the 3500/15 I/O Module provides the relay logic for trip output. ZYPLC can supply matched probe pairs and associated Proximitor units to support redundant architecture builds.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability?
The warranty terms confirmed during quotation covers manufacturing defects, connector integrity, cable continuity, and calibration accuracy under normal operating conditions. ZYPLC supports RFQ sourcing for the 330101-00-14-10-02-05 and associated 3300/3500 Series components to support both immediate replacement needs and long-term maintenance planning. For facilities managing large rotating machinery fleets, ZYPLC offers supply agreements to ensure consistent spare parts availability. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 for spare parts planning support.
