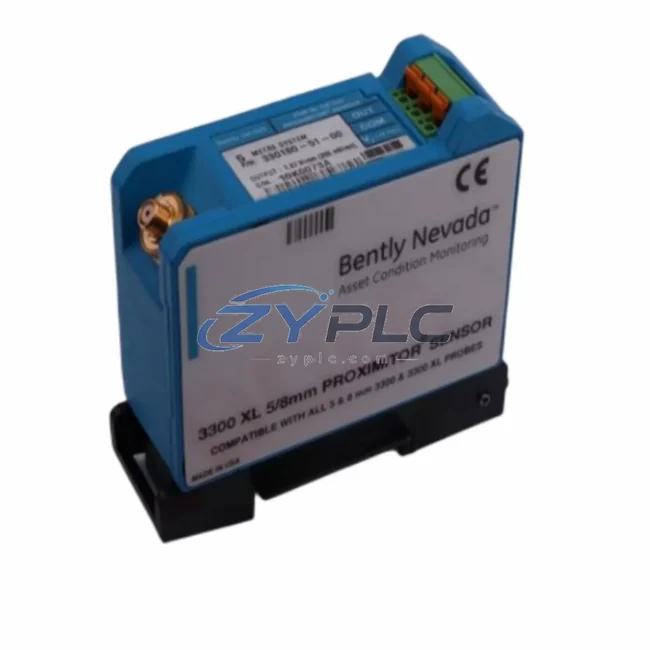

Bently Nevada 330101-00-19-10-02-00 Proximitor Sensor for 3300

Bently Nevada 330101-00-19-10-02-00 Proximitor Sensor for 3300

The Bently Nevada 330101-00-19-10-02-00 is a precision eddy-current Proximitor Sensor engineered for seamless integration within the Bently Nevada 3300 Series machinery protection and condition monitoring architecture. In modern industrial automation environments — spanning power generation, petrochemical processing, water treatment, mining, metallurgy, and rotating equipment-intensive manufacturing — the reliability of the vibration monitoring layer is inseparable from the integrity of the broader control system. This sensor does not operate in isolation; it functions as a critical signal-acquisition node within a layered automation hierarchy that connects field instrumentation to the control layer, the network layer, and ultimately to the human-machine interface and executive decision systems.

Within a complete 3300 Series monitoring architecture, the 330101-00-19-10-02-00 Proximitor Sensor works in direct coordination with the 3300 XL 8mm Proximitor System, the 3500 Series Machinery Protection System rack, and the 3500/42M Proximitor/Seismic Monitor module. The sensor converts mechanical shaft displacement into a precise DC voltage signal, which is then conditioned and processed by the monitor module before being transmitted upstream to the control layer — typically a DCS or safety instrumented system — via standard 4–20 mA or digital communication interfaces. This signal chain is the foundation of real-time rotating equipment health assessment.

System architects integrating this sensor into a full protection architecture will typically pair it with the 330130-080-00-00 extension cable assembly to achieve the required probe-to-proximitor gap distance, and the 330180-X-00 Proximitor housing for field-mounted installations in harsh environments. The 3300 XL 5mm and 8mm probe systems are commonly deployed alongside the 330101 series to provide complementary radial and axial vibration coverage on the same shaft train, ensuring full-spectrum machinery protection without gaps in the monitoring envelope.

At the network and integration layer, the 3500 Series rack communicates with plant-wide DCS platforms — including Emerson DeltaV, Honeywell Experion, and ABB System 800xA — through the 3500/92 Communication Gateway module, enabling Modbus TCP, OPC DA/UA, and FOUNDATION Fieldbus connectivity. This system integration capability ensures that vibration data from the 330101-00-19-10-02-00 sensor is not siloed within the machinery protection system but is available across the plant information network for process optimization, predictive maintenance scheduling, and regulatory compliance reporting.

From a power and electrical architecture perspective, the Proximitor Sensor operates on a regulated –24 VDC supply provided by the 3500 rack’s internal power module, with optional redundant power input configurations available for critical applications. The sensor’s output voltage range of –1 VDC to –18 VDC corresponds directly to the physical gap between the probe tip and the observed shaft surface, providing a linear, high-resolution displacement signal that is immune to electromagnetic interference from adjacent motor drives, switchgear, and high-current bus systems commonly found in industrial control cabinets.

For system commissioning and long-term maintenance, the 330101-00-19-10-02-00 is fully compatible with the Bently Nevada System 1 software platform, which provides integrated configuration, calibration verification, alarm management, and historical trend analysis. Engineers can validate probe gap settings, confirm sensitivity coefficients, and perform end-to-end signal path verification without removing the sensor from service — a critical advantage in continuous-process industries where unplanned downtime carries significant operational and financial consequences. The sensor’s modular design also supports hot-swap replacement within the 3300 Series architecture, minimizing maintenance windows and supporting the redundancy strategies required in SIL-rated protection loops.

In layered automation systems for the power sector — including gas turbines, steam turbines, and large centrifugal compressors — the 330101-00-19-10-02-00 is typically deployed in sets of two or four per bearing location, providing X-Y radial vibration measurement in accordance with API 670 machinery protection standards. The sensor’s 19 mm body diameter and 10 mm probe tip geometry are optimized for standard API probe boss installations, ensuring mechanical compatibility with OEM turbine casings and compressor bearing housings without field modification.

Across petrochemical and refinery applications, where process continuity is paramount, this Proximitor Sensor supports the dual-redundant monitoring architectures required by IEC 61511 functional safety standards. Paired with the 3500/22M Transient Data Interface and the 3500/15 Power Supply module in a fully redundant rack configuration, the sensor contributes to a protection system capable of achieving SIL 2 performance levels for overspeed and high-vibration trip functions. The combination of hardware redundancy, continuous self-diagnostics, and system integration with the plant DCS creates a monitoring architecture that is both highly reliable and deeply integrated into the plant’s operational intelligence framework.

Supply chain continuity is a critical consideration for long-term asset management programs. ZYPLC maintains verified inventory of the 330101-00-19-10-02-00 and associated 3300 Series components, supporting both emergency replacement requirements and planned maintenance schedules. All units are covered by a warranty terms confirmed during quotation, with pre-shipment functional verification and full documentation packages available upon request. Global logistics support ensures rapid deployment to project sites across Asia, the Middle East, Europe, and the Americas.

Product Specification Table

System Compatibility Notes

A complete Bently Nevada 3300/3500 Series machinery protection architecture built around the 330101-00-19-10-02-00 Proximitor Sensor typically incorporates the following coordinated components across multiple system layers:

At the field instrumentation layer, the 330130-080-00-00 extension cable and 330180-X-00 Proximitor housing provide the mechanical and electrical interface between the probe and the process environment. The 3300 XL 8mm Proximitor System serves as the signal conditioning unit, converting the raw probe impedance change into the calibrated DC voltage output consumed by the monitor rack. For shaft axial position monitoring on the same machine train, the 330500-02-00 Thrust Position Probe is commonly deployed in parallel, sharing the same rack infrastructure.

Within the 3500 Series rack, the 3500/42M Proximitor/Seismic Monitor module processes the conditioned signals from multiple 330101 sensors simultaneously, applying configurable alarm setpoints, time-delay logic, and voting architectures for trip output generation. The 3500/15 Power Supply module provides redundant –24 VDC rails to all field devices, while the 3500/22M Transient Data Interface captures high-resolution waveform data for post-event analysis and machinery diagnostics. The 3500/92 Communication Gateway bridges the protection system to the plant DCS and historian, enabling system integration of vibration data with process variables such as load, speed, temperature, and flow.

At the human-machine interface layer, System 1 software aggregates data from all 3300 and 3500 Series monitors across the plant, providing operators and reliability engineers with a unified view of machinery health, alarm status, and historical trends. This architecture ensures that the signal originating at the 330101-00-19-10-02-00 probe tip travels through a fully validated, documented, and maintainable signal chain from field to control room.

Industrial Application Notes

In gas turbine power plants, the 330101-00-19-10-02-00 is installed at each journal bearing location on the turbine rotor, providing continuous radial vibration monitoring in compliance with OEM and API 670 requirements. The sensor’s high-frequency response — DC to 10,000 Hz — captures both synchronous (1X) and subsynchronous vibration components, enabling early detection of rotor imbalance, misalignment, oil whirl, and rub conditions before they escalate to forced outages.

In petrochemical and refinery applications, the sensor is deployed on critical rotating equipment including centrifugal compressors, boiler feed pumps, and reactor agitators. The dual-redundant monitoring architecture — with two sensors per bearing in X-Y configuration — supports the SIL 2 functional safety requirements of IEC 61511 for high-vibration trip functions, providing the process safety layer with reliable, validated input signals.

In water treatment and municipal utility facilities, where maintenance resources are limited and equipment accessibility is constrained, the 330101-00-19-10-02-00’s compatibility with remote diagnostics via System 1 and OPC UA connectivity allows condition monitoring to be performed from a central control room without requiring field personnel to access rotating equipment during operation. This capability significantly reduces maintenance costs and improves personnel safety in confined-space environments.

In mining and mineral processing applications — including SAG mills, ball mills, and large slurry pumps — the sensor’s robust construction and wide operating temperature range support reliable operation in dusty, high-vibration environments where conventional accelerometer-based monitoring systems may suffer from mounting resonance and signal contamination issues.

Product Compatibility FAQ

Q1: Is the 330101-00-19-10-02-00 directly compatible with the 3500 Series rack without additional signal conditioning?
A: Yes. The 330101-00-19-10-02-00 Proximitor Sensor is designed to interface directly with the 3500/42M Proximitor/Seismic Monitor module within the 3500 Series rack. The sensor’s –1 VDC to –18 VDC output is within the input range specified for the 3500/42M, and no additional signal conditioning hardware is required. Standard 330130 series extension cables are used to connect the probe to the Proximitor housing, which then connects to the rack via standard Bently Nevada field wiring conventions. Commissioning engineers should verify probe gap voltage at installation using the System 1 configuration tool to confirm sensitivity and linearity within specification.

Q2: Can this sensor be used in a redundant monitoring architecture for SIL-rated applications?
A: Yes. The 330101-00-19-10-02-00 supports redundant X-Y sensor configurations at each bearing location, which — when combined with the 3500 rack’s voting logic and the 3500/15 redundant power supply — enables the overall protection system to achieve SIL 2 performance in accordance with IEC 61508 and IEC 61511. System architects should document the full safety instrumented function (SIF) including sensor, monitor, logic solver, and final element to complete the SIL verification calculation. ZYPLC can provide documentation support for installed units covered under the warranty terms confirmed during quotation program.

Q3: What is covered under the warranty terms confirmed during quotation, and what support is available for long-term maintenance planning?
A: All 330101-00-19-10-02-00 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment, covering manufacturing defects and functional performance against Bently Nevada published specifications. Pre-shipment functional verification is performed on all units, with test records available upon request. For long-term maintenance planning, ZYPLC supports customers with spare parts inventory programs, lead-time forecasting for critical 3300 and 3500 Series components, and technical consultation on sensor replacement scheduling aligned with planned maintenance outages. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 for asset management support.
