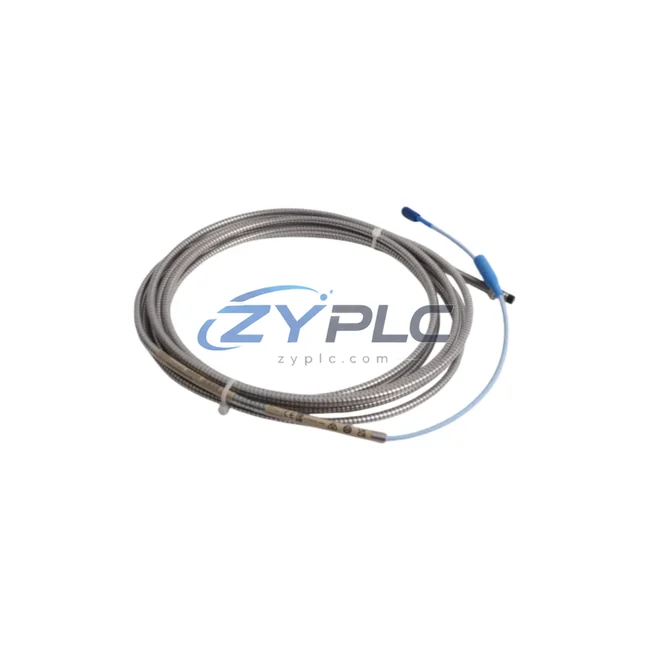

Bently Nevada 330102-00-28-05-02-00 Proximity Probe 3300

Bently Nevada 330102-00-28-05-02-00 Proximity Probe for 3300 Series

In modern industrial automation and machinery protection systems, every component must be evaluated not in isolation but as an integral node within a layered control architecture. The Bently Nevada 330102-00-28-05-02-00 Proximity Probe is a precision eddy-current sensing element engineered to serve as the primary vibration and position signal source within the Bently Nevada 3300 Series monitoring platform. Its role spans the signal acquisition layer, feeding real-time shaft displacement data upward through the I/O layer, the monitoring layer, and ultimately into the supervisory control and safety instrumentation systems that govern critical rotating machinery.

This probe operates on the eddy-current principle, generating a high-frequency electromagnetic field that responds to changes in the distance between the probe tip and the conductive target surface. The resulting analog output signal is conditioned by the companion 330180 Proximitor Sensor, which converts the raw probe signal into a calibrated DC voltage proportional to the gap distance. This signal chain — probe, extension cable, and Proximitor — forms the foundational measurement loop of the 3300 Series architecture, ensuring that shaft radial vibration, axial position, and differential expansion data are captured with the precision required for API 670-compliant machinery protection.

Product Specification Table

System Compatibility Notes

The 330102-00-28-05-02-00 does not function as a standalone device — it is the upstream origin of a complete machinery protection signal chain. In a typical 3300 Series installation, the probe is paired with the 330130-080-00-00 Extension Cable to bridge the distance between the bearing housing and the Proximitor enclosure. The 330180-X1-CN Proximitor Sensor then conditions the signal before it enters the 3300/16 Dual Vibration Monitor, which performs alarm and danger threshold evaluation in real time.

At the rack level, the 3300 Series monitors are housed within the TK-3e System Rack, which provides the structural backbone for multi-channel monitoring across large rotating machinery trains. Power distribution within the rack is managed by the 3500/15 Power Supply Module, ensuring stable, regulated voltage to all monitoring cards. For machinery trains requiring phase reference and speed measurement, the 3500/25 Keyphasor Module integrates directly with the 3300 architecture, enabling vector-based vibration analysis and balancing diagnostics.

In more advanced configurations — such as those found in gas turbine protection systems or large centrifugal compressor trains — the 330102-00-28-05-02-00 probe feeds data into the 3500/42M Proximitor Monitor, which supports both radial vibration and thrust position monitoring on a single card. The 3500/22M Transient Data Interface captures high-resolution startup and shutdown data, enabling engineers to analyze critical speed crossings and resonance behavior. For redundant architectures, dual-probe installations using the 3300 XL 8mm Probe System provide voting logic inputs to the safety instrumented system, ensuring that no single sensor failure can cause an undetected machinery event.

All of these components — probe, extension cable, Proximitor, monitor card, power supply, rack, and Keyphasor — must be selected, configured, and calibrated as a unified system. The 330102-00-28-05-02-00 is the first link in this chain, and its dimensional compatibility, gap voltage calibration, and thermal performance directly determine the accuracy and reliability of every downstream measurement and protection decision.

Industrial Application Notes

The Bently Nevada 330102-00-28-05-02-00 Proximity Probe is deployed across a wide range of heavy industrial sectors where rotating machinery reliability is mission-critical. In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — this probe monitors steam turbine shaft vibration and axial thrust, providing the early warning data that prevents catastrophic bearing failures and unplanned outages. In petrochemical and refinery environments, it is installed on centrifugal compressors, pumps, and expanders operating under continuous duty cycles, where API 670 compliance is a contractual and regulatory requirement.

In mining and mineral processing operations, the probe is used on large ball mills, SAG mills, and crusher drives, where shaft displacement monitoring enables condition-based maintenance strategies that reduce unplanned downtime. Water treatment and pumping stations rely on this probe for monitoring vertical turbine pumps and horizontal split-case pumps, where vibration trending provides early indication of impeller wear or bearing degradation. In metallurgical and steel mill applications, the probe is installed on rolling mill drives and continuous caster pinch rolls, where the harsh environment demands the probe’s robust construction and wide operating temperature range.

Across all of these applications, the 330102-00-28-05-02-00 integrates seamlessly into the plant’s distributed control system (DCS) or safety instrumented system (SIS) via the 3300 or 3500 Series monitor outputs, enabling system integration of machinery health data into the broader process control and asset management architecture.

Product Compatibility FAQ

Q1: Is the 330102-00-28-05-02-00 compatible with both the 3300 and 3500 Series monitoring platforms?
Yes. The 330102-00-28-05-02-00 probe is fully compatible with both the Bently Nevada 3300 Series and 3500 Series monitoring systems when used with the appropriate Proximitor Sensor (330180 series). The probe’s output characteristics conform to the standard Bently Nevada calibration curve, ensuring plug-and-play integration with any 3300 or 3500 monitor card without requiring recalibration of the monitoring system.

Q2: What extension cable length is required, and how does cable length affect system accuracy?
The total cable system — probe integral cable plus extension cable — must match the Proximitor’s calibrated range, typically 5 m or 9 m total. For the 330102-00-28-05-02-00 with its 5 m integral cable, a 330130-080-00-00 (no extension) or a short extension may be used depending on installation geometry. Mismatched cable lengths will shift the gap voltage calibration curve and introduce measurement error; always verify total cable length against the Proximitor’s calibration specification during commissioning.

Q3: What does the warranty terms confirmed during quotation cover, and how is long-term maintenance supported?
Every 330102-00-28-05-02-00 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failure under normal operating conditions. Prior to shipment, each probe undergoes functional verification including gap voltage linearity testing and insulation resistance checks. For long-term maintenance, ZYPLC maintains inventory of the full 3300 Series probe and Proximitor ecosystem, enabling rapid replacement of failed components without extended lead times. Our technical team provides pre-sales configuration support and post-sales commissioning guidance to ensure system continuity throughout the asset lifecycle.
