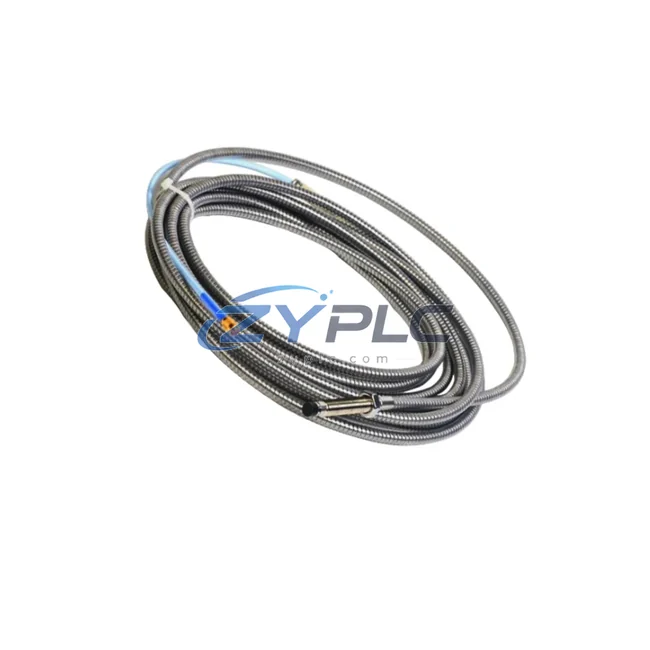

Bently Nevada 330102-00-50-10-01-05 Proximity Probe for 3300

Bently Nevada 330102-00-50-10-01-05 Proximity Probe for 3300

The Bently Nevada 330102-00-50-10-01-05 is a 5-meter, 25-mil gap proximity probe engineered as a precision sensing element within the Bently Nevada 3300 Series vibration monitoring architecture. Rather than functioning as a standalone sensor, this probe is designed to operate as an integral node within a layered industrial control system — delivering continuous, non-contact shaft displacement and vibration data to the broader machinery protection and condition monitoring infrastructure. In rotating machinery environments such as gas turbines, steam turbines, compressors, pumps, and gearboxes, the reliability of the entire control loop depends on the signal fidelity and mechanical consistency of the proximity probe at the field level. The 330102-00-50-10-01-05 fulfills this role with precision-engineered coil geometry, a calibrated sensing range, and full compatibility with the 3300 XL monitor series.

Within a complete Bently Nevada 3300 system architecture, this probe connects to the 330130-080-00-00 extension cable, which in turn interfaces with the 330180-X1-05 proximitor/oscillator module. The proximitor converts the probe’s inductance-based signal into a DC voltage proportional to the gap distance between the probe tip and the rotating shaft. This voltage signal is then routed to the 3300/16 or 3300/20 monitor cards housed within the 3300/05 or 3300/10 rack assemblies. The monitor cards process the signal against user-configured alert and danger setpoints, triggering relay outputs to the plant DCS or safety instrumented system (SIS) when thresholds are exceeded. This tightly integrated signal chain — from probe tip to relay output — is what defines the 3300 architecture’s strength in machinery protection applications.

At the control layer, the 3300 rack communicates with the plant-level DCS via 4–20 mA analog outputs or Modbus RTU/TCP interfaces, enabling operators to monitor shaft vibration, axial position, and differential expansion in real time from the control room HMI. The 3500/22M transient data interface module can also be integrated into the same rack to capture high-resolution waveform data for advanced diagnostics. At the power layer, the 3300 system is typically supplied by a redundant 24 VDC power module, ensuring uninterrupted monitoring even during power supply maintenance. The 330102-00-50-10-01-05 probe, as the primary sensing element, must maintain consistent gap calibration and cable routing integrity to preserve the accuracy of the entire signal chain from the field to the control room.

From a system redundancy perspective, critical machinery protection applications often deploy dual-probe configurations on the same measurement plane, with each probe connected to an independent monitor channel. This redundant sensing architecture ensures that a single probe failure does not result in a loss of protection. The 330102-00-50-10-01-05 is fully compatible with this dual-channel redundancy scheme, and its standardized 5-meter cable length simplifies installation planning in control cabinets where cable management and bend radius constraints are critical. The probe’s stainless steel housing and epoxy-sealed tip provide robust protection against the oil mist, high temperatures, and vibration environments typical of turbomachinery bearing housings.

For engineering teams managing multi-unit plant installations, maintaining a standardized probe model across all machinery trains significantly reduces spare parts inventory complexity and simplifies calibration procedures. The 330102-00-50-10-01-05 is one of the most widely deployed probe configurations in the 3300 product family, making it a logical choice for both new installations and replacement programs. Its compatibility with the 330180 proximitor series and the 3300 monitor rack ensures that replacement units can be installed and commissioned without recalibration of the monitor system, provided the gap is set correctly per the installation manual. This plug-and-play compatibility at the system level reduces mean time to repair (MTTR) and supports the plant’s overall equipment effectiveness (OEE) objectives.

Long-term maintenance planning for 3300-based machinery protection systems should account for probe replacement intervals driven by environmental exposure, mechanical wear at the probe tip, and cable fatigue at the connector junction. Stocking the 330102-00-50-10-01-05 as a critical spare — alongside the 330130 extension cable and 330180 proximitor — ensures that the complete sensing chain can be restored rapidly following an unplanned failure. ZYPLC maintains verified inventory of this probe configuration and provides a warranty terms confirmed during quotation on all units shipped, supporting both planned maintenance outages and emergency replacement scenarios.

Product Specification Table

System Compatibility Notes

The 330102-00-50-10-01-05 proximity probe achieves its full protective value only when correctly integrated within the complete Bently Nevada 3300 system architecture. At the sensing layer, the probe pairs with the 330130-080-00-00 extension cable to bridge the distance between the bearing housing and the proximitor enclosure. The 330180-X1-05 proximitor/oscillator conditions the probe signal and outputs a calibrated DC voltage to the monitor rack. Within the rack, the 3300/16 or 3300/20 monitor cards process vibration, position, and speed signals, while the 3300/05 or 3300/10 rack chassis provides the structural and power backbone for the entire monitoring system.

At the power layer, a redundant 3300 power supply module (typically 24 VDC) ensures continuous operation of all monitor channels. For plants requiring advanced diagnostics, the 3500/22M transient data interface can be added to the same rack to capture waveform data for spectrum analysis and machinery health trending. At the network and communication layer, the 3300 rack interfaces with the plant DCS or SCADA system via 4–20 mA analog outputs or Modbus TCP/RTU, enabling real-time vibration data to be displayed on the plant HMI and logged in the historian. For facilities using the System 1 condition monitoring software platform, the 3300 rack data can be aggregated alongside data from 3500 Series monitors and Trendmaster Pro systems for fleet-wide machinery health management.

At the execution layer, relay outputs from the 3300 monitor cards connect to the plant’s safety instrumented system (SIS) or emergency shutdown system (ESD), triggering protective actions such as turbine trip or compressor unload when vibration levels exceed danger setpoints. This complete signal chain — from the 330102-00-50-10-01-05 probe tip through the proximitor, monitor card, DCS interface, and SIS relay — represents the full depth of system integration that defines a properly engineered Bently Nevada 3300 machinery protection system.

Industrial Application Notes

The 330102-00-50-10-01-05 proximity probe is deployed across a wide range of heavy industrial applications where rotating machinery protection is critical to process continuity and personnel safety. In power generation facilities, this probe monitors shaft vibration and axial position on steam turbines and gas turbines, providing the early warning data needed to prevent catastrophic bearing failures. In petrochemical and refinery environments, it is installed on centrifugal compressors and pumps handling hazardous fluids, where unplanned shutdowns carry significant safety and financial consequences.

In LNG and gas processing plants, the probe’s high-temperature rating and stainless steel construction make it suitable for installation near hot gas paths and in areas with aggressive chemical exposure. In mining and minerals processing, it monitors large grinding mills, crushers, and conveyor drive systems where vibration anomalies can indicate imminent mechanical failure. In water and wastewater treatment facilities, it is used on large vertical turbine pumps and blower trains, where continuous operation is essential for regulatory compliance. In steel and metals production, the probe monitors rolling mill drives and continuous casting equipment, where vibration data informs both predictive maintenance scheduling and process quality control.

Across all these applications, the 330102-00-50-10-01-05 contributes to a layered automation strategy in which field-level sensing data flows upward through the control hierarchy — from the proximity probe and proximitor, through the 3300 monitor rack, to the DCS, historian, and condition monitoring platform — enabling both real-time protection and long-term machinery health trending.

Product Compatibility FAQ

Q1: Is the 330102-00-50-10-01-05 compatible with both the 3300 and 3500 Series monitor racks?
The 330102-00-50-10-01-05 is primarily designed and calibrated for use with the Bently Nevada 3300 Series monitor architecture, including the 3300/16 and 3300/20 monitor cards. While the physical probe and extension cable may be mechanically compatible with 3500 Series monitor inputs, the system calibration and scale factor settings must be verified against the specific monitor card and proximitor combination in use. Always confirm compatibility with the monitor card’s input specifications and the proximitor’s output scale factor before substituting probe configurations across different monitor series.

Q2: What installation and commissioning steps are required to ensure correct gap calibration in a 3300 system?
Correct gap calibration is critical to the accuracy of the entire 3300 signal chain. During installation, the probe tip-to-shaft gap must be set within the linear range of the proximitor — typically 25 mil (0.635 mm) for this probe configuration — using a calibrated gap setting tool and a DC voltmeter to verify the proximitor output voltage. The monitor card’s OK setpoint and alert/danger thresholds must then be configured to match the machine’s baseline vibration levels and the probe’s scale factor. Following initial commissioning, a functional test of the complete signal chain — from probe to relay output — should be performed before the machine is returned to service.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability?
All 330102-00-50-10-01-05 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. This warranty supports both planned maintenance programs and emergency replacement scenarios, providing assurance that replacement units will perform to specification from the moment of installation. ZYPLC maintains verified inventory of this probe configuration and its associated system components — including extension cables and proximitor modules — to support rapid delivery for both scheduled outages and unplanned failures. For long-term spare parts planning, ZYPLC can assist engineering and procurement teams in establishing a recommended critical spares list aligned with the plant’s machinery protection architecture.
