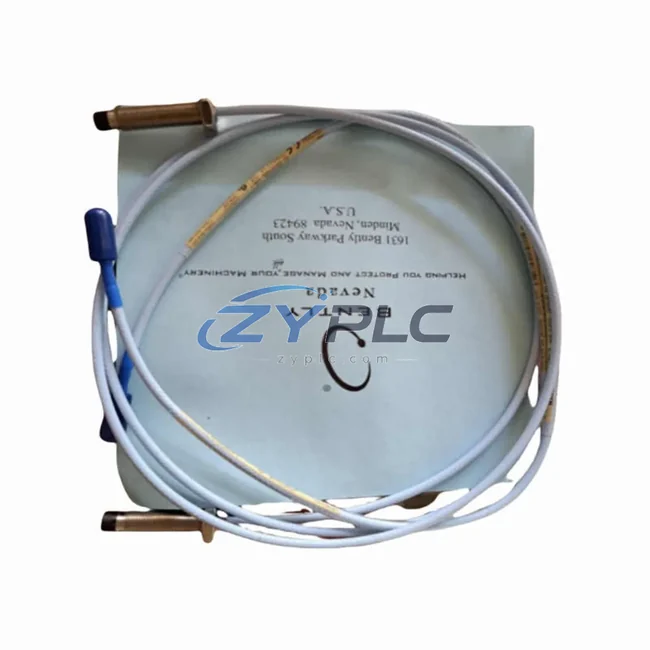

Bently Nevada 330103-00-04-10-02-05 Proximity Probe for 3300

Bently Nevada 330103-00-04-10-02-05: Proximity Probe for 3300 Series and system integration

The Bently Nevada 330103-00-04-10-02-05 is a precision eddy-current proximity probe engineered as a core sensing element within the Bently Nevada 3300 Series vibration monitoring architecture. Rather than functioning as a standalone instrument, this probe is designed to operate as an integrated component within a layered industrial automation system — delivering continuous, high-resolution shaft displacement and vibration data to upstream signal conditioning, monitoring, and protection modules. Its role spans the field sensing layer through to the control and safety layers, making it a foundational element in any rotating machinery protection strategy.

In a complete 3300 Series monitoring system, the 330103-00-04-10-02-05 probe works in direct coordination with the 330130 extension cable and the 330180 proximitor sensor (driver), forming a three-component transducer system. The proximitor converts the probe’s raw eddy-current signal into a calibrated DC voltage proportional to the gap distance between the probe tip and the observed shaft surface. This conditioned signal is then routed to the 3300/16 or 3300/20 series rack-mounted monitor modules, where it is processed for alarm, danger, and trip logic. The entire signal chain — from probe to monitor to relay output — must be treated as a unified architecture, not a collection of independent parts.

Within the broader control system hierarchy, the 330103-00-04-10-02-05 feeds real-time vibration and position data into the 3500 Series machinery protection system or integrates with the System 1 condition monitoring software platform via the 3500/92 communication gateway. This enables plant-wide visibility of rotating equipment health, supporting both continuous online monitoring and event-driven diagnostics. For facilities running redundant protection architectures, dual-probe configurations using matched 330103 series probes are commonly deployed on both X and Y axes of critical shaft measurement planes, ensuring no single point of failure in the vibration sensing layer.

From a system architecture perspective, the probe’s 5-metre standard cable length and 8 mm tip diameter are optimized for installation in tight bearing housing environments typical of steam turbines, gas compressors, centrifugal pumps, and large induction motors. The probe is compatible with standard 3300 Series mounting hardware, including the 330105 proximity probe mounting bracket and associated lock nuts, allowing for precise radial positioning without disturbing adjacent instrumentation. Proper installation geometry — maintaining the recommended gap voltage of -10 VDC at the nominal operating gap — is critical to system calibration accuracy and must be verified during commissioning using the 330180 proximitor’s built-in gap voltage test point.

For engineering teams managing multi-train protection systems, the 330103-00-04-10-02-05 supports a consistent, repeatable calibration baseline across all monitored machines. When combined with the 3300/55 keyphasor module, the system gains phase-referenced vibration analysis capability, enabling advanced diagnostics such as orbit plots, Bode plots, and shaft centerline analysis within System 1 software. This level of system integration transforms individual probe readings into actionable machinery health intelligence, reducing unplanned downtime and extending mean time between failures across the entire rotating equipment fleet.

Long-term maintenance planning is simplified by the probe’s standardized form factor and the broad availability of compatible 3300 Series components. Replacement cycles can be scheduled based on condition data rather than fixed intervals, and spare probe assemblies can be pre-configured and gap-set offline before installation, minimizing machine downtime during maintenance windows. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation and have undergone functional verification testing prior to dispatch, ensuring system-compatible performance from the moment of installation.

Product Specification Table

System Compatibility Notes

The 330103-00-04-10-02-05 proximity probe achieves its full diagnostic value only when integrated within a coordinated 3300 Series system architecture. A typical deployment begins with the probe itself, paired with the 330130 extension cable to bridge the distance between the bearing housing and the junction box or marshalling panel. The 330180 proximitor sensor conditions the signal and provides the calibrated voltage output that feeds into the rack-mounted monitoring infrastructure.

At the rack level, the 3300/16 dual-channel vibration monitor or 3300/20 four-channel monitor processes the proximitor output, applying alarm and danger setpoints configured by the plant protection philosophy. For facilities requiring API 670-compliant machinery protection, the 3500 Series rack system — including the 3500/42M proximitor I/O module — provides the certified protection layer, with relay outputs wired to the machine’s emergency shutdown system. The 3300/55 keyphasor module adds phase reference capability, enabling advanced rotordynamic analysis when used alongside the proximity probe channels.

System-level communication is achieved through the 3500/92 communication gateway, which bridges the rack-based protection system to the plant’s DCS or condition monitoring network running Bently Nevada’s System 1 software. This system integration layer allows vibration data from the 330103-00-04-10-02-05 to be correlated with process variables such as load, temperature, and flow — providing the engineering team with a complete picture of machine operating context rather than isolated vibration numbers. For redundant architectures, dual-probe configurations on orthogonal measurement axes, combined with redundant rack power supplies and the 3500/15 power supply module, ensure continuous protection even during partial system maintenance.

Industrial Application Notes

The 330103-00-04-10-02-05 proximity probe is deployed across a wide range of heavy industrial sectors where rotating machinery reliability is critical to process continuity. In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the probe monitors shaft vibration on turbine-generator sets, providing the early warning data needed to prevent catastrophic bearing failures and unplanned outages. In petrochemical and refinery applications, it is installed on centrifugal compressors and process pumps handling hazardous fluids, where API 670 compliance and continuous online monitoring are mandatory requirements.

In water treatment and municipal utilities, the probe supports condition-based maintenance programs on large vertical turbine pumps and blower trains, reducing maintenance costs and extending equipment life. Mining and mineral processing operations use the 3300 Series architecture — anchored by probes such as the 330103-00-04-10-02-05 — to monitor ball mills, SAG mills, and slurry pumps operating in harsh, high-vibration environments. In steel and metallurgical plants, the probe is integrated into rolling mill drive train monitoring systems, where precise shaft position data is essential for product quality control as well as equipment protection. In packaging and process control lines, the probe supports high-speed rotating equipment monitoring where early fault detection directly impacts production throughput and OEE targets.

Across all these applications, the common requirement is a sensing element that delivers consistent, repeatable, and calibration-stable performance over years of continuous operation — a requirement the 330103-00-04-10-02-05 is specifically designed to meet within the Bently Nevada 3300 system architecture.

Product Compatibility FAQ

Q1: Is the 330103-00-04-10-02-05 directly compatible with the 3500 Series rack system, or is additional hardware required?
The 330103-00-04-10-02-05 proximity probe is compatible with the 3500 Series rack system when used with the appropriate proximitor (330180 series) and the 3500/42M proximitor I/O module. The probe itself does not connect directly to the rack — the three-component transducer system (probe + extension cable + proximitor) must be assembled and gap-set correctly before the conditioned signal is wired to the rack I/O module. No additional signal conditioning hardware is required beyond the standard 3300 Series transducer chain.

Q2: Can this probe be used in a redundant dual-probe configuration for API 670 compliance?
Yes. API 670 radial vibration measurement requirements specify two proximity probes mounted 90 degrees apart (X and Y planes) on each monitored bearing. Two 330103-00-04-10-02-05 probes, each with its own 330130 extension cable and 330180 proximitor, are connected to separate channels of the 3500/42M I/O module. The 3500 Series rack then applies the required voting logic and relay outputs for machinery protection. This configuration is standard practice for critical rotating machinery in power generation, petrochemical, and compression applications.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability?
The warranty terms confirmed during quotation provided by ZYPLC covers functional defects in the 330103-00-04-10-02-05 proximity probe under normal operating conditions. All units are functionally tested and verified prior to shipment. For long-term maintenance planning, ZYPLC supports RFQ sourcing for compatible 3300 Series components — including 330130 extension cables, 330180 proximitors, and 3300/16 monitor modules — to support customers requiring matched replacement assemblies. For procurement inquiries or technical support, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com.
