Bently Nevada 330103-00-04-50-12-CN Proximity Probe for 3300 Series Systems

Bently Nevada 330103-00-04-50-12-CN: Industrial Data Link for 3300 Series Vibration Monitoring Systems

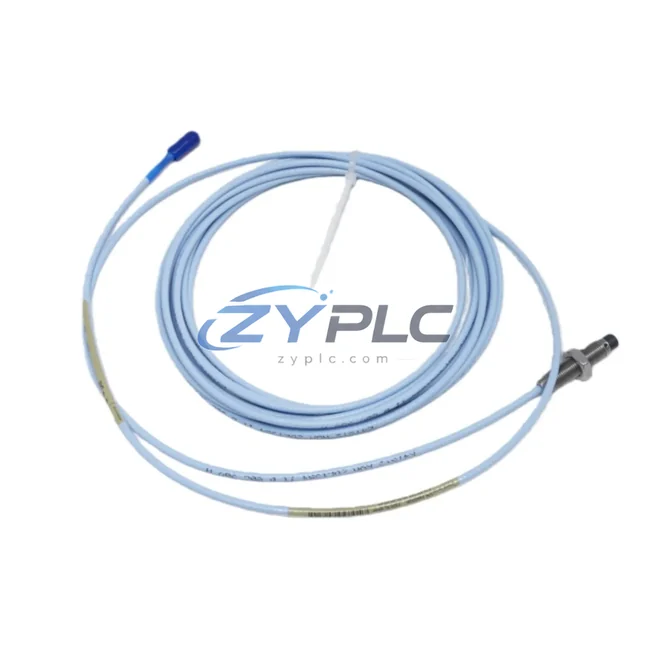

The Bently Nevada 330103-00-04-50-12-CN is a metric-standard eddy-current proximity probe engineered for the 3300 Series condition monitoring platform. Designed for continuous, non-contact displacement and vibration measurement, this probe serves as the critical sensing node in industrial data acquisition chains — converting mechanical motion into precise analog signals that feed into plant-wide SCADA, DCS, and predictive maintenance systems. With a 5 mm probe tip diameter, 5-metre integral cable, and CN metric connector termination, the 330103-00-04-50-12-CN is purpose-built for integration into high-reliability rotating machinery protection networks across power generation, oil and gas, petrochemical, and heavy manufacturing environments.

In modern smart factory architectures, the value of a proximity probe extends far beyond simple vibration detection. The 330103-00-04-50-12-CN functions as the upstream signal source in a layered industrial communication chain: raw eddy-current displacement data is captured at the shaft, transmitted through the 5-metre cable to the 3300 Series proximitor/driver module, converted to a calibrated DC voltage signal, and then passed into the plant’s data highway for real-time processing. This analog-to-digital pathway is the foundation of any effective machine health monitoring strategy.

Compatibility & Integration Notes

Connected Automation Data Flow

The 330103-00-04-50-12-CN sits at the very beginning of the industrial data flow chain. Installed adjacent to a rotating shaft — turbine, compressor, or pump — the probe’s eddy-current field detects micro-level displacement changes in real time. The signal travels through the 5-metre CN-terminated cable to a paired Bently Nevada 3300 XL 8mm Proximitor driver module, which conditions and scales the raw signal into a linear DC voltage output. This conditioned signal is then wired into a Bently Nevada 3500/42M Proximitor I/O Module housed within the 3500 Series rack-based machinery protection system.

Within the 3500 rack, the analog data is digitised and made available to the plant network. The 3500/92 Communication Gateway Module bridges the 3500 rack to Ethernet-based plant networks, enabling Modbus TCP and OPC-UA data exchange with upstream SCADA platforms such as GE iFIX, Wonderware System Platform, or Emerson DeltaV. Operators at the control room HMI — whether a Siemens SIMATIC HMI TP1500 or a Rockwell FactoryTalk View SE station — receive live shaft vibration, eccentricity, and axial position data without latency.

For facilities running distributed control architectures, the analog output from the 3300 Series proximitor can also be wired directly into a Yokogawa CENTUM VP DCS or a Honeywell Experion PKS analog input card, maintaining full signal integrity across long cable runs. Where legacy 4–20 mA loops are in use, a signal isolator or protocol converter — such as a Phoenix Contact MINI Analog Pro — can be inserted to prevent ground loops and ensure clean data transmission to the PLC or remote I/O rack.

In edge computing deployments, the digitised vibration data from the 3500 rack can be forwarded to an industrial edge gateway — such as a Moxa UC-8112 or Advantech WISE-5000 — for local pre-processing, anomaly detection, and selective cloud upload. This architecture supports real-time alarm generation, trend analysis, and remote diagnostics without overloading the plant’s core network infrastructure. The 330103-00-04-50-12-CN therefore acts as the indispensable first link in a data chain that spans from the rotating shaft all the way to the enterprise MES and cloud-based predictive maintenance platforms.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is data isolation — where critical machine health information remains trapped at the sensor level, invisible to operators, maintenance engineers, and plant managers. The Bently Nevada 330103-00-04-50-12-CN, when deployed as part of a complete 3300/3500 Series monitoring architecture, directly addresses this problem.

Protocol Fragmentation: Many plants operate a mix of legacy analog instruments alongside modern digital fieldbus and Ethernet-based systems. The 330103-00-04-50-12-CN’s analog output is universally compatible — it can be ingested by any system capable of reading a DC voltage signal, and when paired with the 3500/92 gateway module, the data is immediately available over Modbus TCP and OPC-UA, eliminating the need for custom protocol converters at every integration point.

Remote Monitoring Gaps: For unmanned substations, offshore platforms, or remote compressor stations, the inability to monitor rotating machinery in real time creates significant operational risk. The 330103-00-04-50-12-CN’s integration with the 3500 rack and its Ethernet gateway enables continuous remote monitoring via SCADA, with configurable alarm thresholds that trigger automated alerts to maintenance teams — reducing unplanned downtime and enabling condition-based maintenance scheduling.

Production Line Transparency: In smart factory environments, machine health data must flow seamlessly from the field device layer to the MES and ERP systems. The 330103-00-04-50-12-CN supports this transparency by providing high-resolution, time-stamped vibration data that can be correlated with production output, energy consumption, and maintenance records — giving plant managers a complete picture of asset health and operational efficiency.

System Scalability: As production capacity grows, the 3300 Series architecture scales without disruption. Additional 330103-00-04-50-12-CN probes can be added to the 3500 rack with minimal reconfiguration, and the communication gateway automatically exposes new data points to the SCADA and historian systems. This plug-and-expand capability protects the initial investment while supporting long-term plant digitalisation roadmaps.

Industrial Connectivity FAQ

Q1: What communication protocols does the 330103-00-04-50-12-CN support for SCADA integration?
The 330103-00-04-50-12-CN outputs a standard analog DC voltage signal via the 3300 Series proximitor driver. When integrated with the Bently Nevada 3500 rack and the 3500/92 Communication Gateway Module, the system supports Modbus RTU, Modbus TCP, and OPC-UA — enabling direct integration with all major SCADA, DCS, and historian platforms without additional protocol converters.

Q2: How is network stability and signal integrity maintained over long cable runs?
The 330103-00-04-50-12-CN uses a shielded, integral 5-metre cable with CN metric termination, designed to minimise electromagnetic interference in electrically noisy industrial environments. For installations requiring longer signal runs, the conditioned DC output from the 3300 Series proximitor can be transmitted over standard instrumentation cable with appropriate shielding and grounding practices, maintaining signal integrity across distances exceeding 300 metres to the control room.

Q3: Can the 330103-00-04-50-12-CN be integrated into an existing Modbus or OPC-UA network without replacing the current control system?
Yes. The 330103-00-04-50-12-CN is fully compatible with existing 3300 and 3500 Series infrastructure. If the plant already operates a 3500 rack with a communication gateway, the probe can be added to the system and its data immediately made available on the existing Modbus or OPC-UA network. No changes to the PLC, DCS, or SCADA configuration are required beyond adding the new data point to the historian or HMI display.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every 330103-00-04-50-12-CN unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failure under normal operating conditions. Prior to shipment, each probe undergoes functional verification including gap voltage calibration check, cable continuity test, and connector integrity inspection. Units are shipped with full traceability documentation. In the event of a warranty claim, ZYPLC provides rapid replacement or repair support to minimise plant downtime.
