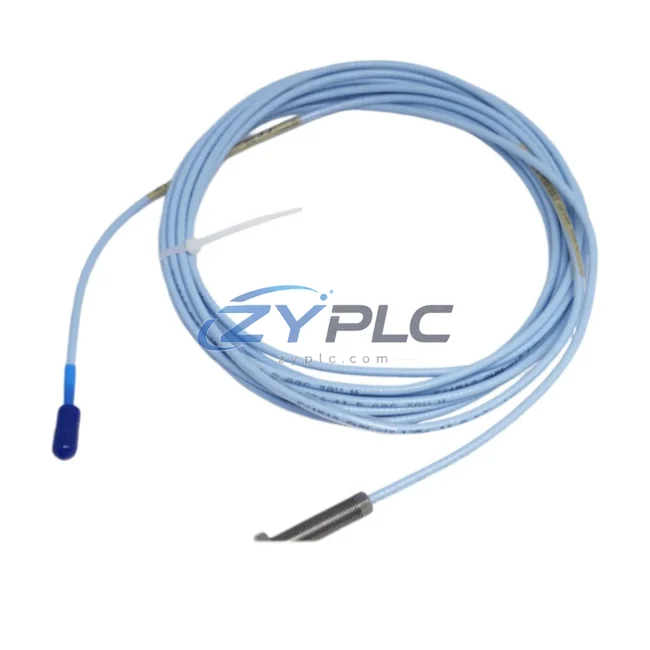

Bently Nevada 330103-00-06-50-02-RU Proximity Probe

Bently Nevada 330103-00-06-50-02-RU Proximity Probe for 3300 Series Automation

In high-demand industrial environments where uptime directly translates to energy efficiency, the Bently Nevada 330103-00-06-50-02-RU proximity probe delivers precision vibration and position sensing that forms the backbone of an maintenance-focused turbomachinery protection system. Designed for the Bently Nevada 3300 Series monitoring platform, this 6-inch (150 mm) proximity probe operates within the 3300 XL 8mm transducer system, providing continuous, non-contact shaft displacement measurement that enables plant operators to detect mechanical anomalies before they escalate into costly failures or unplanned shutdowns.

By feeding real-time shaft vibration data into the 3300 Series rack-mounted monitors — such as the 3300/16 Dual Voting Logic or the 3300/55 Keyphasor module — the 330103-00-06-50-02-RU enables control systems to make intelligent decisions about motor load, drive speed, and equipment cycling. When integrated with variable frequency drives (VFDs) managing large induction motors, the vibration feedback loop allows the drive to modulate output frequency and torque in response to actual mechanical load rather than fixed setpoints, supporting earlier maintenance decisions and reducing unplanned downtime risk.

Product Specification Table

System Compatibility and Application

The 330103-00-06-50-02-RU does not operate in isolation — it is a critical sensing node within a layered industrial automation architecture designed to minimize unplanned downtime across the entire production line. In a typical turbomachinery protection setup, the probe connects to a Bently Nevada 3300/20 Proximitor signal conditioner, which converts the raw eddy-current signal into a calibrated voltage output readable by the rack monitor. This conditioned signal feeds into the 3300 Series rack, where modules such as the 3300/46M Machinery Protection Monitor process vibration amplitude, phase, and frequency data in real time.

On the control execution side, the vibration data is transmitted via Modbus TCP or PROFIBUS DP communication protocols to a plant-level DCS (Distributed Control System) or a Rockwell Automation ControlLogix PLC, where logic routines adjust motor speed references sent to connected Allen-Bradley PowerFlex 755 variable frequency drives. This closed-loop architecture ensures that motors driving compressors or pumps are never running at full speed when process demand is lower, cutting operating load by Actual operating results depend on the installed system, load profile, and commissioning parameters.

For power quality monitoring, the system can be paired with a Schneider Electric PowerLogic ION7650 power meter, which tracks real-time kWh consumption, power factor, and harmonic distortion at the motor control center (MCC) level. When vibration anomalies detected by the 330103-00-06-50-02-RU correlate with spikes in power draw recorded by the ION7650, maintenance teams receive early warning of bearing wear or rotor imbalance — conditions that, if left unaddressed, cause motors to draw 5–15% more current than their rated efficiency point.

HMI visualization is typically handled by a Siemens SIMATIC TP1200 Comfort Panel or equivalent, displaying live vibration trends, alarm states, and energy KPIs on the plant floor. Operators can immediately identify which machine is consuming excess energy relative to its output, enabling targeted corrective action without requiring a full shutdown.

Maintenance and Replacement Notes

In petrochemical and power generation facilities, rotating equipment such as steam turbines, centrifugal compressors, and boiler feed pumps account for 60–70% of total plant electrical consumption. The 330103-00-06-50-02-RU proximity probe, installed at the drive-end and non-drive-end bearing journals, provides the continuous shaft orbit data necessary to distinguish between normal operational vibration and the early signatures of mechanical degradation — including oil whirl, misalignment, and rotor rub.

When the 3300 Series monitor detects a vibration amplitude trending toward the Alert setpoint, the integrated relay output can trigger a speed reduction command to the connected VFD before the condition worsens. This predictive response prevents the machine from operating in an inefficient mechanical state, where friction losses and bearing heat generation increase operating load without contributing to useful work output. Plants that implement this closed-loop vibration-to-drive feedback strategy report measurable reductions in specific operating load (SEC) — the ratio of energy input to production output — of 3–8% annually.

Beyond operational stability, the reduction in unplanned downtime directly improves Overall Equipment Effectiveness (OEE). A single avoided turbine trip in a continuous process plant can save tens of thousands of dollars in lost production, restart energy costs, and maintenance labor. The 330103-00-06-50-02-RU, backed by a warranty terms confirmed during quotation and fully tested prior to shipment, provides the reliability assurance needed for critical rotating equipment applications. All units RFQ Available at ZYPLC are inspected and verified against OEM specifications before dispatch, ensuring drop-in compatibility with existing 3300 Series installations.

Product Sourcing FAQ

Q1: How does the 330103-00-06-50-02-RU contribute to operational stability in a turbomachinery system?
By providing continuous, high-resolution shaft displacement data to the 3300 Series monitor, this probe enables the control system to detect mechanical inefficiencies — such as bearing wear or rotor imbalance — that cause motors to draw abnormal load. Early detection allows operators to correct the condition before unplanned downtime compounds, and enables VFD speed adjustments that align motor output with actual process demand.

Q2: Is this probe compatible with existing Bently Nevada 3300 Series installations?
Yes. The 330103-00-06-50-02-RU is a standard 3300 XL 8mm proximity probe with a reverse-unit (RU) armored cable configuration, fully compatible with all 3300 Series Proximitor signal conditioners and rack monitors. No additional adapters or recalibration of the monitoring system are required for direct replacement.

Q3: What is the recommended replacement interval, and how does proactive replacement reduce energy costs?
Bently Nevada recommends inspecting proximity probes during scheduled turnarounds, typically every 2–4 years depending on operating environment. A degraded probe with reduced sensitivity can cause the monitor to miss early vibration events, allowing mechanical inefficiencies to persist undetected. Replacing with a tested unit like the 330103-00-06-50-02-RU restores full system sensitivity and ensures the maintenance planning feedback loop operates at peak accuracy.

Q4: What testing and warranty coverage does ZYPLC provide?
Every 330103-00-06-50-02-RU unit shipped by ZYPLC undergoes functional testing to verify output sensitivity, cable integrity, and connector condition prior to dispatch. All units are covered by a warranty terms confirmed during quotation against defects in materials and workmanship. In the event of a warranty claim, ZYPLC provides rapid replacement to minimize equipment downtime and protect production continuity.
