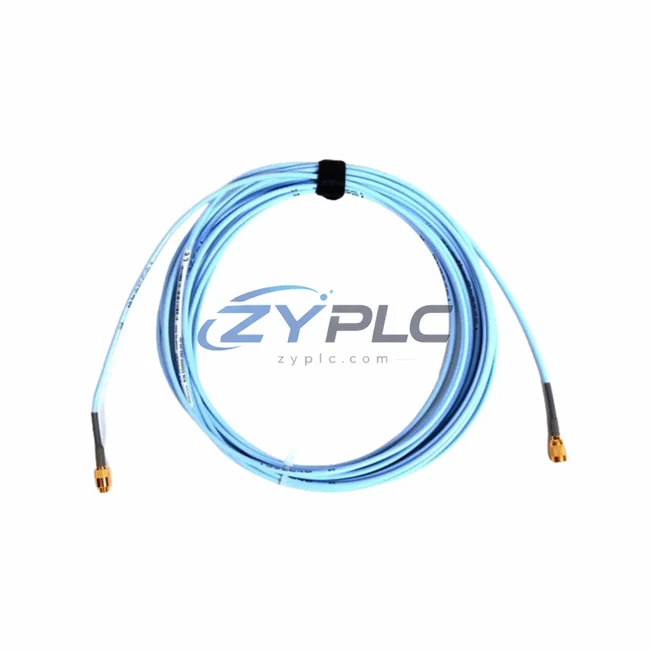

Bently Nevada 330104-00-06-05-01-05 Proximity Probe for 3300 Series

Bently Nevada 330104-00-06-05-01-05 Proximity Probe for 3300 Series

The Bently Nevada 330104-00-06-05-01-05 is an eddy-current proximity probe engineered for seamless integration within the Bently Nevada 3300 Series continuous vibration monitoring architecture. Designed to deliver precise non-contact displacement and vibration measurements, this probe serves as the primary sensing element in a layered industrial automation system — connecting the mechanical domain directly to the control and protection layers. Its role extends far beyond a standalone sensor: it is a foundational component in a coherent, redundancy-capable condition monitoring platform deployed across rotating machinery in power generation, petrochemical, oil and gas, mining, and heavy manufacturing environments.

In a complete 3300 Series monitoring system, the 330104-00-06-05-01-05 probe operates in conjunction with the 330130-080-00-00 extension cable and the 330180-51-00 proximitor/oscillator, forming the three-part transducer chain that converts shaft displacement into a calibrated voltage signal. This signal is then routed to the 3300/16 dual-channel monitor or the 3300/20 four-channel monitor, where it is processed for alarm, danger, and trip logic. The monitor outputs interface with the plant DCS or safety instrumented system (SIS), ensuring that vibration exceedances trigger appropriate protective responses without manual intervention.

System architects integrating this probe into a broader control cabinet will typically pair it with the 3500/15 power supply module to ensure stable, conditioned DC power across all monitoring channels. For applications requiring machinery protection with API 670 compliance, the probe is fully compatible with the 3500/22M transient data interface and the 3500/42M vibration monitor, enabling both continuous protection and high-resolution transient capture during startup and shutdown events. This dual capability is critical for turbomachinery diagnostics in refineries and compressor stations where transient behavior reveals early-stage mechanical degradation.

At the network and communication layer, data from the 3300 Series monitors can be transmitted via Modbus RTU or TCP/IP to SCADA platforms, historians, and asset performance management (APM) systems. When integrated with the 3500/92 communication gateway, the monitoring system supports seamless data exchange with distributed control systems from major vendors, enabling centralized visualization and alarm management. This system integration capability ensures that the 330104-00-06-05-01-05 probe’s measurements are not siloed but contribute to plant-wide operational intelligence.

For installations requiring redundant sensing on critical shafts, two 330104-00-06-05-01-05 probes can be mounted at 90-degree offsets (X-Y configuration) to capture full orbital motion data. This configuration, combined with the 330106-05-30-05-02-05 proximity probe as a complementary channel, provides the orbital plot data necessary for advanced rotor dynamic analysis. Redundant probe configurations also support voting logic within the protection system, reducing the risk of spurious trips while maintaining sensitivity to genuine fault conditions.

Installation and commissioning of the 330104-00-06-05-01-05 follows standard Bently Nevada gap voltage procedures, with the probe tip positioned at the manufacturer-specified gap distance from the target shaft surface. The 125800-01 proximitor provides the oscillator circuit and signal conditioning, outputting a linear voltage proportional to gap distance. Engineers should verify gap voltage at commissioning using a calibrated DC voltmeter and document baseline readings for future trending. The probe’s armored cable and robust tip construction are rated for continuous operation in high-temperature, high-vibration environments typical of steam turbine bearing housings and centrifugal compressor pedestals.

Long-term maintenance strategies for systems incorporating this probe benefit from periodic gap voltage checks, cable integrity inspections, and comparison of live vibration trends against historical baselines stored in the plant historian. Predictive maintenance programs leveraging the 3300/20 monitor’s alarm setpoint management and the 3500/42M’s spectrum analysis capabilities can extend mean time between failures (MTBF) for critical rotating assets. Spare probe inventory management is simplified by the probe’s standardized connector interface and compatibility across the 3300 Series platform, reducing the number of unique spare parts required in the maintenance storeroom.

All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, tested prior to shipment, and supported by application engineers familiar with Bently Nevada system architecture. Whether you are replacing a failed probe in an operating plant or building out a new monitoring system, ZYPLC provides the inventory availability and technical support to keep your machinery protection architecture fully operational.

Product Specification Table

System Compatibility Notes

A complete machinery protection system built around the 330104-00-06-05-01-05 probe integrates components across multiple system layers. At the sensing layer, the probe pairs with the 330130-080-00-00 extension cable to bridge the distance between the bearing housing and the proximitor enclosure. The 330180-51-00 proximitor conditions the signal before it enters the monitor rack. Within the rack, the 3300/16 dual-channel monitor or 3300/20 four-channel monitor processes vibration data and enforces alarm and trip setpoints. The 3500/15 power supply provides regulated power to all rack-mounted modules, while the 3500/22M transient data interface captures high-resolution waveform data during machine transients. For plants requiring full API 670 machinery protection, the 3500/42M vibration monitor delivers both continuous protection and diagnostic spectrum data. The 3500/92 communication gateway bridges the monitoring system to plant DCS and SCADA networks. Complementary probes such as the 330106-05-30-05-02-05 can be deployed in X-Y configurations for orbital analysis, and the 125800-01 proximitor serves as an alternative signal conditioning option in legacy installations. Together, these components form a coherent, scalable, and maintainable machinery protection architecture.

Industrial Application Notes

The 330104-00-06-05-01-05 proximity probe is deployed across a wide range of process industries where rotating machinery reliability is critical. In power generation, it monitors steam turbine shaft vibration and axial position, providing early warning of rotor imbalance, misalignment, and bearing wear. In petrochemical and refinery applications, it protects centrifugal compressors and pumps operating in hazardous areas, where unplanned shutdowns carry significant safety and financial consequences. Oil and gas pipeline compressor stations rely on this probe within API 670-compliant protection systems to meet regulatory requirements and insurance mandates. In water treatment facilities, it monitors large pump-motor sets, enabling predictive maintenance programs that reduce unplanned downtime. Mining and mineral processing operations use it on crushers, mills, and conveyor drive systems where vibration monitoring extends equipment life in harsh, abrasive environments. Metallurgical plants integrate it into rolling mill drive monitoring systems, where precise shaft displacement data informs process quality control. Across all these applications, the probe’s role within the layered automation architecture — from field sensing through control, protection, and enterprise reporting — ensures that machinery health data flows seamlessly to the operators and engineers who depend on it.

Product Compatibility FAQ

Q1: Is the 330104-00-06-05-01-05 compatible with both the 3300 Series and 3500 Series monitor racks?
Yes. This probe is part of the Bently Nevada standard transducer family and is compatible with both the 3300 Series and 3500 Series monitor platforms when used with the appropriate proximitor (330180-51-00 or 125800-01). The transducer chain — probe, extension cable, and proximitor — is interchangeable across both monitor generations, making it a versatile choice for plants operating mixed-generation monitoring architectures.

Q2: What installation and commissioning steps are required to ensure accurate vibration readings?
Commissioning requires setting the probe gap voltage to the manufacturer-specified value (typically -10 VDC at the nominal gap distance) using a calibrated DC voltmeter. The probe tip must be positioned perpendicular to the shaft surface, and the target area should be free of surface irregularities. After initial gap setting, baseline vibration readings should be recorded at normal operating speed and load conditions to establish trending references for predictive maintenance. Cable routing should minimize exposure to electromagnetic interference sources.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for system integration?
The warranty terms confirmed during quotation provided by ZYPLC covers defects in materials and workmanship for the supplied probe unit. All units are tested prior to shipment to verify electrical performance within Bently Nevada specifications. ZYPLC’s application engineering team is available to assist with system compatibility verification, spare parts planning, and system integration guidance for both new installations and replacement scenarios. Contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com for technical support.
