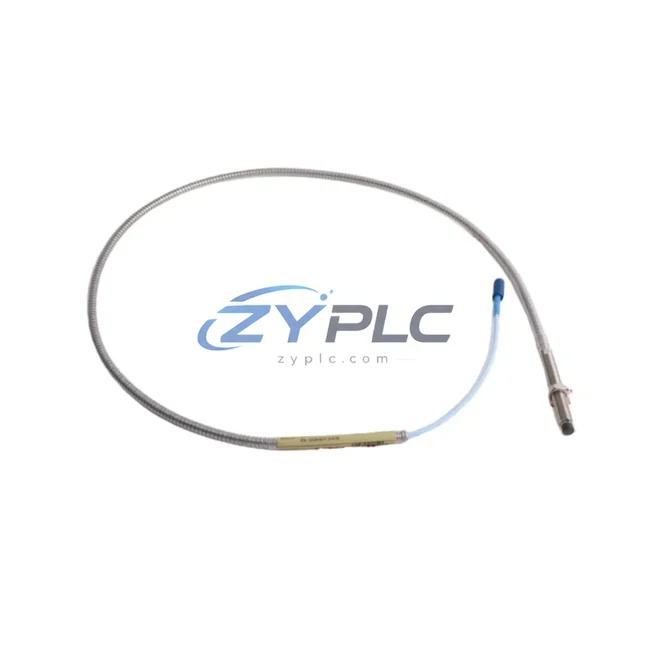

Bently Nevada 330104-00-07-10-02-00 Proximity Transducer System for 3300 Systems

Bently Nevada 330104-00-07-10-02-00: Industrial Data Link for Smart Factory Connectivity

The Bently Nevada 330104-00-07-10-02-00 is a precision proximity transducer from the renowned 3300 Series, engineered to serve as a critical node in the industrial data chain of modern smart factories. Designed for continuous, non-contact vibration and position measurement, this transducer delivers high-fidelity analog signals that feed directly into machine protection systems, distributed control networks, and real-time SCADA platforms. In an era where unplanned downtime costs manufacturers millions per hour, the 330104-00-07-10-02-00 provides the foundational sensing layer that makes predictive maintenance, remote diagnostics, and plant-wide transparency possible.

At its core, the 330104-00-07-10-02-00 operates as a 25 mm proximity transducer with a 5-metre extension cable configuration, outputting a standard -24 VDC bias voltage signal compatible with the full Bently Nevada 3300 Series ecosystem. Its eddy-current sensing principle enables shaft vibration, axial position, differential expansion, and eccentricity measurements across rotating machinery including turbines, compressors, pumps, and motors — the backbone assets of any process-critical industrial site.

Compatibility & Integration Notes

Connected Automation Data Flow

The 330104-00-07-10-02-00 sits at the very beginning of the industrial data pipeline. When installed on a rotating shaft, it continuously transmits raw vibration and position data to the Bently Nevada 3300 XL 8mm Driver (typically the 330180-X1-05 or 330130-040-00-00 series), which conditions the signal and passes it upstream to the Bently Nevada 3500/42M Proximitor I/O Module housed within the 3500 Series Rack. This rack-based architecture acts as the central protocol bridge, converting analog transducer signals into structured digital data readable by plant-level systems.

From the 3500 Rack, data flows via Modbus RTU or Modbus TCP/IP — or through dedicated System 1 Evolution software — into the plant’s SCADA layer. Operators monitoring a GE iFIX or Wonderware InTouch HMI workstation receive real-time vibration trend data, alarm states, and machine health scores without any manual intervention. When a bearing begins to show early-stage wear, the 330104-00-07-10-02-00’s signal chain triggers automated alarm escalation through the 3500 rack’s relay outputs, simultaneously logging the event in the historian and pushing a notification to the remote operations center.

In more complex architectures, the 3500 Rack’s output integrates with a Siemens S7-300 or S7-400 PLC via PROFIBUS DP or Modbus, enabling the control system to take protective action — such as initiating a controlled shutdown sequence — based on vibration thresholds. Alternatively, in facilities running Allen-Bradley ControlLogix platforms, the data passes through an EtherNet/IP-to-Modbus gateway to maintain protocol compatibility across the automation hierarchy. Remote I/O nodes, such as the Bently Nevada 3500/92 Communication Gateway, further extend the data reach to edge computing platforms and cloud-based condition monitoring services.

For facilities deploying OSIsoft PI System or similar industrial data historians, the 330104-00-07-10-02-00’s signal chain feeds continuous time-series vibration data into the PI Data Archive, enabling long-term trend analysis, machine learning-based anomaly detection, and regulatory compliance reporting. The result is a fully transparent, end-to-end data flow from the physical shaft surface to the enterprise dashboard — with the 330104-00-07-10-02-00 as the indispensable first link in that chain.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — where critical machine health information remains trapped within proprietary monitoring systems, inaccessible to the broader plant control and business intelligence infrastructure. The Bently Nevada 330104-00-07-10-02-00, when deployed within the 3300/3500 Series ecosystem, directly addresses this problem by providing a standardized, high-accuracy signal source that modern protocol gateways and communication modules can translate into universally accessible data formats.

Sites running mixed-vendor environments — where Bently Nevada protection systems coexist with Emerson DeltaV DCS, Honeywell Experion PKS, or ABB 800xA platforms — benefit from the 3500 Rack’s open communication architecture. By deploying a Bently Nevada 3500/92 Ethernet Communication Module alongside the 330104-00-07-10-02-00 transducer chain, plant engineers can expose vibration data as OPC-UA tags, making it natively consumable by any modern SCADA, MES, or ERP system without custom middleware.

Remote monitoring is another area where this transducer system delivers measurable value. In unmanned substations, offshore platforms, or geographically distributed compressor stations, the 330104-00-07-10-02-00 enables continuous remote diagnostics without requiring on-site personnel. Alarm thresholds configured in the 3500 Rack trigger automated SMS or email notifications, while the full vibration waveform data is available for remote analysis by rotating equipment specialists — reducing both travel costs and mean time to repair (MTTR).

Production line transparency is equally enhanced. By integrating vibration data from the 330104-00-07-10-02-00 into a plant-wide OEE (Overall Equipment Effectiveness) dashboard, maintenance teams gain real-time visibility into machine health alongside production throughput and quality metrics. This convergence of operational technology (OT) and information technology (IT) data is the defining characteristic of Industry 4.0 — and the 330104-00-07-10-02-00 is a proven enabler of that transformation.

System expansion is seamless within the 3300/3500 architecture. Additional transducer channels can be added to existing 3500 Racks without rewiring the communication backbone, and new machine trains can be brought online with minimal engineering effort. This scalability protects the initial investment and supports phased smart factory rollouts aligned with capital expenditure cycles.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 330104-00-07-10-02-00 support for SCADA integration?
The 330104-00-07-10-02-00 itself outputs a standard analog signal, but when paired with the Bently Nevada 3500 Series Rack and a 3500/92 Communication Gateway, it supports Modbus RTU, Modbus TCP/IP, and OPC-UA — enabling direct integration with virtually any modern SCADA, DCS, or HMI platform without additional middleware.

Q2: Is the 330104-00-07-10-02-00 compatible with existing 3300 Series drivers and monitors?
Yes. The 330104-00-07-10-02-00 is fully compatible with the Bently Nevada 3300 XL Driver family and the 3500 Series monitoring rack. It maintains backward compatibility with legacy 3300 Series installations, making it an ideal replacement or expansion component for existing machine protection systems.

Q3: How does this transducer contribute to network stability and real-time data reliability?
The eddy-current sensing principle used by the 330104-00-07-10-02-00 is inherently immune to electromagnetic interference (EMI), ensuring stable, noise-free signal transmission even in electrically harsh industrial environments. Combined with the 3500 Rack’s hardware-based alarm processing, the system delivers deterministic, low-latency data with no dependence on network bandwidth for critical protection functions.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 330104-00-07-10-02-00?
Every Bently Nevada 330104-00-07-10-02-00 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation and undergoes functional testing prior to shipment. Our quality control process verifies bias voltage output, cable continuity, and connector integrity to ensure the unit performs to OEM specification upon arrival. Availability is confirmed via RFQ for same-week dispatch with full traceability documentation.
