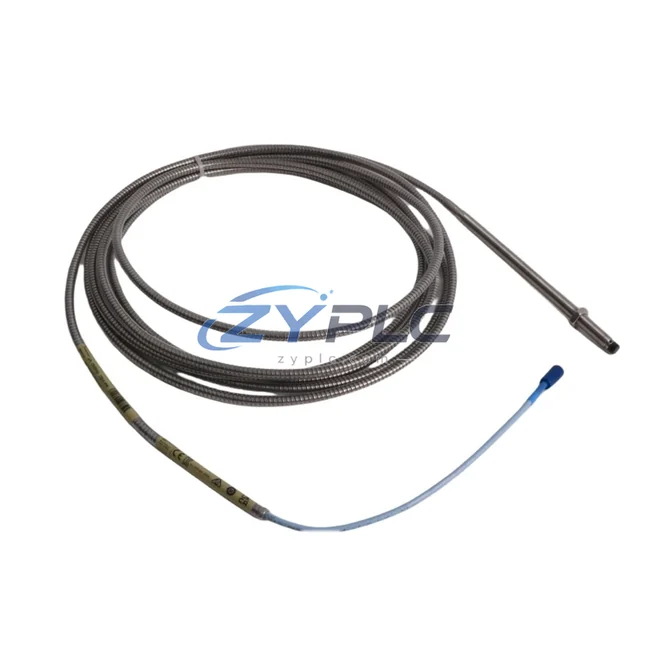

Bently Nevada 330104-00-10-05-02-05 Proximity Probe for 3300 Series

Bently Nevada 330104-00-10-05-02-05 Proximity Probe for 3300 Series

The Bently Nevada 330104-00-10-05-02-05 is a precision eddy-current proximity probe engineered as a core sensing element within the Bently Nevada 3300 Series vibration monitoring architecture. Rather than functioning as a standalone transducer, this probe is designed to operate as an integrated node within a layered industrial control system — delivering real-time shaft displacement, radial vibration, and axial position data to the monitoring and protection layer above it. In rotating machinery protection environments, where signal fidelity, system consistency, and long-term reliability are non-negotiable, the 330104-00-10-05-02-05 provides the foundational sensing capability upon which the entire protection chain depends.

Understanding this probe’s role requires viewing it within the full control system hierarchy: from the field sensing layer where the probe tip interfaces with the rotating shaft, through the signal conditioning layer handled by the companion extension cable and proximitor driver, up to the rack-mounted monitoring modules, and ultimately to the supervisory control and data acquisition (SCADA) or distributed control system (DCS) that aggregates machine health data across the plant. Each layer depends on the accuracy and stability of the layer below it, and the 330104-00-10-05-02-05 anchors that chain at the most critical point — the physical measurement interface.

Product Specification Table

System Compatibility Notes

The 330104-00-10-05-02-05 proximity probe does not operate in isolation. Its value is fully realized only when it is correctly integrated into the broader Bently Nevada 3300 Series system architecture. In a typical rotating machinery protection installation, this probe is paired with the Bently Nevada 330130-045-00-00 extension cable, which bridges the distance between the probe tip and the proximitor driver mounted at the machinery skid junction box. The proximitor driver — commonly the Bently Nevada 3300 XL 8mm Proximitor Sensor — conditions the raw eddy-current signal into a calibrated DC voltage output that is then routed to the monitor rack.

At the rack level, the conditioned signal feeds into monitor modules such as the Bently Nevada 3300/16 Dual Vibration Monitor or the Bently Nevada 3300/20 Radial Vibration Monitor, which process the displacement data, apply alarm and danger setpoints, and relay trip signals to the machinery protection relay logic. These monitors are housed within the Bently Nevada 3300 Series Rack, which also accommodates power supply modules such as the Bently Nevada 3300/05 Power Supply, ensuring stable, conditioned DC power across all monitoring channels.

For systems requiring redundant protection architecture, the 330104-00-10-05-02-05 can be deployed in dual-probe configurations on the same shaft journal, with each probe feeding an independent monitoring channel. This redundancy design — supported by the Bently Nevada 3500 Series platform in higher-criticality applications — ensures that a single sensor failure does not result in undetected machinery damage or unplanned shutdown. The integration of this probe into a redundant architecture also simplifies maintenance: individual probes can be replaced during planned outages without disturbing the overall monitoring system configuration.

At the supervisory layer, the monitor rack communicates machine health data to the plant DCS or SCADA via Modbus RTU or 4–20 mA analog outputs, enabling operators to trend vibration data, configure alarm thresholds remotely, and correlate machinery behavior with process variables such as load, temperature, and flow. The 330104-00-10-05-02-05 thus serves as the originating data source for a signal chain that ultimately informs plant-wide operational decisions.

Industrial Application Notes

In power generation environments — including gas turbines, steam turbines, and hydro generators — the 330104-00-10-05-02-05 is deployed to monitor shaft radial vibration and axial position on critical rotating elements. Turbine protection systems in these facilities typically require continuous, high-resolution displacement monitoring with sub-millisecond response times, and the 3300 Series proximity transducer system meets these demands with proven field reliability.

In petrochemical and refinery applications, this probe is commonly installed on centrifugal compressors, boiler feed pumps, and process gas blowers. The harsh operating environments — characterized by high ambient temperatures, hydrocarbon exposure, and continuous duty cycles — demand a probe with robust construction and stable calibration over extended service intervals. The 330104-00-10-05-02-05’s stainless steel housing and high-temperature cable insulation make it well-suited for these conditions.

In water treatment and municipal utility facilities, large vertical turbine pumps and horizontal split-case pumps benefit from proximity-based vibration monitoring to detect bearing wear, rotor imbalance, and misalignment before they progress to catastrophic failure. The integration of this probe into the plant’s existing DCS — via the 3300 Series monitor rack’s analog outputs — allows maintenance teams to trend vibration data alongside process parameters without requiring a separate condition monitoring network.

In mining and mineral processing operations, where large grinding mills, crushers, and conveyor drive motors operate under variable load conditions, the 330104-00-10-05-02-05 provides the real-time shaft displacement data needed to detect structural resonance, bearing defects, and rotor eccentricity. The probe’s compatibility with the 3300 Series architecture ensures that monitoring data can be integrated into the site’s existing SCADA infrastructure with minimal engineering effort.

Product Compatibility FAQ

Q1: Is the 330104-00-10-05-02-05 directly compatible with existing Bently Nevada 3300 Series monitor racks without additional signal conditioning hardware?
A: Yes, provided the correct proximitor driver is used. The 330104-00-10-05-02-05 requires a compatible 3300 Series proximitor (such as the 3300 XL 8mm Proximitor Sensor) to convert the raw eddy-current signal into the calibrated DC voltage output expected by the monitor modules. The probe, extension cable, and proximitor together form a matched transducer system; substituting components from different series or manufacturers may affect calibration accuracy and system certification. All units supplied by ZYPLC are tested for signal output conformance prior to shipment under our warranty terms confirmed during quotation program.

Q2: Can this probe be used in a dual-redundant vibration monitoring configuration, and what are the architectural requirements?
A: Yes. Dual-probe redundant configurations are supported within the 3300 Series architecture by installing two probes at 90° offsets on the same shaft journal, each connected to an independent monitoring channel within the rack. This configuration provides X-Y vibration vector data and ensures continued protection if one probe or its signal chain develops a fault. The monitor modules must be configured for dual-channel operation, and the rack must have sufficient channel capacity. For safety-critical applications requiring voted redundancy (2oo3 logic), the 3500 Series platform is recommended as an upgrade path.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance and spare parts availability?
A: The warranty terms confirmed during quotation covers manufacturing defects, calibration drift beyond published specifications, and premature component failure under normal operating conditions. ZYPLC supports RFQ sourcing for the 330104-00-10-05-02-05 and related 3300 Series components — including extension cables, proximitor drivers, and monitor modules — to support both immediate replacement needs and planned maintenance programs. For long-term maintenance planning, we recommend establishing a spare parts inventory that includes at least one probe, one extension cable, and one proximitor driver per critical machinery train. Contact our engineering team at plc.sales@zyplc.com or +86 19859288691 for system-level spare parts consultation.
