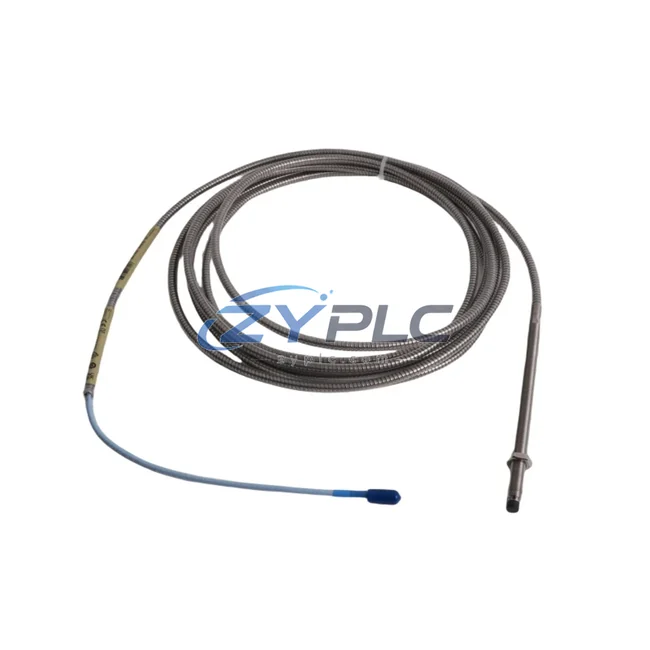

Bently Nevada 330104-00-16-05-02-05 Proximity Probe

Bently Nevada 330104-00-16-05-02-05 Proximity Probe for 3300 Series Automation

In modern industrial facilities where rotating machinery operates around the clock, unplanned downtime and excessive energy consumption represent two of the most costly operational challenges. The Bently Nevada 330104-00-16-05-02-05 proximity probe, engineered for the 3300 Series turbomachinery protection platform, addresses both challenges simultaneously by delivering precise, real-time shaft displacement data that enables smarter motor control, tighter drive regulation, and measurable reductions in unplanned downtime across the production line.

Unlike generic vibration sensors, the 330104-00-16-05-02-05 is factory-calibrated to integrate seamlessly with the Bently Nevada 3300 XL monitoring system, ensuring that every micron of shaft movement is captured with the accuracy required to protect high-value assets such as steam turbines, compressors, pumps, and gearboxes. When shaft vibration data is accurate and continuous, control systems can respond in real time — adjusting drive output, modulating load, and preventing the energy-intensive restart cycles that follow unexpected trips.

Product Specification Table

System Compatibility and Application

The 330104-00-16-05-02-05 proximity probe does not operate in isolation — it is the sensing foundation of an industrial automation system. In a typical high-efficiency turbomachinery installation, this probe feeds shaft gap voltage signals into the Bently Nevada 3300 XL 16-channel monitor, which processes displacement, velocity, and phase data in real time. That data is then passed upstream to a Bently Nevada 3500/22M transient data interface, enabling the plant DCS to make informed decisions about load shedding and drive modulation.

On the drive side, variable frequency drives such as the ABB ACS880 or Siemens SINAMICS G120 receive speed-reference corrections derived from vibration trend analysis, allowing them to reduce motor output during low-load periods without risking resonance or bearing damage. This closed-loop interaction between the proximity probe, the monitoring rack, and the VFD is what transforms a simple sensor into an active maintenance planning component.

For facilities running Siemens S7-1500 PLCs or Allen-Bradley ControlLogix controllers, the 3300 XL monitor’s relay outputs and analog channels integrate directly into existing I/O modules, eliminating the need for additional signal conditioning hardware. Where Profibus DP or Modbus RTU communication is already in use, the monitoring system’s gateway cards allow vibration data to flow into the plant historian alongside power quality data from Schneider Electric PowerLogic PM8000 power meters — creating a unified energy and condition monitoring dataset.

HMI visualization through platforms such as the Siemens SIMATIC TP1500 or Rockwell PanelView Plus 7 allows operators to correlate shaft vibration trends with real-time kWh consumption, identifying the precise operating points where machinery draws excess power due to imbalance, misalignment, or bearing wear. Early detection of these conditions — enabled by the 330104-00-16-05-02-05 — allows maintenance teams to schedule corrective action during planned downtime rather than reacting to catastrophic failures that consume far more energy and resources to recover from.

In facilities using Emerson DeltaV distributed control systems, the probe’s output integrates through the 3300 XL’s HART-compatible analog outputs, feeding directly into DeltaV’s asset management module for continuous health scoring. This architecture supports the kind of predictive maintenance strategy that reduces both unplanned downtime and spare parts consumption over the asset lifecycle.

Maintenance and Replacement Notes

Consider a petrochemical plant running three parallel centrifugal compressor trains, each driven by a 2 MW electric motor. Without accurate shaft displacement monitoring, operators typically run these machines at conservative speed setpoints — well below their efficiency peak — to avoid the risk of a vibration-induced trip. This conservative approach wastes an estimated 8–12% of motor input energy continuously.

By installing the Bently Nevada 330104-00-16-05-02-05 on each compressor shaft, the 3300 XL monitoring system can confirm in real time that shaft orbits remain within acceptable limits, giving operators the confidence to run closer to the best efficiency point (BEP). On a 2 MW motor operating 8,000 hours per year, a 10% efficiency improvement translates to approximately 1,600 MWh of annual operational stability per machine — a figure that justifies the probe investment many times over.

Beyond operational stability, accurate vibration data from the 330104-00-16-05-02-05 directly reduces the frequency of unplanned stops. Each unplanned stop on a large rotating machine typically requires a controlled coast-down, a root-cause investigation, and a restart sequence that draws 3–6 times the normal running current for 30–90 seconds. Eliminating even two or three such events per year per machine produces measurable reductions in peak demand charges and transformer loading.

On the production line rhythm side, consistent vibration monitoring ensures that upstream and downstream equipment — conveyors, heat exchangers, cooling towers — can be scheduled around the actual health state of the rotating machinery rather than arbitrary time-based maintenance intervals. This shift from calendar-based to condition-based maintenance, enabled by the continuous data stream from the 330104-00-16-05-02-05, is one of the most impactful levers available to industrial energy managers.

All units supplied by ZYPLC are individually tested prior to shipment, with full gap voltage verification performed against Bently Nevada factory calibration standards. Each probe ships with a warranty terms confirmed during quotation covering manufacturing defects and calibration drift, ensuring that your monitoring system maintains its accuracy — and its maintenance planning value — from day one of installation.

Product Sourcing FAQ

Q1: How does the 330104-00-16-05-02-05 contribute to measurable operational stability?
By providing continuous, high-accuracy shaft displacement data, this probe enables control systems to operate rotating machinery closer to its best efficiency point. Reduced vibration uncertainty means operators no longer need to apply conservative speed derating, and VFDs can modulate motor output more aggressively during low-load periods — both of which reduce kWh consumption directly.

Q2: Is this probe compatible with monitoring systems other than the Bently Nevada 3300 XL?
The 330104-00-16-05-02-05 is designed and calibrated for the Bently Nevada 3300 Series monitoring platform. With appropriate signal conditioning, it can interface with third-party systems that accept standard eddy-current probe signals (typically –24 VDC bias, 200 mV/mil sensitivity). Compatibility with the Bently Nevada 3500 Series is achievable using the appropriate proximitor/extension cable combination.

Q3: What is the recommended replacement interval, and how does timely replacement reduce unplanned downtime?
Bently Nevada recommends replacing proximity probes when gap voltage drift exceeds ±0.5 VDC from the original calibration baseline, or when physical damage to the probe tip or cable armor is observed. A degraded probe that provides inaccurate displacement readings can cause the monitoring system to issue false alarms or, worse, miss genuine vibration events — both of which lead to suboptimal drive settings and increased energy consumption. ZYPLC maintains RFQ-confirmed sourcing of the 330104-00-16-05-02-05 to support rapid replacement without extended lead times.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every 330104-00-16-05-02-05 unit shipped by ZYPLC undergoes pre-shipment functional testing including gap voltage output verification, cable continuity check, and tip condition inspection. The warranty terms confirmed during quotation covers manufacturing defects, calibration drift beyond Bently Nevada specifications, and connector integrity. Warranty claims are processed directly through ZYPLC’s technical support team, with replacement units dispatched from stock to minimize your system downtime.
