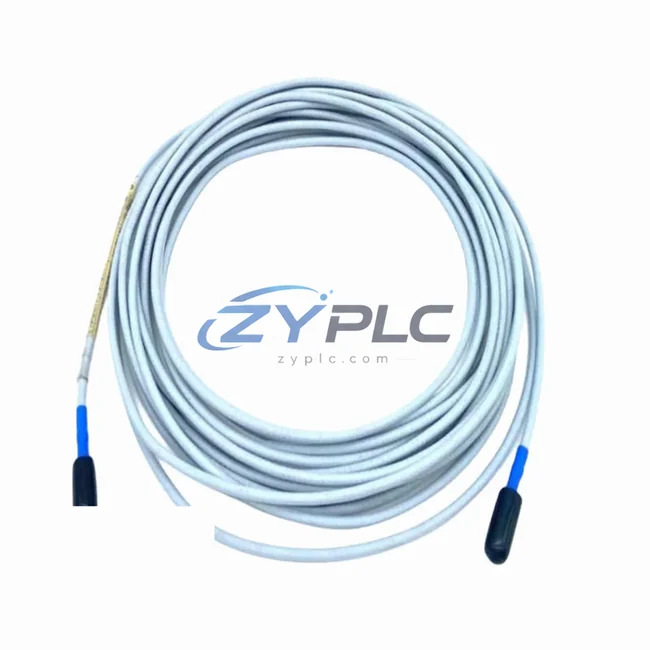

Bently Nevada 330104-03-06-05-02-00 Proximity Probe for 3300

Bently Nevada 330104-03-06-05-02-00 Proximity Probe for 3300

In a fully integrated machinery protection and condition monitoring architecture, every sensor layer must deliver consistent, reliable signal data to the control and analysis tiers above it. The Bently Nevada 330104-03-06-05-02-00 is a 25 mm proximity probe engineered for the 3300 Series monitoring system, providing non-contact, continuous shaft vibration and position measurement that forms the foundation of rotating equipment protection across industrial facilities worldwide. This probe does not operate in isolation — it is the front-end sensing element of a layered architecture that spans from the machine shaft to the control room, and its dimensional and electrical compatibility with the broader 3300 ecosystem is what makes it a system-compatible component rather than a standalone sensor.

The 330104-03-06-05-02-00 is designed to work in concert with the Bently Nevada 330130 extension cable and the 330180 proximitor/oscillator, forming the complete eddy-current sensing chain that feeds conditioned voltage signals into the 3300/16 or 3300/20 monitor modules. These monitor modules, housed in a standard 3300 rack, process the raw proximity signal into vibration amplitude, phase, and DC gap readings, which are then transmitted to the System 1 condition monitoring software platform or integrated into a DCS via 4–20 mA analog outputs or Modbus/TCP communication gateways. This signal chain — from probe tip to control system — must be treated as a unified architecture, and the 330104-03-06-05-02-00 is the critical first link in that chain.

Within the control hierarchy, the 3300 Series rack sits at the machinery protection layer, interfacing upward with plant-level SCADA or DCS platforms such as those built on Allen-Bradley ControlLogix or Emerson DeltaV architectures. The analog and digital outputs from the 3300/16 monitor modules feed directly into I/O cards at the DCS level, enabling seamless integration of vibration trip signals into the plant’s safety instrumented system (SIS) or emergency shutdown (ESD) logic. The 330104-03-06-05-02-00 probe’s stable, low-noise output is essential to maintaining the integrity of this cross-layer signal flow, particularly in high-speed turbomachinery applications where signal latency or drift can trigger nuisance trips or, worse, mask genuine fault conditions.

From a system redundancy perspective, critical rotating equipment — compressors, turbines, pumps — typically requires dual-probe configurations on each measurement plane, with each probe connected to an independent channel within the 3300/20 or 3300/25 dual-channel monitor. This redundant sensing architecture ensures that a single probe failure does not result in a loss of machinery protection, and the 330104-03-06-05-02-00’s consistent sensitivity factor (nominally 7.87 V/mm) ensures that both channels in a redundant pair deliver matched outputs, simplifying alarm setpoint configuration and reducing the risk of asymmetric trip behavior.

Installation and commissioning of the 330104-03-06-05-02-00 within a 3300 architecture requires careful attention to the gap voltage setting, typically between -10 VDC and -18 VDC depending on shaft material and surface finish. Engineers must verify the linear range of the probe-extension cable-proximitor combination using the calibration curves provided in the 3300 Series documentation, and gap adjustment should be performed with the shaft stationary before dynamic commissioning begins. The 330130 extension cable length must match the system calibration, as mismatched cable lengths will shift the linear range and introduce measurement error that propagates through the entire monitoring chain.

For long-term maintenance planning, the 330104-03-06-05-02-00 is a field-replaceable component, and maintaining a spare inventory of probes, extension cables (330130), and proximitor/oscillators (330180) is standard practice in facilities with critical rotating equipment. Scheduled replacement intervals, typically aligned with major equipment overhauls, ensure that probe tip wear and cable insulation degradation do not compromise measurement accuracy over time. ZYPLC maintains availability confirmed by RFQ availability of the 330104-03-06-05-02-00 and associated 3300 Series components, backed by a warranty terms confirmed during quotation, to support both planned maintenance programs and emergency replacement scenarios.

Product Specification Table

System Compatibility Notes

The 330104-03-06-05-02-00 proximity probe achieves its full architectural value only when integrated within a complete 3300 Series monitoring chain. The probe connects via the Bently Nevada 330130 extension cable to the Bently Nevada 330180 proximitor/oscillator, which conditions the raw eddy-current signal into a calibrated DC voltage. This conditioned signal feeds into the 3300/16 or 3300/20 monitor module, which processes vibration amplitude, phase reference (when paired with a 330980 keyphasor module), and DC gap data. The monitor module’s relay outputs connect to the plant’s emergency shutdown system, while its analog outputs interface with the 3300 rack’s I/O backplane, enabling data aggregation across multiple measurement points on a single machine train.

At the network layer, the 3300 rack communicates with plant-level systems via the 3300/55 communication gateway, which supports Modbus/TCP and allows vibration data to be integrated into DCS historian platforms or condition monitoring software such as Bently Nevada System 1. For facilities running parallel protection architectures, the 3300 system can operate alongside 3500 Series monitors on the same machine train, with the 330104-03-06-05-02-00 probe’s standardized sensitivity factor ensuring cross-platform signal compatibility. Power to the 3300 rack is supplied by a dedicated 3300/05 power supply module, and redundant power configurations are recommended for critical machinery protection applications to eliminate single points of failure at the power layer.

Industrial Application Notes

In petrochemical and refinery applications, the 330104-03-06-05-02-00 is deployed on centrifugal compressor trains, where continuous shaft vibration monitoring is mandated by API 670 machinery protection standards. The probe’s high-temperature rating makes it suitable for hot-section installations near process gas compressors, and its integration with the 3300/20 dual-channel monitor provides the redundant vibration measurement required for API 670 compliance.

In power generation facilities, the probe monitors steam turbine shaft vibration and axial position, with trip signals from the 3300 monitor feeding directly into the turbine’s ESD system. In water treatment and pumping stations, the 330104-03-06-05-02-00 is used on large vertical pump shafts to detect bearing wear and rotor imbalance before catastrophic failure occurs. In mining and mineral processing, the probe monitors crusher and mill drive shafts, where early vibration detection reduces unplanned downtime and extends equipment life. Across all these applications, the probe’s role as the primary sensing element in a layered protection architecture — from machine shaft to control room — remains consistent, and its compatibility with the broader 3300 ecosystem ensures that system upgrades and expansions can be implemented without replacing the sensing layer.

Product Compatibility FAQ

Q1: Is the 330104-03-06-05-02-00 compatible with both 3300 and 3500 Series monitor racks?
The 330104-03-06-05-02-00 is primarily designed and calibrated for the 3300 Series monitoring system. While the eddy-current sensing principle is shared with the 3500 Series, the calibration curves and sensitivity specifications are optimized for 3300 Series proximitors (330180). Using this probe with a 3500 Series system requires verification of the linear range and sensitivity match against the specific 3500 proximitor in use. ZYPLC recommends consulting the system calibration documentation before cross-series integration.

Q2: What is the recommended installation procedure for commissioning this probe in a new 3300 architecture?
Installation begins with mechanical mounting of the probe in the bearing housing bracket, followed by gap setting with the shaft stationary — typically targeting the midpoint of the linear range (approximately 1.0–1.5 mm gap). The 330130 extension cable must be routed away from high-voltage conductors to minimize electromagnetic interference. After mechanical installation, the gap voltage is verified at the proximitor output using a calibrated voltmeter, and the reading is compared against the system calibration curve. Dynamic commissioning — verifying vibration signal response during machine run-up — completes the installation process.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions for all units supplied by ZYPLC. Each probe is tested prior to shipment to verify sensitivity, linear range, and cable integrity. For long-term maintenance programs, ZYPLC supports RFQ sourcing for the 330104-03-06-05-02-00 and associated 3300 Series components — including 330130 extension cables, 330180 proximitors, and 3300/16 monitor modules — to support both scheduled overhaul programs and emergency replacement requirements. Contact our technical team to discuss consignment stock arrangements for critical machinery protection applications.
