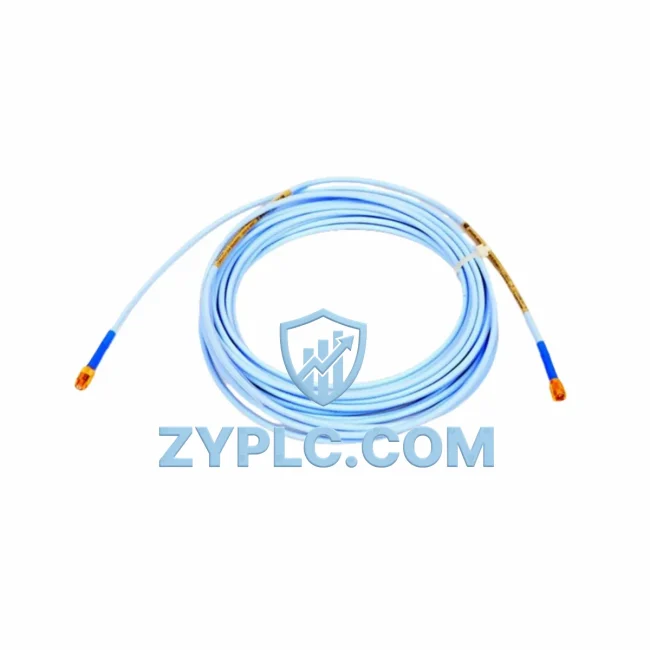

Bently Nevada 330130-070-02-05 Probe Cable for 3300

Bently Nevada 330130-070-02-05 Probe Cable for 3300: Control System Coordination and Signal Integrity

The Bently Nevada 330130-070-02-05 is a precision proximity probe extension cable engineered for seamless integration within the Bently Nevada 3300 Series continuous vibration monitoring architecture. Rather than functioning as a standalone component, this extension cable serves as a critical signal transmission link between the proximity probe tip and the Bently Nevada 3300 XL proximitor/oscillator, ensuring that raw eddy-current displacement signals are delivered with minimal attenuation, noise, and phase distortion across the full measurement chain. In rotating machinery protection systems — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — the integrity of this cable directly determines the accuracy of shaft radial vibration, axial position, and differential expansion measurements that feed into the plant’s safety instrumented system (SIS) and distributed control system (DCS).

Product Specification Table

System Compatibility Notes

The 330130-070-02-05 extension cable is designed to operate within a layered control architecture where every component from the probe tip to the control room must maintain signal fidelity. In a typical 3300 Series installation, the cable connects the Bently Nevada 330101 proximity probe (the sensing element positioned at the shaft) to the Bently Nevada 330180 proximitor/oscillator, which conditions the raw eddy-current signal into a calibrated DC voltage. This voltage is then routed to a Bently Nevada 3300/16 monitor module housed within a 3300 Series rack, where it is processed for alarm and trip logic before being transmitted to the plant DCS via a 3300/20 communication gateway or a Modbus/TCP interface card.

At the power layer, the 3300 Series rack relies on a Bently Nevada 3300/05 power supply module to deliver stable regulated DC to all monitor cards, ensuring that signal baselines remain consistent even during grid fluctuations. For redundant architectures — common in API 670-compliant turbine protection systems — a dual power supply configuration is employed alongside a 3300/15 keyphasor module that provides the once-per-revolution reference signal essential for phase-referenced vibration analysis. The 330130-070-02-05 cable must be routed and terminated with care to avoid ground loops that could corrupt the keyphasor reference and introduce measurement errors across all channels in the rack.

At the human-machine interface layer, vibration data processed by the 3300 Series rack is typically displayed on a System 1 Evolution software platform or forwarded to a plant historian via OPC-DA/OPC-UA, enabling operators to trend shaft centerline plots, orbit diagrams, and Bode plots in real time. The cable’s low-capacitance coaxial construction ensures that the high-frequency components of the displacement signal — critical for detecting sub-synchronous instability and oil whirl in journal bearings — are preserved without roll-off, supporting accurate diagnostics at the HMI layer.

For facilities planning migration from the 3300 Series to the Bently Nevada 3500 Series rack architecture, the 330130-070-02-05 extension cable remains compatible with 3500/42M proximity monitor modules when used with appropriate proximitor models, providing a cost-effective path to system modernization without replacing the entire field wiring infrastructure. This system integration capability significantly reduces engineering hours and cable tray rework during plant upgrades.

Industrial Application Notes

The 330130-070-02-05 extension cable finds application across a broad range of process industries where rotating machinery protection is mandated by API 670, ISO 10816, or plant-specific safety standards. In power generation, it is deployed on steam turbine shaft monitoring systems where axial position and differential expansion measurements are critical to preventing blade-to-casing contact during thermal transients. In petrochemical and refinery environments, it supports continuous monitoring of centrifugal compressor trains operating at high speeds and elevated temperatures, where early detection of rotor instability can prevent catastrophic failures and unplanned shutdowns.

In water treatment and pumping stations, the cable is used on large vertical turbine pumps and horizontal split-case pumps where bearing wear monitoring extends maintenance intervals and reduces lifecycle costs. In mining and mineral processing, it supports vibration monitoring on ball mills, SAG mills, and crusher drives, where the harsh environment demands robust cable construction and reliable signal transmission over extended cable runs. In metallurgical and steel plant applications, the cable is integrated into rolling mill drive monitoring systems, where torsional and lateral vibration data informs process control decisions and prevents premature gearbox failures.

Across all these applications, the 330130-070-02-05 contributes to a layered automation strategy where field-level sensing, signal conditioning, rack-level processing, and supervisory control are tightly coordinated to deliver continuous, reliable machinery health data to plant operators and maintenance engineers.

Product Compatibility FAQ

Q1: Is the 330130-070-02-05 compatible with both the 3300 XL and the standard 3300 Series proximitor modules?
Yes. The 330130-070-02-05 extension cable is designed for use with the full range of Bently Nevada 3300 Series proximitor/oscillator models, including the 3300 XL and earlier standard variants. The coaxial connector and cable impedance are matched to the 3300 Series system specifications, ensuring correct gap voltage calibration and linear measurement range. When integrating with 3500 Series monitor modules, verify the proximitor model compatibility to confirm the system gain and scale factor remain within calibrated limits.

Q2: What installation and routing practices are recommended to maintain signal integrity in a 3300 Series architecture?
The extension cable should be routed in dedicated instrument cable trays, physically separated from power cables and variable frequency drive (VFD) output conductors to minimize electromagnetic interference. Cable bends should not exceed the minimum bend radius specified by Bently Nevada to avoid impedance discontinuities. All connectors should be inspected for corrosion and tightened to the specified torque before commissioning. In high-vibration environments, cable clamps should be installed at regular intervals to prevent fatigue failures at the connector terminations. These practices are covered during system commissioning and are supported by ZYPLC’s 12-Month Warranty, which covers manufacturing defects identified during initial installation and operation.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance and spare parts availability?
All 330130-070-02-05 units shipped by ZYPLC carry a 12-Month Warranty covering manufacturing defects in materials and workmanship from the date of shipment. ZYPLC maintains stock of 3300 Series cables, proximitors, and monitor modules to support both immediate replacement needs and planned maintenance shutdowns. For long-term maintenance programs, ZYPLC can provide recommended spare parts lists aligned with API 670 spare parts philosophy, ensuring that critical signal chain components — including extension cables, proximitor modules, and power supply cards — are available on short lead times to minimize machinery downtime.
