Bently Nevada 330130-085-00-05 Proximity Cable for 3300

Bently Nevada 330130-085-00-05 Proximity Cable for 3300 Series Automation

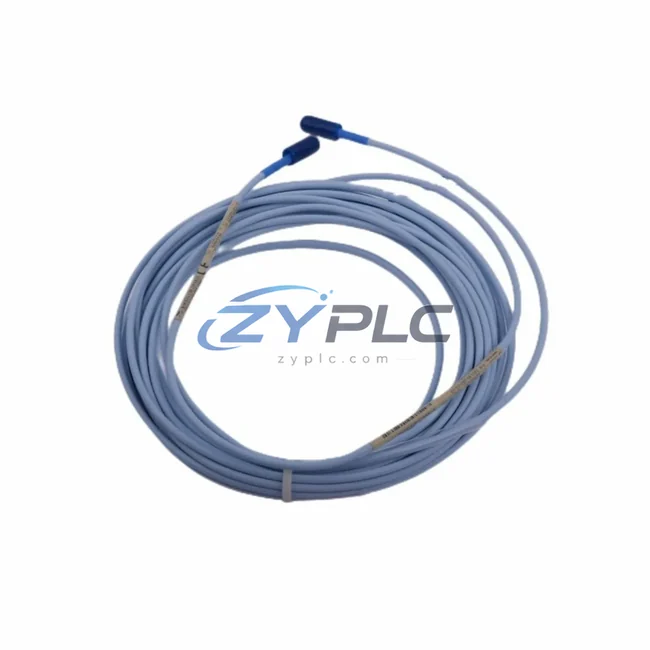

The Bently Nevada 330130-085-00-05 is a high-performance proximity probe extension cable engineered for the 3300 Series vibration monitoring platform. In modern industrial facilities where energy efficiency and equipment uptime are inseparable goals, the signal integrity delivered by this extension cable plays a foundational role in reducing unplanned downtime risk, preventing unplanned downtime, and enabling smarter motor and drive control decisions across the production line.

Unlike generic cabling solutions, the 330130-085-00-05 is factory-matched to the Bently Nevada 3300 XL proximity transducer system, ensuring minimal signal attenuation and maximum measurement accuracy. When vibration data is clean and reliable, the control system can respond with precision — reducing over-correction cycles in variable frequency drives, avoiding false shutdowns, and keeping rotating machinery operating within its optimal efficiency band.

Product Specification Table

System Compatibility and Application

The 330130-085-00-05 extension cable is the critical signal link between the Bently Nevada 3300 XL 8mm proximity probe and the Bently Nevada 3300 XL Proximitor Sensor (driver unit). Together, these three components form a complete eddy-current displacement measurement chain that feeds real-time shaft position data into the broader machinery protection and maintenance planning architecture.

In a typical turbine or compressor train, this signal is routed into a Bently Nevada 3500/42M Proximitor/Seismic Monitor module housed within the 3500 Series rack. The 3500 rack communicates over Modbus TCP or PROFIBUS to the plant DCS or PLC — commonly a Rockwell Automation ControlLogix L7x or Siemens S7-400H — where the vibration data is used to modulate load distribution and adjust the setpoints of connected ABB ACS880 variable frequency drives or Siemens SINAMICS S120 servo drive systems.

When shaft eccentricity trends upward, the control logic can proactively reduce motor load via the VFD before a protective trip occurs, avoiding the energy spike associated with emergency shutdowns and restarts. This closed-loop interaction between the proximity measurement chain and the drive system is one of the most effective — yet often overlooked — mechanisms for reducing specific operating load (kWh per unit output) on rotating equipment.

On the monitoring side, the vibration data captured through the 330130-085-00-05 cable chain is also ingested by System 1 Evolution (Bently Nevada’s condition monitoring software), where machine learning algorithms track bearing wear, rotor imbalance, and misalignment trends. This predictive layer allows maintenance teams to schedule interventions during planned low-production windows rather than reacting to failures — directly improving Overall Equipment Effectiveness (OEE) and reducing the unplanned downtimed on unplanned restart cycles.

For facilities running Bently Nevada 3500/22M Transient Data Interface modules, the 330130-085-00-05 also supports high-resolution transient capture during machine startup and coast-down, enabling engineers to identify resonance zones and adjust acceleration ramp rates on connected drives — a key technique for reducing inrush current and mechanical stress during startup sequences.

Maintenance and Replacement Notes

In a petrochemical plant running multiple centrifugal compressor trains, replacing degraded or mismatched extension cables with the factory-specified 330130-085-00-05 has a measurable impact on energy efficiency. Degraded cables introduce impedance mismatches that cause the Proximitor driver to work harder to maintain the required -18V DC bias voltage, increasing quiescent current draw across the monitoring loop. Over dozens of measurement points, this parasitic consumption adds up — and more critically, it introduces noise that can cause the 3500 Series monitor to issue nuisance alerts, triggering unnecessary shutdowns.

Each unplanned shutdown on a large compressor train can consume 15–30 minutes of restart energy at full inrush current before the machine returns to steady-state efficiency. By maintaining signal integrity through correctly specified cabling, facilities reduce the frequency of these events and keep their rotating assets operating in the high-efficiency region of their performance curves.

On power generation turbines, the shaft displacement data from the 330130-085-00-05 measurement chain feeds directly into turbine governor control systems. Accurate, low-noise displacement readings allow the governor to maintain tighter speed regulation, reducing fuel consumption and improving heat rate. In combined-cycle plants where every 0.1% improvement in heat rate translates to significant annual fuel savings, the quality of the proximity measurement chain is a genuine maintenance planning lever.

For maintenance teams, the 330130-085-00-05 is a stocked, ship-ready component with a warranty terms confirmed during quotation, ensuring that cable replacement during scheduled outages does not extend downtime. Each unit undergoes output testing prior to shipment to verify gap voltage linearity and cable continuity, so the replacement cable performs identically to the original factory installation from the first moment of operation.

Product Sourcing FAQ

Q1: How does a proximity extension cable affect energy efficiency in a rotating machinery system?
A: The extension cable determines the signal quality delivered to the Proximitor driver. A correctly specified, low-loss cable like the 330130-085-00-05 ensures the driver operates at its designed bias point, minimizing quiescent power draw and delivering clean vibration data. Clean data reduces nuisance trips, which in turn eliminates the energy cost of unplanned shutdowns and restarts on large rotating equipment.

Q2: Is the 330130-085-00-05 compatible with the Bently Nevada 3500 Series Machinery Protection System?
A: Yes. The 330130-085-00-05 is designed as part of the 3300 XL proximity transducer system and is fully compatible with the 3500 Series monitoring rack when used with the matching 3300 XL 8mm probe and Proximitor sensor. The system is also compatible with legacy 3300 Series monitors where cable length and connector specifications match.

Q3: Can this cable be used as a direct replacement for a degraded or damaged extension cable in the field?
A: Yes. The 330130-085-00-05 is a direct drop-in replacement for the same SKU in existing installations. No recalibration of the Proximitor sensor is required provided the probe and driver are unchanged. Each cable is tested for gap voltage output and continuity before shipment, ensuring immediate operational readiness upon installation.

Q4: What warranty and testing standards apply to this product?
A: The 330130-085-00-05 carries a warranty terms confirmed during quotation covering manufacturing defects and performance conformance. Prior to shipment, each unit is tested for electrical continuity, insulation integrity, and connector seating. This ensures the cable meets Bently Nevada’s original performance specification and will integrate correctly with the 3300 XL measurement chain from day one of installation.
