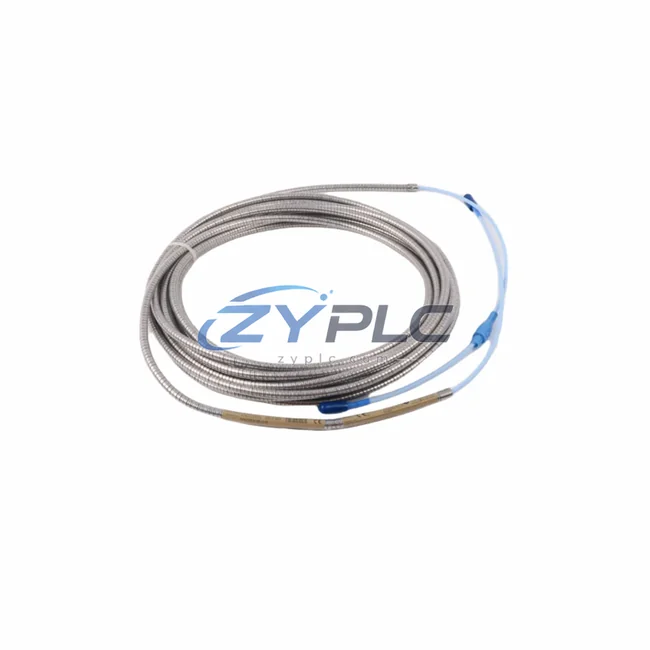

Bently Nevada 330130-085-13-05 Proximity Probe for 3300 Series

Bently Nevada 330130-085-13-05 Proximity Probe for 3300 Series

The Bently Nevada 330130-085-13-05 is a precision eddy-current proximity probe engineered for seamless integration within the 3300 Series machinery protection and condition monitoring architecture. Rather than functioning as a standalone sensing element, this probe is designed from the ground up to operate as a coordinated node within a layered industrial control system — connecting the physical measurement layer directly to the signal conditioning, monitoring, and supervisory control tiers. In rotating machinery protection applications, the reliability of the entire control architecture depends on the accuracy, consistency, and long-term stability of the proximity probe at the field level. The 330130-085-13-05 delivers on all three dimensions, making it a foundational component for engineers designing or maintaining vibration monitoring systems in power generation, petrochemical, oil and gas, and heavy industrial environments.

This probe operates on the eddy-current measurement principle, generating a linear output voltage proportional to the gap between the probe tip and the target surface. With a standard sensitivity of 200 mV/mil (7.87 V/mm) and a nominal operating gap of 50 mil (1.27 mm), it integrates directly with the Bently Nevada 3300 XL 8mm Extension Cable and the 3300 XL Proximitor Sensor (such as the 330180 series) to form a complete proximity transducer system. The Proximitor converts the probe’s raw oscillator signal into a calibrated DC voltage that feeds into the 3500 Series Machinery Protection System rack — the central monitoring and relay logic platform in most large rotating machinery installations.

Within the 3500 rack architecture, the conditioned signal from the 330130-085-13-05 is received by monitor modules such as the 3500/42M Proximitor/Seismic Monitor or the 3500/40M Proximitor Monitor, which perform real-time vibration analysis, gap measurement, and alarm/trip relay actuation. These modules communicate upstream via the 3500 System Display Interface Module (SDIM) and integrate with plant-level DCS or SCADA platforms through the 3500/92 Communication Gateway Module, supporting Modbus, Profibus, and OPC protocols. This layered signal flow — from probe tip to control room — is only as reliable as the weakest link, and the 330130-085-13-05 is engineered to be the strongest link at the field level.

For installations requiring redundant vibration monitoring, the 330130-085-13-05 can be deployed in dual-probe configurations on the same shaft journal, with each probe feeding an independent monitor channel within the 3500 rack. This redundancy architecture ensures that a single probe failure does not result in a loss of machinery protection, which is critical in continuous-process industries where unplanned shutdowns carry significant operational and safety consequences. The probe’s robust stainless steel housing and armored cable construction are rated for the harsh environments typical of turbine bearing pedestals, compressor casings, and pump seal areas.

From a system commissioning perspective, the 330130-085-13-05 is fully compatible with the Bently Nevada TK-3 Proximitor Tester and standard gap-setting procedures, enabling field engineers to verify probe performance, gap calibration, and signal linearity without removing the machine from service. Long-term maintenance planning is simplified by the probe’s standardized connector interface and the availability of matched extension cable assemblies, reducing mean time to repair (MTTR) and supporting predictive maintenance strategies aligned with ISO 13373 and API 670 standards.

Every 330130-085-13-05 supplied by ZYPLC is backed by a warranty terms confirmed during quotation and undergoes pre-shipment functional verification. Our inventory management ensures consistent stock availability, reducing lead time risk for both planned maintenance outages and emergency replacement scenarios. With global logistics support and technical pre-sales consultation, ZYPLC provides the supply chain reliability that industrial operators require for critical rotating machinery protection systems.

Product Specification Table

System Compatibility Notes

The 330130-085-13-05 proximity probe achieves its full performance potential only when integrated within a properly engineered transducer chain and monitoring architecture. The complete signal path begins at the probe tip and progresses through the 3300 XL Extension Cable (available in lengths from 1 m to 9 m to accommodate varying machine geometries) to the 330180-51-05 Proximitor Sensor, which provides the oscillator drive signal and converts the probe’s impedance variation into a calibrated DC voltage output. This voltage is then routed to the 3500 Series rack — typically housed in a climate-controlled control cabinet — where it is received by a dedicated monitor module.

Within the 3500 rack, the 3500/42M Proximitor/Seismic Monitor processes the signal for radial vibration, axial position, and differential expansion measurements simultaneously. The rack’s 3500/15 Power Supply Module provides regulated -24 VDC to all Proximitor sensors in the system, ensuring stable excitation voltage across all probe channels regardless of load variation. For large installations with multiple machines, the 3500/20 Rack Interface Module (RIM) manages inter-rack communication and synchronizes alarm states across the protection system. Upstream, the 3500/92 Communication Gateway bridges the machinery protection system to the plant DCS — such as a Honeywell Experion PKS, Emerson DeltaV, or Yokogawa CENTUM VP — via Modbus TCP or Profibus DP, enabling operators to view real-time vibration trends and alarm histories from the central control room HMI without requiring dedicated Bently Nevada operator stations at every machine location.

For installations requiring local indication, the Bently Nevada 3300/55 Dual Voting Trip System can be integrated to provide two-out-of-three (2oo3) voting logic for critical trip decisions, adding an additional layer of protection against spurious shutdowns while maintaining safety integrity. Terminal blocks, cable glands, and junction boxes within the control cabinet are selected to maintain signal integrity across the full cable run, with shielded twisted-pair cabling recommended for all Proximitor output wiring to minimize electromagnetic interference from adjacent VFDs, transformers, and high-current motor starters.

Industrial Application Notes

The 330130-085-13-05 is deployed across a wide range of heavy industrial applications where rotating machinery protection is a regulatory and operational requirement. In power generation facilities — including gas turbines, steam turbines, and large synchronous generators — this probe monitors shaft radial vibration and axial position at bearing locations, providing the early warning data that enables condition-based maintenance programs and prevents catastrophic bearing failures. Turbine OEMs and EPC contractors specify API 670-compliant proximity transducer systems as standard, making the 3300 Series the default choice for new installations and retrofit projects alike.

In petrochemical and refinery environments, the probe is installed on centrifugal compressors, process pumps, and gearboxes operating in hazardous area classifications. The probe’s stainless steel construction and high-temperature rating make it suitable for installation in areas where process fluid temperatures and ambient conditions exceed the limits of standard industrial sensors. The warranty terms confirmed during quotation provided by ZYPLC covers the probe under normal operating conditions, giving maintenance engineers confidence in the long-term reliability of their installed base.

In water treatment and municipal infrastructure applications, large vertical turbine pumps and blower units are increasingly monitored with continuous vibration systems rather than periodic manual checks. The 330130-085-13-05, integrated with the 3500 monitoring rack and connected to a SCADA platform via the 3500/92 gateway, enables remote condition monitoring of geographically distributed pump stations from a central operations center. Similarly, in mining and mineral processing operations, the probe is used on SAG mills, ball mills, and large slurry pumps where bearing failures result in extended production losses and high repair costs.

For packaging and discrete manufacturing lines with high-speed rotating equipment, the probe provides the shaft position feedback required for precision alignment verification and imbalance detection during commissioning and ongoing production. Integration with the plant’s PLC-based control system — via the 3500/92 Modbus interface — allows vibration alarm states to be incorporated into the machine’s safety PLC logic, enabling coordinated shutdown sequences that protect both the machinery and the process.

Product Compatibility FAQ

Q1: Is the 330130-085-13-05 directly compatible with the 3500 Series Machinery Protection System rack without additional signal conditioning?
No — the proximity probe requires a matched Proximitor Sensor (such as the 330180 series) to convert the probe’s oscillator signal into the DC voltage input expected by the 3500 monitor modules. The complete transducer system consists of the probe, extension cable, and Proximitor, all of which must be ordered and calibrated as a matched set to maintain the ±1% sensitivity specification. ZYPLC can supply matched transducer system components and advise on cable length selection based on your installation geometry.

Q2: Can this probe be used in a redundant dual-probe configuration, and how does the 3500 rack handle channel voting?
Yes. The 330130-085-13-05 is fully compatible with dual-probe redundant configurations on the same shaft journal. Each probe feeds an independent monitor channel within the 3500 rack. The 3500/42M monitor module supports configurable alarm voting logic, allowing engineers to set 1oo2 or 2oo2 voting for alert and danger alarms independently. For safety-critical applications, the 3300/55 Dual Voting Trip System provides hardware-level 2oo3 voting. ZYPLC’s technical team can assist with channel configuration and rack layout planning during the pre-sales phase.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for warranty claims or long-term spare parts supply?
The warranty terms confirmed during quotation provided by ZYPLC covers manufacturing defects and functional failures under normal operating conditions as defined by Bently Nevada’s published specifications. Warranty claims are processed through ZYPLC’s after-sales support team, with replacement units dispatched from stock to minimize system downtime. For long-term maintenance planning, ZYPLC recommends establishing a consignment stock agreement for critical spare probes, extension cables, and Proximitor sensors, ensuring that replacement components are available on-site for immediate installation during planned outages or emergency repairs. Contact our team at plc.sales@zyplc.com or +86 19859288691 to discuss spare parts programs tailored to your fleet size and maintenance strategy.
