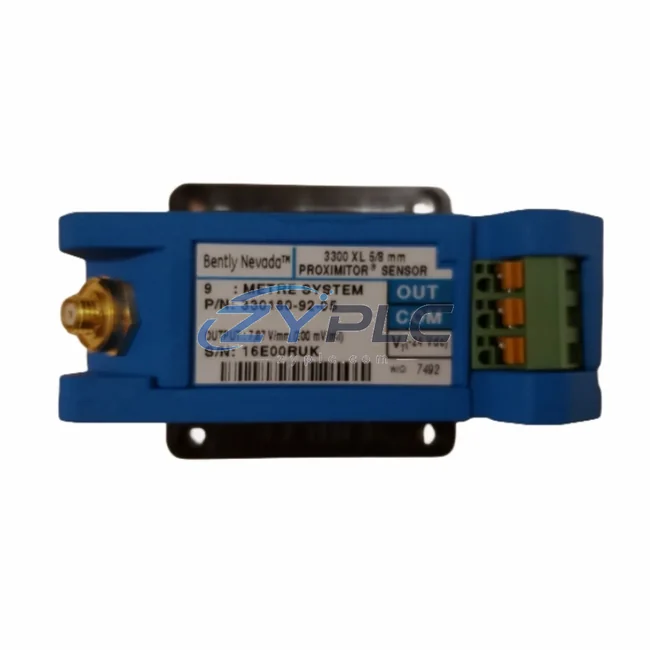

Bently Nevada 330180-92-05 Proximitor Sensor for 3300 Series

Bently Nevada 330180-92-05 Proximitor Sensor for 3300 Series

The Bently Nevada 330180-92-05 Proximitor Sensor is a precision-engineered signal conditioning component designed to occupy a critical position within the 3300 Series machinery protection architecture. Rather than functioning as a standalone measurement device, this sensor serves as the essential bridge between the eddy-current probe tip and the downstream monitoring system — converting raw electromagnetic displacement signals into calibrated voltage outputs that feed directly into the 3300 Series monitor rack. Understanding its role within the full control hierarchy is fundamental to achieving system-wide consistency, long-term reliability, and seamless scalability across rotating machinery protection platforms.

In a layered industrial automation environment, the 330180-92-05 operates at the field instrumentation layer, interfacing upward with the signal processing and monitoring layer. Its output is consumed by 3300 Series monitors such as the 3300/16 Dual Voting Monitor or the 3300/20 Radial Vibration Monitor, which in turn communicate alarm and trip states to the plant DCS or safety instrumented system (SIS). This vertical signal flow — from rotating shaft surface, through the probe, through the Proximitor, into the monitor, and ultimately to the control room — defines the architecture within which the 330180-92-05 must perform without interruption.

Product Specification Table

System Compatibility Notes

The 330180-92-05 Proximitor Sensor achieves its full value only when considered within the context of a coordinated Bently Nevada 3300 Series system architecture. At the field level, the sensor pairs with the 330180-92-00 probe and a matched extension cable to form a complete eddy-current measurement chain. The Proximitor housing mounts close to the machine casing, while its output cable routes back to the monitor rack — typically a 3300/16 Dual Voting Monitor or a 3300/25 Keyphasor Module — housed within a 3300 Series rack assembly.

Within the rack, the 3300/05 Rack Interface Module (RIM) provides the communication backbone, enabling the monitors to relay vibration, position, and speed data to the plant-level DCS via 4–20 mA analog outputs or Modbus RTU. For facilities operating redundant protection architectures, the 3300 Series supports dual-channel voting logic, where two independent Proximitor measurement chains — each using a 330180-series assembly — feed into a voting monitor to eliminate single-point failures. This redundancy design is particularly critical in steam turbine, gas compressor, and large centrifugal pump applications where unplanned downtime carries significant operational cost.

Power integrity for the Proximitor is maintained through the 3300 Series power supply module, which delivers regulated -24 VDC to the field instruments. In installations requiring barrier isolation — common in hazardous area Zone 1 or Zone 2 classifications — a compatible Zener barrier or galvanic isolator is inserted between the Proximitor output and the monitor input, preserving signal fidelity while meeting IECEx or ATEX requirements. The 3300/55 Keyphasor Monitor may also be integrated into the same rack to provide shaft rotational reference signals, enabling the system to perform synchronous vibration analysis and phase-referenced diagnostics across all monitored measurement points.

At the human-machine interface layer, vibration data from the 330180-92-05 measurement chain is typically visualized through a System 1 Evolution software platform or a dedicated operator workstation, where trend data, alarm histories, and spectral plots are available for engineering review. This end-to-end architecture — from the 330180-92-05 Proximitor at the field layer, through the 3300 Series monitor rack, through the RIM communication module, to the DCS and HMI — represents the complete signal path that plant engineers must maintain and document for both operational and regulatory compliance purposes.

Industrial Application Notes

The 330180-92-05 Proximitor Sensor finds application across a broad range of process industries where rotating machinery protection is a non-negotiable operational requirement. In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the sensor monitors shaft radial vibration on turbine rotors and generator shafts, providing the early warning signals that allow operators to intervene before a vibration excursion escalates into a forced outage or catastrophic failure.

In petrochemical and refinery environments, the 330180-92-05 is deployed on centrifugal compressors, boiler feed pumps, and cooling water pumps, where continuous shaft position and vibration monitoring is mandated by API 670 machinery protection standards. The sensor’s compatibility with the 3300 Series architecture ensures that it integrates directly into existing plant protection systems without requiring signal conditioning modifications or custom interface engineering.

Water treatment and municipal utility facilities rely on the 3300 Series platform — and by extension the 330180-92-05 Proximitor — to protect large vertical turbine pumps and horizontal split-case pumps that operate continuously with minimal maintenance windows. Mining and mineral processing operations similarly deploy this sensor on ball mills, SAG mills, and slurry pumps, where the harsh operating environment demands robust sensor housings and reliable signal output under high-vibration, high-temperature conditions.

In metallurgical and steel production facilities, the sensor monitors rolling mill drive trains and continuous casting machine drives, where shaft eccentricity and bearing wear must be detected early to prevent product quality defects and unplanned production stoppages. Across all these applications, the 330180-92-05 contributes to a unified machinery health monitoring strategy that reduces unplanned downtime, extends equipment service life, and supports predictive maintenance programs built on accurate, continuous vibration data.

Product Compatibility FAQ

Q1: Is the 330180-92-05 directly compatible with all 3300 Series monitors, and does it require any additional signal conditioning for integration?
The 330180-92-05 is designed for direct system integration with the full range of 3300 Series monitors, including the 3300/16, 3300/20, and 3300/25 models, without requiring additional signal conditioning under standard installation conditions. The -05 suffix designates the system cable length configuration (9 m / 30 ft total system), which must be matched to the probe and extension cable assembly to maintain the correct scale factor and bias voltage output. Engineers should verify that the total system cable length matches the monitor’s configured input range before commissioning. For hazardous area installations, a certified Zener barrier or galvanic isolator must be added in the signal path, but this does not alter the Proximitor’s output characteristics.

Q2: What are the key considerations for long-term maintenance and spare parts management when using the 330180-92-05 in a multi-machine protection architecture?
For facilities operating multiple 3300 Series protection systems, maintaining a standardized spare parts inventory that includes matched 330180-series probe, extension cable, and Proximitor assemblies is strongly recommended. Because the scale factor and bias voltage of the complete measurement chain are calibrated as a matched system, replacing only one component — for example, substituting a different cable length suffix — will alter the system’s output and may trigger false alarms or missed trips. Stocking complete matched assemblies, rather than individual components, simplifies field replacement and reduces commissioning time during planned or emergency maintenance. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation and are fully tested prior to shipment, supporting rapid like-for-like replacement without recalibration.

Q3: How does the 330180-92-05 support redundant architecture design, and what is the recommended approach for dual-channel vibration monitoring on critical machinery?
For API 670-compliant or SIL-rated machinery protection applications, a dual-channel redundant architecture is achieved by installing two independent 330180-series measurement chains — each consisting of a probe, extension cable, and 330180-92-05 Proximitor — at 90° angular separation on the same bearing journal. Each channel feeds an independent monitor input within the 3300 Series rack, and the 3300/16 Dual Voting Monitor processes both signals using configurable voting logic (1oo2, 2oo2, or 2oo3 depending on system design). This architecture eliminates single-point measurement failures and allows one channel to be taken offline for maintenance without interrupting protection coverage on the remaining channel. ZYPLC supports RFQ sourcing for matched 330180-series assemblies to support simultaneous dual-channel replacement during planned outages, minimizing the window during which the machine operates with reduced protection coverage.
