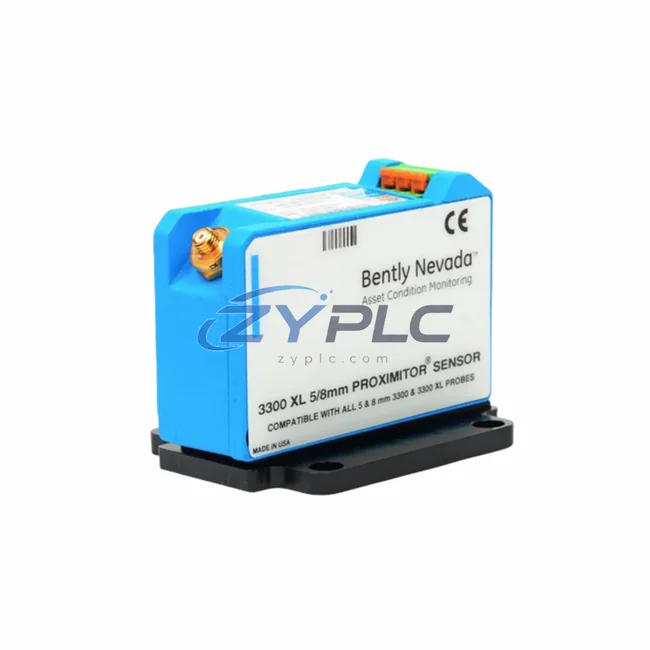

Bently Nevada 330180-X1-00 Proximitor Sensor for 3300 Series

Bently Nevada 330180-X1-00 Proximitor Sensor for 3300 Series

The Bently Nevada 330180-X1-00 Proximitor Sensor is a precision eddy-current proximity transducer engineered for seamless system integration within the Bently Nevada 3300 Series continuous vibration monitoring architecture. Designed to operate as a core sensing element in multi-channel machinery protection systems, this sensor delivers reliable, high-resolution shaft displacement and vibration data to upstream monitor modules, enabling real-time condition assessment across rotating equipment in demanding industrial environments.

In a layered automation system, the 330180-X1-00 occupies the field sensing layer — the foundation upon which all higher-level control decisions are built. Its output signal is conditioned and transmitted to rack-mounted monitor modules such as the 3300/16 Dual Vibration Monitor or the 3500/22M Transient Data Interface, which in turn communicate with the plant DCS or safety instrumented system via hardwired relay outputs or digital fieldbus protocols. This signal chain ensures that vibration anomalies detected at the shaft level are immediately escalated through the control hierarchy, triggering protective actions before mechanical damage occurs.

The sensor’s compatibility with the standard Bently Nevada extension cable system — including the 330130-080-00 and 330104-00-06-10-02-00 cable assemblies — allows flexible installation across a wide range of machine train configurations. Whether deployed on steam turbines, compressors, pumps, or gearboxes, the 330180-X1-00 maintains consistent gap voltage and sensitivity characteristics that are critical for accurate vibration amplitude measurement and phase reference acquisition.

Within the 3300 Series rack architecture, the Proximitor Sensor works in close coordination with the 3300/20 Power Supply module, which provides the regulated -24 VDC bias voltage required for eddy-current transducer operation. Stable power delivery from the 3300/20 directly influences measurement accuracy, making power layer integrity a prerequisite for reliable sensor performance. In redundant configurations, dual power supply modules ensure uninterrupted sensor excitation even during single-point power failures.

For systems requiring expanded I/O capacity or multi-variable monitoring, the 330180-X1-00 can be integrated alongside the 3500/25 Keyphasor Module to provide once-per-revolution phase reference signals, enabling advanced vibration analysis including 1X and 2X amplitude trending, orbit plots, and Bode diagrams. This combination is particularly valuable during commissioning and rotor balancing operations, where phase-referenced vibration data is essential for accurate diagnostic interpretation.

The 3500/42M Proximitor/Seismic Monitor extends the system’s capability to simultaneously process both proximity and seismic (velocity or acceleration) signals within a single monitor slot, reducing rack space requirements while maintaining full API 670 compliance. When paired with the 330180-X1-00, this monitor configuration supports comprehensive machinery protection across both relative shaft motion and absolute casing vibration measurement planes.

At the network and communication layer, monitor outputs from the 3300 and 3500 Series racks interface with plant historians, SCADA systems, and asset management platforms via the 3500/15 Power Supply and System Monitor or through dedicated communication gateways. This connectivity ensures that vibration data captured by the 330180-X1-00 is available for long-term trending, predictive maintenance scheduling, and regulatory compliance reporting without manual data extraction.

For human-machine interface integration, alarm setpoints and vibration trend data from the 330180-X1-00 signal chain can be visualized on operator workstations running System 1 Evolution software or third-party HMI platforms configured to receive Modbus or OPC-DA/UA data streams from the monitor rack. This end-to-end data visibility — from sensor to HMI — is the hallmark of a well-architected machinery protection system.

The 330878-50-00 Proximitor Sensor and the 3300 XL NSv Non-contacting Vibration Transducer System represent complementary sensing solutions within the same product family, offering alternative gap ranges and cable configurations for applications where the 330180-X1-00 standard configuration may not be geometrically compatible. Stocking a range of Proximitor variants ensures engineering teams can address diverse machine train geometries without compromising system standardization.

All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation and undergo functional verification prior to dispatch, ensuring that each 330180-X1-00 delivered to site meets the original Bently Nevada performance specification and is ready for immediate installation into live or standby monitoring racks.

Product Specification Table

System Compatibility Notes

The 330180-X1-00 Proximitor Sensor achieves its full diagnostic value only when considered as part of a coordinated control system architecture. In a typical 3300 Series machinery protection rack, the sensor connects via a 330130-080-00 or 330104-00-06-10-02-00 extension cable to a 3300/16 Dual Vibration Monitor, which processes the raw proximity voltage into calibrated vibration amplitude and DC gap values. The monitor’s relay outputs are wired to the plant safety instrumented system, providing automatic machine trip capability when vibration exceeds configured danger setpoints.

Power integrity for the entire sensing chain is maintained by the 3300/20 Power Supply module, which delivers regulated -24 VDC to all Proximitor transducers in the rack. In high-availability applications, dual 3300/20 modules operating in parallel redundancy ensure that a single power supply failure does not interrupt vibration monitoring continuity — a critical requirement for unattended compressor stations and offshore platform machinery.

Phase reference data from the 3500/25 Keyphasor Module synchronizes with the 330180-X1-00 vibration signal to enable vector-based vibration analysis, supporting rotor balancing, resonance identification, and startup/shutdown transient capture. The 3500/42M Proximitor/Seismic Monitor can be added to the same rack to extend monitoring coverage to casing-mounted accelerometers or velocity transducers, providing a complete picture of both relative and absolute machine vibration without requiring a separate rack or power infrastructure.

At the network layer, the 3500/15 System Monitor aggregates health and alarm status from all monitor modules in the rack and communicates with plant DCS and asset management systems. The 330878-50-00 Proximitor and 3300 XL NSv transducer system serve as drop-in alternatives for applications requiring different probe tip diameters or extended cable lengths, maintaining full compatibility with the same monitor and power infrastructure.

Industrial Application Notes

The 330180-X1-00 is deployed across a broad spectrum of process industries where rotating machinery reliability is directly linked to production continuity and personnel safety. In power generation facilities, it monitors turbine shaft vibration and rotor eccentricity during startup, steady-state operation, and controlled shutdown sequences, providing the data necessary for operators to detect developing bearing faults or rotor imbalance conditions before they escalate to forced outages.

In petrochemical and refinery applications, the sensor is installed on critical compressor trains handling hydrocarbons and process gases, where API 670-compliant machinery protection is a regulatory and insurance requirement. Its robust construction and wide operating temperature range make it suitable for installation in classified hazardous areas when paired with appropriate barrier or isolator devices.

Water treatment and municipal utility operators rely on the 330180-X1-00 to monitor large vertical pump motors and blower trains, where vibration trending provides early warning of impeller wear, cavitation damage, or coupling misalignment. In mining and mineral processing environments, the sensor is applied to SAG mill pinion bearings, crusher drives, and slurry pump trains, where harsh operating conditions demand a transducer with proven long-term stability and minimal drift.

Metallurgical and steel plant applications include continuous caster roll drives, rolling mill main drives, and induced draft fan monitoring, where the sensor’s ability to operate in high-temperature, high-vibration environments without signal degradation is essential. Packaging and discrete manufacturing lines use the 330180-X1-00 on high-speed spindles and servo-driven axes where sub-micron displacement resolution supports quality-critical process control.

Product Compatibility FAQ

Q1: Is the 330180-X1-00 directly compatible with both the 3300 Series and 3500 Series monitor racks without hardware modification?
Yes. The 330180-X1-00 Proximitor Sensor is designed to interface with both the Bently Nevada 3300 Series and 3500 Series monitor modules using the standard -24 VDC bias supply and the same extension cable assemblies (e.g., 330130-080-00, 330104-00-06-10-02-00). No hardware modification or signal conditioning adapter is required. Verify the monitor module’s input impedance and gap voltage range against the sensor’s linear operating range during commissioning to confirm calibration alignment.

Q2: How does the warranty terms confirmed during quotation apply to units integrated into an existing live monitoring rack?
All 330180-X1-00 units supplied by ZYPLC carry a warranty terms confirmed during quotation from the date of dispatch, covering manufacturing defects and performance deviations from the original Bently Nevada specification. The warranty applies regardless of whether the unit is installed as a direct replacement in a live rack or held as a critical spare. Units are functionally tested prior to shipment to confirm sensitivity, gap voltage linearity, and output signal integrity, minimizing the risk of installation-related failures.

Q3: What is the recommended maintenance interval and spare stocking strategy for the 330180-X1-00 in a multi-train machinery protection system?
Bently Nevada recommends periodic verification of Proximitor gap voltage and sensitivity as part of scheduled machinery outage inspections, typically aligned with major overhaul intervals of 2 to 4 years depending on machine criticality. For multi-train facilities operating 3300 or 3500 Series racks across multiple machines, maintaining a minimum stock of one spare 330180-X1-00 per monitored machine train is advisable to support rapid replacement during unplanned outages. ZYPLC maintains ready stock of the 330180-X1-00 and compatible extension cables to support just-in-time spare parts procurement without extended lead times.
