Bently Nevada 330180-X1-05 Proximitor Sensor

Bently Nevada 330180-X1-05 Proximitor Sensor: Replacement and Sourcing Information for 3300 Series Automation

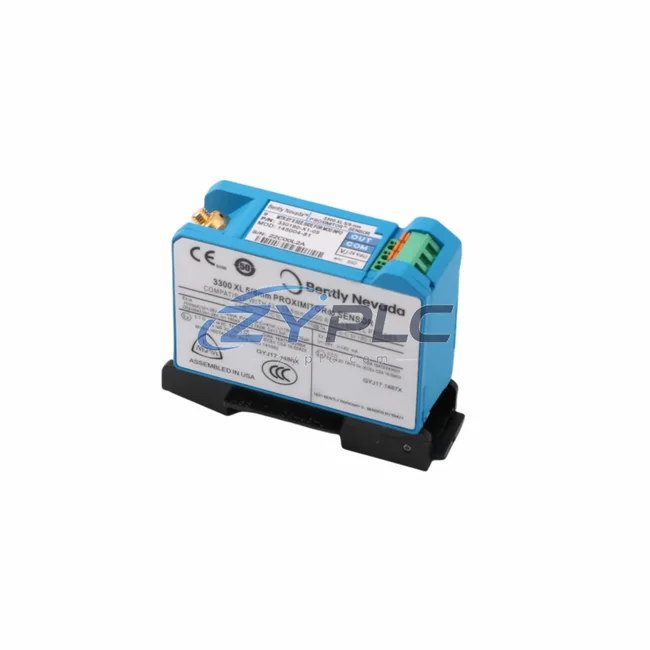

The Bently Nevada 330180-X1-05 Proximitor Sensor (MOD 145004-81) is a high-performance eddy-current proximity transducer designed for the Bently Nevada 3300 Series machinery protection system. In industrial environments where unplanned downtime translates directly into wasted energy and lost production throughput, this sensor plays a critical role in maintaining optimal equipment utilization, reducing unnecessary power consumption, and enabling data-driven predictive maintenance strategies.

Unlike passive monitoring components, the 330180-X1-05 actively contributes to maintenance-focused automation by delivering continuous, high-resolution shaft displacement and vibration data to the control layer. When integrated with the Bently Nevada 3300/16 Monitor and the 3300/20 Proximitor I/O Module, the sensor enables real-time feedback loops that allow plant operators to detect mechanical inefficiencies — such as rotor imbalance, misalignment, or bearing wear — before they escalate into energy-wasting fault conditions or catastrophic failures.

In rotating machinery applications — including centrifugal compressors, turbines, pumps, and high-speed motors — shaft vibration directly correlates with mechanical energy loss. Excessive vibration caused by undetected imbalance forces the drive system to compensate, increasing current draw and reducing the overall efficiency of the motor-drive chain. By feeding precise displacement data into the Bently Nevada System 1 Condition Monitoring Software, the 330180-X1-05 enables engineers to correlate vibration trends with operating load patterns, identifying the exact operating point where mechanical degradation begins to impact power efficiency.

Product Specification Table

System Compatibility and Application

The 330180-X1-05 does not operate in isolation — its value is fully realized when embedded within a layered industrial automation architecture. At the sensing layer, the Proximitor works in tandem with the Bently Nevada 330130-080-00-00 Proximity Probe and the 330180 Extension Cable to form a complete eddy-current measurement chain. The analog output signal is then routed to the Bently Nevada 3300/16 Dual Voting Monitor, which processes vibration amplitude and phase data in real time.

For plants running distributed control architectures, the monitor’s output integrates seamlessly with Rockwell Automation ControlLogix PLCs via the 1756-EN2T EtherNet/IP communication module, enabling the DCS to receive vibration alarms and adjust drive setpoints dynamically. In variable-speed drive applications, this feedback loop connects directly to ABB ACS880 series variable frequency drives (VFDs), allowing the drive to modulate motor speed in response to vibration thresholds — a direct mechanism for reducing unplanned downtime risk during low-load production cycles.

At the power monitoring layer, integrating the sensor data with a Schneider Electric PowerLogic ION7650 Power Quality Meter allows engineers to correlate shaft vibration events with real-time power factor degradation. When vibration increases due to bearing wear, the motor’s reactive power demand rises — a pattern that the ION7650 captures and flags for energy audit purposes. This cross-domain data visibility is what transforms the 330180-X1-05 from a simple vibration sensor into a node in an maintenance-focused industrial IoT architecture.

For HMI visualization, vibration trends and energy KPIs can be displayed side-by-side on a Siemens SIMATIC TP1500 Comfort Panel, giving line operators a unified view of mechanical health and power consumption without switching between systems. Communication between the Bently Nevada monitor and the SCADA layer is typically handled via Modbus TCP/IP or OPC-UA, both of which are natively supported by the 3300 Series architecture.

Maintenance and Replacement Notes

In a typical continuous process plant — such as a petrochemical facility or a large-scale water treatment station — rotating equipment accounts for 60–70% of total electrical operating load. The primary drivers of unplanned downtime in these environments are mechanical degradation, misalignment, and unbalanced rotor forces, all of which manifest as elevated vibration signatures long before they cause visible performance loss.

The Bently Nevada 330180-X1-05 addresses this challenge at the source. By continuously monitoring radial shaft displacement with micron-level resolution, the sensor provides the early warning data needed to schedule corrective maintenance during planned production windows — eliminating the energy penalty of emergency shutdowns, which typically require full system restart cycles that consume 3–5× the normal startup power.

In motor-driven compressor trains, for example, a 10% increase in shaft vibration amplitude — detectable by the 330180-X1-05 well before it reaches alarm thresholds — can indicate the onset of impeller fouling or seal degradation. Left unaddressed, this condition forces the compressor to operate at a higher discharge pressure to maintain flow, increasing motor shaft power demand by 8–15%. Early detection and correction of this condition, enabled by the sensor’s continuous output, directly reduces operating load and extends the interval between major overhauls.

From a production line rhythm perspective, integrating the 330180-X1-05 into a predictive maintenance program reduces unplanned downtime events, which are the primary disruptors of line takt time. Fewer emergency stops mean more consistent cycle times, better OEE (Overall Equipment Effectiveness) scores, and lower per-unit energy costs — because energy-intensive startup and ramp-up sequences are minimized. All units supplied by ZYPLC are pre-shipment tested, verified against OEM specifications, and covered by a warranty terms confirmed during quotation, ensuring that the sensor performs to specification from day one of installation.

Product Sourcing FAQ

Q1: How does the 330180-X1-05 contribute to measurable operational stability in rotating machinery applications?
By providing continuous, high-resolution shaft displacement data, the sensor enables early detection of mechanical faults — such as imbalance, misalignment, and bearing wear — that cause motors and drives to consume excess energy. Integrating this data with VFDs like the ABB ACS880 allows the drive to adjust speed setpoints in real time, reducing unnecessary power draw during low-load or degraded-condition operation.

Q2: Is the 330180-X1-05 compatible with modern DCS and PLC control platforms?
Yes. The sensor is part of the Bently Nevada 3300 Series ecosystem, which supports standard analog (4–20 mA) and digital communication protocols including Modbus TCP/IP and OPC-UA. This makes it compatible with major control platforms including Rockwell Automation ControlLogix, Siemens SIMATIC S7, and Honeywell Experion PKS, as well as SCADA and condition monitoring systems such as Bently Nevada System 1.

Q3: Can this sensor replace an existing 330180 series unit without system reconfiguration?
In most cases, yes. The 330180-X1-05 MOD 145004-81 is a direct form-fit-function replacement within the 3300 Series architecture. However, we recommend verifying the gap voltage calibration and cable extension length against your existing installation parameters before commissioning. ZYPLC’s technical team can assist with compatibility verification prior to shipment.

Q4: What does the warranty terms confirmed during quotation cover, and what is the pre-shipment testing process?
All 330180-X1-05 units supplied by ZYPLC undergo functional testing prior to shipment, including output linearity verification, insulation resistance checks, and connector integrity inspection. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. Units that fail within the warranty period are replaced or repaired at no additional cost. Expedited stock is available for urgent production line requirements.
