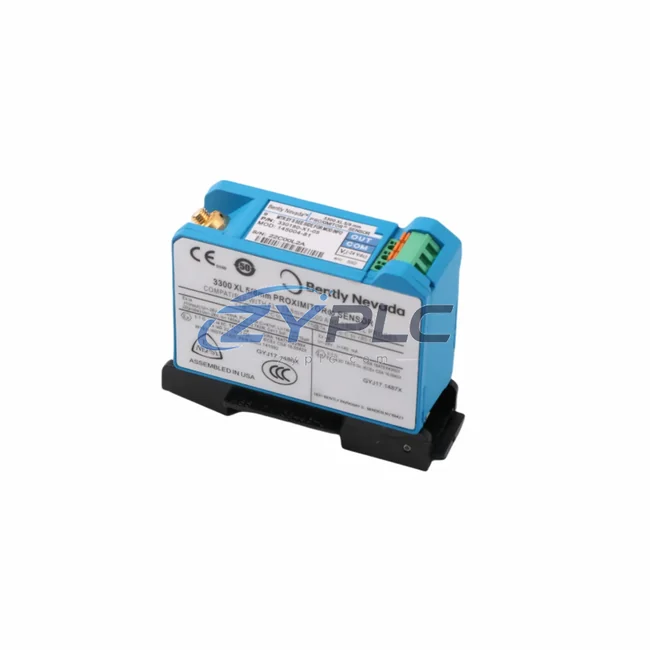

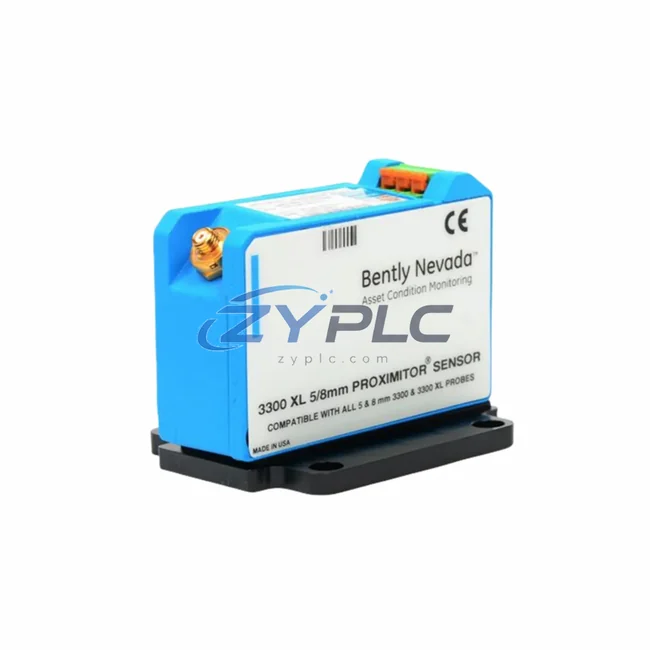

Bently Nevada 330180-X1-05 Proximity Sensor for 3300 Series

The Bently Nevada 330180-X1-05 MOD 145193-01 is an 8mm proximity probe extension cable assembly engineered for seamless integration within the Bently Nevada 3300 Series continuous vibration monitoring architecture. Rather than functioning as a standalone sensor, this component occupies a critical position in the signal chain between the proximity probe tip and the Proximitor® sensor, ensuring that shaft displacement, radial vibration, and axial position data are transmitted with precision and consistency across the entire monitoring system. Its role in maintaining signal integrity from the rotating machinery layer through to the condition monitoring and control layers makes it indispensable in any high-availability industrial automation environment.

Product Specification Table

System Compatibility Notes

In a fully integrated machinery protection and condition monitoring architecture, the 330180-X1-05 extension cable does not operate in isolation. It forms the physical and electrical bridge between the 330130-080-00-00 8mm proximity probe tip and the 3300 XL Proximitor® sensor, which converts the eddy-current signal into a usable analog voltage. This voltage is then routed to the 3500/22M Transient Data Interface or the 3500/42M Proximitor®/Seismic Monitor housed within the 3500 Series rack, where it is processed, alarmed, and transmitted to the plant DCS or safety system.

Within the same control cabinet, the 3500/15 Power Supply Module provides regulated DC power to all monitor cards, while the 3500/25 Keyphasor® Module supplies the once-per-revolution reference signal essential for phase and speed measurements. The 3500/40M Proximitor®/Seismic Monitor handles additional channel inputs from companion probes monitoring orthogonal vibration planes on the same shaft. For systems requiring redundant communication paths, the 3500/92 Communication Gateway Module bridges the 3500 rack to Modbus, Profibus, or OPC-DA networks, enabling real-time data exchange with the plant historian and SCADA layer.

At the field level, the 330180-91-00 and other extension cable variants within the 3300 XL family allow engineers to configure probe-to-Proximitor® distances precisely, accommodating varying machinery footprints without compromising signal quality. The 3300/16 and 3300/20 Proximitor® sensors, when paired with the correct extension cable assembly such as the 330180-X1-05, maintain the calibrated gap voltage range required for accurate displacement measurement. This system-level discipline — matching probe, extension cable, and Proximitor® as a calibrated set — is fundamental to achieving the measurement accuracy demanded in turbine, compressor, and pump protection applications.

Industrial Application Notes

The 330180-X1-05 finds application across a broad spectrum of process industries where rotating machinery protection is non-negotiable. In power generation facilities, it supports continuous shaft vibration monitoring on steam and gas turbines, feeding real-time data to the turbine control system and enabling predictive maintenance decisions that prevent unplanned outages. In petrochemical and refinery environments, it is deployed on centrifugal compressors and boiler feed pumps, where API 670 compliance mandates continuous proximity monitoring with redundant signal paths.

Water treatment and desalination plants rely on the 3300 Series architecture — with the 330180-X1-05 as a key signal chain component — to monitor high-speed pump bearings operating in corrosive, high-humidity environments. Mining and mineral processing operations use the same architecture on large ball mills and conveyor drive systems, where early detection of bearing wear or shaft misalignment can prevent catastrophic mechanical failure. In metallurgical plants, the system monitors rolling mill drive trains, while in packaging and food processing lines, it supports high-speed rotary equipment where vibration excursions must be detected and alarmed within milliseconds.

Across all these applications, the value of the 330180-X1-05 lies not only in its electrical performance but in its role as a standardized, interchangeable component within a well-documented system architecture. Maintenance engineers can replace the extension cable assembly during scheduled outages with confidence that the calibrated system performance will be restored, minimizing commissioning time and reducing the risk of measurement error introduced by non-standard components.

Product Compatibility FAQ

Q1: Is the 330180-X1-05 directly compatible with the 3500 Series rack monitors without additional signal conditioning?
A: Yes. When used as part of a calibrated probe-Proximitor® set with a 3300 XL Proximitor® sensor, the analog output signal is fully compatible with 3500/22M, 3500/40M, and 3500/42M monitor inputs. No additional signal conditioning is required, provided the gap voltage is set within the linear range specified in the Bently Nevada calibration documentation.

Q2: Can this extension cable be used in a redundant monitoring architecture, and how does it affect system availability?
A: The 330180-X1-05 supports redundant architectures by allowing dual-probe configurations on a single journal bearing, with each probe connected via its own extension cable and Proximitor® sensor to separate monitor channels. This configuration, common in API 670-compliant systems, ensures that a single cable or probe failure does not result in loss of machinery protection, maintaining system availability during maintenance windows.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for installation and commissioning?
A: The warranty terms confirmed during quotation covers all manufacturing defects and verified functional failures under normal operating conditions. Each unit is tested and inspected prior to dispatch. For installation and commissioning support, including gap voltage setting procedures, cable routing best practices, and system integration with 3500 Series racks, technical assistance is available through our engineering team. system integration guidance — covering probe-Proximitor® matching, cable length selection, and monitor configuration — is provided as part of the post-sale support package.

Bently Nevada 330180-X1-05 Proximity Sensor for 3300: Compatibility and Replacement Notes

The Bently Nevada 330180-X1-05 (MOD: 145004-81) is an eddy-current proximity sensor engineered as a core sensing element within the Bently Nevada 3300 Series vibration monitoring architecture. Rather than functioning as a standalone transducer, this sensor is designed to operate as an integrated node within a layered industrial control system — contributing to machine protection, condition monitoring, and predictive maintenance across rotating equipment platforms in power generation, petrochemical, mining, metallurgy, and heavy process industries.

In a complete control system architecture, the 330180-X1-05 occupies the field sensing layer, interfacing directly with the 3300 XL 8mm Proximity Transducer System. Its output signal — a calibrated DC voltage proportional to the gap between the probe tip and the observed shaft surface — feeds into the signal conditioning layer via the 330130 extension cable and the 330180 proximitor sensor driver. This signal chain is then received by the 3300/16 or 3300/20 monitor modules housed within the 3500 Rack Monitoring System, where it is processed for radial vibration, axial position, differential expansion, or eccentricity measurements depending on the machine train configuration.

System architects integrating the 330180-X1-05 into a new or retrofit installation must consider the full signal path from the probe mounting bracket through to the DCS or safety system. The proximitor output connects to the 3500/42M Proximitor/Seismic Monitor or the 3500/40M Proximitor/Seismic Monitor, which in turn communicates with the plant DCS via 4–20 mA analog outputs or digital communication through the 3500 Gateway module supporting Modbus RTU or Ethernet/IP protocols. This architecture ensures that vibration data captured at the shaft level is available in real time at the operator HMI, enabling condition-based maintenance decisions without manual intervention.

At the power layer, the 3500 rack system is supplied by the 3500/15 Power Supply module, which provides regulated DC power to all monitor cards and the communication gateway. Redundant power supply configurations using dual 3500/15 modules are standard practice in critical machinery protection applications, ensuring that a single power supply failure does not interrupt continuous monitoring. The 330180-X1-05 itself operates on the –24 VDC bias voltage supplied by the proximitor driver, making it compatible with the standard 3300 Series power architecture without additional signal conditioning hardware.

From a network and communication perspective, the 3500 system’s gateway module enables integration with plant-wide SCADA platforms and historian databases. Vibration trend data from the 330180-X1-05 can be logged continuously and compared against baseline signatures established during commissioning, supporting ISO 10816 and API 670 compliance for rotating machinery protection. In facilities running Emerson AMS Suite or System 1 Condition Monitoring software, the sensor data stream is automatically ingested for spectral analysis, orbit plot generation, and alarm management — all without additional hardware at the field level.

For installations requiring redundancy at the sensing layer, dual-probe configurations using two 330180-X1-05 sensors mounted 90° apart (X–Y orientation) are standard for radial vibration measurement on large turbines, compressors, and pumps. Each probe feeds an independent channel within the 3500/42M monitor, and the system can be configured for voted shutdown logic — requiring agreement between channels before triggering a machine trip. This architecture eliminates nuisance trips caused by single-sensor faults while maintaining the protective integrity required by API 670 and IEC 61511 functional safety standards.

Installation and commissioning of the 330180-X1-05 requires careful attention to gap setting, cable routing, and electrical isolation. The recommended gap voltage of –10.0 VDC (corresponding to a 1.0 mm air gap for the 8 mm probe) must be verified with a calibrated gap tool during initial setup. Extension cable lengths must match the proximitor driver’s calibration range — typically 5 m or 9 m — and any deviation requires field recalibration using the 330180 calibration procedure. Grounding of the cable shield at the proximitor end only, with the probe end floating, is mandatory to prevent ground loop interference that can corrupt vibration signals.

Long-term maintenance of the 330180-X1-05 within the 3300 architecture is simplified by the modular design of the 3500 rack system. Monitor cards can be replaced online without interrupting adjacent channels, and the 3500/92 TMR Safety Manager can be integrated for triple modular redundancy in safety-critical applications. Spare sensor assemblies, including the 330180-X1-05 probe, 330130 extension cable, and 330180 proximitor, should be maintained in the plant spare parts inventory to support rapid replacement during unplanned outages. ZYPLC maintains availability confirmed by RFQ availability of the 330180-X1-05 with a warranty terms confirmed during quotation, supporting both planned maintenance schedules and emergency procurement requirements.

Product Specification Table

System Compatibility Notes

The 330180-X1-05 achieves its full diagnostic value only when deployed within a coordinated system architecture. In a typical turbine protection system, the sensor works in concert with the following components:

The Bently Nevada 330130-080-00-00 Extension Cable connects the probe to the proximitor driver, maintaining signal integrity over distances up to 9 meters. The Bently Nevada 330180-X1-05 Proximitor Sensor (driver module) conditions the raw probe signal into a calibrated DC output suitable for monitor card input. The 3500/42M Proximitor/Seismic Monitor receives up to four channels of proximity or seismic input, providing radial vibration, axial position, and eccentricity measurements with configurable alert and danger setpoints.

At the rack level, the 3500/20 Rack Interface Module manages communication between the monitor cards and the plant DCS, while the 3500/15 Power Supply delivers regulated power to all rack components. For safety-critical applications, the 3500/92 TMR Safety Manager provides triple modular redundancy logic, ensuring that the protection system meets SIL 2 requirements under IEC 61508.

At the human-machine interface layer, operator workstations running Emerson System 1 Condition Monitoring Software receive continuous vibration trend data from the 3500 gateway, enabling spectral analysis and early fault detection. For facilities integrating the Bently Nevada system with a broader plant automation platform, the 3500 Ethernet Gateway provides seamless connectivity to DeltaV DCS or third-party SCADA systems via OPC-DA or OPC-UA.

Terminal blocks and marshalling panels within the control cabinet — typically using Phoenix Contact or Weidmüller DIN-rail terminal modules — provide the physical interconnection layer between field cables and rack inputs, ensuring organized, maintainable wiring that supports rapid fault isolation during maintenance windows.

Industrial Application Notes

Power Generation: In gas turbine and steam turbine protection systems, the 330180-X1-05 is mounted on journal bearing housings to monitor shaft radial vibration and rotor position. Paired with the 3500/42M monitor and the plant DCS, it provides continuous protection against bearing failure, rotor imbalance, and misalignment — critical for maintaining grid stability and preventing catastrophic equipment damage.

Petrochemical and Refining: Centrifugal compressors in ethylene, ammonia, and LNG plants rely on the 3300 Series proximity system for surge detection and rotor dynamics monitoring. The 330180-X1-05, installed in X–Y configuration on each compressor stage, feeds the 3500/42M monitor, which triggers anti-surge control actions via the DCS when vibration thresholds are exceeded.

Mining and Metallurgy: Large ball mills, SAG mills, and crusher drives in mining operations use proximity sensors to monitor pinion shaft position and detect early-stage bearing wear. The rugged construction of the 330180-X1-05, rated to +177°C at the probe tip, makes it suitable for the high-temperature, high-vibration environments typical of mineral processing facilities.

Water and Wastewater Treatment: High-speed pump motors and blower drives in water treatment plants benefit from continuous vibration monitoring using the 3300 Series system. The 330180-X1-05 provides early warning of impeller imbalance and bearing degradation, reducing unplanned downtime and extending equipment service life in facilities where redundancy is limited.

Packaging and Process Lines: In high-speed packaging machinery and continuous process lines, the proximity sensor monitors motor and gearbox shaft dynamics, enabling condition-based maintenance scheduling that minimizes production interruptions and reduces spare parts consumption.

Product Compatibility FAQ

Q1: Is the 330180-X1-05 (MOD:145004-81) compatible with the standard 3500 rack monitoring system, and what extension cable length is required?
A: Yes. The 330180-X1-05 is fully compatible with the Bently Nevada 3500 rack system when used with the 330130 extension cable. The total cable length from probe tip to proximitor input must match the proximitor’s calibration range — either 5 m or 9 m total. The MOD:145004-81 designation indicates a factory modification; verify the calibration certificate supplied with the unit to confirm the exact scale factor and gap voltage before installation. ZYPLC provides documentation support for all units sold under our warranty terms confirmed during quotation.

Q2: Can this sensor be used in a redundant or TMR architecture for SIL-rated machinery protection?
A: Yes. The 330180-X1-05 supports dual-sensor (X–Y) and voted redundancy configurations when paired with the 3500/42M monitor and the 3500/92 TMR Safety Manager. In a TMR configuration, three independent sensor channels are compared, and a 2-of-3 voting logic is applied before triggering a machine trip — eliminating nuisance shutdowns while maintaining SIL 2 protective integrity per IEC 61508. System architects should specify the full sensor assembly (probe + extension cable + proximitor) as a matched set to ensure consistent scale factors across all redundant channels.

Q3: What is the warranty coverage for the 330180-X1-05 purchased from ZYPLC, and how is long-term spare parts availability managed?
A: All 330180-X1-05 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failure under normal operating conditions. ZYPLC maintains RFQ-confirmed sourcing of the 330180-X1-05 and compatible 3300 Series components to support both planned maintenance and emergency procurement. For long-term spare parts planning, we recommend maintaining a minimum of one complete sensor assembly (probe + 330130 cable + 330180 proximitor) per critical machine train. Contact our engineering team at plc.sales@zyplc.com or +86 19859288691 for bulk pricing and consignment stock arrangements.
