Bently Nevada 330190-085-00-00 Extension Cable for 3300

Bently Nevada 330190-085-00-00 Extension Cable for 3300

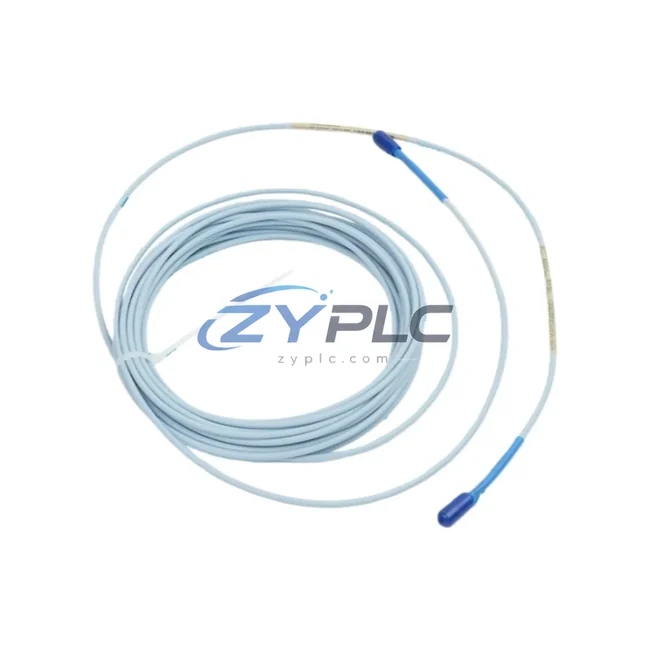

The Bently Nevada 330190-085-00-00 is a precision-engineered proximity probe extension cable designed to serve as a critical signal transmission component within the Bently Nevada 3300 Series vibration monitoring architecture. In modern industrial automation and machinery protection systems, signal integrity between the proximity probe and the monitoring module is not a peripheral concern — it is foundational to the reliability of the entire condition monitoring layer. This extension cable is engineered to maintain low-noise, high-fidelity signal transmission across the full cable run, ensuring that the eddy-current displacement signal generated at the probe tip arrives at the monitor input without degradation, phase distortion, or impedance mismatch.

Within a complete 3300 Series system architecture, the 330190-085-00-00 extension cable occupies the signal path between the 330100 Series proximity probe and the 3300/16 or 3300/20 monitor modules housed in the 3300 rack system. The cable is rated for the standard Bently Nevada three-component proximity transducer system, which includes the probe, the extension cable, and the proximitor sensor — typically the 3300 XL 8mm or 3300 XL 11mm proximitor. Each component in this signal chain must be matched in length and impedance to maintain system calibration. The 330190-085-00-00 designates an 8.5-meter cable length, making it suitable for installations where the probe mounting point is at a moderate distance from the proximitor enclosure or junction box.

From a system architecture perspective, the extension cable interfaces directly with the control layer’s data acquisition chain. The 3300 rack accepts conditioned voltage signals from the proximitor output, which are then processed by the monitor module for gap voltage, 1X amplitude, 2X amplitude, and direct (DC gap) measurements. These outputs feed into the plant DCS or safety instrumented system via hardwired 4–20 mA analog outputs or through the System 1 condition monitoring software platform via Ethernet or serial communication gateways. Ensuring that the 330190-085-00-00 is correctly installed and undamaged is therefore essential not only for accurate vibration readings but for the integrity of the entire machinery protection loop — from rotating shaft to control room alarm.

Product Specification Table

System Compatibility Notes

The 330190-085-00-00 extension cable does not function in isolation — its value is realized only when it is correctly integrated into a coordinated Bently Nevada 3300 or 3500 Series machinery protection system. A typical turbine or compressor monitoring installation begins with the 330100 proximity probe mounted radially or axially on the machine casing, connected via the 330190-085-00-00 extension cable to the 330180 proximitor sensor (3300 XL 8mm), which conditions the raw eddy-current signal into a usable DC voltage output. This conditioned signal is then routed to the 3300/16 Dual Vibration Monitor or the 3300/20 Thrust Position Monitor installed in the 3300 Rack, which provides the physical backplane, power distribution, and I/O termination for the monitoring system.

For plants requiring higher channel density or integrated safety functions, the architecture may instead use the 3500 Series rack system with the 3500/40M Proximitor/Seismic Monitor, which accepts the same three-component transducer chain and provides relay outputs for trip and alarm functions. The rack communicates upstream to the plant DCS — such as a Honeywell Experion PKS, Emerson DeltaV, or Yokogawa CENTUM VP — via the 3500/92 Communication Gateway using Modbus RTU or Modbus TCP/IP. In parallel, the System 1 Evolution condition monitoring software collects continuous waveform data via Ethernet for trend analysis, spectrum plots, and predictive maintenance scheduling.

At the power layer, the 3300 rack is supplied by a dedicated 24 VDC or 28 VDC instrument power supply, often with redundant feeds from a 3300/05 Power Supply Module to ensure uninterrupted monitoring during power disturbances. Terminal connections at the field junction box — typically using 3300 Series field wiring termination assemblies — must be verified for correct pin assignment and cable shielding continuity to prevent ground loops that would corrupt the gap voltage reading. The 330190-085-00-00 cable’s shield must be grounded at one end only, per Bently Nevada installation guidelines, to maintain signal quality across the full cable run.

Industrial Application Notes

The 330190-085-00-00 extension cable finds application across a wide range of heavy industrial sectors where rotating machinery protection is critical to process continuity and personnel safety. In power generation — including gas turbines, steam turbines, and hydro generators — the 3300 Series proximity transducer system is the industry-standard solution for shaft vibration and eccentricity monitoring, with the extension cable enabling probe placement at optimal measurement positions regardless of proximitor enclosure location. In petrochemical and refinery applications, the cable is deployed on centrifugal compressors, expanders, and boiler feed pumps, where continuous vibration monitoring is mandated by API 670 machinery protection standards.

In water and wastewater treatment facilities, large vertical turbine pumps and blower trains use the 3300 Series system to detect bearing wear and rotor imbalance before catastrophic failure. Mining and mineral processing operations rely on the same architecture for SAG mill pinion bearing monitoring and crusher drive protection. In pulp and paper and packaging line environments, the extension cable supports monitoring of high-speed rolls and dryer section drives where access for direct proximitor mounting is restricted by machine geometry. Across all these applications, the 330190-085-00-00 provides the reliable, low-noise signal path that makes the difference between a valid vibration reading and a spurious trip that halts production.

Long-term maintenance planning for the 3300 Series system should include periodic inspection of extension cable connectors for corrosion, mechanical damage, and secure seating, as connector integrity is the most common source of signal degradation in field-installed proximity transducer systems. Stocking a spare 330190-085-00-00 alongside spare 330100 probes and 330180 proximitors is recommended practice for plants with critical machinery where mean time to repair is a key performance indicator.

Product Compatibility FAQ

Q1: Is the 330190-085-00-00 compatible with both the 3300 Series and 3500 Series rack systems?
Yes. The 330190-085-00-00 extension cable is part of the standard Bently Nevada three-component proximity transducer system and is compatible with both the 3300 Series and 3500 Series monitor racks. The cable connects between the 330100 Series proximity probe and the 330180 or equivalent proximitor sensor, and the conditioned output from the proximitor is accepted by any 3300 or 3500 Series monitor module designed for eddy-current transducer inputs. Always verify total system cable length (probe + extension) matches the proximitor calibration range specified in the system datasheet.

Q2: What are the installation requirements to maintain signal accuracy with this extension cable?
Correct installation requires that the cable shield be grounded at one end only (typically at the proximitor enclosure) to prevent ground loop interference. Connectors must be fully seated and, in outdoor or high-humidity environments, sealed with appropriate weatherproofing compound. The cable should be routed away from high-voltage power cables and variable frequency drive (VFD) output conductors to minimize electromagnetic interference. Total system cable length — probe body plus extension cable — must match the calibration configuration of the proximitor sensor to ensure accurate gap voltage and vibration amplitude readings.

Q3: What does the warranty terms confirmed during quotation cover, and what is the supply lead time?
All 330190-085-00-00 extension cables supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failure under normal operating conditions. Units are tested prior to shipment to verify electrical continuity, impedance matching, and connector integrity. Availability is confirmed via RFQ for shipment arranged after confirmation, supporting urgent maintenance and unplanned outage scenarios. For procurement, system compatibility verification, or warranty claims, contact ZYPLC directly at +86 19859288691 or plc.sales@zyplc.com.
