Bently Nevada 330194-00-05-90-00 Proximity Probe for 3300 Series

Bently Nevada 330194-00-05-90-00 Proximity Probe for 3300 Series: Control System Coordination and Upstream-Downstream Synergy

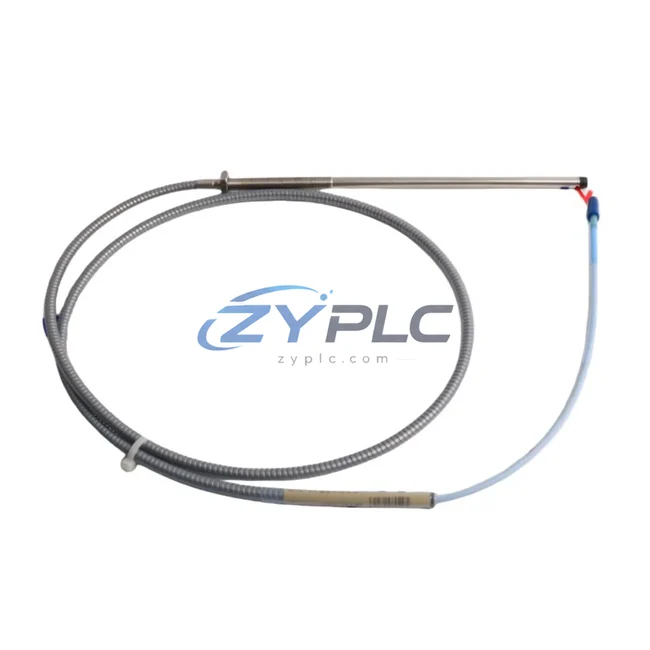

The Bently Nevada 330194-00-05-90-00 is a high-precision eddy-current proximity probe engineered for seamless integration within the Bently Nevada 3300 Series vibration monitoring architecture. Rather than functioning as a standalone sensor, this probe is designed as a foundational element of a layered industrial control system — one that spans the signal acquisition layer, the condition monitoring layer, the data communication layer, and ultimately the plant-level decision layer. Understanding its role within this full-stack architecture is essential for engineers responsible for rotating machinery protection, predictive maintenance programs, and long-term asset reliability in demanding industrial environments.

In a complete 3300 Series monitoring system, the 330194-00-05-90-00 proximity probe operates in conjunction with the 330130 extension cable, which bridges the physical gap between the probe tip and the 3300 XL 8mm proximitor/driver module. The proximitor converts the raw eddy-current signal into a calibrated voltage output — typically –24 VDC at the gap center — which is then routed to the 3300/16 or 3300/20 monitor rack. Within the rack, individual monitor cards such as the 3300/25 Radial Vibration Monitor or the 3300/46 Thrust Position Monitor process the signal and compare it against user-defined alert and danger setpoints. This signal chain — from probe tip to monitor output — represents the I/O layer of the broader control architecture and must be treated as a tightly coupled subsystem rather than a collection of independent components.

At the control layer, the 3300 Series rack communicates with the plant DCS or safety instrumented system (SIS) via hardwired relay outputs or, in more advanced configurations, through the 3500/92 Ethernet communication gateway or the 3500/22M transient data interface. These communication modules allow the vibration data captured by the 330194-00-05-90-00 probe to be surfaced in real time on operator workstations running System 1 condition monitoring software, enabling system integration of vibration trends with process variables such as bearing temperature, lube oil pressure, and rotor speed. This cross-layer data fusion is what transforms a simple proximity measurement into actionable machinery health intelligence.

From a power layer perspective, the 3300 Series rack requires a stable –24 VDC supply, typically sourced from a dedicated instrument power supply module such as the 3300/05 power supply or an equivalent redundant power configuration. Ensuring power quality at this layer is critical, as voltage fluctuations can introduce noise into the proximity signal chain and compromise measurement accuracy. In high-availability installations, dual power supply modules are deployed in parallel to eliminate single points of failure — a redundancy design principle that extends to the probe and extension cable assemblies as well, where dual-probe configurations are used on critical shaft positions.

At the human-machine interface layer, operators interact with the system through dedicated vibration monitoring displays or through integrated DCS faceplates that aggregate 3300 Series outputs alongside other process measurements. The ability of the 330194-00-05-90-00 to deliver consistent, low-noise signals across its full operating temperature range ensures that HMI displays reflect true machinery behavior rather than instrumentation artifacts — a requirement that becomes especially important during startup transients, load changes, and emergency shutdown sequences.

At the execution layer, the relay outputs from the 3300 Series monitors can be wired directly to machinery protection logic — triggering alarms, initiating controlled shutdowns, or activating backup systems when vibration levels exceed danger thresholds. This closed-loop architecture, from probe signal to protective action, is the ultimate expression of the 330194-00-05-90-00’s role in the control system: not merely a sensor, but a critical node in a machinery protection network that safeguards rotating assets worth millions of dollars.

Product Specification Table

System Compatibility Notes

Deploying the 330194-00-05-90-00 within a complete machinery protection architecture requires careful selection of coordinated components across every system layer. At the probe-to-proximitor interface, the 330130-080-00-00 extension cable provides the signal path between the probe and the 3300 XL 8mm proximitor, which must be matched to the probe’s sensitivity and gap range to ensure calibrated output. The proximitor output feeds directly into the 3300/16 or 3300/20 monitor rack, where individual monitor cards — including the 3300/25 Radial Vibration Monitor, the 3300/46 Thrust Position Monitor, and the 3300/55 Speed Monitor — process signals from multiple probe positions simultaneously.

For systems requiring transient data capture during startup and shutdown, the 3500/22M transient data interface module can be integrated into the rack to record full waveform data from the 330194-00-05-90-00 and companion probes. This data is invaluable for diagnosing rotor dynamic behavior during critical speed crossings. At the network layer, the 3500/92 Ethernet communication gateway exports monitor data to System 1 software or third-party SCADA platforms using Modbus TCP or OPC-DA protocols, enabling system integration of vibration data with process historian databases.

Power integrity for the entire probe-to-monitor chain is maintained by the 3300/05 power supply module, with redundant configurations using dual modules in hot-standby mode. Terminal blocks and marshalling panels within the control cabinet provide organized signal routing between the field junction boxes — where the 330130 extension cables terminate — and the monitor rack inputs. In safety-critical applications, the relay outputs from the 3300 Series monitors are wired to the plant SIS, where they contribute to the overall safety instrumented function (SIF) for machinery overspeed or high-vibration shutdown.

Industrial Application Notes

The 330194-00-05-90-00 proximity probe finds application across a wide range of heavy industrial sectors where rotating machinery reliability is paramount. In power generation plants — including gas turbines, steam turbines, and hydro generators — this probe monitors shaft radial vibration and axial position on critical rotating elements, providing the early warning data that prevents catastrophic bearing failures and unplanned outages. The probe’s wide operating temperature range makes it suitable for installation in high-temperature turbine bearing housings where conventional sensors would fail.

In the petrochemical and refining industry, the 330194-00-05-90-00 is deployed on centrifugal compressors, pumps, and expanders within continuous process trains where unplanned downtime carries enormous economic and safety consequences. The probe’s compatibility with the 3300 Series architecture allows it to be integrated into existing machinery protection systems without requiring rack replacement, reducing upgrade costs and minimizing installation downtime. In mining and minerals processing, the probe monitors large grinding mills, crushers, and conveyor drive systems, where the harsh environment demands robust sensor construction and reliable signal transmission over long cable runs.

Water treatment and desalination facilities use the 330194-00-05-90-00 on high-speed pump trains and blower systems, where continuous vibration monitoring supports predictive maintenance programs that extend equipment life and reduce chemical treatment costs. In the metallurgical industry, the probe is applied to rolling mill drives, continuous casters, and furnace fan systems, where the combination of high loads, thermal cycling, and process vibration creates demanding conditions for both the machinery and the monitoring instrumentation. Across all these applications, the warranty terms confirmed during quotation provided with each 330194-00-05-90-00 unit ensures that engineering teams can deploy the probe with confidence in its long-term performance and calibration stability.

Product Compatibility FAQ

Q1: Is the 330194-00-05-90-00 compatible with both the 3300 Series and the 3500 Series monitor racks?
The 330194-00-05-90-00 is primarily calibrated and specified for use with the Bently Nevada 3300 Series 8mm proximitor/driver system. While the eddy-current probe technology is physically similar to probes used in the 3500 Series, the sensitivity calibration and gap range are optimized for the 3300 XL 8mm proximitor. Using this probe with a 3500 Series proximitor may result in calibration offsets that affect measurement accuracy. For 3500 Series installations, the corresponding 3500-series probe and proximitor assembly should be selected to ensure full system compatibility and accurate alarm setpoint configuration.

Q2: What extension cable length is recommended for long-distance installations, and how does cable length affect system calibration?
The 330194-00-05-90-00 probe uses a 0.9 m integral cable that connects to the 330130 extension cable. The total system cable length — probe cable plus extension cable — must match the calibration configuration of the proximitor/driver module. Bently Nevada specifies calibrated system lengths of 5 m, 9 m, and other standard lengths; using non-standard total lengths will shift the sensitivity and linear range of the system, requiring field recalibration. For installations where the junction box is located far from the bearing housing, engineers should select the appropriate 330130 extension cable length during system design and verify the total cable length against the proximitor calibration data sheet before commissioning.

Q3: What does the warranty terms confirmed during quotation cover, and what is the recommended maintenance interval for the probe assembly?
The warranty terms confirmed during quotation on the 330194-00-05-90-00 covers manufacturing defects, connector integrity, and calibration accuracy under normal operating conditions as specified in the product datasheet. It does not cover damage resulting from improper installation, mechanical impact, chemical exposure beyond rated limits, or use outside the specified temperature and gap range. For long-term maintenance, Bently Nevada recommends periodic verification of the probe gap setting using a calibrated gap tool, inspection of the integral cable and connector for signs of wear or contamination, and functional testing of the complete probe-proximitor-monitor chain during scheduled plant outages. Maintaining a spare probe assembly in inventory — available through ZYPLC with the same warranty terms confirmed during quotation — ensures rapid replacement capability and minimizes machinery downtime during maintenance windows.
