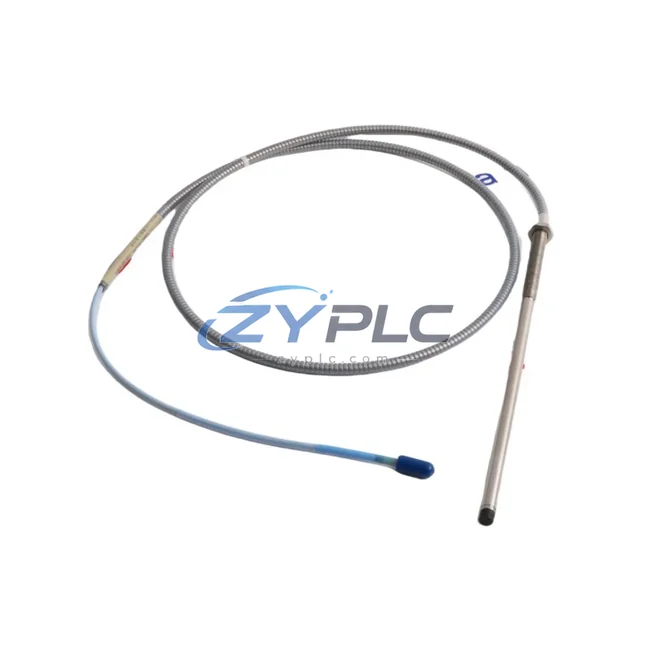

The Bently Nevada 330194-00-18-10-00 is an eddy-current proximity probe engineered for seamless integration within the Bently Nevada 3300 Series vibration monitoring architecture. With an 18-inch (457 mm) probe length, 10-foot (3 m) integral cable, and standard 5 mm tip diameter, this probe is purpose-built to deliver continuous, high-resolution shaft displacement and vibration data to the 3300 Series monitor rack. In modern rotating machinery protection systems — spanning turbines, compressors, pumps, and generators — the 330194-00-18-10-00 occupies a critical position at the sensing layer, feeding real-time analog signals upward through the control hierarchy to enable predictive maintenance, trip logic, and condition-based asset management.

Unlike generic vibration sensors, the 330194-00-18-10-00 is calibrated and validated for direct compatibility with the Bently Nevada 3300 XL monitor platform, ensuring that signal conditioning, gap voltage, and sensitivity specifications align precisely with the monitor’s input requirements. This eliminates calibration drift, reduces commissioning time, and guarantees measurement traceability across the full system lifecycle — a critical requirement in ISO 10816 and API 670 compliant installations.

Product Specification Table

System Compatibility Notes

The 330194-00-18-10-00 proximity probe does not operate in isolation — it is the foundational sensing element of a layered machinery protection architecture. In a fully coordinated 3300 Series installation, the probe pairs with the 330130-080-00-00 extension cable to bridge the distance between the probe tip and the 330180-X1-05 proximitor/oscillator, which conditions the raw eddy-current signal into a calibrated DC voltage output. This conditioned signal feeds directly into the 3300/16 monitor module housed within the 3300 Series rack, where it is processed against user-defined alert and danger setpoints.

At the rack level, the 3300 Series monitor communicates with plant-wide control systems via the 3300/20 communication gateway, enabling Modbus RTU or 4–20 mA integration with distributed control systems (DCS) and safety instrumented systems (SIS). For facilities operating a Bently Nevada 3500 Series platform alongside legacy 3300 equipment, the 330194-00-18-10-00 can be adapted through signal conditioning modules, preserving investment in existing probe installations while migrating monitor infrastructure.

Power integrity is maintained through dedicated 3300 Series power supply modules, which provide regulated -24 VDC to the proximitor network. In redundant configurations, dual power supply modules ensure uninterrupted sensor excitation even during single-supply failures — a requirement in API 670 critical machinery applications. The 3300/55 keyphasor module complements the radial vibration data from the 330194-00-18-10-00 by providing once-per-revolution phase reference signals, enabling advanced vector analysis of shaft orbit and balance condition.

At the human-machine interface layer, vibration data from the 330194-00-18-10-00 is visualized through System 1 Evolution software, Bently Nevada’s condition monitoring platform, which aggregates probe data across multiple measurement points into trend plots, orbit displays, and alarm dashboards. This system integration allows maintenance engineers to correlate radial vibration trends with process variables — flow, temperature, load — enabling condition-based maintenance decisions rather than time-based overhaul schedules. The result is a measurable reduction in unplanned downtime and maintenance cost across the asset lifecycle.

Industrial Application Notes

In power generation facilities, the 330194-00-18-10-00 is deployed on steam turbine journal bearings, where continuous radial vibration monitoring is mandated by API 670 and plant insurance requirements. The probe’s wide frequency response (DC to 10,000 Hz) captures both low-frequency rotor dynamics and high-frequency bearing defect signatures, providing early warning of imbalance, misalignment, and oil whirl instability before they escalate to forced outages.

In petrochemical and refinery applications, the 330194-00-18-10-00 is installed on centrifugal compressors and process pumps operating in hazardous area classifications. Its robust stainless-steel construction and wide temperature tolerance (-35°C to +177°C at the probe tip) ensure reliable operation in high-temperature, chemically aggressive environments. Integration with the plant DCS via the 3300 Series communication gateway enables vibration alarm states to trigger automated process responses — reducing compressor load or initiating controlled shutdown sequences — without operator intervention.

In mining and mineral processing operations, the probe monitors large grinding mill pinion bearings and crusher drive shafts, where bearing failures carry significant production and safety consequences. The 330194-00-18-10-00’s compatibility with the 3300 XL monitor’s gap and vibration measurement channels allows simultaneous monitoring of shaft position (to detect bearing wear) and dynamic vibration (to detect structural resonance), providing a comprehensive picture of drivetrain health from a single probe installation point.

In water and wastewater treatment plants, the probe is applied to large vertical turbine pumps and blower trains, where continuous vibration monitoring supports regulatory compliance and asset reliability programs. The warranty terms confirmed during quotation and availability confirmed by RFQ availability ensure that replacement probes can be sourced rapidly, minimizing the risk of extended monitoring gaps during planned maintenance windows.

Product Compatibility FAQ

Q1: Is the 330194-00-18-10-00 directly compatible with the Bently Nevada 3500 Series monitor rack?
The 330194-00-18-10-00 is natively calibrated for the 3300 XL proximitor/monitor system. It can be used with 3500 Series monitors when paired with an appropriate 3500/42M or 3500/45 monitor module and a compatible proximitor, provided the gap voltage and sensitivity specifications are verified during commissioning. For direct 3500 Series installations, Bently Nevada recommends the 330780 or 330900 series probes; however, the 330194 series remains widely used in mixed-platform architectures with proper signal conditioning. Consult your system architecture documentation or contact our technical team to confirm compatibility for your specific configuration.

Q2: What extension cable and proximitor are required to complete the transducer system?
The 330194-00-18-10-00 requires a matched extension cable — typically the 330130-080-00-00 (8-meter) or equivalent length variant — to reach the proximitor/oscillator unit. The proximitor, such as the 330180-X1-05, converts the probe’s impedance change into a calibrated DC voltage signal for the monitor. The total cable system length (probe integral cable + extension cable) must match the proximitor’s calibrated range to maintain sensitivity accuracy. All three components — probe, extension cable, and proximitor — must be ordered and installed as a matched set per Bently Nevada’s transducer system specifications.

Q3: What does the warranty terms confirmed during quotation cover, and how is long-term spare parts availability managed?
The warranty terms confirmed during quotation covers manufacturing defects, calibration accuracy, and electrical performance under normal operating conditions as specified in the product datasheet. It does not cover damage resulting from installation errors, mechanical impact, or operation outside rated environmental limits. For long-term spare parts management, we recommend maintaining a minimum of one spare probe per critical measurement point in your site inventory, particularly for API 670-classified machinery where monitoring continuity is a contractual or regulatory requirement. Our RFQ-confirmed sourcing and rapid dispatch capability support both planned maintenance schedules and emergency replacement needs, minimizing monitoring downtime across your rotating machinery fleet.
