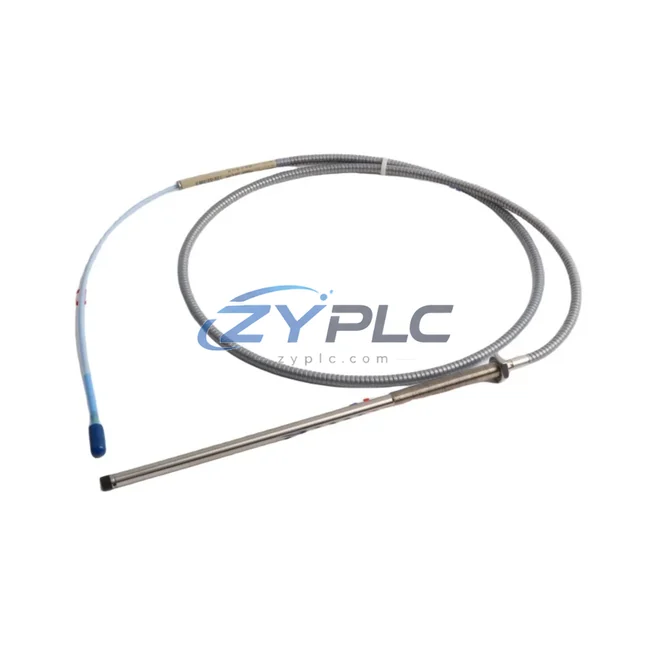

Bently Nevada 330194-11-21-15-00 Proximity Probe for 3300 Series

Bently Nevada 330194-11-21-15-00 Proximity Probe for 3300 Series

The Bently Nevada 330194-11-21-15-00 is a precision eddy-current proximity probe engineered for seamless integration within the Bently Nevada 3300 Series vibration monitoring architecture. Designed to deliver continuous, non-contact measurement of shaft radial vibration, axial position, and differential expansion, this probe serves as a foundational sensing element across the full control system hierarchy — from the field instrumentation layer through to the supervisory control and data acquisition (SCADA) level. Its role within a layered automation system is not merely that of a standalone sensor; it is a critical node in a coordinated machinery protection and condition monitoring network.

In modern industrial control architectures, the proximity probe occupies the lowest and most critical layer — the field sensing layer — where signal fidelity directly determines the reliability of every upstream decision. The 330194-11-21-15-00 outputs a linear voltage signal proportional to the gap between the probe tip and the rotating shaft target, feeding real-time data into the 3300 Series monitor rack. This rack, typically populated with modules such as the 3300/16 Dual Voting Logic or the 3300/20 Proximitor Monitor, processes the raw signal and applies configurable alarm and danger setpoints. The monitor outputs are then passed to the plant DCS or safety instrumented system (SIS) via hardwired relay contacts or fieldbus communication, ensuring that the machinery protection layer remains tightly coupled with the process control layer.

System architects specifying the 330194-11-21-15-00 benefit from its compatibility with the Bently Nevada 3300 XL 8mm Proximitor Sensor (such as the 330180 series), which serves as the signal conditioning intermediary between the probe and the monitor rack. The Proximitor converts the raw oscillator signal into a DC voltage output, standardizing the interface regardless of cable length or installation geometry. This three-component assembly — probe, extension cable (e.g., 330130 series armored extension cables), and Proximitor — forms the complete measurement chain that underpins the 3300 Series architecture’s renowned measurement accuracy and long-term stability.

At the network and communication layer, the 3300 Series monitors interface with plant historians, asset management platforms, and condition monitoring software such as Bently Nevada System 1 via Ethernet or Modbus TCP/IP. The 330194-11-21-15-00, as the primary sensing element, thus contributes indirectly to predictive maintenance workflows, enabling operations teams to trend vibration data over months and years, identify developing faults such as rotor imbalance, misalignment, or bearing wear, and schedule maintenance interventions before unplanned shutdowns occur. This system integration capability is a key differentiator for facilities operating under reliability-centered maintenance (RCM) frameworks.

Power supply integrity is equally important to system performance. The 3300 Series Proximitor sensors require a regulated −24 VDC supply, typically sourced from a dedicated Bently Nevada 3300/05 Power Supply or an equivalent redundant power module within the monitor rack. Redundant power architectures, where two independent supplies feed the rack through an ORing diode arrangement, ensure that a single power supply failure does not interrupt vibration monitoring — a critical requirement in API 670-compliant machinery protection systems protecting high-value rotating equipment such as steam turbines, gas compressors, and centrifugal pumps.

From an installation and commissioning perspective, the 330194-11-21-15-00 is available in multiple cable lengths and connector configurations, with the suffix -11-21-15-00 denoting specific probe body length, cable length, and connector type parameters. Engineers should verify gap voltage calibration during commissioning using a calibrated gap simulator or by referencing the Bently Nevada calibration data sheet supplied with each probe. Proper gap setting — typically between −10 VDC and −18 VDC for standard 8mm probes — is essential for linear operation and accurate alarm setpoint calibration within the monitor.

Long-term maintenance efficiency is further supported by the modular design philosophy of the 3300 Series architecture. Should a probe require replacement due to physical damage or end-of-life degradation, the 330194-11-21-15-00 can be swapped without disturbing the extension cable or Proximitor, minimizing downtime and reducing the risk of introducing installation errors. Spare parts inventory planning is simplified by the probe’s standardized form factor and broad compatibility across the 3300 Series monitor family, including legacy installations using 3300/25 Dual Thrust Position Monitors and 3300/46 Eccentricity Monitors.

All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, with full traceability documentation and functional test reports available upon request. Our global inventory ensures rapid dispatch to support both planned maintenance shutdowns and emergency replacement scenarios.

Product Specification Table

System Compatibility Notes

The 330194-11-21-15-00 proximity probe achieves its full potential only when specified as part of a coherent, multi-layer control system architecture. A complete 3300 Series machinery protection system typically integrates the following coordinated components:

The Bently Nevada 330180-X1-05 Proximitor Sensor serves as the signal conditioner, converting the probe’s oscillator output into a calibrated DC voltage signal suitable for monitor input. Paired with 330130 series armored extension cables, the measurement chain maintains signal integrity across installation distances of up to 9 meters without impedance mismatch. The 3300/20 Proximitor Monitor receives these conditioned signals and applies dual-channel voting logic for alarm and danger relay outputs, while the 3300/05 Power Supply Module — ideally deployed in a redundant N+1 configuration — ensures uninterrupted −24 VDC supply to all Proximitor sensors in the rack.

At the supervisory layer, the Bently Nevada System 1 Condition Monitoring Software aggregates vibration trends, orbit plots, and spectrum data from all 3300 Series monitors across the plant, enabling predictive maintenance decisions based on long-term machinery health data. For facilities requiring SIS integration, the monitor relay outputs interface directly with Triconex or Rockwell GuardLogix safety PLCs, ensuring that machinery protection trip signals are processed within the required safety integrity level (SIL) response time. Human-machine interface visibility is provided through Wonderware InTouch or Ignition SCADA platforms, which display real-time vibration values and alarm states to operators in the control room.

In high-availability installations, the 3300/46 Eccentricity Monitor and 3300/25 Dual Thrust Position Monitor complement the radial vibration measurement provided by the 330194-11-21-15-00, creating a comprehensive rotor dynamics monitoring suite that covers all critical shaft movement axes. This multi-parameter approach is standard practice in API 670-compliant protection systems for steam turbines, gas turbines, and large centrifugal compressors in the oil and gas, power generation, and petrochemical industries.

Industrial Application Notes

The Bently Nevada 330194-11-21-15-00 finds application across a broad spectrum of process industries where rotating machinery reliability is paramount. In power generation facilities, it monitors shaft vibration on steam turbine-generator sets, providing early warning of rotor imbalance, bearing degradation, and blade loss events that could result in catastrophic equipment failure and extended generation outages. The probe’s high-temperature tolerance makes it suitable for installation in the high-pressure turbine section, where ambient temperatures can approach the upper limits of standard eddy-current probe specifications.

In oil and gas processing and petrochemical plants, the 330194-11-21-15-00 is widely deployed on gas compressor trains, where continuous vibration monitoring is mandated by API 670 and plant safety management systems. The probe’s non-contact measurement principle eliminates wear-related drift, ensuring that alarm setpoints remain valid over multi-year operating campaigns between planned turnarounds. In water and wastewater treatment facilities, it monitors large vertical pump motors and blower units, where early detection of bearing wear or impeller imbalance prevents unplanned service interruptions that could affect municipal water supply reliability.

Mining and minerals processing operations deploy the 330194-11-21-15-00 on SAG mill pinion drives, slurry pump motors, and large fan units, where the harsh operating environment demands robust, maintenance-free sensing solutions. In metallurgical and steel production facilities, the probe monitors rolling mill drive motors and continuous casting machine drives, where vibration anomalies can directly affect product quality and process yield. Across all these applications, the probe’s integration within the 3300 Series architecture ensures that vibration data is available in real time to both the machinery protection system and the plant-wide condition monitoring platform, supporting both automatic trip functions and long-term reliability engineering analysis.

Product Compatibility FAQ

Q1: Is the 330194-11-21-15-00 directly compatible with existing 3300 Series monitor racks without hardware modification?
Yes. The 330194-11-21-15-00 is designed as a drop-in replacement within the Bently Nevada 3300 Series architecture. It is compatible with all standard 3300 Series Proximitor Sensors (330180 series) and monitor modules, including the 3300/20, 3300/25, and 3300/46 variants, without requiring rack reconfiguration or firmware updates. Engineers should verify gap voltage calibration after installation to confirm the probe operates within the linear measurement range specified for the target monitor channel.

Q2: How does the warranty terms confirmed during quotation apply in the context of a multi-vendor control system architecture?
The warranty terms confirmed during quotation provided by ZYPLC covers the 330194-11-21-15-00 probe unit against manufacturing defects and functional failure under normal operating conditions as defined by Bently Nevada’s published specifications. The warranty applies to the probe as a discrete component and is independent of the broader control system architecture. In the event of a warranty claim, ZYPLC provides replacement units with full traceability documentation, minimizing the impact on system availability. Customers operating under planned maintenance schedules are encouraged to maintain a minimum of one spare probe per critical measurement point to ensure zero-downtime replacement capability.

Q3: What commissioning steps are required when integrating the 330194-11-21-15-00 into a new or expanded 3300 Series system?
Commissioning the 330194-11-21-15-00 within a 3300 Series architecture involves four key steps: (1) mechanical installation and gap setting using a calibrated gap gauge or voltage reference, targeting the nominal gap voltage specified for the associated Proximitor model; (2) cable continuity and insulation resistance verification to confirm measurement chain integrity from probe tip to monitor input terminal; (3) functional verification of alarm and danger relay outputs by simulating gap changes and confirming monitor response against configured setpoints; and (4) integration testing with the upstream DCS, SIS, or condition monitoring platform to verify that vibration values and alarm states are correctly transmitted and displayed. ZYPLC’s technical support team is available to assist with commissioning queries throughout the warranty period.
