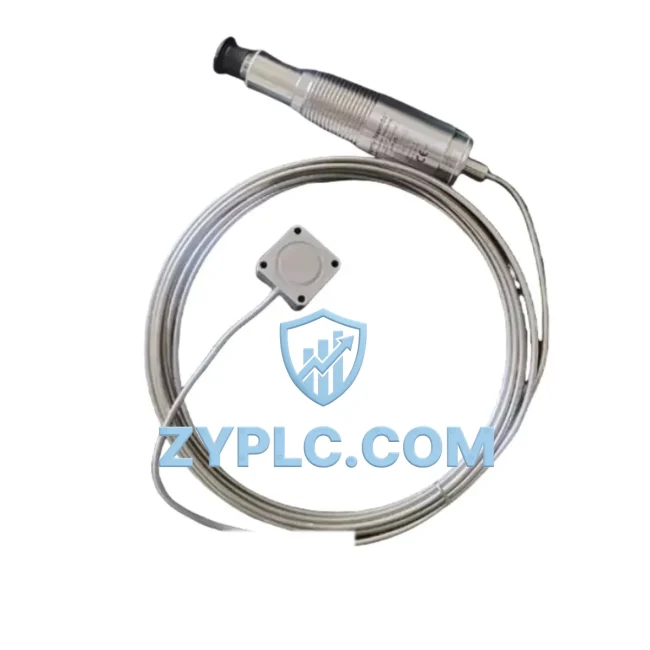

Bently Nevada 330750-60-CN System-Ready Velomitor for 3500 Architecture

Bently Nevada 330750-60-CN System-Ready Velomitor for 3500 Architecture: Control System Integration and Upstream-Downstream Coordination

The Bently Nevada 330750-60-CN is a high-performance Velomitor piezo-velocity transducer engineered for seamless integration within the Bently Nevada 3500 Series machinery protection system architecture. Unlike standalone vibration sensors, the 330750-60-CN is designed from the ground up to function as a coordinated node within a layered automation environment — interfacing directly with the 3500/42M Proximitor/Seismic Monitor Module and communicating upstream to distributed control systems (DCS) or safety instrumented systems (SIS) via the 3500 rack’s backplane and communication gateway infrastructure.

In modern industrial control architectures, vibration monitoring is not an isolated function. The 330750-60-CN occupies a critical position in the signal acquisition layer, converting mechanical velocity into a conditioned analog output that feeds into the 3500 rack’s I/O processing layer. From there, the processed signal travels through the system’s communication backbone — typically interfacing with Modbus RTU, Ethernet/IP, or Profibus DP gateways — enabling real-time condition data to reach the supervisory control layer, historian servers, and operator HMI stations without signal degradation or latency.

Architecture Specification Table

Coordinated Control System Design

The 330750-60-CN achieves its full value when deployed within a complete Bently Nevada 3500 rack architecture. A typical coordinated system begins with the 3500/05 Power Supply Module, which provides stable, isolated DC power to all rack-mounted modules — ensuring that transducer signal integrity is never compromised by power fluctuations. The 3500/20 Rack Interface Module (RIM) serves as the communication hub, aggregating processed vibration data from all monitor modules and transmitting it to the plant DCS or SIS via the configured fieldbus protocol.

At the monitoring layer, the 330750-60-CN connects directly to the 3500/42M Proximitor/Seismic Monitor Module, which performs real-time signal conditioning, alarm threshold evaluation, and trip relay actuation. For machines requiring both radial and axial vibration coverage, the 330750-60-CN is commonly deployed alongside 3300 XL 8mm Proximity Probes and their associated 3300 XL Extension Cables, creating a comprehensive vibration monitoring envelope around rotating equipment.

In redundant architecture designs — common in critical turbine and compressor protection applications — dual 330750-60-CN transducers are mounted at 90° intervals on the machine casing, with each channel independently processed by the 3500/42M module. This configuration ensures that a single transducer failure does not result in a protection gap, maintaining system availability in accordance with IEC 61511 functional safety requirements. The 3500/32 4-Channel Relay Module provides the trip output interface, connecting the protection system to the machine’s emergency shutdown (ESD) circuit.

For facilities integrating vibration data into a plant-wide asset management platform, the 330750-60-CN’s output — processed through the 3500 rack — can be routed to System 1 Evolution software via the 3500/92 Communication Gateway Module, enabling predictive maintenance workflows, trend analysis, and alarm rationalization across the entire rotating equipment fleet. HMI stations running Wonderware InTouch or GE iFIX can display real-time velocity trend data, providing operators with actionable condition monitoring information at the control room level.

Application in Layered Automation Systems

Power Generation & Turbine Protection: In gas turbine and steam turbine applications, the 330750-60-CN is mounted on bearing housings and turbine casings to detect casing vibration anomalies that proximity probes cannot capture. Integrated with the 3500/42M monitor and the plant’s DCS — typically a Honeywell Experion PKS or Emerson DeltaV system — the transducer provides the seismic vibration channel required by API 670 machinery protection standards. Trip signals are routed through the 3500/32 relay module to the turbine’s ESD system, ensuring sub-100ms response to vibration exceedances.

Petrochemical & Refinery Compressor Trains: Centrifugal and reciprocating compressor trains in petrochemical facilities demand continuous, high-reliability vibration monitoring across multiple measurement planes. The 330750-60-CN, deployed in multi-channel configurations within a single 3500 rack, provides the seismic velocity data required to detect bearing wear, misalignment, and structural resonance before they escalate to unplanned shutdowns. Integration with the plant’s safety instrumented system (SIS) via the 3500/20 RIM ensures that vibration-triggered trips are executed within the required safety integrity level (SIL) response time.

Water Treatment & Pump Station Monitoring: Large centrifugal pumps and motor-pump sets in water treatment facilities benefit from the 330750-60-CN’s wide frequency response and robust stainless steel housing, which withstands the humid, chemically aggressive environments typical of pump stations. The transducer’s output, processed by the 3500/42M module, feeds into the facility’s SCADA system via Modbus RTU, enabling remote condition monitoring and alarm management without requiring on-site personnel for routine vibration checks.

Mining & Mineral Processing: In mining applications — including SAG mills, ball mills, and conveyor drive systems — the 330750-60-CN provides reliable casing vibration monitoring in high-shock, high-dust environments. Its MIL-spec connector and stainless steel housing ensure long-term signal integrity even under the mechanical stress and contamination levels common in mineral processing facilities. Integration with the mine’s PLC-based control system via the 3500 rack’s communication gateway enables automated load shedding and equipment protection responses.

Architecture Engineering FAQ

Q1: Is the 330750-60-CN compatible with existing 3500 rack configurations, and does it require any additional interface hardware?
The 330750-60-CN is fully compatible with all current-generation Bently Nevada 3500 rack configurations. It connects directly to the 3500/42M Proximitor/Seismic Monitor Module using standard Velomitor cabling, with no additional interface hardware required. For installations where the existing 3500/42M module is already configured for proximity probe inputs, a channel reconfiguration via the 3500 Rack Configuration Software (RCS) is required to switch the input type to seismic velocity. This reconfiguration can be performed online without rack power interruption in most 3500 firmware versions.

Q2: How does the 330750-60-CN support long-term maintenance efficiency in a multi-machine protection architecture?
The 330750-60-CN’s standardized Velomitor output and MIL-C-5015 connector interface ensure that transducer replacement is a straightforward field operation requiring no specialized calibration equipment. When integrated with Bently Nevada’s System 1 Evolution platform via the 3500/92 Communication Gateway, the transducer’s historical trend data is automatically archived, enabling maintenance engineers to establish baseline vibration signatures for each machine and detect deviation trends months before a failure event. All units supplied by ZYPLC are covered by a 12-Month Warranty, with pre-shipment functional testing documentation available upon request.

Q3: What are the key considerations for installing the 330750-60-CN in a redundant vibration monitoring architecture?
For redundant monitoring configurations, the 330750-60-CN should be installed at 90° intervals on the machine casing, with each transducer connected to an independent channel of the 3500/42M monitor module. Cable routing should ensure physical separation between the two transducer cables to prevent a single cable fault from disabling both monitoring channels. The 3500/42M module’s voting logic should be configured for 1-out-of-2 (1oo2) or 2-out-of-2 (2oo2) trip logic depending on the application’s availability vs. safety priority. Grounding continuity between the transducer housing, cable shield, and rack chassis ground must be verified during commissioning to prevent common-mode noise from corrupting the velocity signal.
