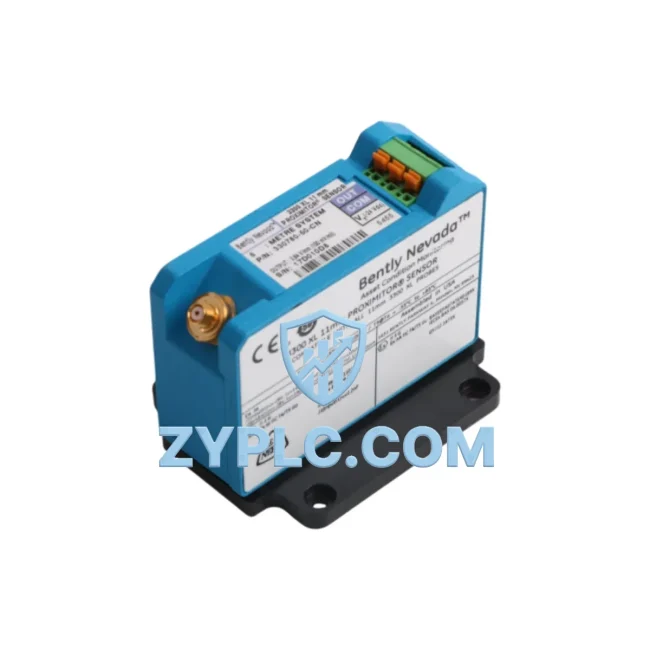

Bently Nevada 330780-50-CN Proximity Sensor for 3300 Series

Bently Nevada 330780-50-CN Proximity Sensor for 3300 Series

The Bently Nevada 330780-50-CN is a high-precision eddy-current proximity sensor engineered for seamless integration within the 3300 Series machinery protection and condition monitoring architecture. Rather than functioning as a standalone measurement device, this sensor is designed from the ground up to operate as a coordinated node within a layered industrial control system — contributing to vibration signal acquisition, shaft displacement measurement, and real-time machinery health assessment across the full control hierarchy.

In modern rotating machinery protection systems, signal integrity begins at the transducer level. The 330780-50-CN delivers a stable, low-noise output that feeds directly into the 3300/16 Proximitor® monitor or compatible 3300 Series rack-mounted signal conditioning modules. This upstream signal quality is foundational: downstream analytics, alarm logic, and trip relay outputs all depend on the accuracy and consistency of the proximity sensor’s eddy-current response. By maintaining a calibrated gap voltage across the full operating temperature range, the 330780-50-CN ensures that the 3300 Series monitor can reliably distinguish between normal shaft runout, mechanical looseness, and critical displacement events.

Within the broader system architecture, the 330780-50-CN interfaces with the 3300/55 Proximitor® extension cable and the 3300/05 Proximitor® sensor driver, forming a three-component measurement chain that is fully characterized and factory-matched for the 3300 Series platform. This matched-component approach eliminates calibration uncertainty and reduces commissioning time — a critical advantage in high-availability plant environments where downtime is measured in production losses rather than maintenance hours.

Product Specification Table

System Compatibility Notes

The 330780-50-CN achieves its full potential only when considered within the complete 3300 Series system architecture. At the monitor layer, the 3300/16 Proximitor® Monitor receives the sensor’s analog output and applies configurable alarm and danger setpoints, feeding trip relay signals to the machine control system or safety instrumented system (SIS). The 3300/46 Keyphasor® Module provides the once-per-revolution reference signal that enables the monitor to resolve synchronous vibration components — essential for balancing diagnostics and phase-referenced orbit analysis.

Power distribution within the rack is managed by the 3300/20 Power Supply, which provides regulated -24 VDC to all Proximitor® drivers and monitor cards. Redundant power configurations using dual 3300/20 modules are standard practice in critical machinery protection applications, ensuring that a single power supply failure does not interrupt vibration monitoring continuity. The 3300/10 Rack Interface Module coordinates communication between the monitor rack and the plant DCS or SCADA system via 4–20 mA analog outputs or Modbus RTU, enabling operators to trend vibration data alongside process variables such as bearing temperature, lube oil pressure, and shaft speed.

For plants operating on the System 1® condition monitoring platform, the 330780-50-CN’s data stream is ingested by the System 1® Evolution software, where machine-specific dynamic models correlate proximity sensor readings with operational context — load, speed, temperature — to generate predictive maintenance recommendations. This system integration capability transforms raw displacement data into actionable asset health intelligence, reducing unplanned outages and extending mean time between maintenance interventions.

In multi-machine train configurations — such as gas turbine–compressor–gearbox trains — multiple 330780-50-CN sensors are deployed at each bearing location, with X-Y sensor pairs enabling full orbit analysis. The 3300/55 Extension Cable allows sensor placement up to 9 m from the Proximitor® driver, accommodating large machine casings and complex installation geometries. Terminal blocks and junction boxes within the control cabinet are typically sourced from the same vendor ecosystem to maintain signal shielding continuity and minimize ground loop interference. The 3300/05 Proximitor® Driver and 3300/46 Keyphasor® Module complete the signal chain, ensuring that every measurement delivered to the monitor rack is traceable, conditioned, and system-validated.

Industrial Application Notes

Power Generation: In gas turbine and steam turbine protection systems, the 330780-50-CN monitors journal bearing radial vibration and thrust position. Paired with the 3300/46 Keyphasor® and System 1® software, it enables real-time orbit analysis and early detection of rotor instability — critical for preventing catastrophic bearing failures in baseload and peaking generation assets.

Oil & Gas / Petrochemical: Centrifugal compressors in LNG trains, ethylene crackers, and refinery charge pumps rely on 3300 Series proximity monitoring for API 670-compliant machinery protection. The 330780-50-CN’s high-temperature rating and oil-mist resistance make it suitable for installation in compressor casings operating in hazardous area classifications.

Pulp, Paper & Industrial Manufacturing: Large induced-draft fans, boiler feed pumps, and process compressors in continuous manufacturing environments benefit from the 330780-50-CN’s long-term stability and low maintenance requirements. Integration with plant DCS via the 3300/10 Rack Interface Module allows vibration alarms to be incorporated into the plant-wide alarm management strategy.

Water & Wastewater: High-speed vertical turbine pumps and blower trains in water treatment facilities use proximity sensors to detect shaft misalignment and bearing wear before they progress to failure. The 330780-50-CN’s compatibility with the 3300 Series platform enables these facilities to standardize on a single machinery protection architecture across multiple pump stations.

Mining & Minerals Processing: Ball mills, SAG mills, and large slurry pumps in mineral processing plants operate in high-vibration, high-contamination environments. The 330780-50-CN’s robust construction and sealed coaxial connection maintain measurement integrity even under these demanding conditions, supporting continuous operation and reducing unscheduled maintenance events.

Product Compatibility FAQ

Q1: Is the 330780-50-CN directly compatible with all 3300 Series monitor cards, or are there specific pairing requirements?
The 330780-50-CN is designed for use with the Bently Nevada 3300 Series Proximitor® driver and monitor ecosystem. It is compatible with the 3300/16 monitor when used with the matched 3300/05 Proximitor® driver and 3300/55 extension cable. For installations using non-standard target materials or gap ranges outside the factory calibration, a field calibration procedure using the 3300 Series calibration kit is recommended to maintain measurement accuracy within the system’s alarm setpoint tolerances.

Q2: How does the 330780-50-CN support redundant architecture designs in critical machinery protection applications?
In redundant configurations, X-Y sensor pairs are installed at each bearing location, with each sensor connected to an independent monitor channel. This arrangement ensures that a single sensor failure does not result in a loss of protection coverage. The 3300 Series monitor’s channel-level self-diagnostics continuously verify sensor circuit integrity, generating a system alert if the Proximitor® output falls outside the valid operating range — enabling maintenance teams to replace a failed sensor during the next planned maintenance window without interrupting machine operation.

Q3: What does the 12-Month Warranty cover, and what support is available for system integration and commissioning?
The 12-Month Warranty covers manufacturing defects and functional performance of the 330780-50-CN under normal operating conditions. For system integration support, our engineering team provides pre-shipment functional verification, documentation of gap voltage calibration data, and technical consultation on sensor placement, cable routing, and grounding practices. Replacement units are maintained in stock to support rapid swap-out in the event of a warranty claim, minimizing machinery protection system downtime.
