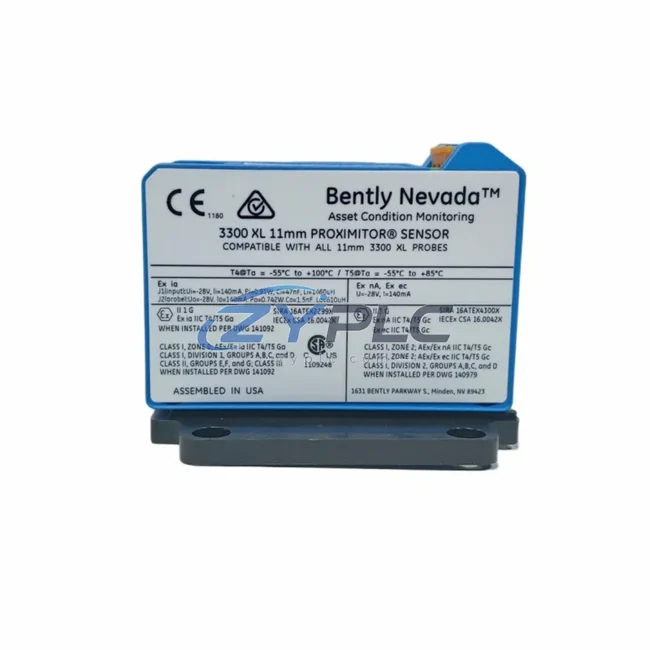

Bently Nevada 330780-90-05 Proximitor Sensor for 3300 Series

Bently Nevada 330780-90-05 Proximitor Sensor for 3300 Series Control System

The Bently Nevada 330780-90-05 is a precision Proximitor Sensor engineered for seamless integration within the 3300 Series vibration monitoring architecture. In modern industrial automation environments — spanning power generation, petrochemical processing, mining, metallurgy, and rotating machinery applications — the reliability of a control system depends not on any single component, but on the coherent interaction between every layer of the architecture. The 330780-90-05 is designed with this systems-level philosophy at its core, delivering consistent eddy-current proximity measurement that feeds directly into the broader machinery protection and condition monitoring framework.

Within a complete Bently Nevada 3300 Series system, the 330780-90-05 Proximitor Sensor operates as the critical signal-conditioning bridge between the physical measurement point and the monitoring rack. It converts the raw electromagnetic signal from the 3300 XL 8mm Proximity Transducer probe into a calibrated DC voltage output, which is then routed to the 3300/16 or 3300/20 monitor modules housed in the 3300 Series rack. This signal chain — from probe tip to monitor card to the System 1 condition monitoring software — forms the backbone of a predictive maintenance strategy that reduces unplanned downtime and extends asset life across rotating equipment fleets.

The architectural value of the 330780-90-05 becomes most apparent when viewed alongside the full 3300 Series ecosystem. The sensor pairs directly with the 3300 XL 8mm Proximity Transducer (probe and extension cable assembly), and its output is fully compatible with the 3500/42M Proximitor/Seismic Monitor for installations requiring migration toward the 3500 Series platform. For facilities operating mixed-generation Bently Nevada infrastructure, the 330780-90-05 ensures backward and forward compatibility, protecting capital investment while enabling phased system upgrades.

At the rack level, the 330780-90-05 integrates with the 3300 Series barrier isolator modules and terminal boards, ensuring signal integrity across long cable runs in electrically noisy industrial environments. The Proximitor’s buffered output can simultaneously drive the rack monitor and an external data acquisition system, supporting dual-use architectures where both machinery protection and process optimization data are required. This capability is particularly valuable in power plant turbine monitoring applications, where the 3300/25 Keyphasor Module provides the phase reference signal that transforms raw vibration data into actionable rotor dynamic analysis.

From a network and communications perspective, the 330780-90-05 supports architectures where the 3300 Series rack communicates upstream via Modbus RTU or the Bently Nevada proprietary TDI (Transient Data Interface) protocol to distributed control systems (DCS) or SCADA platforms. In these configurations, the Proximitor’s stable, low-noise analog output is essential for maintaining data fidelity across the analog-to-digital conversion boundary within the monitor card. Engineers specifying systems for Emerson DeltaV or Honeywell Experion integration will find the 330780-90-05’s output characteristics fully compatible with standard 4–20 mA and ±24 VDC signal conditioning requirements.

Installation and commissioning of the 330780-90-05 follows the established Bently Nevada gap voltage procedure, with the sensor adjusted to the nominal –10 VDC gap voltage at the specified probe-to-target gap. This standardized setup process, documented in the 3300 Series Installation and Operation Manual, ensures that field technicians can commission, verify, and replace sensors consistently — a critical factor for maintenance teams managing large fleets of monitored machines. The sensor’s integral connector and standardized cable interface reduce installation errors and support rapid replacement during planned outages.

Long-term maintenance efficiency is further supported by the 330780-90-05’s robust construction, rated for continuous operation in industrial environments with ambient temperatures from –18°C to +66°C and resistance to common industrial fluids including lubricating oils and cleaning solvents. For facilities with demanding uptime requirements, maintaining a spare 330780-90-05 in the instrument store — alongside spare 3300 XL probe assemblies and extension cables — is a recognized best practice that minimizes mean time to repair (MTTR) for vibration monitoring channel failures.

Every 330780-90-05 supplied by ZYPLC is covered by a warranty terms confirmed during quotation, providing assurance of component authenticity and functional performance. Our inventory is sourced through verified supply channels, and each unit undergoes pre-shipment inspection to confirm electrical integrity and connector condition. Combined with our global logistics capability, ZYPLC delivers the 330780-90-05 to maintenance teams and system integrators worldwide with lead times that support both planned maintenance schedules and emergency replacement requirements.

Product Specification Table

System Compatibility Notes

The 330780-90-05 does not operate in isolation — its value is realized through coordinated integration with the full 3300 Series component ecosystem. At the sensing layer, the 330780-90-05 pairs with the 3300 XL 8mm Proximity Transducer probe and its associated extension cable, forming the complete transducer system that must be calibrated as a matched set. The Proximitor’s output feeds directly into the 3300/16 Dual Vibration Monitor or 3300/20 Dual Vibration Monitor, which provide the alarm, danger, and relay output functions that protect rotating machinery from catastrophic failure.

Phase reference for rotor dynamic analysis is provided by the 3300/25 Keyphasor Module, which works in conjunction with the vibration channels to enable 1X and 2X vector analysis, orbit plots, and Bode diagrams within the System 1 Condition Monitoring Software. For installations requiring electrical isolation between the field wiring and the monitor rack — a common requirement in hazardous area classifications — the 3300 Series Barrier Isolator modules are inserted between the Proximitor output and the monitor input, maintaining signal fidelity while providing the galvanic isolation required by IEC 60079 and ATEX standards.

Power distribution to the 3300 Series rack, including the –24 VDC supply required by the 330780-90-05, is managed by the 3300 Series Power Supply Module, with redundant power supply configurations available for critical machinery protection applications. At the communications layer, the 3500/92 Communication Gateway Module (for facilities migrating toward the 3500 platform) or a dedicated Modbus TCP/IP gateway bridges the 3300 Series rack to the plant DCS or SCADA network, enabling centralized alarm management and historian data collection. Terminal boards and field wiring junction boxes complete the installation, providing the organized, labeled termination points that support efficient commissioning and long-term maintenance access.

Industrial Application Notes

The 330780-90-05 Proximitor Sensor finds application across the full spectrum of process industries where rotating machinery protection is critical to operational continuity. In power generation facilities — including gas turbine, steam turbine, and hydro generator installations — the 3300 Series architecture provides the shaft vibration and eccentricity monitoring required by API 670 machinery protection standards. The 330780-90-05’s stable output characteristics ensure that vibration alarm setpoints remain accurate across the full range of machine operating speeds and load conditions.

In petrochemical and refinery environments, the 330780-90-05 is deployed on centrifugal compressors, reactor agitators, and boiler feed pumps, where continuous vibration monitoring is a regulatory and insurance requirement. The sensor’s resistance to hydrocarbon-based lubricating oils and its wide operating temperature range make it suitable for installation in both ambient and elevated-temperature machinery enclosures. Water and wastewater treatment facilities use the 3300 Series architecture on large centrifugal pumps and blowers, where the 330780-90-05 provides the early warning of bearing wear and rotor imbalance that prevents costly pump failures and service interruptions.

In mining and minerals processing applications — including SAG mills, ball mills, and large slurry pumps — the 330780-90-05 operates in high-vibration, high-dust environments where its robust construction and sealed connector interface are essential for long-term reliability. Metallurgical and steel plant applications include rolling mill drive monitoring and blast furnace blower protection, where the 3300 Series architecture integrates with plant-wide process control systems to correlate vibration data with production parameters. Across all these industries, the 330780-90-05 contributes to a layered automation strategy where machinery protection, process control, and asset management systems share a common data foundation.

Product Compatibility FAQ

Q1: Is the 330780-90-05 compatible with both the 3300 Series and 3500 Series monitor racks?
The 330780-90-05 is natively designed for the 3300 Series architecture and is fully compatible with all 3300 Series monitor modules, including the 3300/16 and 3300/20 dual vibration monitors. Its buffered DC voltage output is also electrically compatible with 3500 Series monitor inputs when used with appropriate signal conditioning, making it a viable option for facilities operating mixed-generation Bently Nevada infrastructure or planning a phased migration to the 3500 platform. Always verify the specific monitor module’s input specifications against the 330780-90-05 output characteristics before cross-platform installation.

Q2: What is the recommended commissioning procedure for the 330780-90-05, and how is gap voltage verified in the field?
Commissioning the 330780-90-05 follows the standard Bently Nevada gap voltage procedure: with the machine stationary and the probe installed at the specified gap distance from the target shaft, the Proximitor output voltage is measured at the monitor terminal board and adjusted to the nominal –10 VDC (±0.5 VDC) by mechanically adjusting the probe gap. This procedure is documented in the Bently Nevada 3300 Series Installation and Operation Manual and should be performed with a calibrated digital voltmeter. ZYPLC recommends verifying gap voltage at initial installation, after any probe or extension cable replacement, and as part of annual machinery protection system audits.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for warranty claims?
The warranty terms confirmed during quotation provided by ZYPLC covers manufacturing defects and functional failures of the 330780-90-05 under normal operating conditions as specified in the Bently Nevada product documentation. The warranty period begins from the date of shipment. In the event of a warranty claim, customers should contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with the order reference and a description of the observed failure. ZYPLC will arrange for return, inspection, and replacement or repair of the affected unit. Physical damage resulting from incorrect installation, overvoltage conditions, or operation outside specified environmental limits is not covered under the warranty terms.
