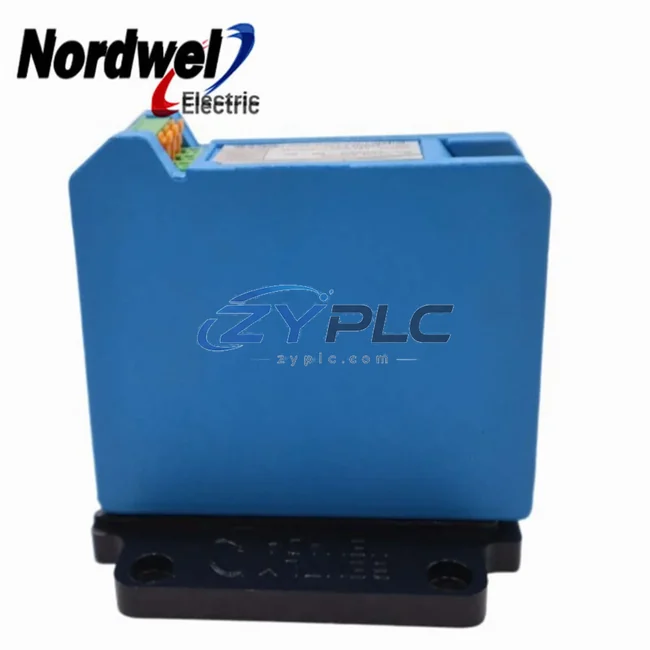

Bently Nevada 330780-X1-CN Proximitor Sensor

Bently Nevada 330780-X1-CN Proximitor Sensor for 3300 Series Automation

The Bently Nevada 330780-X1-CN is a high-precision eddy-current Proximitor Sensor engineered for the 3300 Series vibration monitoring platform. In modern industrial facilities where energy efficiency and equipment uptime are directly tied to profitability, this sensor plays a critical role in reducing unnecessary energy consumption, preventing unplanned downtime, and enabling smarter motor and drive control decisions. By delivering accurate, real-time shaft displacement and vibration data, the 330780-X1-CN allows plant engineers to move from reactive maintenance to predictive, data-driven operations — a shift that consistently yields measurable reductions in unplanned downtime and maintenance cost.

Product Specification Table

System Compatibility and Application

The 330780-X1-CN does not operate in isolation — it is the sensing front-end of a tightly integrated industrial automation system. In a typical high-efficiency plant configuration, this Proximitor Sensor connects to a Bently Nevada 3300/16-24-01-01-00-00-00 16-channel monitor rack, which aggregates vibration and position data from multiple measurement points across a rotating machine train. The rack communicates over Modbus TCP or OPC-UA to a Bently Nevada System 1 condition monitoring software platform, where engineers can visualize shaft centerline plots, trend data, and alarm states in real time.

On the drive and motor control side, the vibration data captured by the 330780-X1-CN feeds directly into decisions made by variable frequency drives such as the ABB ACS880 or Siemens SINAMICS G120. When the sensor detects abnormal shaft displacement — a common indicator of bearing wear or rotor imbalance — the control system can automatically reduce motor speed via the VFD, cutting energy consumption during degraded operating conditions rather than running the machine at full load until failure. This closed-loop interaction between the Proximitor Sensor and the drive system is one of the most effective mechanisms for reducing specific energy consumption (SEC) per unit of production output.

For I/O integration, the analog output of the 330780-X1-CN (-2 VDC to -18 VDC) is compatible with standard Bently Nevada 3500/42M position monitor modules and can be wired into Rockwell Automation ControlLogix or Siemens S7-1500 PLC analog input cards for process-level control logic. This allows the PLC to trigger load-shedding routines, adjust pump or compressor staging, or initiate a controlled shutdown sequence — all based on real shaft position data rather than estimated or time-based assumptions.

Power quality at the sensor level is maintained by the Bently Nevada 3300/20 power supply module, which provides a stable -24 VDC rail with low ripple, ensuring measurement accuracy is not compromised by electrical noise from nearby VFDs or servo amplifiers. For facilities running Bently Nevada TDXnet distributed I/O networks, the 330780-X1-CN integrates seamlessly into the node architecture, enabling remote sensor polling without additional signal conditioning hardware.

HMI visualization of the 330780-X1-CN data is typically handled through Wonderware InTouch or Ignition SCADA panels, where operators can monitor gap voltage trends, set dynamic alarm thresholds, and correlate vibration events with energy consumption spikes logged by Schneider Electric PowerLogic ION7650 power meters installed at the motor control center (MCC).

Maintenance and Replacement Notes

In petrochemical and power generation facilities, centrifugal compressors and steam turbines are among the largest energy consumers on site. A single compressor train running with a misaligned rotor or worn journal bearing can consume 8–12% more energy than a machine in optimal condition — while simultaneously generating excess heat that burdens the cooling system. The Bently Nevada 330780-X1-CN Proximitor Sensor addresses this directly by providing continuous, non-contact shaft position measurement that detects rotor eccentricity, oil whirl, and rub conditions before they escalate into energy-wasting or machine-damaging events.

In a cement plant application, for example, kiln drive motors are often oversized and run at partial load for extended periods. By integrating the 330780-X1-CN into the kiln bearing monitoring system and linking its output to the plant’s maintenance planning system, operators can correlate shaft displacement trends with motor current draw. When displacement increases — indicating bearing degradation — the system can flag the machine for maintenance scheduling during a planned production pause, avoiding the energy penalty of an emergency restart cycle and the productivity loss of an unplanned shutdown.

In water treatment facilities, vertical turbine pumps equipped with the 330780-X1-CN benefit from early detection of impeller wear and shaft deflection. Rather than running pumps at fixed speed until a catastrophic seal failure occurs, the vibration data enables a predictive maintenance interval that keeps pump efficiency within 2–3% of the design curve — directly reducing the kWh consumed per cubic meter of water processed.

The 330780-X1-CN also contributes to production line rhythm (takt time) optimization. In automotive stamping or precision machining lines, spindle and feed axis bearings monitored by Proximitor Sensors allow maintenance teams to schedule bearing replacements during shift changeovers rather than mid-production, maintaining consistent cycle times and avoiding the unplanned downtime associated with cold-start ramp-up sequences after unplanned stops.

Every unit shipped from our facility undergoes a full functional test — including gap voltage linearity verification, output signal calibration check, and connector integrity inspection — before dispatch. Stock is maintained on-hand for immediate fulfillment, with typical lead times of 1–3 business days. All units are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failure.

Product Sourcing FAQ

Q1: How does the 330780-X1-CN contribute to measurable operational stability in rotating machinery applications?
The 330780-X1-CN provides continuous shaft displacement data that enables early detection of mechanical faults — such as bearing wear, rotor imbalance, and misalignment — that cause machines to consume more energy than their design specification. By identifying these conditions early, plant teams can schedule corrective maintenance before energy penalties accumulate, and VFD control systems can reduce motor speed in response to abnormal vibration, cutting power draw during degraded operating states.

Q2: Is the 330780-X1-CN compatible with existing 3300 Series racks and System 1 software without hardware modification?
Yes. The 330780-X1-CN is a direct-fit replacement for standard 3300 Series Proximitor Sensor assemblies. It uses the same -24 VDC supply, produces the same -2 VDC to -18 VDC analog output, and is fully recognized by Bently Nevada 3300/16 monitor racks and System 1 condition monitoring software without requiring firmware updates or signal conditioning changes.

Q3: What is the recommended replacement interval, and how should the transition be managed to avoid production disruption?
Bently Nevada recommends replacing Proximitor Sensors when gap voltage drift exceeds ±0.5 VDC from the original calibrated setpoint, or when physical inspection reveals cable jacket damage or connector corrosion. Replacement is best performed during a planned maintenance window. The 330780-X1-CN can be pre-configured and gap-set offline before installation, minimizing machine downtime to the time required for physical swap and gap verification — typically under 30 minutes for an experienced technician.

Q4: What does the warranty terms confirmed during quotation cover, and what is the process for a warranty claim?
