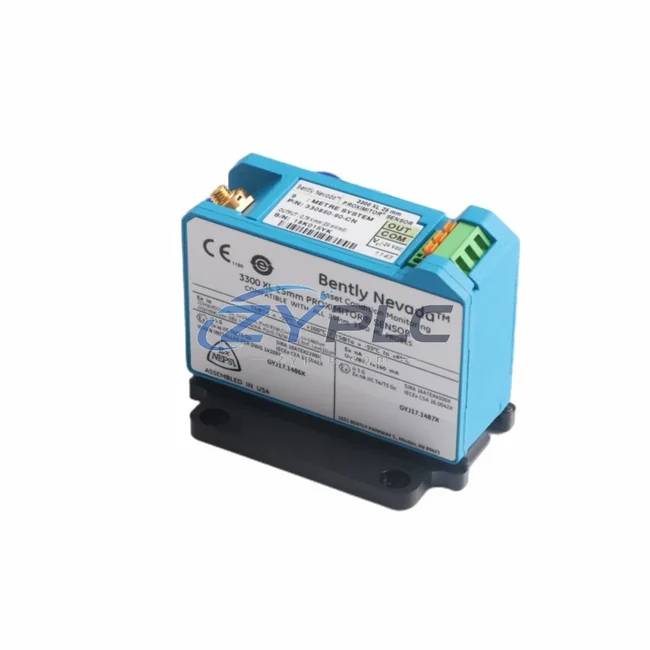

The Bently Nevada 330850-90-CN Proximitor Sensor is a precision eddy-current signal conditioning module engineered for seamless integration within the Bently Nevada 3300 Series machinery protection architecture. Rather than functioning as a standalone measurement device, the 330850-90-CN occupies a critical signal-conditioning role within a layered automation hierarchy — converting raw proximity probe output into calibrated voltage signals that feed directly into the 3300/16 Monitor, 3300/20 Monitor, or 3300/25 Monitor rack-mounted modules. This system integration capability ensures that vibration, position, and speed data are accurately represented across the entire control and protection system, from field-level sensing through to the control room DCS or SCADA interface.

In a complete rotating machinery protection system, the 330850-90-CN works in concert with the 3300 XL 8mm Proximity Transducer System probes and extension cables, providing the intermediate conditioning stage that standardizes signal amplitude and frequency response before the monitor card performs threshold comparison and alarm relay actuation. The Proximitor’s output is directly compatible with the 3300/16 Dual Voting Logic Monitor and the 3300/46 Keyphasor Module, enabling phase-referenced vibration analysis and synchronous speed tracking across multi-shaft turbine and compressor trains.

System architects specifying the 330850-90-CN for new installations or replacement projects benefit from its backward compatibility with the broader 3300 Series rack ecosystem, including the 3300/05 Power Supply Module and the 3300/10 Rack Interface Module. This compatibility eliminates the need for signal re-ranging or intermediate signal converters, reducing panel wiring complexity and commissioning time. The sensor’s standardized -24 VDC bias voltage and 200 mV/mil (7.87 V/mm) scale factor align precisely with the input expectations of downstream monitor cards, ensuring that alarm setpoints and danger thresholds configured in the monitor remain valid without recalibration after a sensor replacement.

From a redundancy and reliability standpoint, the 330850-90-CN supports dual-redundant probe configurations when paired with the 3300/16 Dual Voting Logic Monitor. In critical applications such as steam turbine axial position monitoring or compressor radial vibration surveillance, dual Proximitor installations provide 1oo2 or 2oo2 voting logic, preventing spurious shutdowns while maintaining protection integrity. The sensor’s sealed housing and wide operating temperature range make it suitable for installation in harsh environments including offshore platforms, petrochemical process areas, and power generation turbine halls where ambient temperature, humidity, and vibration exposure are significant design constraints.

For facilities managing large rotating machinery fleets, maintaining a availability subject to RFQ confirmation of 330850-90-CN units is a standard maintenance strategy. The sensor’s role as a consumable field component — subject to cable fatigue, connector corrosion, and gap drift over extended service intervals — means that planned replacement cycles of 3 to 5 years are common in high-availability plants. Procurement teams sourcing replacement units should verify compatibility with the installed probe tip diameter (8mm standard) and extension cable length to ensure the assembled system gap voltage falls within the linear range of the Proximitor output. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation and have been functionally tested prior to dispatch.

Product Specification Table

System Compatibility Notes

The 330850-90-CN does not operate in isolation. In a fully specified Bently Nevada 3300 Series protection system, it is one node in a coordinated signal chain that begins at the probe tip and terminates at the control room alarm annunciator or DCS interlock. A typical turbine protection panel integrating the 330850-90-CN will also include the 3300 XL 8mm Proximity Probe and matched 3300 Extension Cable at the field level, the 3300/05 Power Supply Module providing regulated -24 VDC to the Proximitor, and the 3300/16 Dual Voting Logic Monitor or 3300/20 Monitor receiving the conditioned output signal.

At the rack level, the 3300/10 Rack Interface Module aggregates monitor outputs and provides the communication bridge to plant-level systems, while the 3300/46 Keyphasor Module supplies the once-per-revolution reference signal required for synchronous vibration analysis and phase measurement. For facilities requiring integrated condition monitoring beyond basic protection, the 330850-90-CN output is also compatible with the System 1 Condition Monitoring Software platform via the rack interface, enabling trend analysis, spectrum plots, and predictive maintenance scheduling without additional signal conditioning hardware.

In compressor train applications, the 330850-90-CN is frequently specified alongside the 3300/55 Temperature Monitor and 3300/65 Speed Monitor within the same protection rack, creating a unified machinery health monitoring architecture that covers vibration, temperature, and speed parameters under a single rack power supply and communication interface. This integration reduces panel footprint, simplifies cable routing, and ensures that all protection channels share a common time base for event correlation during incident analysis.

Industrial Application Notes

The 330850-90-CN finds application across a wide range of process industries where rotating machinery protection is a regulatory or operational requirement. In power generation, it is routinely specified for steam turbine shaft radial vibration and axial position monitoring, where API 670 compliance mandates continuous online protection with automatic shutdown capability. In petrochemical and refinery environments, the sensor supports centrifugal compressor and pump protection systems operating in classified hazardous areas, with the Proximitor’s sealed housing providing the necessary ingress protection for Zone 1 or Zone 2 installations when used with appropriate barrier or isolator devices.

In LNG and gas processing facilities, the 330850-90-CN is integrated into the safety instrumented system (SIS) architecture as a voted input to the emergency shutdown (ESD) logic solver, where its high-frequency response and low signal latency are critical for detecting sub-synchronous instability events in high-speed compressor trains. Water and wastewater treatment plants use the sensor for large vertical pump and blower protection, while mining and minerals processing operations apply it to SAG mill and ball mill drive train monitoring, where bearing condition and shaft runout data inform maintenance scheduling and prevent catastrophic mechanical failures.

In steel and metals manufacturing, the sensor supports rolling mill drive and continuous caster protection systems, where shaft position accuracy directly affects product dimensional tolerances. Across all these applications, the 330850-90-CN’s system integration capability — its ability to deliver calibrated, monitor-ready signals without additional signal conditioning — reduces system complexity and improves overall measurement chain reliability.

Product Compatibility FAQ

Q1: Is the 330850-90-CN directly interchangeable with other Bently Nevada Proximitor models such as the 330180 or 330100 series?
The 330850-90-CN is specifically designed for use with the 3300 XL 8mm Proximity Transducer System and is not directly interchangeable with the 330180 (5mm) or 330100 (25mm) series without verifying probe tip diameter, extension cable type, and scale factor compatibility. Before substituting Proximitor models, confirm that the replacement unit’s output scale factor and bias voltage match the monitor card’s input specification. ZYPLC’s technical team can assist with compatibility verification prior to order placement.

Q2: Can the 330850-90-CN be installed in a system that uses a Bently Nevada 3500 Series rack alongside legacy 3300 Series monitors?
The 330850-90-CN is a 3300 Series component and is not designed for direct installation into a 3500 Series rack. However, its analog voltage output is compatible with the 3500/42M Proximitor/Seismic Monitor’s external Proximitor input mode, provided the scale factor and gap voltage range are within the 3500 monitor’s configured input parameters. Mixed-generation architectures of this type should be validated against the 3500 Series monitor configuration documentation before deployment. ZYPLC recommends consulting the system architecture drawing and monitor configuration file before ordering replacement Proximitors for mixed-generation panels.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for warranty claims on the 330850-90-CN?
All 330850-90-CN units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to dispatch to verify output scale factor, bias voltage, and frequency response within specification. In the event of a warranty claim, customers should contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with the order reference and a description of the observed fault. ZYPLC will arrange for unit inspection and replacement or repair within the warranty period at no additional cost to the customer.
