Bently Nevada 330851-02-000-070-90-00-CN Proximity Probe for 3300 Series

Bently Nevada 330851-02-000-070-90-00-CN Proximity Probe for 3300 Series

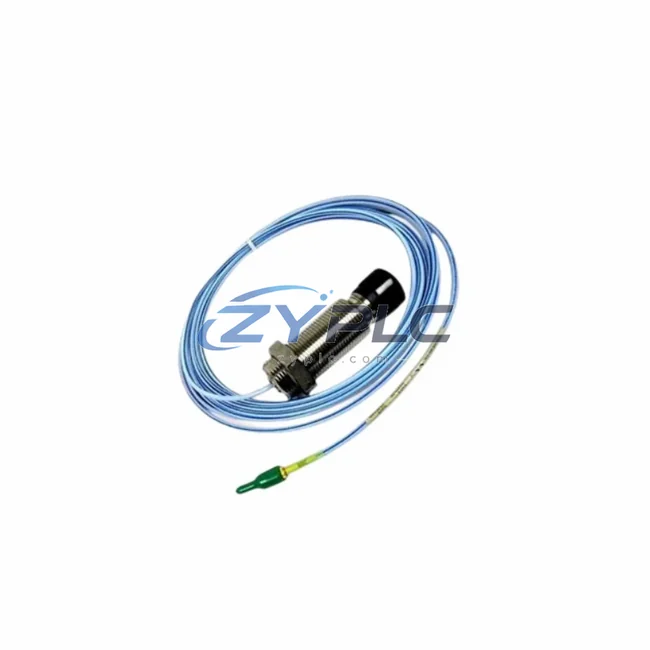

The Bently Nevada 330851-02-000-070-90-00-CN is a precision eddy-current proximity probe module engineered for seamless integration within the Bently Nevada 3300 Series vibration monitoring architecture. Designed to operate as a critical sensing node in rotating machinery protection systems, this probe delivers continuous, non-contact displacement measurement that feeds directly into the broader control and protection hierarchy. Rather than functioning as a standalone sensor, the 330851-02-000-070-90-00-CN is conceived as a system-level component — one whose value is fully realized only when deployed within a coordinated, layered automation environment where signal integrity, architectural consistency, and long-term maintainability are paramount.

In modern industrial facilities — spanning power generation, petrochemical processing, water treatment, mining, metallurgy, and heavy manufacturing — rotating machinery such as turbines, compressors, pumps, and motors represents the operational backbone of production. The ability to monitor shaft vibration, axial position, and radial displacement in real time is not merely a performance metric; it is a safety-critical function. The 330851-02-000-070-90-00-CN fulfills this function by providing a stable, high-resolution analog signal that integrates directly with the 3300 Series monitor rack, enabling the system to detect abnormal vibration signatures before they escalate into catastrophic failures.

From an architectural standpoint, this probe occupies the field sensing layer — the lowest tier of the control hierarchy — yet its influence propagates upward through every subsequent layer. The analog output from the 330851-02-000-070-90-00-CN is conditioned by the companion Bently Nevada 3300 XL 8mm Extension Cable and the 3300 XL Proximitor Sensor (such as the 330180-91-00 or 330130-080-00-00), which convert the raw eddy-current signal into a calibrated voltage proportional to gap distance. This conditioned signal is then routed to the 3300 Series monitor module — for example, the 3300/16 or 3300/20 — where it is processed against configurable alarm and danger setpoints. The monitor communicates status and trip signals to the plant DCS or safety PLC via hardwired relay outputs or digital communication protocols, completing the signal chain from field to control room.

system integration is a defining characteristic of the 330851-02-000-070-90-00-CN deployment philosophy. The probe is not selected in isolation; it is chosen as part of a coherent sensor-to-system specification that accounts for target material, gap range, cable length, temperature rating, and environmental classification. The -CN suffix designation indicates a specific configuration variant optimized for particular installation parameters, ensuring that the probe’s sensitivity factor and output range are precisely matched to the Proximitor driver and monitor channel to which it connects. This level of system-level specificity eliminates calibration ambiguity and reduces commissioning time significantly.

Within the I/O and signal conditioning layer, the 330851-02-000-070-90-00-CN works in concert with extension cables — typically the 330130 or 330140 series — to bridge the distance between the probe tip and the Proximitor housing mounted in the junction box or control cabinet. The Proximitor itself, such as the 330180 series, provides the oscillator-demodulator circuitry that drives the probe coil and interprets the impedance change caused by the rotating target. This distributed architecture allows the sensing element to be positioned precisely at the measurement plane while the signal conditioning electronics remain in a more accessible, environmentally controlled enclosure.

At the monitor and protection layer, the 3300/16 Dual Voting Logic Monitor or the 3300/20 Radial Vibration Monitor receives the conditioned signal and applies the configured alarm logic. In redundant architectures — common in critical turbomachinery applications — multiple 330851-02-000-070-90-00-CN probes may be deployed in a 2-of-3 voting configuration, where the 3300 Series monitor evaluates signals from three independent probes and initiates a trip only when at least two probes agree that a danger threshold has been exceeded. This redundancy architecture dramatically reduces both false trips and missed detections, improving plant availability while maintaining safety integrity.

The network and communication layer connects the 3300 Series monitor rack to the plant historian, DCS, and asset management system via the System 1 Evolution software platform or through Modbus/TCP and OPC-DA/UA gateways. This connectivity enables trending, alarm management, and predictive maintenance workflows that extend the value of the 330851-02-000-070-90-00-CN measurement far beyond simple threshold alarming. Engineers can correlate vibration trends with process variables — flow, pressure, temperature — to identify developing faults weeks or months before they would trigger a protective shutdown.

For long-term maintenance efficiency, the 330851-02-000-070-90-00-CN is designed for straightforward field replacement without requiring system recalibration, provided the replacement probe is of the same configuration variant and the gap is set correctly using the standard Bently Nevada gap-setting procedure. Maintaining a small inventory of matched probe-cable-Proximitor sets — for example, pairing the 330851-02-000-070-90-00-CN with the 330130-080-00-00 extension cable and the 330180-91-00 Proximitor — ensures that maintenance teams can restore full monitoring capability within minutes of a probe failure, minimizing unplanned downtime. All units supplied through ZYPLC are covered by a warranty terms confirmed during quotation, providing procurement teams with the confidence to maintain strategic spares without concern for shelf-life risk.

Product Specification Table

System Compatibility Notes

The 330851-02-000-070-90-00-CN achieves its full architectural value when specified as part of a complete Bently Nevada 3300 Series system. A typical coordinated deployment begins with the probe itself, mounted at the measurement plane and connected via a 330130-080-00-00 Extension Cable to a 330180-91-00 Proximitor Sensor housed in the local junction box. The Proximitor’s conditioned output feeds into a 3300/16 Dual Voting Logic Monitor or a 3300/20 Radial Vibration Monitor installed in the 3300 Series rack, which also accommodates a 3300/15 Power Supply Module providing regulated DC power to all monitor channels.

For axial position monitoring on the same shaft, a companion 330851-02-000-070-90-00-CN probe pair (or a 330730-040-00-00 thrust position probe) is deployed in a differential measurement configuration, with both signals processed by the same monitor rack to provide a complete picture of rotor dynamic behavior. The rack communicates with the plant DCS — typically a Honeywell Experion, Emerson DeltaV, or Yokogawa CENTUM system — via hardwired relay outputs for trip and alarm functions, while a Bently Nevada 3500/92 Communication Gateway provides Modbus/TCP connectivity for data integration with the plant historian and the System 1 Evolution asset management platform.

At the human-machine interface layer, operators interact with vibration data through System 1 Evolution dashboards or through DCS faceplates that display real-time gap, vibration amplitude, and alarm status for each monitored bearing. In facilities where the 3300 Series rack is integrated into a broader safety instrumented system, the monitor’s relay outputs are wired to a Triconex Tricon Safety PLC or equivalent SIL-rated controller, ensuring that protective shutdown logic meets IEC 61511 requirements. Terminal blocks — such as the Phoenix Contact PTFIX series or equivalent DIN-rail mounted marshalling components — provide the field wiring interface between the Proximitor outputs and the monitor rack inputs, maintaining signal integrity across the full signal chain.

Industrial Application Notes

In power generation facilities, the 330851-02-000-070-90-00-CN is deployed on steam turbine and gas turbine bearing housings, where continuous shaft vibration monitoring is mandated by API 670 and plant insurance requirements. The probe’s high-temperature rating and robust coaxial construction make it suitable for the demanding thermal and vibration environment of turbine pedestals, where ambient temperatures can approach the probe’s rated limits during full-load operation.

In petrochemical and refinery applications, the probe is installed on centrifugal compressors, reactor agitators, and boiler feed pumps in ATEX Zone 1 or Zone 2 classified areas. The system architecture in these environments typically includes intrinsic safety barriers or Zener barriers between the Proximitor and the monitor rack, ensuring that the field circuit remains within safe energy limits even under fault conditions. The warranty terms confirmed during quotation provided by ZYPLC supports the procurement strategies of turnaround maintenance teams who require certified spare parts with documented traceability.

In water treatment and pumping stations, the 330851-02-000-070-90-00-CN monitors large vertical turbine pumps and horizontal split-case pumps, where bearing wear and rotor imbalance are the primary failure modes. The non-contact measurement principle eliminates the wear and drift associated with contact-type displacement sensors, providing a maintenance-free sensing solution that remains accurate over multi-year service intervals between planned outages.

In mining and mineral processing facilities, the probe is applied to SAG mill pinion bearings, crusher main shafts, and conveyor drive gearboxes, where high shock loads and contaminated environments challenge conventional sensing technologies. The eddy-current principle’s immunity to oil, dust, and moisture makes the 330851-02-000-070-90-00-CN particularly well-suited to these harsh conditions, provided the probe tip is protected by an appropriate mounting boss and the cable routing avoids mechanical damage from mobile equipment.

In metallurgical and steel mill applications, the probe monitors rolling mill drive spindles and continuous caster roll bearings, where precise axial and radial position control directly affects product quality. Integration with the plant’s Level 2 process control system via the 3300 Series communication gateway enables correlation of vibration data with rolling force, speed, and temperature measurements, supporting both quality control and predictive maintenance objectives.

Product Compatibility FAQ

Q1: Is the 330851-02-000-070-90-00-CN compatible with existing 3300 Series monitor racks, and does it require recalibration of the monitor channel?
The 330851-02-000-070-90-00-CN is fully compatible with all 3300 Series monitor modules, including the 3300/16, 3300/20, and 3300/25, provided the monitor channel is configured for the correct probe sensitivity factor (7.87 V/mm for standard 8 mm probes). When replacing a probe of the same part number and configuration variant, no monitor recalibration is required — only the physical gap must be reset to the specified nominal value using the Bently Nevada gap-setting procedure. If replacing a probe of a different configuration variant or sensitivity, the monitor channel scale factor must be updated accordingly.

Q2: How does the -CN configuration variant affect system architecture compatibility, and can it be used interchangeably with non-CN variants?
The -CN suffix designates a specific configuration of the 330851 probe family, encompassing cable length, connector type, temperature rating, and sensitivity calibration. While the fundamental eddy-current operating principle is identical across variants, the -CN configuration is optimized for specific installation parameters and should not be substituted with non-CN variants without verifying that the replacement probe’s sensitivity factor, gap range, and connector interface are compatible with the installed Proximitor and monitor channel configuration. ZYPLC’s technical team can assist with cross-reference verification prior to procurement.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability for the 330851-02-000-070-90-00-CN?
All 330851-02-000-070-90-00-CN units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failure under normal operating conditions. The warranty covers the probe assembly including the coaxial cable and connector, and ZYPLC provides replacement or refund for units that fail within the warranty period subject to inspection. For long-term spare parts planning, ZYPLC supports RFQ sourcing for the 330851-02-000-070-90-00-CN and matched system components — including extension cables and Proximitor sensors — to support planned maintenance outages and emergency replacements with short lead times and global shipping capability.
