Bently Nevada 330854-040-25-00 System-Ready Extension Cable for 3500

Bently Nevada 330854-040-25-00 System-Ready Extension Cable for 3500 Control Architecture

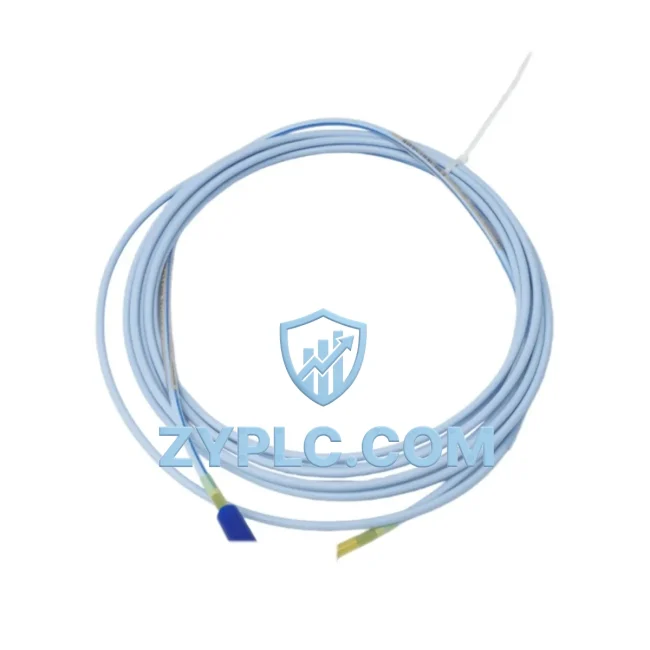

The Bently Nevada 330854-040-25-00 Extension Cable is a precision-engineered signal transmission component designed to operate within the Bently Nevada 3500 Series machinery protection and condition monitoring architecture. Rather than functioning as a standalone accessory, this cable serves as a critical link in the signal chain that connects proximity probes to proximitor/driver modules, enabling accurate, low-noise vibration and position data to flow continuously from rotating machinery to the monitoring and protection layer of the control system. In high-stakes industrial environments — including power generation turbines, compressor trains, centrifugal pumps, and large rotating machinery in petrochemical and refining facilities — signal integrity across every cable segment is non-negotiable. The 330854-040-25-00 is engineered to meet those demands with consistent impedance, shielded construction, and connector compatibility that preserves the calibrated performance of the entire 3500 system loop.

Within the Bently Nevada 3500 architecture, the extension cable occupies the signal path between the proximity probe (typically an 8mm or 11mm probe from the 330100 or 330130 series) and the proximitor module (such as the 3300 XL 8mm or 11mm proximitor). The cable’s 25-foot (approximately 7.6 m) length is a standard extension dimension that, when combined with the probe’s integral cable, achieves the total system cable length required for proper proximitor calibration — typically 5 meters, 9 meters, or other system-defined lengths. Deviating from the correct total cable length introduces gap voltage errors and scale factor shifts that compromise both vibration amplitude accuracy and radial position readings. The 330854-040-25-00 is therefore not merely a passive conductor but an active calibration element within the measurement loop.

From a system architecture perspective, the 330854-040-25-00 integrates into the I/O and signal acquisition layer of the 3500 rack-based monitoring system. The 3500 rack itself — housing modules such as the 3500/22M Transient Data Interface, 3500/40M Proximitor/Seismic Monitor, 3500/42M Proximitor/Seismic Monitor, and 3500/45 Position Monitor — depends on clean, calibrated input signals to execute protection logic, generate alarms, and communicate machine health data upstream to the DCS or SCADA layer via Modbus, Ethernet, or other supported protocols. Any degradation in the extension cable — whether from connector corrosion, shield discontinuity, or impedance mismatch — propagates directly into the monitor’s measurement accuracy and, ultimately, into the reliability of the protection system’s trip decisions.

In layered automation architectures, the 3500 system typically sits at the machinery protection layer, interfacing downward with field-mounted sensors and upward with plant-level control and historian systems. The 330854-040-25-00 extension cable supports this architecture by ensuring that the field sensor layer communicates with the monitor layer without signal compromise. When paired with correctly specified probes, proximitors, and 3500 rack modules, the cable contributes to a system capable of detecting shaft radial vibration, axial position, differential expansion, eccentricity, and speed — all critical parameters for turbomachinery protection in power, oil and gas, and process industries.

Redundancy and long-term maintainability are central considerations in any serious machinery protection deployment. Facilities operating critical rotating equipment typically maintain spare cable assemblies — including the 330854-040-25-00 — as part of their critical spare parts inventory strategy. Having verified, OEM-compatible extension cables on hand eliminates the risk of extended downtime caused by cable failure during a planned or unplanned maintenance window. Our supply of the 330854-040-25-00 is backed by a 12-Month Warranty, providing assurance of component authenticity and functional reliability from the moment of installation through the first year of service.

Architecture Specification Table

Coordinated Control System Design

The 330854-040-25-00 extension cable achieves its full value only when considered as part of a coordinated system design. In a typical 3500-based machinery protection deployment, the signal chain begins at the proximity probe — commonly a Bently Nevada 330100-90-05 or 330130-080-01-00 probe mounted at the bearing — and passes through the extension cable to the 3300 XL Proximitor module, which conditions the eddy-current signal into a calibrated voltage output. This conditioned signal then feeds into a 3500/40M Proximitor/Seismic Monitor or 3500/42M dual-channel monitor housed within the 3500 rack.

The 3500 rack itself is powered by the 3500/15 Power Supply or 3500/15LF Low-Frequency Power Supply, which provides regulated DC power to all installed modules. The rack’s backplane distributes both power and communication signals across modules, including the 3500/20 Rack Interface Module, which manages communication between the rack and external systems via Modbus RTU, Modbus TCP/IP, or other supported protocols. For facilities requiring time-synchronized data acquisition, the 3500/22M Transient Data Interface captures high-resolution waveform data for post-event analysis and trending.

At the human-machine interface layer, operators interact with 3500 system data through plant DCS consoles or dedicated condition monitoring workstations running System 1 software, which aggregates vibration, position, and process data from multiple 3500 racks across the facility. The extension cable’s role — though invisible at the HMI layer — is foundational: without accurate signal transmission from probe to proximitor, every upstream display, alarm, and protection decision is compromised. Facilities also frequently deploy 3500/32 4-Channel Relay Module units within the rack to execute relay-based trip and alarm outputs, and the 3500/50M Tachometer Module for speed and phase reference measurements on rotating shafts.

In redundant architecture designs, critical measurement points are often covered by dual-probe, dual-proximitor configurations, with each channel routed through independently routed extension cables to separate monitor inputs. This approach ensures that a single cable failure does not result in a protection gap. Maintaining a verified spare inventory of the 330854-040-25-00 — alongside spare probes, proximitor modules, and rack power supplies — is a standard practice in facilities operating to API 670 machinery protection standards.

Application in Layered Automation Systems

The Bently Nevada 330854-040-25-00 Extension Cable finds application across a broad range of industries where rotating machinery protection is critical to operational continuity and safety.

In power generation, steam turbines and gas turbines driving generators operate continuously at high speeds and temperatures. The 3500 system, connected via extension cables like the 330854-040-25-00, monitors shaft radial vibration, axial position, and differential expansion in real time, providing the protection layer that prevents catastrophic bearing failures and rotor damage. In oil and gas processing, centrifugal compressors and expanders in LNG trains, gas processing plants, and pipeline compression stations rely on 3500-based protection systems to maintain safe operating envelopes. The extension cable’s shielded construction is particularly valuable in these environments, where variable-frequency drives, high-voltage switchgear, and other EMI sources are present in close proximity to instrumentation cabling.

In petrochemical and refining facilities, large process pumps, blowers, and agitators in continuous service benefit from the 3500 system’s ability to detect early-stage bearing degradation through vibration trending. The 330854-040-25-00 extension cable, as part of the calibrated measurement loop, ensures that subtle changes in vibration amplitude — often the first indicator of developing faults — are accurately captured and reported. In water and wastewater treatment, large vertical turbine pumps and centrifugal blowers in aeration systems are increasingly protected by 3500-based monitoring, with extension cables routed through cable trays and conduit to proximitor modules mounted in local junction boxes or control panels.

In mining and minerals processing, ball mills, SAG mills, and large conveyor drive systems present extreme vibration environments where robust, shielded cabling is essential for reliable signal transmission. The 330854-040-25-00’s construction is suited to these demanding conditions. In metallurgical and steel production facilities, rolling mill drives and large induction furnace blowers similarly benefit from continuous vibration monitoring enabled by properly specified and installed extension cable assemblies.

Architecture Engineering FAQ

Q1: Is the 330854-040-25-00 compatible with all Bently Nevada 3500 Series monitors, and how does cable length affect system calibration?
The 330854-040-25-00 is designed for use within the Bently Nevada 3500 Series architecture and is compatible with 3500/40M, 3500/42M, and 3500/45 monitors when used with the appropriate probe and proximitor combination. Cable length is critical: the total cable length (probe integral cable + extension cable) must match the proximitor’s calibrated length specification — typically 5 m, 9 m, or as specified in the system documentation. Using an incorrect total length shifts the proximitor’s gap voltage output and scale factor, introducing measurement errors. Always verify the total system cable length against the proximitor calibration certificate and Bently Nevada system documentation before installation.

Q2: Can the 330854-040-25-00 be used in a redundant dual-channel protection architecture, and what installation practices are recommended?
Yes. In redundant protection architectures compliant with API 670, dual proximity probes are mounted at 90° intervals at each bearing measurement plane, each connected via its own independently routed extension cable to separate monitor channels. The 330854-040-25-00 should be routed in dedicated instrumentation cable trays, separated from power cables, and terminated with care to avoid connector damage or shield discontinuity. Connectors should be inspected for corrosion and mechanical integrity during each planned maintenance outage. Spare cables should be stored in a controlled environment and replaced on a condition-based or time-based maintenance schedule to ensure protection system availability.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term spare parts availability for 3500 Series components?
The 12-Month Warranty covers the 330854-040-25-00 against defects in materials and workmanship from the date of shipment. If the cable exhibits any functional failure attributable to manufacturing defects within this period, ZYPLC will provide a replacement. Beyond the warranty period, ZYPLC maintains ongoing inventory of 3500 Series components — including extension cables, proximity probes, proximitor modules, and rack components — to support long-term spare parts programs for facilities operating critical rotating machinery. Our technical team can assist with system compatibility verification, cable length specification, and procurement planning to ensure your 3500 protection system remains fully operational throughout its service life.
