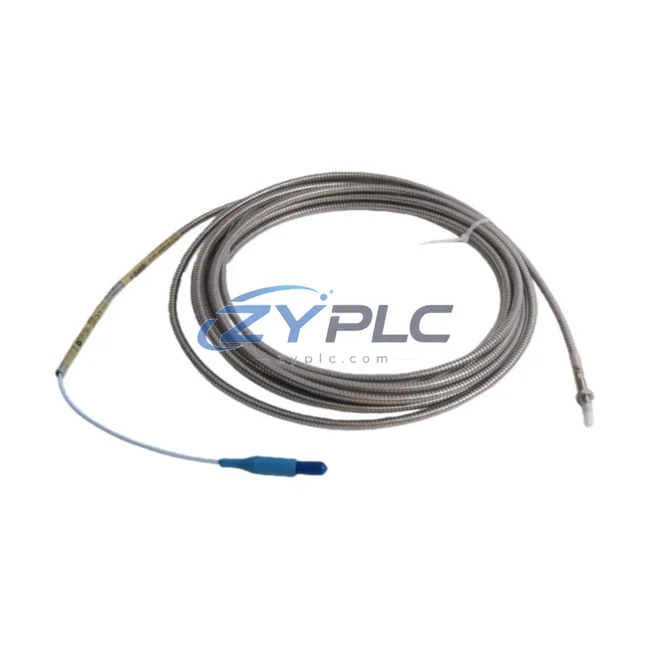

Bently Nevada 330904-00-05-70-01-05 Proximity Probe for 3300 Series

Bently Nevada 330904-00-05-70-01-05 Proximity Probe for 3300 Series Automation

In modern industrial facilities where energy efficiency and equipment uptime are mission-critical, the Bently Nevada 330904-00-05-70-01-05 proximity probe delivers precision vibration and position sensing that directly supports reduced unplanned downtime, optimized motor control, and improved production line throughput. As part of the renowned Bently Nevada 3300 XL Series continuous monitoring system, this eddy-current proximity probe is engineered to provide real-time shaft displacement data that enables predictive maintenance strategies — eliminating unplanned downtime and the energy losses associated with degraded rotating machinery.

The 330904-00-05-70-01-05 features a 5 mm probe tip diameter, 7.0 m (23 ft) integral cable, and is calibrated for use with the 3300 XL 8mm Proximitor® Sensor, forming a complete sensing chain that feeds accurate gap voltage signals into the plant’s condition monitoring infrastructure. When paired with the Bently Nevada 3500/42M proximitor I/O module and the 3500 Rack monitoring system, this probe enables continuous, high-resolution tracking of rotor dynamics — data that is indispensable for industrial automation system.

Product Specification Table

System Compatibility and Application

The 330904-00-05-70-01-05 proximity probe does not operate in isolation — it is a foundational sensing element within a layered industrial automation system. In a typical high-efficiency plant configuration, this probe is mounted radially on a rotating shaft and connected to the Bently Nevada 3300 XL 8mm Proximitor® Sensor, which converts the eddy-current field disturbance into a calibrated DC voltage proportional to the gap between probe tip and shaft surface. This analog signal is then routed to the Bently Nevada 3500/42M Proximitor I/O Module housed within the 3500 Rack, where it is processed alongside inputs from other channel cards such as the 3500/40M Proximitor I/O for redundant shaft monitoring.

At the drive and control layer, variable frequency drives (VFDs) — such as those in the ABB ACS880 or Siemens SINAMICS S120 series — rely on accurate shaft feedback to modulate motor speed and torque in real time. When the 330904-00-05-70-01-05 detects abnormal shaft orbit or increasing vibration amplitude, the 3500 system issues alerts that trigger the VFD to reduce load or initiate a controlled ramp-down, preventing the motor from operating in an inefficient, high-vibration state that consumes excess energy. This closed-loop interaction between proximity sensing and drive control is central to maintenance planning in rotating equipment.

For power quality and energy consumption monitoring, the proximity probe data is correlated with readings from power monitoring devices such as the Schneider Electric PowerLogic ION9000 or Siemens SENTRON PAC3200 power meters. When vibration levels rise, power draw typically increases disproportionately — a pattern that maintenance planning systems can flag as an efficiency anomaly. The Bently Nevada System 1 software platform aggregates proximity probe data, process variables, and energy metrics into a unified dashboard, enabling plant engineers to identify which machines are consuming more power than their mechanical condition justifies.

At the I/O and communication layer, the 3500 rack interfaces with plant DCS or PLC platforms — including Rockwell Automation ControlLogix or Emerson DeltaV — via Modbus TCP or FOUNDATION Fieldbus, ensuring that vibration-derived energy efficiency data flows seamlessly into the plant’s overall automation and maintenance planning strategy. HMI terminals running on Wonderware InTouch or GE iFIX display real-time shaft displacement trends alongside energy KPIs, giving operators a complete picture of machine health and power consumption on a single screen.

Maintenance and Replacement Notes

In petrochemical plants, power generation facilities, and large-scale manufacturing environments, rotating machinery — including centrifugal compressors, steam turbines, boiler feed pumps, and induced draft fans — accounts for the majority of electrical energy consumption. When these machines operate with misalignment, imbalance, or bearing wear, they draw significantly more current than their design specifications require. The Bently Nevada 330904-00-05-70-01-05 proximity probe addresses this energy drain at its root by providing continuous, high-resolution shaft displacement data that reveals mechanical degradation before it escalates into efficiency loss or catastrophic failure.

Consider a centrifugal compressor train in a gas processing plant: without continuous proximity monitoring, operators may not detect gradual rotor imbalance until vibration becomes severe enough to trigger a manual inspection — by which point the machine may have been running at 15–20% above its optimal power consumption for weeks. With the 330904-00-05-70-01-05 installed and connected to the 3500 monitoring rack, the system detects the developing imbalance within hours of onset. Maintenance teams can schedule a corrective balancing procedure during the next planned outage, restoring the machine to its design efficiency curve and eliminating the excess energy consumption.

On automotive and electronics assembly lines, where servo-driven conveyors and precision positioning systems must maintain exact cycle times, proximity probes provide the position feedback that allows servo amplifiers to minimize dwell time and optimize motion profiles. Reduced cycle time variance directly translates to lower energy consumption per unit produced, as machines spend less time in high-torque, low-speed correction modes. The 330904-00-05-70-01-05, with its wide frequency response (DC to 10,000 Hz), captures both slow shaft runout and high-frequency structural resonances that would otherwise cause servo systems to over-correct and waste energy.

Every unit shipped from our inventory undergoes a rigorous outgoing functional test, verifying probe sensitivity, cable integrity, and connector continuity before dispatch. This pre-shipment testing protocol ensures that the 330904-00-05-70-01-05 arrives ready for immediate installation, reducing commissioning time and the associated energy costs of extended startup procedures. Combined with our warranty terms confirmed during quotation, this testing commitment reflects our confidence in the product’s reliability and our dedication to supporting your plant’s maintenance planning goals from day one.

Product Sourcing FAQ

Q1: How does the 330904-00-05-70-01-05 contribute to measurable operational stability in rotating machinery applications?
By providing continuous, high-resolution shaft displacement data, this proximity probe enables predictive maintenance strategies that keep rotating equipment operating at its design efficiency point. Machines with developing imbalance, misalignment, or bearing wear consume 10–25% more energy than healthy machines. Early detection and correction of these conditions — made possible by the 330904-00-05-70-01-05 — directly reduces this excess consumption and lowers overall plant energy costs.

Q2: Is the 330904-00-05-70-01-05 compatible with existing Bently Nevada 3300 and 3500 Series monitoring infrastructure?
Yes. The 330904-00-05-70-01-05 is designed for use with the Bently Nevada 3300 XL 8mm Proximitor® Sensor and is fully compatible with the 3500 Series rack-based monitoring system. It integrates seamlessly into existing 3300/3500 installations without requiring hardware modifications, making it an ideal drop-in replacement or expansion component for plants already invested in the Bently Nevada monitoring ecosystem.

Q3: What is the recommended replacement and testing procedure for this proximity probe?
When replacing the 330904-00-05-70-01-05, verify the new probe’s static sensitivity (nominally -7.87 V/mm) using a calibrated gap tool before installation. After installation, perform a slow-roll check to establish a baseline gap voltage and confirm the probe is reading within the linear range of the Proximitor sensor. All units supplied by ZYPLC have passed pre-shipment functional testing, so incoming inspection can focus on physical condition and connector integrity.

Q4: What warranty and after-sales support is provided with the 330904-00-05-70-01-05?
Every 330904-00-05-70-01-05 supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failure under normal operating conditions. Our technical team is available to support installation, commissioning, and troubleshooting queries. For urgent requirements, availability confirmed by RFQ units can be dispatched promptly following outgoing test completion.
