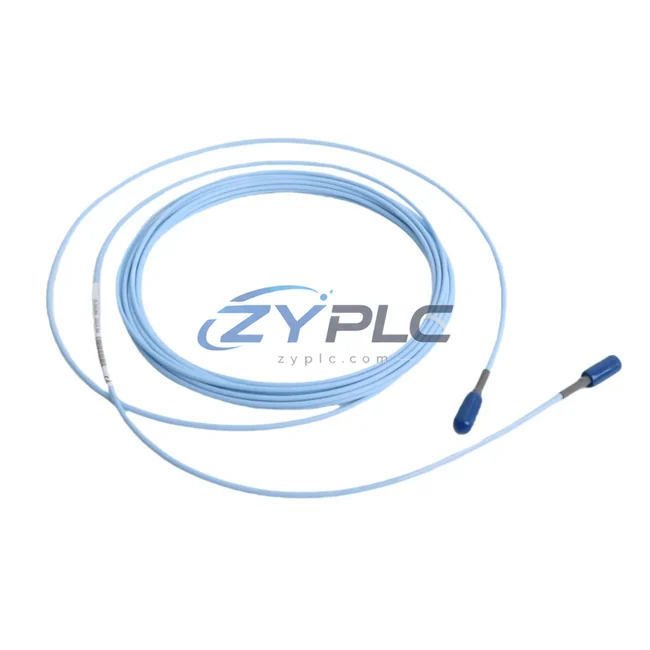

The Bently Nevada 330930-060-06-05 NSv Extension Cable is a precision-engineered signal transmission component designed to operate as an integral element within the Bently Nevada 3300 Series machinery protection and condition monitoring architecture. Rather than functioning as a standalone accessory, this extension cable serves as a critical link in the signal chain that connects proximity probes to their corresponding Proximitor sensors, ensuring accurate, low-noise vibration and position data flows reliably from the machine shaft to the monitoring system. In high-stakes industrial environments — including power generation, petrochemical processing, rotating machinery, and turbomachinery — signal integrity at every layer of the control architecture is non-negotiable, and the 330930-060-06-05 is engineered to meet exactly that standard.

Within a complete Bently Nevada 3300 system deployment, this NSv extension cable bridges the physical gap between the probe tip installed at the machine and the Proximitor sensor mounted in the field junction box or control cabinet. The cable’s shielded, low-capacitance construction preserves the eddy-current signal generated by the 3300 XL 8mm Proximity Probe or the 3300 5mm Proximity Probe, preventing signal degradation across extended cable runs. This is especially important in large turbine halls, compressor trains, and pump stations where probe-to-sensor distances routinely exceed standard cable lengths. The 330930-060-06-05 provides a 6-meter (approximately 20-foot) extension run, making it suitable for medium-distance installations without requiring custom cable fabrication.

Product Specification Table

System Compatibility Notes

The 330930-060-06-05 NSv Extension Cable does not operate in isolation — it is one component in a tightly coordinated signal chain that spans multiple system layers. At the sensing layer, the cable connects directly to the Bently Nevada 3300 XL 8mm Proximity Probe (typically part number 330780-50-00 or similar) or the 3300 5mm Proximity Probe, both of which generate the raw eddy-current signal used to measure shaft vibration, axial position, and differential expansion. The extension cable then routes this signal to the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-X1-05 or 330180-91-00 series), which conditions and converts the signal into a usable analogue output.

From the Proximitor sensor, the conditioned signal feeds into the Bently Nevada 3500 Series Rack — the central monitoring and protection platform in most large rotating machinery installations. Within the 3500 rack, modules such as the 3500/42M Proximitor/Seismic Monitor or the 3500/40M Proximitor Monitor receive the signal and apply alarm and trip logic. The rack itself is powered by the 3500/15 Power Supply or the 3500/15L Low-Power Supply, with redundant power configurations available for critical machinery protection applications. Communication from the 3500 rack to the plant DCS or SCADA system is handled via the 3500/92 Communication Gateway, which supports Modbus, Ethernet/IP, and other industrial protocols, ensuring that vibration and position data is available at the control layer for operator decision-making.

For installations requiring local display and alarm acknowledgement, the Bently Nevada 3500/94 Display Interface Module or a compatible HMI workstation running System 1 Condition Monitoring Software provides real-time trending, alarm management, and historical data storage. At the field junction level, the extension cable is typically routed through a Bently Nevada Field Junction Box or equivalent IP65-rated enclosure, protecting the cable terminations from moisture, dust, and mechanical damage in harsh plant environments. Together, these components — probe, extension cable, Proximitor sensor, monitor rack, power supply, communication gateway, and HMI — form a complete, validated machinery protection architecture that meets API 670 requirements for critical rotating equipment.

Industrial Application Notes

The 330930-060-06-05 NSv Extension Cable finds application across a broad range of process industries where continuous, reliable shaft monitoring is essential to plant safety and operational continuity.

In power generation — including gas turbines, steam turbines, and hydro generators — the extension cable enables precise radial vibration and axial position monitoring on high-speed rotating shafts. Turbine OEMs and EPC contractors specify Bently Nevada 3300 series probe systems as the standard for API 670-compliant installations, and the 330930-060-06-05 provides the cable length flexibility needed to route signals from bearing housings to remote Proximitor sensor enclosures without signal loss.

In petrochemical and refinery applications, the cable is deployed on centrifugal compressors, boiler feed pumps, and reactor agitators where continuous vibration monitoring is mandated by process safety management (PSM) regulations. The cable’s robust shielding resists electromagnetic interference from variable frequency drives (VFDs), motor control centres (MCCs), and high-voltage switchgear commonly found in these environments.

In water and wastewater treatment, large vertical turbine pumps and horizontal split-case pumps benefit from proximity probe monitoring to detect bearing wear, shaft misalignment, and impeller imbalance before catastrophic failure occurs. The 330930-060-06-05 provides the installation flexibility needed for pump stations where probe-to-sensor distances vary depending on pump size and pit depth.

In mining and minerals processing, the cable supports monitoring of SAG mills, ball mills, slurry pumps, and conveyor drive systems — applications where vibration data is critical for predictive maintenance programmes aimed at reducing unplanned downtime in high-throughput production environments.

Product Compatibility FAQ

Q1: Is the 330930-060-06-05 compatible with both the 3300 XL 8mm and 3300 5mm proximity probe systems?
Yes. The 330930-060-06-05 NSv Extension Cable is designed for use within the Bently Nevada 3300 NSv (Non-Standard Voltage) probe system family, which includes both the 3300 XL 8mm and 3300 5mm probe configurations. It is important to verify that the complete probe-cable-Proximitor system (probe, extension cable, and Proximitor sensor) are all specified as NSv-compatible components, as NSv and standard voltage (Sv) components are not interchangeable within the same signal chain. Mixing NSv and Sv components will result in calibration errors and incorrect output signals.

Q2: Can this extension cable be used in a redundant monitoring architecture, and does it affect system certification?
The 330930-060-06-05 is fully compatible with redundant probe configurations as used in API 670-compliant dual-probe installations. In redundant architectures, two independent probe-cable-Proximitor signal chains are routed to separate monitor channels within the 3500 rack, providing voting logic (e.g., 2-out-of-2 or 1-out-of-2 trip logic) for critical machinery protection. Using genuine Bently Nevada extension cables — rather than third-party substitutes — ensures that the system’s SIL rating and OEM certification are maintained. Our warranty terms confirmed during quotation covers the cable under normal operating conditions and supports your site’s maintenance documentation requirements.

Q3: What are the long-term maintenance and stock management considerations for this cable in a large plant?
For plants operating multiple rotating machines on a common Bently Nevada 3300/3500 platform, maintaining a small buffer stock of 330930-060-06-05 extension cables is a recognised best practice in predictive maintenance programmes. Extension cables are subject to mechanical wear at termination points, particularly in high-vibration environments or where cables are routed through conduit with tight bends. Periodic inspection of cable shielding continuity and connector integrity — typically during planned outage windows — helps prevent signal degradation before it affects monitoring accuracy. Our warranty terms confirmed during quotation and export shipping options available capability support both emergency replacement and planned maintenance stock replenishment, minimising the risk of extended machinery downtime due to cable failure.
